Display Mount Assembly
Display Mount Assembly

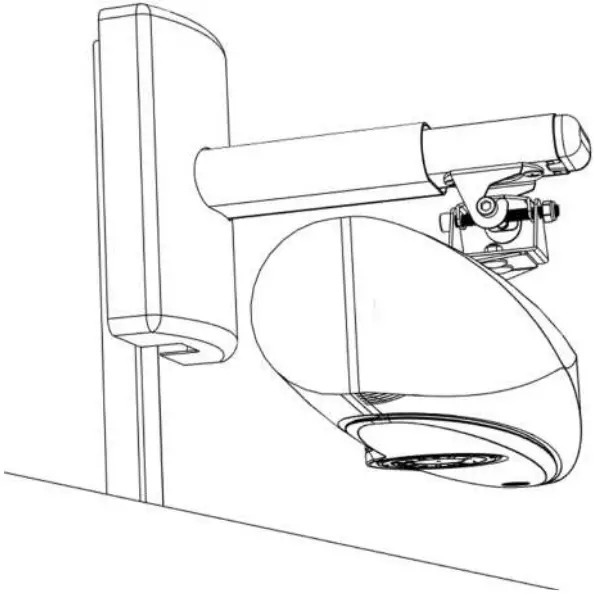

Mounting Kit for Symphony Classroom™
Installation Guide
Limited Warranty Statement:
Your Product Accessory is covered by a Merlyn Mind, Inc. One-Year Standard Limited Warranty, the terms of which can be viewed at
merlyn.org/support.
WARNING / IMPORTANT SAFETY NOTICE
- Do not install the wall mount or the display mount until you have fully read and understood this installation guide.
- Incorrect or improper installation of this product may cause injury or property damage.
- Do not use the wall mount and display mount other than what is specified in the manual.
- Only qualified personnel or a mechanically proficient person should install this wall mount or display mount.
- Use extreme care while mounting the wall mount and device to the display mount to avoid damage to the display.
- It is recommended to have two people when lifting or mounting is involved.
- Our product is intended for indoor use only; do not mount the unit outdoors as it can cause product damage or physical injury.
- Tighten the screws, but not over-torque them.
- Please contact tech support if you have any questions or comments.
Included Hardware
Note: Replacement screws, nuts and washers are included.
A (x3) M8x1.25×20 mm B (x3) M8, Ø:24 mm
C (x6) M8 D (x6) M8x1.25 mm
E (x7) M8, Ø:30 mm F (x4) M8x1.25×30 mm
G (x4) M6x1.0x40 mm H (x3) M6, Ø:17 mm
I (x5) M6, Ø:30 mm J (x4) M6
K (x6) M6x1.0 mm L (x2) M6x1.0x20 mm
M (x1) L-Bracket
IWB Vertical Rail

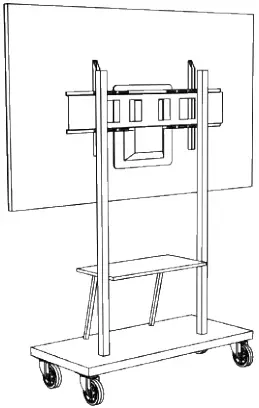

Configuration A: Mounted on the IWB’s vertical rail
1a Attach Display Mount rail to Wall Mount backplate.

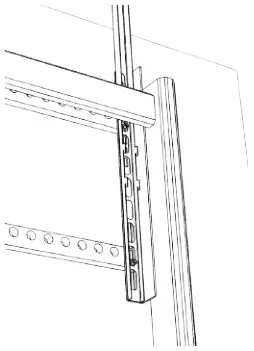

2a Attach Display Mount to IWB vertical rail. Adjust the height of the wall mount by moving the display mount rail up or down.

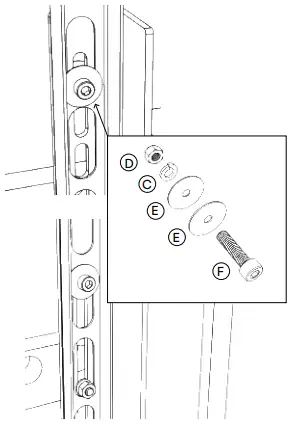

3a Install fasteners on upper and lower part of vertical rail.
4a Install L-bracket on lower part of vertical rail.
5a To complete installation, refer to the Wall Mount Assembly installation guide and follow steps 3 to 10.
IWB Horizontal Rail
Configuration B: Mounted on the IWB’s horizontal rail
1b Attach Display Mount rail to Wall Mount backplate.

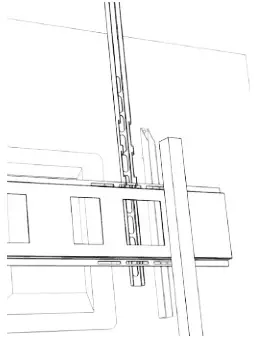

2b Attach Display Mount to IWB horizontal rail. Adjust the height of the wall mount by moving the display mount rail up or down.

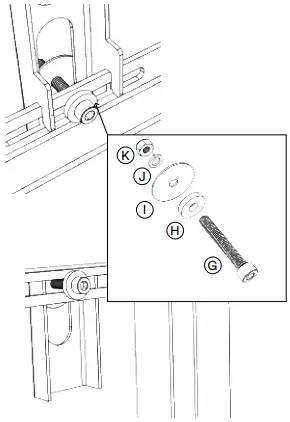

3b Install fasteners on upper and lower part of horizontal rail.
4b Install L-bracket on lower part of vertical rail.
5b To complete installation, refer to the Wall Mount Assembly installation guide and follow steps 3 to 10.
