medifab 2780-0001-052 Duro Stroller User Guide

Contents

medifab 2780-0001-052 Duro Stroller

Product Information

Product Name: Duro Stroller
Description: Paediatric Adaptive Stroller
Distributed by: Scripting and Ordering Guide Client Details
Client/User Name: [Client Name] Date: [Date] NDIS/Funding: [NDIS/Funding Details]

Product Details

Size 1

Order Code: 2780-0001-052
Seat Specifications:
- Seat width: 20 cm
- Seat depth: 30 cm
- Seat angle: [Seat angle]
- Back height: [Back height]
- Back angle: [Back angle]
- Knee angle: [Knee angle]
- Lower leg length: [Lower leg length]
- Folded size (L x W x H): [Folded size]
Base Specifications:
- Max weight: 75 kg
- Front Wheel Diameter: [Front Wheel Diameter]
- Rear Wheel Diameter: [Rear Wheel Diameter]

Size 2

Order Code: 2780-0002-052
Seat Specifications:
- Seat width: 20 cm
- Seat depth: 30 cm
- Seat angle: [Seat angle]
- Back height: [Back height]
- Back angle: [Back angle]
- Knee angle: [Knee angle]
- Lower leg length: [Lower leg length]
- Folded size (L x W x H): [Folded size]
Base Specifications:
- Max weight: 75 kg
- Front Wheel Diameter: [Front Wheel Diameter]
- Rear Wheel Diameter: [Rear Wheel Diameter]

Stroller Package Includes:

The stroller package includes the following items:

Upholstery Colour Options
Turquoise
Red
Seat Upholstery (required)
- Size 1 2780-8801-339
- Size 1 2780-8801-345
- Size 2 2780-8802-339
- Size 2 2780-8802-345
Head Supports
- Head Support Pads
  - Size 1 2880-4471-000 11cm Deep x 16cm High
  - Size 2 2880-4472-000 13cm Deep x 18cm High

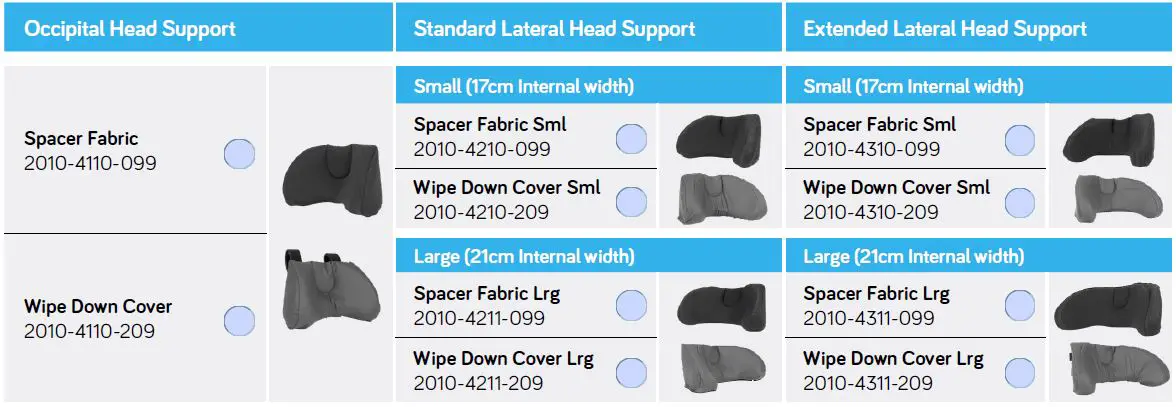

- Occipital Head Support
  - Spacer Fabric 2010-4110-099
  - Wipe Down Cover 2010-4110-209
- Standard Lateral Head Support
  - Small (17cm Internal width) Spacer Fabric Sml 2010-4210-099
    Wipe Down Cover Sml 2010-4210-209
  - Large (21cm Internal width) Spacer Fabric Lrg 2010-4211-099
    Wipe Down Cover Lrg 2010-4211-209
- Extended Lateral Head Support
  - Small (17cm Internal width) Spacer Fabric Sml 2010-4310-099
    Wipe Down Cover Sml 2010-4310-209
  - Large (21cm Internal width) Spacer Fabric Lrg 2010-4311-099
    Wipe Down Cover Lrg 2010-4311-209
Lateral Supports

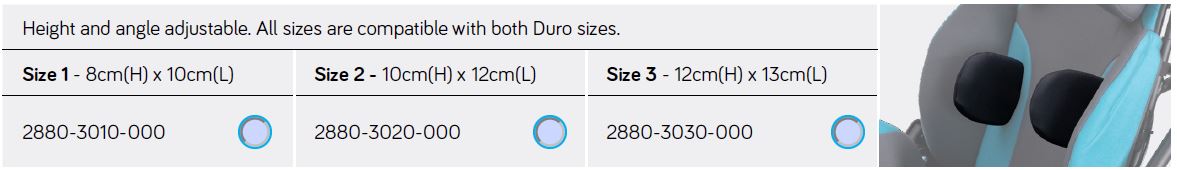

- Standard Lateral Supports
  - Size 1 – 8cm(H) x 10cm(L) 2880-3010-000
  - Size 2 – 10cm(H) x 12cm(L) 2880-3020-000
  - Size 3 – 12cm(H) x 13cm(L) 2880-3030-000

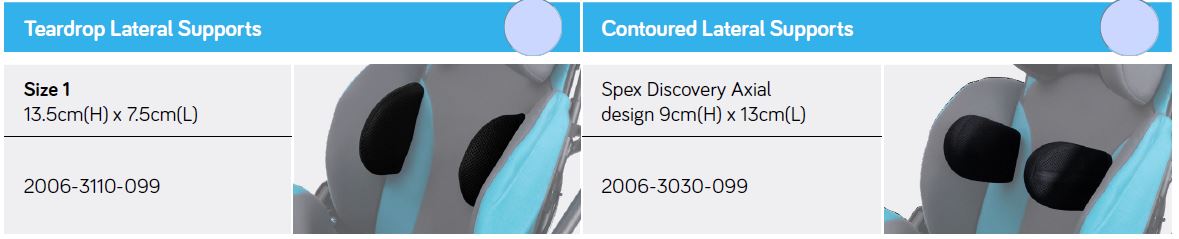

- Teardrop Lateral Supports
  - Size 1 13.5cm(H) x 7.5cm(L) 2006-3110-099
- Contoured Lateral Supports
  - Spex Discovery Axial design 9cm(H) x 13cm(L) 2006-3030-099

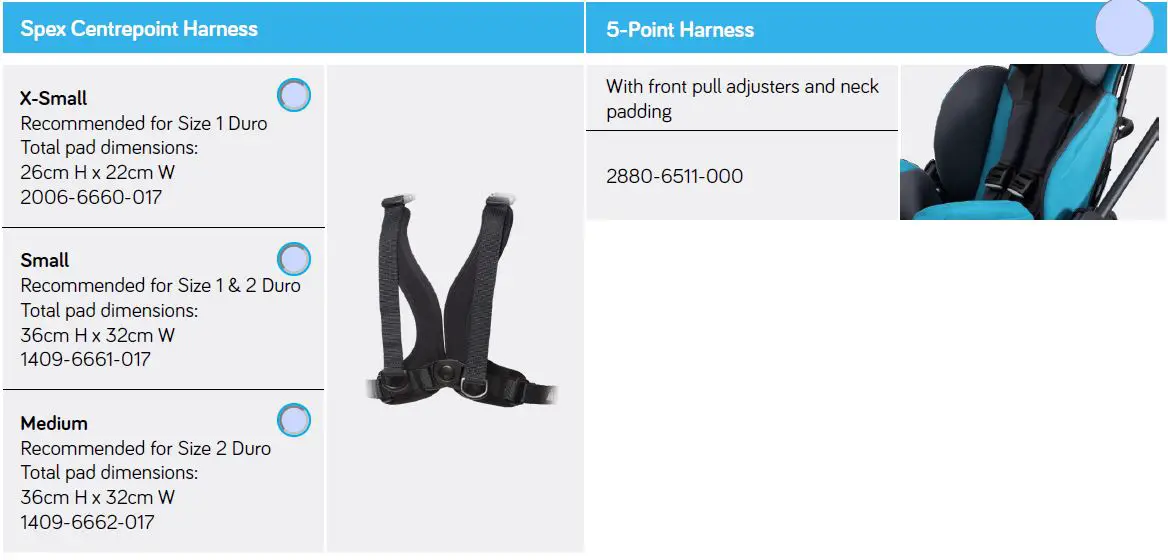

Harness Options
- Spex Centrepoint Harness
  - X-Small Recommended for Size 1 Duro Total pad dimensions: 26cm
    H x 22cm W 2006-6660-017
  - Small Recommended for Size 1 & 2 Duro Total pad dimensions:
    36cm H x 32cm W 1409-6661-017
  - Medium Recommended for Size 2 Duro Total pad dimensions: 36cm H
    x 32cm W 1409-6662-017

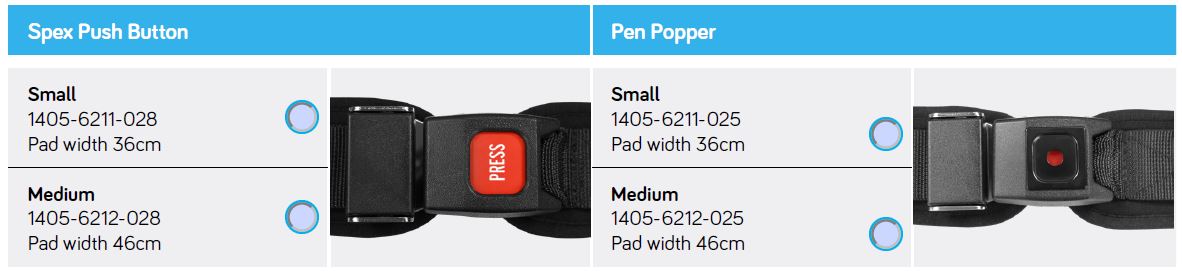

- Hip Belt Options
  - Spex Push Button
    - Small 1405-6211-028 Pad width 36cm
    - Medium 1405-6212-028 Pad width 46cm
  - 5-Point Harness
    - With front pull adjusters and neck padding 2880-6511-000
  - Pen Popper
    - Small 1405-6211-025 Pad width 36cm
    - Medium 1405-6212-025 Pad width 46cm

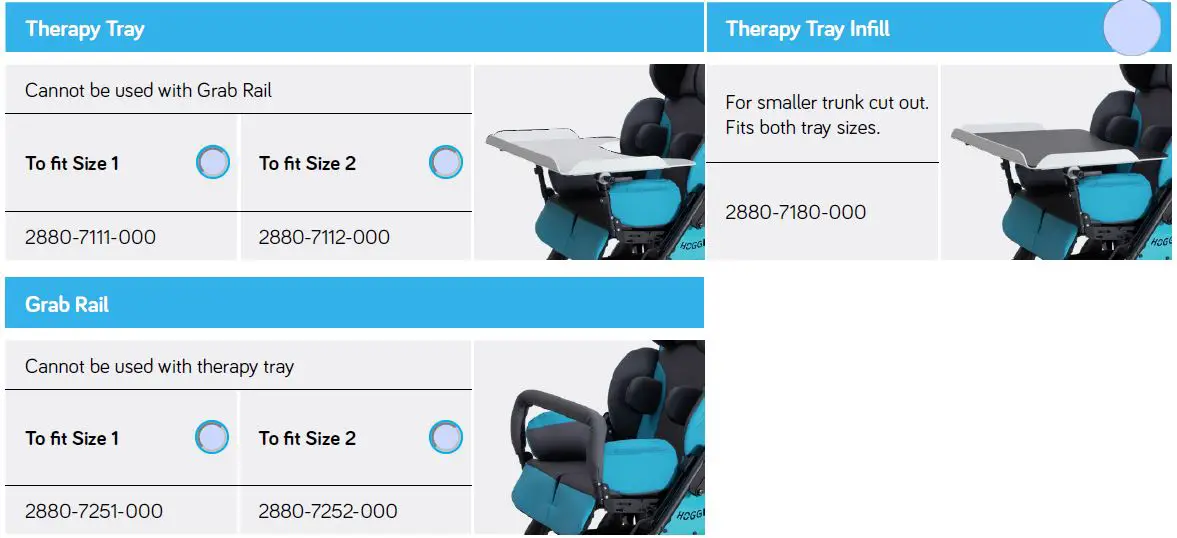

Tray & Grab Rail Options
- Therapy Tray
  - Cannot be used with Grab Rail
  - To fit Size 1 2880-7111-000
  - To fit Size 2 2880-7112-000
- Grab Rail
  - Cannot be used with therapy tray
  - To fit Size 1 2880-7251-000
  - To fit Size 2 2880-7252-000

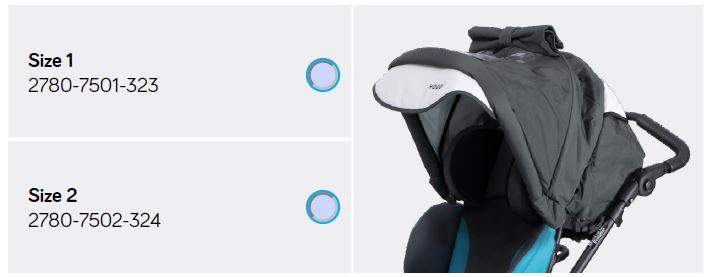

- Canopy
  - Includes mounts and rain cover
  - Size 1 2780-7501-323
  - Size 2 2780-7502-324
- Therapy Tray Infill
  - For smaller trunk cut out. Fits both tray sizes.
    2880-7180-000

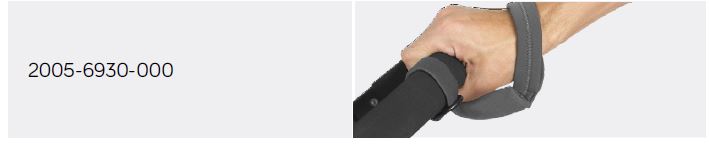

- Hand Strap
  - Wrist safety tether strap 2005-6930-000
- Swivel Lock
  - To hold castors straight when brisk walking

Product Usage Instructions

To use the Duro Stroller, follow these instructions:

Choose the appropriate size (Size 1 or Size 2) based on the user’s needs and specifications.
Assemble the stroller according to the provided user manual. Make sure all components are securely attached.
Select the desired upholstery color for the seat.
If needed, attach head support pads, occipital head support, standard lateral head support, or extended lateral head support based on the user’s requirements.
Adjust the lateral supports to the appropriate height and angle.
If necessary, attach teardrop lateral supports or contoured lateral supports for additional support.
Select a suitable harness option (Spex Centrepoint Harness, Hip Belt Options, or

Product Details

Size 1

Order Code
2780-0001-052

Seat Specifications
Seat width:	23 – 34 cm
Seat depth:	26 – 40 cm
Seat angle:	16 ° or 20 °
Back height:	45 – 63 cm
Back angle:	78 ° – 120 °
Knee angle:	85 ° – 160 °
Lower leg length:	20 – 44 cm
Folded size (L x W x H):	84 x 63 x 32 cm

Base Specifications
Max weight:	75kg
Front Wheel Diameter:	20 cm
Rear Wheel Diameter:	30 cm

Size 2

Order Code
2780-0002-052

Seat Specifications
Seat width:	28 – 39 cm
Seat depth:	31 – 45 cm
Seat angle:	16 ° or 20 °
Back height:	61 – 83 cm
Back angle:	78 ° – 120 °
Knee angle:	85 ° – 160 °
Lower leg length:	20 – 44 cm
Folded size (L x W x H):	84 x 68 x 38 cm
