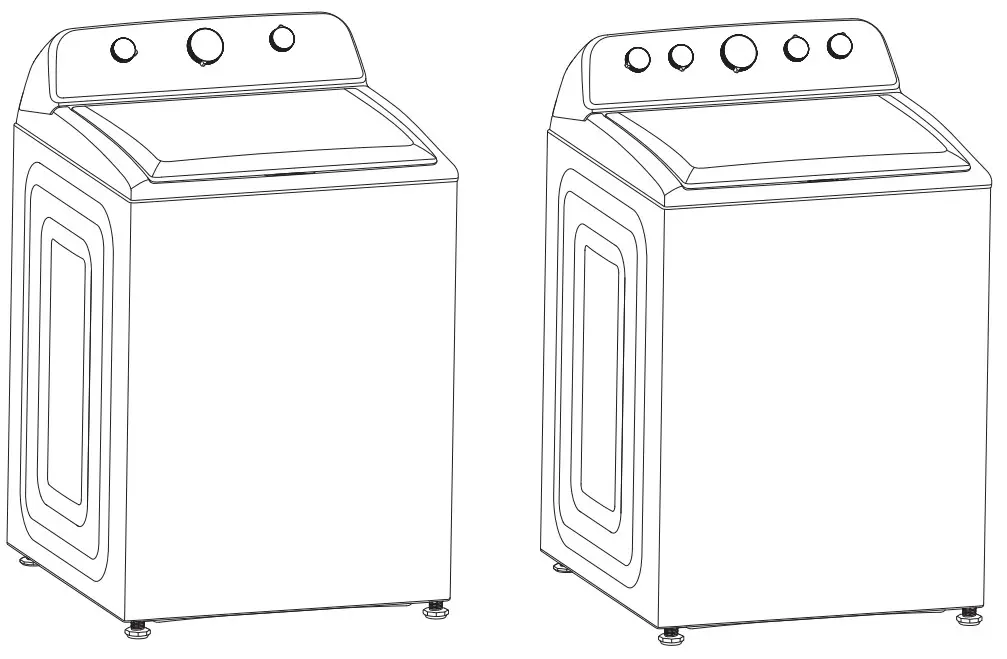

MVW4505MW Top Load Washer
Installation Guide
MVW5035MW, MVW5430MW,
7MMVW5035MW, 7MMVW5435MW
DETAILED PLANNING DIMENSIONS
WARNING: To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS and INSTALLATION INSTRUCTIONS, located in your appliance’s Owner’s Manual, before installing and operating this appliance.
|
Electrical Requirements |
|
| MVW4505MW – 4.5 cu ft DOE (US), 5.2 cu ft IEC (CAN) | |
| MVW5035MW – 4.5 cu ft DOE (US), 5.2 cu ft IEC (CAN) | |
| MVW5430MW – 4.8 cu ft DOE (US), 5.5 cu ft IEC (CAN) | |
| 7MMVW5035MW – 4.5 cu ft DOE (US), 5.2 cu ft IEC (CAN) | |
| 7MMVW5435MW – 4.7 cu ft DOE (US), 5.4 cu ft IEC (CAN) | |
| Minimum Circuit Amperage Rating | 15 A |
| Operating Voltage | 120 V AC only |
| Operating Frequency | 60 Hz |
|
Product Dimensions |
|||||
|
MVW4505MW, MVW5035MW, MVW5430MW, 7MMVW5035MW, 7MMVW5435MW |
|||||
|
in (minimum) |
mm (minimum) | in (maximum) |
mm (maximum) |
||
| A | Height (with feet) | 431∕4 | 1100 | 441∕4 | 1122 |
| B | Width | 273/4 | 683 | – | – |
| C | Top of Lid Height (with feet) | 38 | 966 | 39 | 988 |
| D | Depth | 27 | 692 | – | – |
|
Product Dimensions |
|||||
|
MVW4505MW, MVW5035MW, MVW5430MW, 7MMVW5035MW, 7MMVW5435MW |
|||||
| in (minimum) | mm (minimum) | in (maximum) |
mm (maximum) |
||
| E | Height with Lid Open | 553/4 | 1415 | 563∕8 | 1432 |
| F | Height of Lid | 187∕8 | 449 | – | – |
| G | Width of Lid | 231∕4 | 593 | – | – |
| H | Water Inlet Valves Height | 377∕8 | 962 | 391∕2 | 1003 |
| I | Water Inlet Valves from Side | 41∕2 | 116 | – | – |
| J | Power Cord from Side | 21∕2 | 63 | – | – |
| K | Power Cord Height | 373∕8 | 950 | 371∕2 | 953 |
| Power Cord Length | 62 | 1530 | – | – | |
| L | Drain Hose Outlet Height | 71∕4 | 170 | 73∕4 | 197 |
| M | Drain Hose Outlet from Side | 45∕16 | 107 | – | – |
| Drain Hose Length | 41 | 1040 | – | – | |
| Diameter of Drain Hose | 1 | 25 | – | – | |

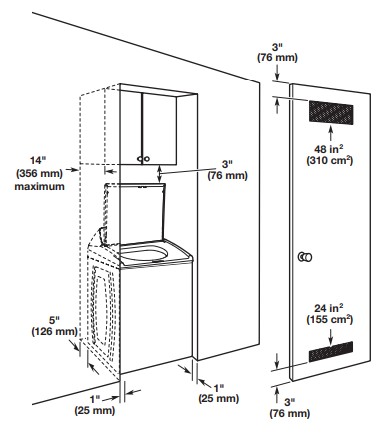

Recessed area or closet installation
Dimensions show recommended spacing allowed, except for closet door ventilation openings which are minimum required. This washer has been tested for installation with spacing of 0″ (0 mm) clearance on the sides. Consider allowing more space for ease of installation and servicing, and spacing for companion appliances and clearances for walls, doors, and floor moldings. Add spacing of 1″ (25 mm) on all sides of washer to reduce noise transfer. If a closet door or louvered door is installed, top and bottom air openings in door are required.
W11436577A
