MATRIX VS-S13 Converging Chest Press Instructions

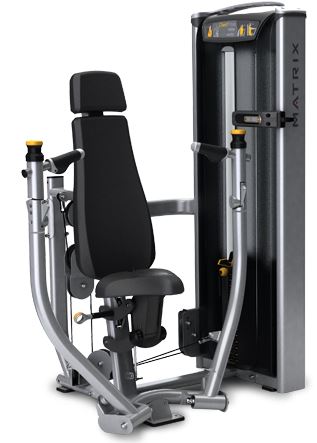

MATRIX VS-S13 Converging Chest Press

Product Information

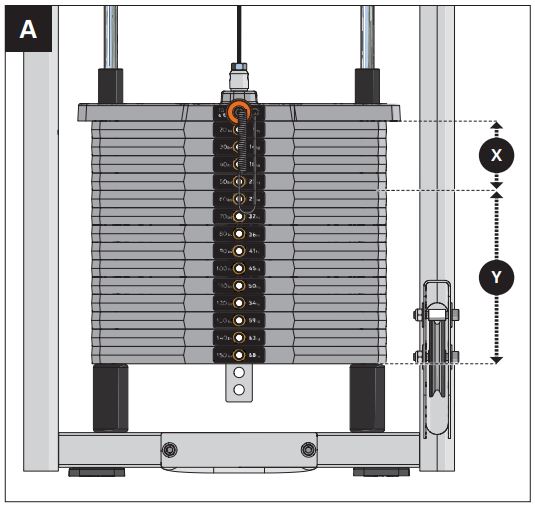

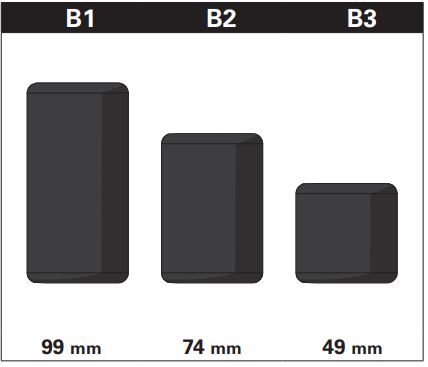

The VERSA Series is a line of exercise machines with various configurations for different muscle groups. The machines use weight stacks for resistance, with weight plates available in 10 lbs / 4.5 kg, 15 lbs / 6.8 kg, and 20 lbs / 9 kg increments. Bumper sizes are available in B1 (99 mm), B2 (74 mm), and B3 (49 mm) sizes. Each machine has a corresponding model number, configuration, and weight stack configuration.

CONFIGURATIONS

MODEL		CONFIGURATION	BUMPER	DECAL	WEIGHT PLATES	TOTAL LABELED WEIGHT
						LBS	KG
VS-S13	Chest Press	Standard Stack – A	B2	D1	X: 15 x 10 lbs + headplate	160	72
		Heavy Stack – A	B3	D2	X: 4 x 10 lbs + headplate / Y: 12 x 15 lbs	230	104
VS-S34	Seated Row	Standard Stack – A	B2	D1	X: 15 x 10 lbs + headplate	160	72
		Heavy Stack – A	B3	D2	X: 4 x 10 lbs + headplate / Y: 12 x 15 lbs	230	104
VS-S72	Seated Leg Curl	Standard Stack – A	B1	D1	X: 14 x 10 lbs + headplate	150	68
		Heavy Stack – A	B1	D2	X: 4 x 10 lbs + headplate / Y: 10 x 15 lbs	200	90
VS-S71	Leg Extension	Standard Stack – A	B2	D1	X: 15 x 10 lbs + headplate	160	72
		Heavy Stack – A	B3	D2	X: 4 x 10 lbs + headplate / Y: 12 x 15 lbs	230	104
VS-S23	Shoulder Press	Standard Stack – A	B2	D1	X: 15 x 10 lbs + headplate	160	72
		Heavy Stack – A	B3	D2	X: 4 x 10 lbs + headplate / Y: 12 x 15 lbs	230	104
VS-S70	Leg Press	Heavy Stack – A	B3	D3	X: 16 x 20 lbs + headplate	415	188
VS-S33	Lat Pulldown	Standard Stack – A	B2	D1	X: 15 x 15 lbs + headplate	160	72
		Heavy Stack – B	B3	D2	X: 4 x 15 lbs + headplate / Y: 12 x 20 lbs	230	104
VS-S42	Seated Triceps Press	Standard Stack – A	B2	D1	X: 15 x 10 lbs + headplate	160	72
		Heavy Stack – A	B3	D2	X: 4 x 10 lbs + headplate / Y: 12 x 15 lbs	230	104
VS-S40	Bicep Curl	Standard Stack – A	B1	D1	X: 14 x 10 lbs + headplate	150	68
		Heavy Stack – A	B1	D2	X: 4 x 10 lbs + headplate / Y: 10 x 15 lbs	200	90
VS-S74	Hip Adductor / Abductor	Standard Stack – A	B2	D1	X: 15 x 10 lbs + headplate	160	72
		Heavy Stack – A	B3	D2	X: 4 x 10 lbs + headplate / Y: 12 x 15 lbs	230	104
VS-S22	Pec Fly / Rear Delt	Standard Stack – A	B1	D1	X: 14 x 10 lbs + headplate	150	68
		Heavy Stack – A	B1	D2	X: 4 x 10 lbs + headplate / Y: 10 x 15 lbs	200	90
VS-S53	Abdominal	Standard Stack – A	B2	D1	X: 15 x 10 lbs + headplate	160	72
		Heavy Stack – A	B3	D2	X: 4 x 10 lbs + headplate / Y: 12 x 15 lbs	230	104
VS-S52	Back Extension	Standard Stack – A	B2	D1	X: 15 x 10 lbs + headplate	160	72
		Heavy Stack – A	B3	D2	X: 4 x 10 lbs + headplate / Y: 12 x 15 lbs	230	104
VS-S78	Glute	Standard Stack – A	B1	D1	X: 14 x 10 lbs + headplate	150	68
VS-S131	Multi Press	Standard Stack – A	B2	D1	X: 15 x 10 lbs + headplate	160	72
		Heavy Stack – A	B3	D2	X: 4 x 10 lbs + headplate / Y: 12 x 15 lbs	230	104
VS-S331	Lat Pulldown / Seated Row	Standard Stack – A	B2	D5	X: 15 x 10 lbs + headplate	160	72
		Heavy Stack – A	B3	D6	X: 4 x 10 lbs + headplate / Y: 12 x 15 lbs	230	104
VS-S401	Bicep / Triceps	Standard Stack – A	B1	D1	X: 14 x 10 lbs + headplate	150	68
		Heavy Stack – A	B1	D2	X: 4 x 10 lbs + headplate / Y: 10 x 15 lbs	200	90
VS-S531	Ab/Back Extension	Standard Stack – A	B2	D1	X: 15 x 10 lbs + headplate	160	72
		Heavy Stack – A	B3	D2	X: 4 x 10 lbs + headplate / Y: 12 x 15 lbs	230	104
VS-S601	Chin / Dip Assist	Heavy Stack – A	B1	D4	X: 14 x 15 lbs + head plate	150	68
VS-S711	Leg Extension / Seated Leg Curl	Standard Stack – A	B2	D1	X: 15 x 10 lbs + headplate	160	72
		Heavy Stack – A	B3	D2	X: 4 x 10 lbs + headplate / Y: 12 x 15 lbs	230	104
MD-S711	Med Leg Ext / Curl	Standard Stack – A	B2	D7	X: 19 x 10 lbs + headplate	205	93
MD-S70	Med Leg Press	Standard Stack – A	B3	D8	X: 15 x 10 lbs + headplate / Y: 7 x 20 lbs	305	138.3

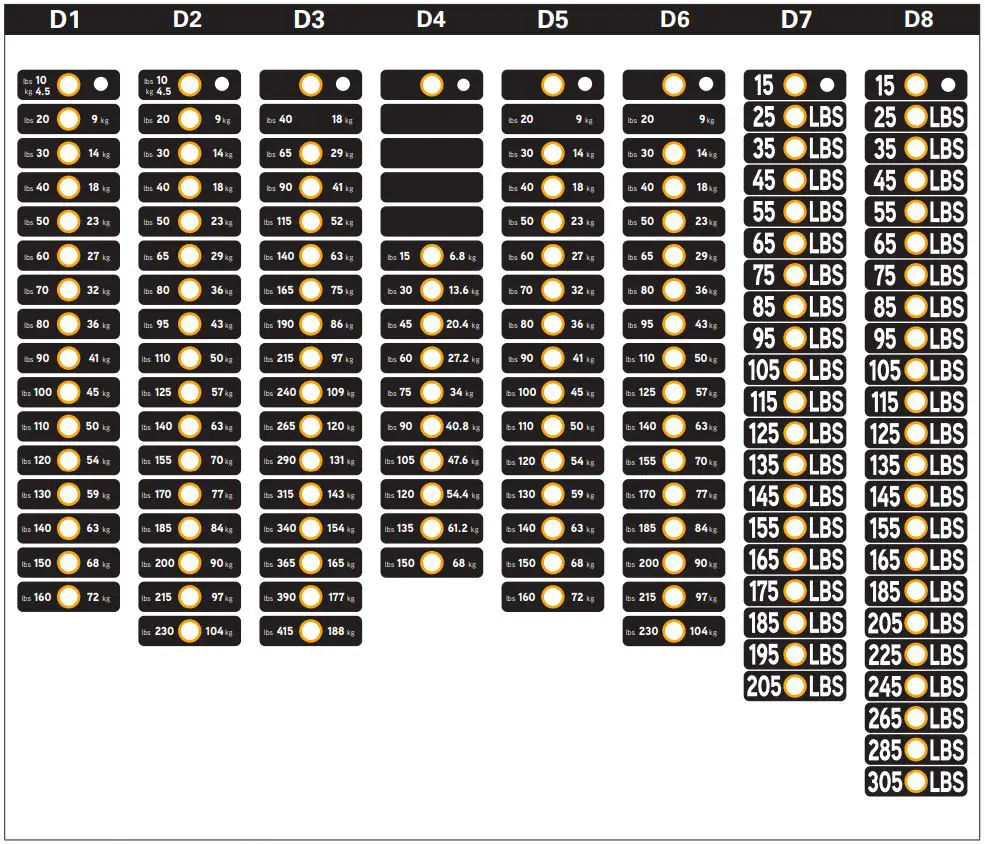

STACK DECALS

WEIGHT PLATES

BUMPER

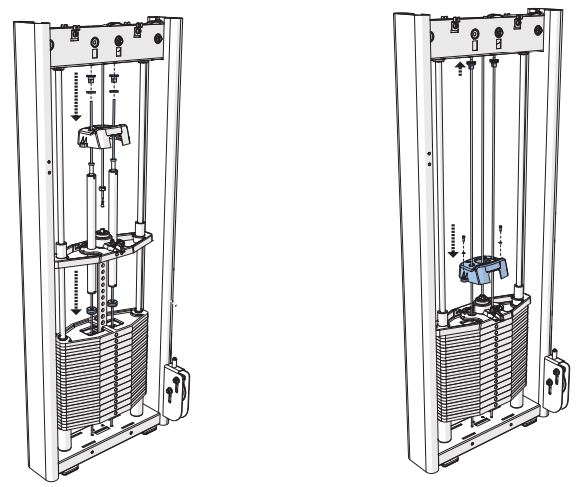

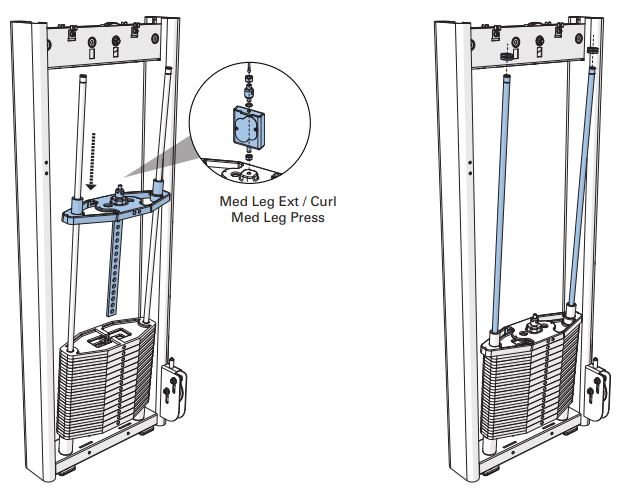

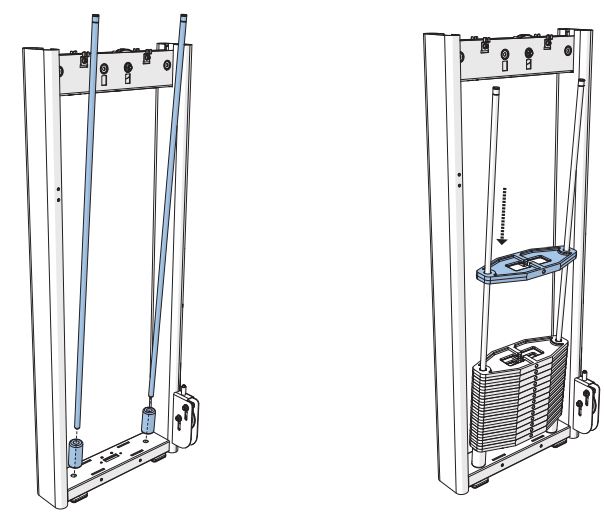

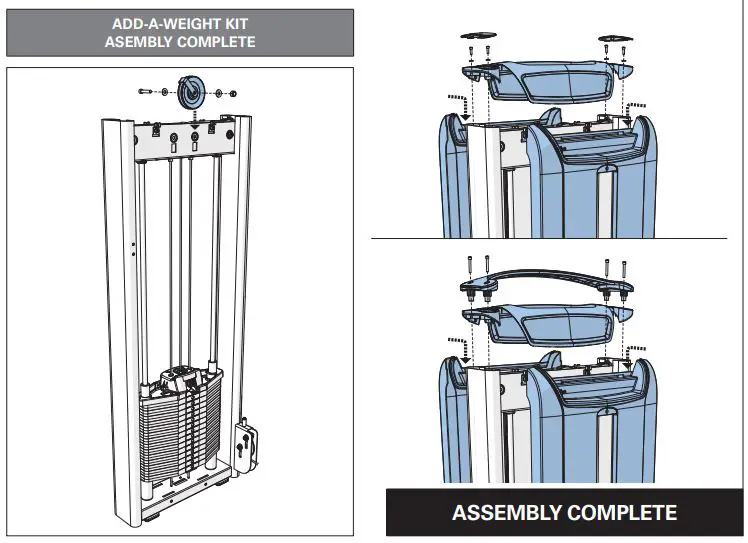

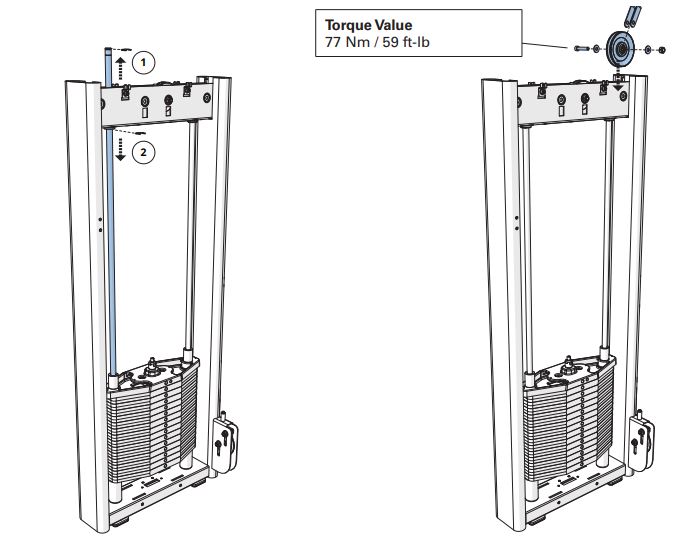

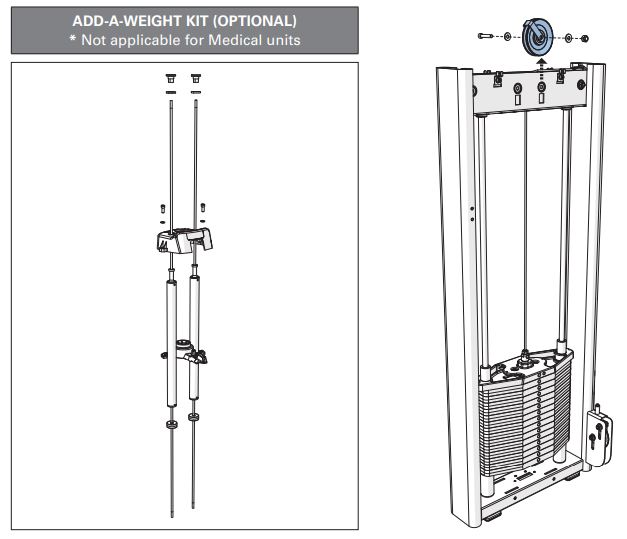

ASSEMBLY

UNPACKING
Thank you for purchasing a MATRIX Fitness product. It is inspected before it is packaged. It is shipped in multiple pieces to facilitate the compact packaging of the machine. Prior to assembly, confirm all the components by matching them with the exploded diagrams. Carefully unpack the unit from this box and dispose of the packing materials in accordance with your local laws.

CAUTION
To avoid injury to yourself and prevent damage to the frame components, be sure to have proper assistance removing the frame pieces from this box. Please be sure to install the equipment on a stable base, and properly level the machine. Ensure a minimum clearance width of 0.6 meters (24”) for access to and passage around MATRIX strength equipment. Please note, 0.91 meters (36”) is the ADA-recommended clearance width for individuals in wheelchairs.

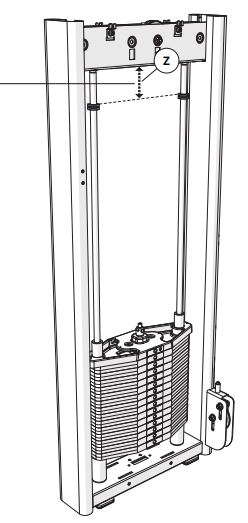

MACHINE	STOP COLLAR DEPTH (Z)
Chest Press	260 mm / 10.2”
Shoulder Press	90 mm / 3.5”
Leg Extension	No Collars
Seated Leg Curl	No Collars
Leg Press	10 mm / 0.4”
Lat Pulldown	No Collars
Triceps Press	288 mm (11.3”)
Seated Row	No Collars
Bicep Curl	No Collars
Hip Add/Abduction	No Collars
Pec Fly/Rear Delt	No Collars
Abdominal	460 mm / 18.3”
Back Extension	465 mm / 18.3”
Glute	No Collars
Multi Press	No Collars
Lat Pulldown/ Seated Row	No Collars
Bicep/Triceps	No Collars
Ab/Back Extension	No Collars
Chin / Dip Assist	No Collars
Leg Extension/ Seated Leg Curl	No Collars
Med Leg Ext / Curl	No Collars
Med Leg Press	No Collars

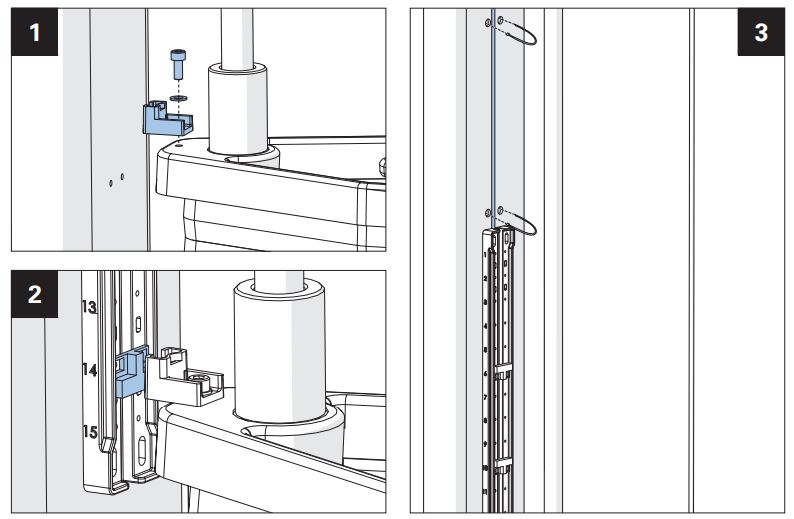

Model		Sensor Locations *
VS-S13	Chest Press	A2	B7	C13
VS-S23	Shoulder Press	A1	B4	C13
VS-S71	Leg Extension	A1	B7	C13
VS-S72	Seated Leg Curl	A6	B10	C13
VS-S70	Leg Press	A6	B10	C13
VS-S33	Lat Pull-down	A1	B3	C13
VS-S42	Triceps Press	A5	B8	C13
VS-S34	Seated Row	A1	B4	C13
VS-S40	Bicep Curl	A6	B8	C13
VS-S74	Hip Abductor/Adductor	A7	B11	C13
VS-S22	Pec Fly/Rear Delt	A7	B9	C13
VS-S53	Abdominal	A8	B10	C13
VS-S52	Back Extension	A6	B8	C13
VS-S78	Glute	A2	B7	C13
VS-S131	Multi-Press	A1	B5	C13
VS-S331	Lat Pulldown/Seated Row †	A13	B15	C13
VS-S401	Bicep/Triceps	A1	B3	C13
VS-S531	Ab/Back Extension	A9	B10	C13
VS-S601	Chin/Dip Assist	A1	B6	C13
VS-S711	Leg Extension/Seated Leg Curl	A5	B6	C13
