MASTER MFG 3PT-AC 300 Gallon 3-Point Sprayer Tank
Product Information
The 3-Point Mount Assembly (3PT-AC) is a component used in conjunction with the Spot Sprayer to provide a stable and secure mounting solution. It comes pre-assembled and requires minimal installation. The assembly includes various parts such as the tank assembly, 3-Point Rail, 3-Point Boom Mount, Frame, 3-Point Link,3-Point Boom Bracket, and several bolts, nuts, and clamps.
Product Usage Instructions
- Before assembling the 3-Point Mount, ensure that you have followed the instructions provided in your Spot Sprayer Assembly Manual.
- Make sure you have the necessary tools for assembly. The required tools include a 1/2 socket wrench.
- Refer to the Boom Assembly Instructions before installing the Boom Kit to the 3-Point Mount. This step is the only requirement for assembly.
- For attaching the Boom Assembly to the 3-Point Mount, follow these steps:
- Line up the holes of the PNB Boom Assembly or the 620 Boom Assembly with the holes of the Boom Brackets on the rear of the 3-Point Mount Frame.
- Install the Boom Assembly using the provided bolts and flange nuts from the Boom Assembly. Tighten them securely using a socket wrench.
- Use your tractor’s height control to manage your spray height.
The Boom Upright Brackets that may come with the Boom Assembly are not needed.
If you encounter any difficulties during assembly or have any questions, please call our support hotline at 800.825.5397 for assistance.
BEFORE ASSEMBLING YOUR 3-POINT MOUNT FOLLOW INSTRUCTIONS IN YOUR SPOT SPRAYER ASSEMBLY MANUAL
INCLUDED COMPONENTS
TOOLS REQUIRED
1/2” SOCKET WRENCH
NOTE:
THIS 3-POINT MOUNT COMES PRE-ASSEMBLED. ONLY STEP REQUIRED IS TO INSTALL BOOM KIT. FOLLOW BOOM ASSEMBLY INSTRUCTIONS BEFORE INSTALLING TO 3-POINT MOUNT.
PARTS
NOTE: Reference Boom Assembly Card for needed components to install Boom Assembly to 3-Point Mount Frame. Boom Upright Brackets that may come with Boom Assembly are not needed. Use your Tractor’s height control to manage your spray height.

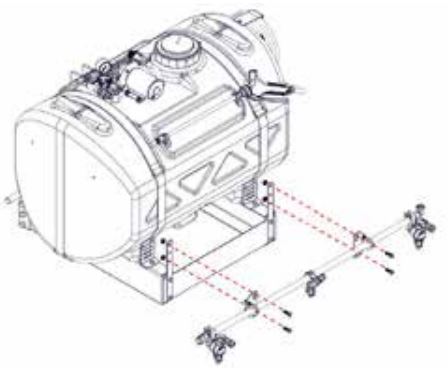

Line up holes of the PNB Boom Assembly with the holes of the Boom Brackets on the rear of 3-Point Mount Frame.
Install with 4 Bolts and Flange Nuts from Boom Assembly. Tighten with a Socket Wrench.
Attaches Boom Assembly to 3-Point Mount
NOTE: Reference Boom Assembly Card for needed components to install Boom Assembly to 3-Point Mount Frame. Boom Upright Brackets that may come with Boom Assembly are not needed. Use your Tractor’s height control to manage your spray height.

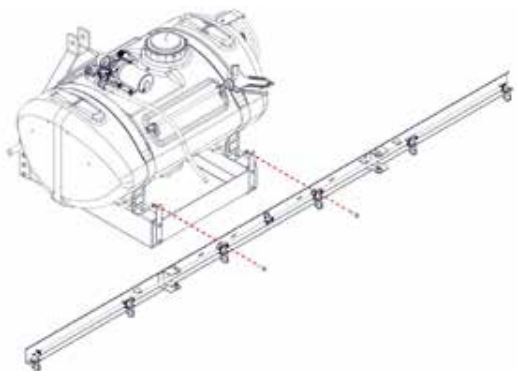

Line up holes of the 620 Boom Assembly with the holes of the Boom Brackets on the rear of 3-Point Mount Frame.
Install with 2 Bolts and Flange Nuts from Boom Assembly. Tighten with a Socket Wrench.
Attaches Boom Assembly to 3-Point Mount
BREAKDOWN
| ID Part Number Description Qty | |||
| 1 | 152IP | Implement Pin | 2 |
| 2 | 31-100181 | 3-Point Rail | 2 |
| 3 | 31-100182 | 3-Point Boom Mount | 1 |
| 4 | 32-100079 | Frame, 3-Point Link | 1 |
| 5 | 31-100187 | 3-Point Boom Bracket | 2 |
| 6 | 33-100113 | Serrated Flange Nut 5/16-18 | 4 |
| 7 | 33-100116 | Bolt 5/16 – 18 x 1” | 4 |
| 8 | 33-100133 | Nut 1/2 – 13 | 6 |
| 9 | 33-100134 | Lock Washer 1/2” | 6 |
| 10 | 33-100136 | Nylon Lock Nut 3/8” | 4 |
| 11 | 33-100177 | Bolt – 1/2-13 x 1.25” | 6 |
| 12 | 33-200020 | Hex Bolt – 3/8-16 x 1” | 4 |
| 13 | TD-150 | 1.5” Tie Down Clamp | 4 |
|
14 |
TDS1.5-55 | Tie Down Strap – 40 Gallon |
2 |
| TDS1.5-67 | Tie Down Strap – 60 Gallon | ||
