mafell 91A704 Arunda 160B Maxi Milling Templates
Contents
Technical data
| Tenon on timber width | 6 – 12 Inch |
| Timber height | 3 1/2 – 16 Inch |
| Timber section | 6 x 3 1/2 – 12 x 16 Inch |
Delivery specification
- 1 pair of jigs
- 1 burr milling cutter
- 1 guide ring
- 1 positioning gauge
- 2 pairs of blades
- 1 wooden box
Examples for usage

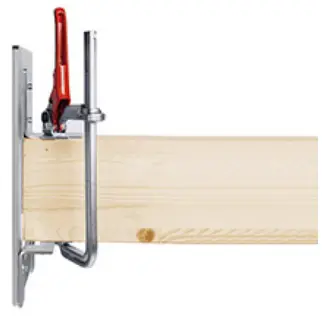

Dovetailed joints on floor joists or rafter (roof system).
Speed: 8 to 18 mortise/tenon joints per hour.

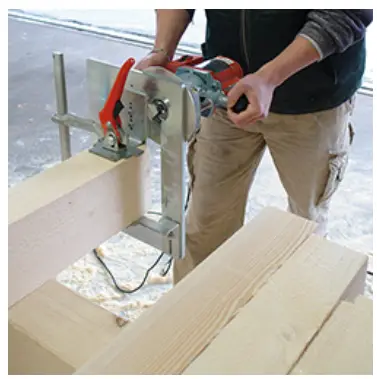

Perpendicular or angled joints on floor joists or rafter (roof system).

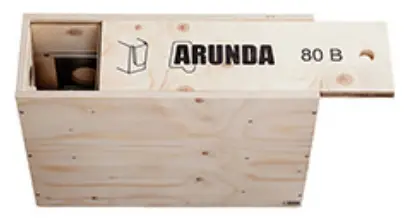

The Arunda system is delivered in a practical wooden box.
Applications
- dovetailed wood-to-wood joints
- Perpendicular or angled joints on floor joists or rafter (roof system).
- Just as easy to use in the work-shop as on the job site.
Advantages
- Push-down dovetail assembly is very fast and easy. No need to pull apart the load-bearing beams to insert tenons.
- Double-cone self-tightening joints.
- Identical router bit setting to cut both mortise and tenon.
Description
Arunda is a system for manually making dovetailed wood-to-wood joints to assemble timber frame structures.
All you need is a pair of Arunda jigs (one for the tenon and the other for the mortise),a powerful Mafell router LO 65 Ec equipped with the special Arunda cutter and some accessories.
There are several models available but only one size will be selected to fit your most commonly used timber widths. Keep in mind: The bigger the joint, the greater and better its resistance!
Accessories / Tools
Adapter for router bit M12x1 (ARUNDA)
Guide ring Standard – 26 for LO 65 Ec + 2 screws
Positioning gauge Standard – 26 Trio
ARUNDA fast lever clamp 40 x 14 cm
Arunda dovetail bit Standard – 26 with reversible blades
Expansion plate Ø290 mm (with screws) for jigs 60-1B,160B
Arunda blade Standard-26 reversible carbide blade HM
5 pairs, skin-wrapped
Adjustable female fence 160B
