MADELI LogoFunctional Elegance
VILLA / ESTATE
Specifications and Installation Guide

B850-24-30-36-42-48C-002-XX Estate Vanity Cabinet Base

B850-Villa
Wall Hung Vanity Collection
Models

  • B850-24-002-XX
  • B850-30-002-XX
  • B850-36-002-XX
  • B850-42-002-XX
  • B850-48C-002-XX
  • B850-48D-002-XX
  • B850-60C-002-XX
  • B850-60D-002-XX
  • B850-72D-002-XX

MADELI B850-24-30-36-42-48C-002-XX Estate Vanity Cabinet Base - B850-VillaB860-Estate
Free Standing Vanity Collection

  • B860-24-001-XX
  • B860-30-001-XX
  • B860-36-001-XX
  • B860-42-001-XX
  • B860-48C-001-XX
  • B860-48D-001-XX
  • B860-60C-001-XX
  • B860-60D-001-XX
  • B860-72D-001-XX

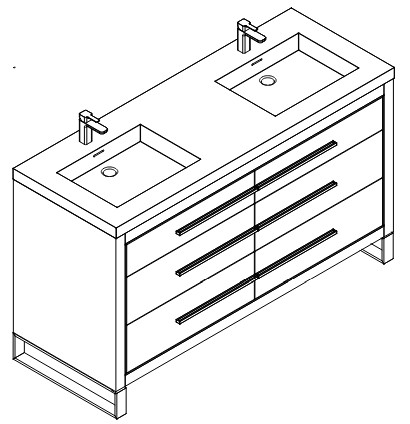

MADELI B850-24-30-36-42-48C-002-XX Estate Vanity Cabinet Base - B860-Estate

Cabinet Specifications Villa/Estate – 24”/30”/36”/42”/48” – Single Bowl

Features

  • Villa-Wall hung vanity or Estate-Free Standing Vanity
  • Bathroom Furniture grade plywood layered with solid wood veneer protected by polyurethane or finished with premium polyurethane solid color paints
  • Matching finish inside out
  • Three fully adjustable drawers with full-extension soft-close European hardware.
  • Middle and Bottom drawers include adjustable tempered glass dividers
  • Handle/Inlay/Feet finish options: polished chrome (PC), brushed nickel (BN), polished nickel (PN), matte black (MB) and satin brass (SB)
  • Cabinet furnished assembled.

Colors/Finishes

  • Sapphire (SA)
  • Studio Grey (TG)
  • Brandy (BR)
  • White (WH)

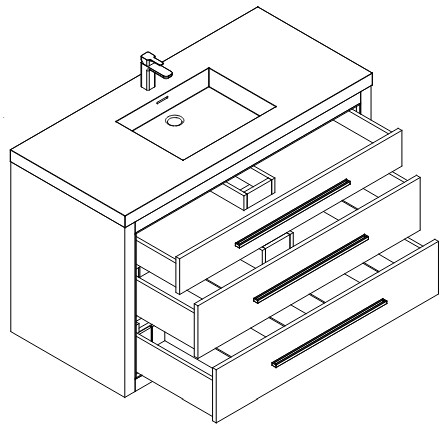

MADELI B850-24-30-36-42-48C-002-XX Estate Vanity Cabinet Base - FinishesTop/Basin options

  • Glass countertop with above-counter ceramic basin.
  • Glossy White X-Stone 2”H top/basin
  • Glossy White X-Stone 4-1/2“ H Trough sink
  • X-Stone 3/4″H countertop no holes. To be field drilled.
  • X-Stone 3/4″H countertop with above-counter ceramic basin
  • Quartzstone 3”H countertop with undermount ceramic basin

NOTE: All 3/4″ countertops with undermount sinks including Madeli’s Quartzstone QST2208 collection and CB-2015 cannot be used on the Villa-B850 & Estate-B860 vanities.

MADELI B850-24-30-36-42-48C-002-XX Estate Vanity Cabinet Base - Basin optionsMADELI B850-24-30-36-42-48C-002-XX Estate Vanity Cabinet Base - SIDE VIEW

MODEL CW SCW HL Package Dimensions Weight
B850/B860-24-00X-XX 23 5/8” (600mm) 14” (356mm) 10 5/8” (270mm) 28”(711) x 26”(660) x 33″(838) 110 lbs / 50 Kgs
B850/B860-30-00X-XX 29 5/8” (753mm) 20” (509mm) 14” (355mm) 34”(864) x 26”(660) x 33″(838) 130 lbs / 59 Kgs
B850/B860-36-00X-XX 35 5/8” (905mm) 26” (661mm) 16” (406mm) 40”(1016) x 26”(660) x 33″(838) 145 lbs / 66 Kgs
B850/B860-42-00X-XX 41 5/8” (1058mm) 32” (814mm) 19 3/4” (503mm) 46”(1168) x 26”(660) x 33″(838) 165 lbs / 75 Kgs
B850/B860-48C-00X-XX 47 5/8” (1210mm) 38” (966mm) 21 1/2” (545mm) 52”(1321) x 26”(660) x 33″(838) 172 lbs / 78 Kgs

Cabinet Specifications Villa/Estate – 48” – Double Bowl

Features

  • Villa-Wall hung vanity or Estate-Free Standing Vanity
  • Bathroom Furniture grade plywood layered with solid wood veneer protected by polyurethane or finished with premium polyurethane solid color paints
  • Matching finish inside out
  • Three fully adjustable drawers with full-extension soft-close European hardware.
  • Middle and Bottom drawers include adjustable tempered glass dividers
  • Handle/Inlay/Feet finish options: polished chrome (PC), brushed nickel (BN), polished nickel (PN), matte black (MB) and satin brass (SB)
  • Cabinet furnished assembled.

Colors/Finishes

  • Sapphire (SA)
  • Studio Grey (TG)
  • Brandy (BR)
  • White (WH)

MADELI B850-24-30-36-42-48C-002-XX Estate Vanity Cabinet Base - satin brassTop/Basin options

  • Glass countertop with above-counter ceramic basin.
  • Glossy White X-Stone 2”H top/basin
  • Glossy White X-Stone 4-1/2“ H Trough sink
  • X-Stone 3/4″H countertop no holes. To be field drilled.
  • X-Stone 3/4″H countertop with above-counter ceramic basin
  • Quartzstone 3”H countertop with undermount ceramic basin

Package Dimensions
52”(1321mm) x 26”(660mm) x 36”(914mm)
Weight
172 lbs / 78 kgs.
NOTE: All 3/4″ countertops with undermount sinks including Madeli’s Quartzstone QST2208 collection and CB-2015 cannot be used on the Villa-B850 & Estate-B860 vanities.MADELI B850-24-30-36-42-48C-002-XX Estate Vanity Cabinet Base - CabinetMADELI B850-24-30-36-42-48C-002-XX Estate Vanity Cabinet Base - Sink Clearance Height

Cabinet Specifications Villa/Estate – 60” Single Bowl

Features

  • Villa-Wall hung vanity or Estate-Free Standing Vanity
  • Bathroom Furniture grade plywood layered with solid wood veneer protected by polyurethane or finished with premium polyurethane solid color paints
  • Matching finish inside out
  • Six fully adjustable drawers with full-extension soft-close European hardware.
  • Middle and Bottom drawers include adjustable tempered glass dividers
  • Handle/Inlay/Feet finish options: polished chrome (PC), brushed nickel (BN), polished nickel (PN), matte black (MB) and satin brass (SB)
  • Cabinet furnished assembled.

Colors/Finishes

  • Sapphire (SA)
  • Studio Grey (TG)
  • Brandy (BR)
  • White (WH)

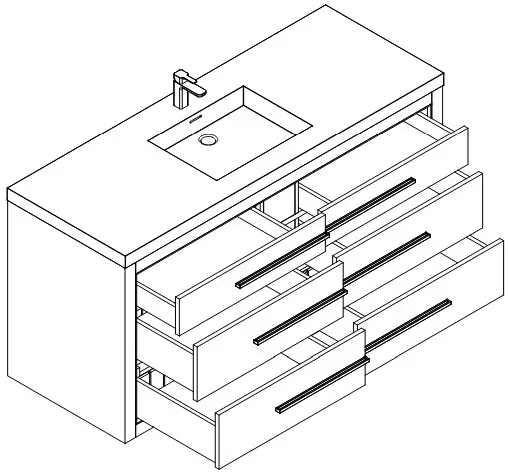

MADELI B850-24-30-36-42-48C-002-XX Estate Vanity Cabinet Base - Finishes 1Top/Basin options

  • Glass countertop with above-counter ceramic basin.
  • Glossy White X-Stone 2”H top/basin
  • Glossy White X-Stone 4-1/2“ H Trough sink
  • X-Stone 3/4″H countertop no holes. To be field drilled.
  • X-Stone 3/4″H countertop with above-counter ceramic basin
  • Quartzstone 3”H countertop with undermount ceramic basin

Package Dimensions
64”(1625mm) x 26”(660mm) x 36”(914mm)
Weight
238 lbs / 108 kgs.
NOTE: All 3/4″ countertops with undermount sinks including Madeli’s Quartzstone QST2208 collection and CB-2015 cannot be used on the Villa-B850 & Estate-B860 vanities.MADELI B850-24-30-36-42-48C-002-XX Estate Vanity Cabinet Base - Package DimensionsMADELI B850-24-30-36-42-48C-002-XX Estate Vanity Cabinet Base - Clearance

Cabinet Specifications Villa/Estate – 60”/72” Double Bowl

Features

  • Villa-Wall hung vanity or Estate-Free Standing Vanity
  • Bathroom Furniture grade plywood layered with solid wood veneer protected by polyurethane or finished with premium polyurethane solid color paints
  • Matching finish inside out
  • Six fully adjustable drawers with full-extension soft-close European hardware.
  • Middle and Bottom drawers include adjustable tempered glass dividers
  • Handle/Inlay/Feet finish options: polished chrome (PC), brushed nickel (BN), polished nickel (PN), matte black (MB) and satin brass (SB)
  • Cabinet furnished assembled.

Colors/Finishes

  • Sapphire (SA)
  • Studio Grey (TG)
  • Brandy (BR)
  • White (WH)

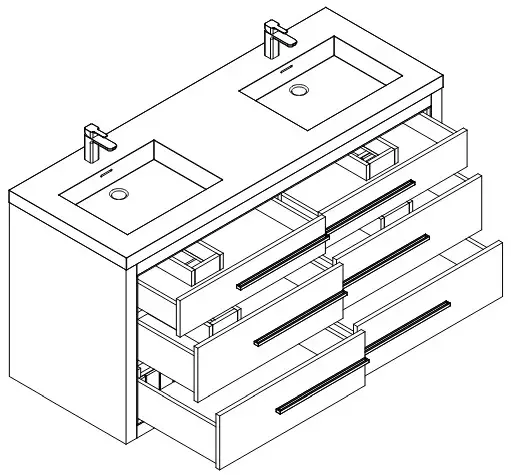

MADELI B850-24-30-36-42-48C-002-XX Estate Vanity Cabinet Base - plywood

Top/Basin options

  • Glass countertop with above-counter ceramic basin.
  • Glossy White X-Stone 2”H top/basin
  • Glossy White X-Stone 4-1/2“ H Trough sink
  • X-Stone 3/4″H countertop no holes. To be field drilled.
  • X-Stone 3/4″H countertop with above-counter ceramic basin
  • Quartzstone 3”H countertop with undermount ceramic basin

NOTE: All 3/4″ countertops with undermount sinks including Madeli’s Quartzstone QST2208 collection and CB-2015 cannot be used on the Villa-B850 & Estate-B860 vanities.MADELI B850-24-30-36-42-48C-002-XX Estate Vanity Cabinet Base - countertopMADELI B850-24-30-36-42-48C-002-XX Estate Vanity Cabinet Base - Clearance 1

MODEL CW CS SCW HL Package Dimensions Weight
B850/B860-60D-00X-XX 59 5/8”(1515mm) 13”(328mm) 22 1/16”(561mm) 16 7/8”(427mm) 64”(1626) x 26”(660) x 33″(838) 238 lbs / 108 Kgs
B850/B860-72D-00X-XX 71 5/8”(1820mm) 14 1/2”(368mm) 28 1/16”(714mm) 21 1/2”(545mm) 76”(1930) x 26”(660) x 33″(838) 280 lbs / 128 Kgs

Villa – WALL HUNG VANITY Installation Guid

TYPICAL INSTALLATION

MADELI B850-24-30-36-42-48C-002-XX Estate Vanity Cabinet Base - TYPICAL INSTALLATIONThe typical dimensions shown will result in vanity cabinet height of 33 1/2” (851mm).
Depending on the countertop selected, the total height will vary from 34-1/4“ (870mm) to 38” (965mm).
If alternate heights are desired, adjust the rough-in and backing material heights using the dimensions provided.

ACCESSORIES FOR INSTALLATION

MADELI B850-24-30-36-42-48C-002-XX Estate Vanity Cabinet Base - Anchors MADELI B850-24-30-36-42-48C-002-XX Estate Vanity Cabinet Base - Screws MADELI B850-24-30-36-42-48C-002-XX Estate Vanity Cabinet Base - Lag Bolts
Anchors x8 (x10 for 60C/60D and 72D) #10 x 2”Screws x4 Lag Bolts 5/16 x 1 1/2”x4 (x6 for 60C/60D and 72D)
MADELI B850-24-30-36-42-48C-002-XX Estate Vanity Cabinet Base - Leveling Bracket MADELI B850-24-30-36-42-48C-002-XX Estate Vanity Cabinet Base - Silicone
Leveling Bracket x2 Silicone (Not Included)

WALL PREPARATION

MADELI B850-24-30-36-42-48C-002-XX Estate Vanity Cabinet Base - WALL PREPARATIONSTEP 1: Install leveling bracketsMADELI B850-24-30-36-42-48C-002-XX Estate Vanity Cabinet Base - leveling bracketsSTEP 2: Place vanity on leveling bracket.
The leveling brackets are only to level the vanity.
They are not designed for permanent support.
The cabinet needs to be secured to wood backing. MADELI B850-24-30-36-42-48C-002-XX Estate Vanity Cabinet Base - designedSTEP 3: Secure vanity to wood reinforcement backing.
MADELI B850-24-30-36-42-48C-002-XX Estate Vanity Cabinet Base - SecureSTEP 4: Install countertop with silicone as shown below.MADELI B850-24-30-36-42-48C-002-XX Estate Vanity Cabinet Base - countertop 1HANDLE INSTALLATIONMADELI B850-24-30-36-42-48C-002-XX Estate Vanity Cabinet Base - HANDLE INSTALLATIO

Estate – FREE STANDING VANITY Feet/Base Installation

MADELI B850-24-30-36-42-48C-002-XX Estate Vanity Cabinet Base - FREE STANDING VANITY

FEET/BASE INSTALLATION

  1. Flip cabinet in the upside down position.
  2. Mark screw locations using legs/base as template.
  3. Pre-drill holes with 5/64”, 3/32” or 7/64” drill bit about 1/2” deep.
  4. Using provided screws, fix legs/base to cabinet as shown below.

If using a regular battery drill, set clutch to minimum and increase setting as needed.
DO NOT OVER TIGHTEN THE SCREWS. DOING SO WILL SPLIT THE WOOD SIDE PANEL.

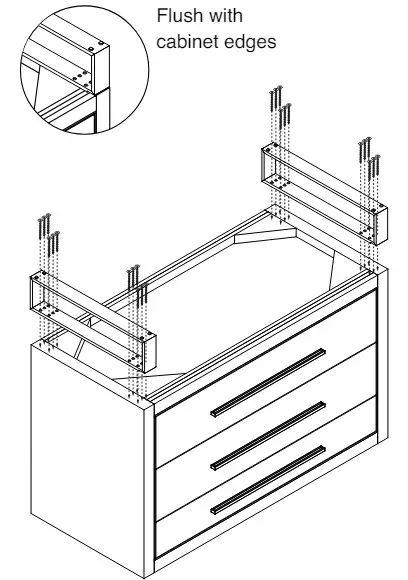

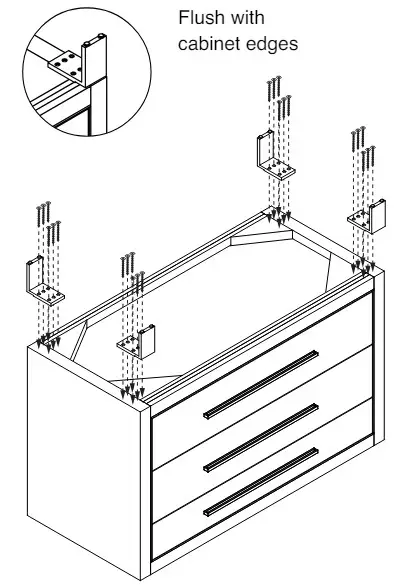

S-FEET INSTALLATION MADELI B850-24-30-36-42-48C-002-XX Estate Vanity Cabinet Base - S-FEET INSTALLATIONL-FEET INSTALLATION MADELI B850-24-30-36-42-48C-002-XX Estate Vanity Cabinet Base - L-FEET INSTALLATIONC-BASE INSTALLATIONMADELI B850-24-30-36-42-48C-002-XX Estate Vanity Cabinet Base - C-BASE INSTALLATION

Estate – FREE STANDING VANITY Installation Guide

TYPICAL INSTALLATION

MADELI B850-24-30-36-42-48C-002-XX Estate Vanity Cabinet Base - Lag BoltThis free standing vanity must be secured to wall with screws as shown below.
SECURE CABINET TO WALL
See step 4 (page 8) for countertop installationMADELI B850-24-30-36-42-48C-002-XX Estate Vanity Cabinet Base - countertop installation

For clarification, please contact Madeli Customer Care at 800-819-6988 Ext.1 or [email protected]
All dimensions are approximate and subject to standard tolerance. Specifications subject to change without prior notice.

Madeli, USA LLC
madeli.com
9710 NW 110th Ave., Suite 1, Miami, FL 33178
Toll Free: 1-800-819-6988
All Rights Reserved – 2023 Rev. 11/15/23
