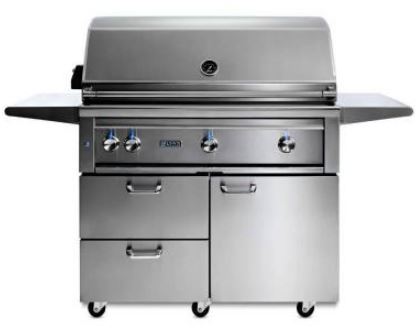

LYNX-LOGOLYNX L54TRF 54 Inch Freestanding Grill with Trident and Rotis

LYNX-L54TRF-54-Inch-Freestanding-Grill-with-Trident-and-Rotis-PRODUCT

Product Information

  • Product Name: L54TRF
  • Product Description: 54 Freestanding Grill with Trident & Rotisserie
  • Model: L54TRF

Part Numbers:

  • Item 1: 70038
  • Item 2: 18093
  • Item 3: 18092
  • Item 4: 31930

Product Usage Instructions

  1. Assemble the 54 Cabinet Weldment (Qty: 1) using parts with part numbers 70038, 18093, 18092, and 31930.
  2. Attach the Large Drawer Slide, RH (Qty: 2), and Large Drawer Slide, LH (Qty: 2) to the cabinet.
  3. Secure the cabinet using the provided bolts, washers, nuts, and screws.
  4. Install the Door RH Assembly and Door LH Assembly on the cabinet.
  5. Attach the casters (with or without brake) to the cabinet.
  6. Mount the Tank Bracket Assembly on the cabinet using screws and lock nuts.
  7. Install the Bottle Holder (LDR36) and Handle, 5 Offset SS (Qty: 2) on the cabinet.
  8. Attach the Rear Access 54 Weld Assembly to the cabinet using screws and spacers.
  9. Assemble the Lower Drawer Assembly and Upper Drawer Assembly for the 54 Cart.
  10. Insert the CB Access Plug into the cart.

OVERVIEW

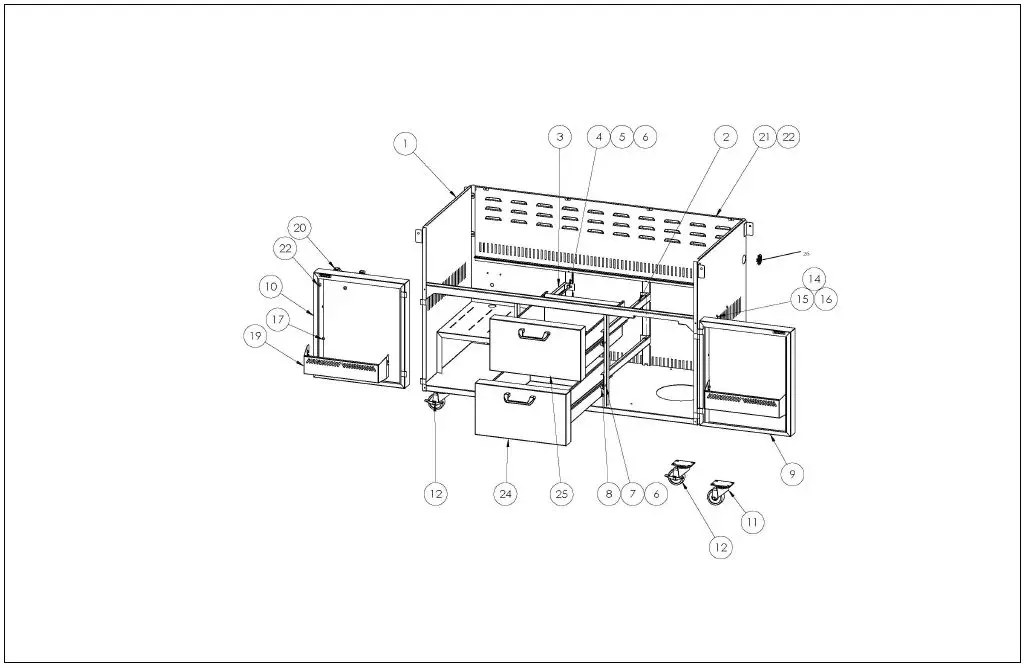

LYNX-L54TRF-54-Inch-Freestanding-Grill-with-Trident-and-Rotis-FIG-1

Item                     Part No.                                      Name                             Qty            Uom              NOTES
1 70038 54″ CABINET, WELDMENT 1 EA
2 18093 Large Drawer Slide, RH 2 EA
3 18092 Large Drawer Slide, LH 2 EA
4 31930 BOLT, HEX HEAD, 1/4-20 X 3/8″

S/S

 4 EA
5 14044 Washer, 1/4, Flat, SS, 11/16 O.D. 4 EA
6 31876 NUT, 1/4-20, KEPS EXT TOOTH, SS 8 EA
7 14043 SCREW, 1/4-20 X 1, FHP, SS 4 EA
8 10192 BEARING, FLT SS 1.3125 DIA 4 EA
9 70030 DOOR RH ASSY, 36″/54″ WLDMT 1 EA
10 70029 DOOR LH ASSY, WLDMNT 1 EA
11 20047 Caster, 3″ w/o Brake 4 EA
12 20024 Caster, 3″ w/Brake 2 EA
NI 30223 SCREW, 1/4-20 X 1/2, HWH, ST, ZN, SERR 24 EA
14 70110 TANK BRACKET ASSY 1 EA
15 14014 SCREW 2 EA
16 14024 LOCK NUT, #8-32, S/S 2 EA
17 32222 SCREW, SHOULDER, #10-32 X 1/4, SLOTTED, SS 4 EA
NI 31132 MAGNET, SINGLE, SNAP IN .38″ 2 EA
19 31755 BOTTLE HOLDER (LDR36) 2 EA
20 11174 HANDLE, 5″ OFFSET SS 2 EA
21 70213 REAR ACCESS 54″ WELD ASSY 1 EA
22 14012 SCREW, 1/4-20 X 3/8 PH TRUSS HD, S/S 8 EA
NI 10193 SPACER, 1/4 NOM, 1/2 O.D. X

.21, SS, RND

 4 EA
24 70136 DRAWER ASSY 54″ CART, LOWER 1 EA
25 70035 DRAWER ASSY 54″ CART, UPPER 1 EA
26 30003 CB ACCESS PLUG 1 EA

L54TRF GRILL

Item                     Part No.                                      Name                             Qty            Uom              NOTES
1 80312 FRONT HOOD ASSY, 54″ 1 EA
2 90132 MOTOR MOUNTING BRACKET, KIT, ALL PRO 1 EA
3 80277 MOTOR ASSY, HEAVY DUTY 3 SPEED 1 EA
4 32112 WARMING SHELF, PRO 54″ 1 EA
5 34704 (2) GRATES- 13 1/2° X 21′ 2 EA
5 34705 GRATE-12″ X 21″ (CENTER) 2 EA
6 20018 IR THERMOCOUPLE 2 EA
7 33052 IR ELECTRODE, HOT SURFACE 2 EA
NI 80487 WIRE ASSEMBLY, ROTIS 1 EA
8 33093 GAS COLLECTOR BOX, IR ROTIS 1 EA
8 33102 GAS COLLECTOR BOX, IR ROTIS. R/H 54″ 1 EA
9 14018 SCREW, #6-32 X 1/4 PH. PAN HD 6 EA
10 31795 IR BRASS ELBOW, 7/16-20 MALE THREAD 2 EA
11 32159 LIGHT PANEL FOR DUAL LIGHTS, 54″ 1 EA
12 81421 REAR HOOD ASSEMBLY 54 1 EACH
13 90237 HOOD SPACER KIT 1 EA
14 80447 HOOD LIGHT ASSY, DUAL W/10W BULB 1 EA
15 31979 BULB, REPLACEMENT, 10W HALOGEN 1 EA
NI 32322 GLASS REPLACEMENT COVER W/CLIP 1 EA
16 80276 IR PANEL ASSY, 54″ (INCLUDES BURNER) 1 EA
17 32989 IT ROTIS. BURNER ONLY (21 IN.) 2 EA
18 32992 IR BURNER FRAME ONLY (21 IN.) 2 EA
19 32644 SCREW, #8-32 X 516 PH. FLAT HD 4 EA
20 32486 BURNER HANGER, PRO 54″ 1 EA
NI 31692 STIFFENER, FIREBOX, 30/42 1 EA
Item                     Part No.                                      Name                             Qty            Uom              NOTES
22 33059 IR IGNITER BRACKET, ALL PRO 1 EA
NI 33060 IR IGNITER BRACKET, RIGHT, 54″ 1 EA
23 33136 IR IGNITER COVER, 4-1/8″ 2 EA
24 30781 REGULATOR 4/11 N/G ONLY 1 EA
24 13053 REGULATOR W/30″ HOSE DOUBLE STAGE – LP 1 EA
25 33662 FIRBOX PARTITION, PROSEAR 30″, 42″, 54″ 1 EA
26 90128 ROLLER BEARING KIT – ROTISSERIE (2 PARTS EA) 1 EA
27 32468 HOOD STOP 1 EA
28 32470 BUMPER FOR HOOD STOP,

.750 DIA

 2 EA
29 33389 HOOD STOP, LEFT, ALL PRO 1 EA
30 32469 SCREW/HOOD STOP – #8-32 X 1″ PH TRUSS HD 4 EA
31 PRONGK COMPLETE ORIFICE FIELD KIT- LP TO NG 1 EA
31 PROLPK COMPLETE ORIFICE FIELD KIT- NG TO LP 1 EA
NI 30329 ORIFICE,BURNER, NG (#41 LONG) 3 EA
NI 30328 ORIFICE,BURNER, LP (#53 LONG) 3 EA
NI 13015 ORIFICE,BURNER, NG (#44 SHORT) 1 EA
NI 13020 ORIFICE, BURNER, LP (#54 SHORT) 1 EA
NI 13016 ORIFICE, IR ROTIS, NG (#50 SHORT) 2 EA
NI 13021 ORIFICE, IR ROTIS, LP (#57 SHORT) 2 EA
32 90129 ROLLER BEARING KIT 1 EA
33 34586 SMOKER BOX KIT 1 EA
34 31324 DRIP PAN, 54″ 1 EA
35 33130 TRANSFORMER MOUNTING BRKT B/I & F/S 1 EA
36 80437 LED HARNESS ASSY, 54″ 1 EA
Item                     Part No.                                      Name                             Qty            Uom              NOTES
NI 32554 LED HOLDER (INCLUDES NUT) 6 EA
NI 32055 WASHER 6 EA
37 90137 KNOB, BURNER, STAINLESS 1 EA
38 90139 STAINLESS KNOB KIT (3 BURNER + 1 ROTIS) 3 EA
39 90231 KNOB KIT, STAINLESS (2 BURNER+1 TRI. +1 ROTIS) 2 EA
40 90230 KNOB, TRIDENT BURNER 1 EA
41 90136 KNOB, ROTIS, STAINLESS 2 EA
42 10001 BEZEL 6 EA
43 31929 BEZEL SCREW, #6-32 X 1/8 PH PAN 12 EA
44 33148 LIGHT SWITCH + HARNESS, BLUE LIGHTED 1 EA
45 80541 FRONT PANEL, PRO 54″ 1 EA
NI 11074 LOGO, LYNX 1 EA
46 36438 GAS COLLECTOR BOX, CERAMIC-BURNER 3 EA
47 13010 ELBOW, STREET, 1/2″ 90 DEGREE – NG ONLY 1 EA
47 13054 ELBOW, 3/8″ FLARE TO 1/2″ FIP

– LP ONLY

 1 EA
48 80518 BULLNOSE ASS’Y, PRO 54″ 1 EA
49 31772 IR BURNER VALVE W/MICROSWITCH 2 EA
50 33405 BURNER SUPPORT, PROSEAR-2 30, 42, 54 1 EA
NI 14030 BOLT, HEX HEAD, 1/4-20 X 1/2″,

S/S

 2 EA
51 31794 FLEX HOSE, 9MM X 38″ W/ 7/16 FITTINGS 2 EA
52 34103 MAIN BURNER VALVE W/MICROSWITCH 4 EA
NI 32845 MICROSWITCH 4 EA
NI 34197 SCREW 4 EA
53 80658 MANIFOLD ASSY W/VALVES, 54″ NG PROSEAR 1 EA
53 80221 MANIFOLD ASS’Y W/VALVES, 54″ NG TRIDENT 1 EA
Item                     Part No.                                      Name                             Qty            Uom              NOTES
54 33051 ELECTRODE, MAIN BURNER, HOT SURFACE 3 EA
NI 80433 IGNITION WIRE HARNESS 54PSR 1 EA
55 90274 Ceramic Burner Enhancement kit, See LISO-0004A 3 each
  NOTE (REPLACES ORIGINAL)   EA
  81430 BURNER, CERAMIC ASSY 3 EA
  NOTE (CAN USE AFTER KIT IS INSTALLED)   EA
56 33415 PROSEAR-2 BURNER, 30″, 42″,

54″

 1 EA
NI 90181 SCREEN REPLACEMENT, PROSEAR 2 BURNER 1 EA
57 80645 BRIQUETTE TRAY ONLY WIDE 1 EA
NI 90191 BRIQ TRAY ASSY. 30,42,54 WIDE 1 EA
NI 31679 BRIQUETTE CENTER CLIP 30 EA
NI 31680 BRIQUETTE END CLIP 10 EA
57 80644 BRIQUETTE TRAY ONLY NARROW 2 EA
NI 90190 BRIQ TRAY ASSY. 30,42,54 NARROW 2 EA
NI 31679 BRIQUETTE CENTER CLIP 24 EA
NI 31680 BRIQUETTE END CLIP 8 EA
58 90053 BRIQUETTES, 35 PER BOX 1 EA
NI 31588 BRIQUETTE, SINGLE   EA
59 30417 IR ACCESS COVER 2 EA
60 14012 SCREW, 1/4-20 X 3/8 PH TRUSS HD, S/S 2 EA
61 80440 ROTISERIE JACK + INTERNAL HARNESS 1 EA
NI 33129 JACK ONLY, DC PANEL MOUNT 1 EA
62 80533 MAIN POWER HARNESS (27IR, 30, 36, 42, 54) 1 EA
63 36971 POWER SUPPLY (5 AMP) 1 each
64 33416 ROTISERIE EXTERNAL CORD 1 EA
65 32525 HOOD HANDLE, 54″ 1 EA
Item                     Part No.                                      Name                             Qty            Uom              NOTES
66 31874 EXTENSION SPRING ASM W/HOOK (NEED TWO PER UNIT) 2 EA
NI 14024 LOCK NUT, #8-32, S/S 4 EA
NI 31782 SHOULDER SCREW 4 EA
68 31736 END CAP, HOOD HANDLE WITH INSU 2 EA
69 35765 HOOD THERMOMETER, SEALED BLACK 1 EA
NI 33573 WASHER FOR HOOD THERMOMETER 1 EA
70 14013 PIVOT SCREW, 1/4-20 X 1″ HEX DRIVE 2 EA
NI 14009 PIVOT SCREW NUT, HEX, 1/4- 20 S/S 2 EA
NI 14026 PIVOT WASHER, SPLIT LOCK,

1/4 S/S

 6 EA
71 32131 SPIT ROD, PRO 54″ 1 EA
72 31563 SPIT FORK, HEAVY DUTY, ALL SIZES 4 EA
NI 31061 THUMB SCREW 4 EA
73 33033 FRONT RETAINING BKT, WARMING RACK 2 EA
74 32133 REAR RETAINING BRACKET, WARMING RACK 2 EA
75 33597 LEFT RETAINING BRACKET, WARMING RACK 1 EA
76 14014 SCREW 11 EA
77 14024 LOCK NUT, #8-32, S/S 4 EA
78 31930 BOLT, HEX HEAD, 1/4-20 X 3/8″

S/S

 4 EA
79 31031 ALTERNATE LIGHT DEVICE, MATCH HOLDER 1 EA
80 31013 SCREW, #8 X 1/2 PH TRUSS HD TYPE ‘A’ 1 EA
81 31649 SCREW, #8-32 X 5/8, PHP, SS 4 EA
82 32477 BUMPER 1/2″ DIA, RUBBER, PRESS IN 2 EA
83 33609 BRIQUETTE DIVIDER 30″, 42″,

54″

 1 EA
Item                     Part No.                                      Name                             Qty            Uom              NOTES
84 14099 SCREW, #10-24 X 3/4 PH FLAT HD S/S 6 EA
85 32939 ROTIS. SPACER 2 EA
86 32196 NUT, ACORN, #10-24, S/S 2 EA
87 32197 WASHER, #10 SPLIT LOCK, S/S 2 EA
88 33656 HEAT SHIELD, TRIDENT 54″ 1 EA
89 14023 NUT, COMBINATION (FOR HEAT SHIELD) 2 EA
90 90151 DRAIN PLUG AND SEAL KIT, DRIP PAN 2 EA
91 34675 RETAINER, INSULATION 1 EA
92 90251 INSULATION (54″ X 6″) 1 EA
93 90265 BURNER CAP (SET OF 4) 3 EA
94 33556 IGNITER SHORT, HOT POINT 3 EA
NI CC54 54″ GRILL COVER BUILT-IN 1 EA
NI CC54F 54″ GRILL COVER FREESTANDING 1 EA
NI CC54FCB 54″ GRILL COVER FREESTANDING WITH SIDE BURNER 1 EA
NI 20011 DRIP PAN, PORCELAIN 1 EA
NI 90111 WINDSCREEN 54″ 1 EA
NI LIJ54 54″ INSULATED JACKET 1 EA
