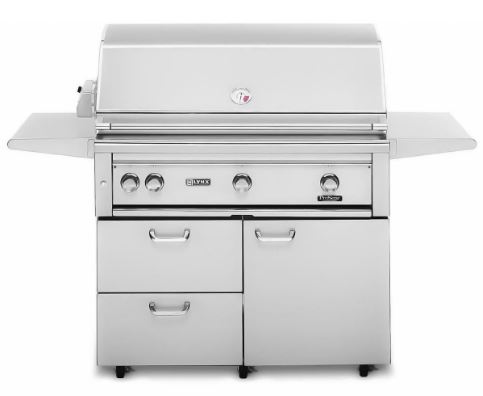

LYNX L42ATRF 42 Inch Freestanding Grill All Trident with Rotis

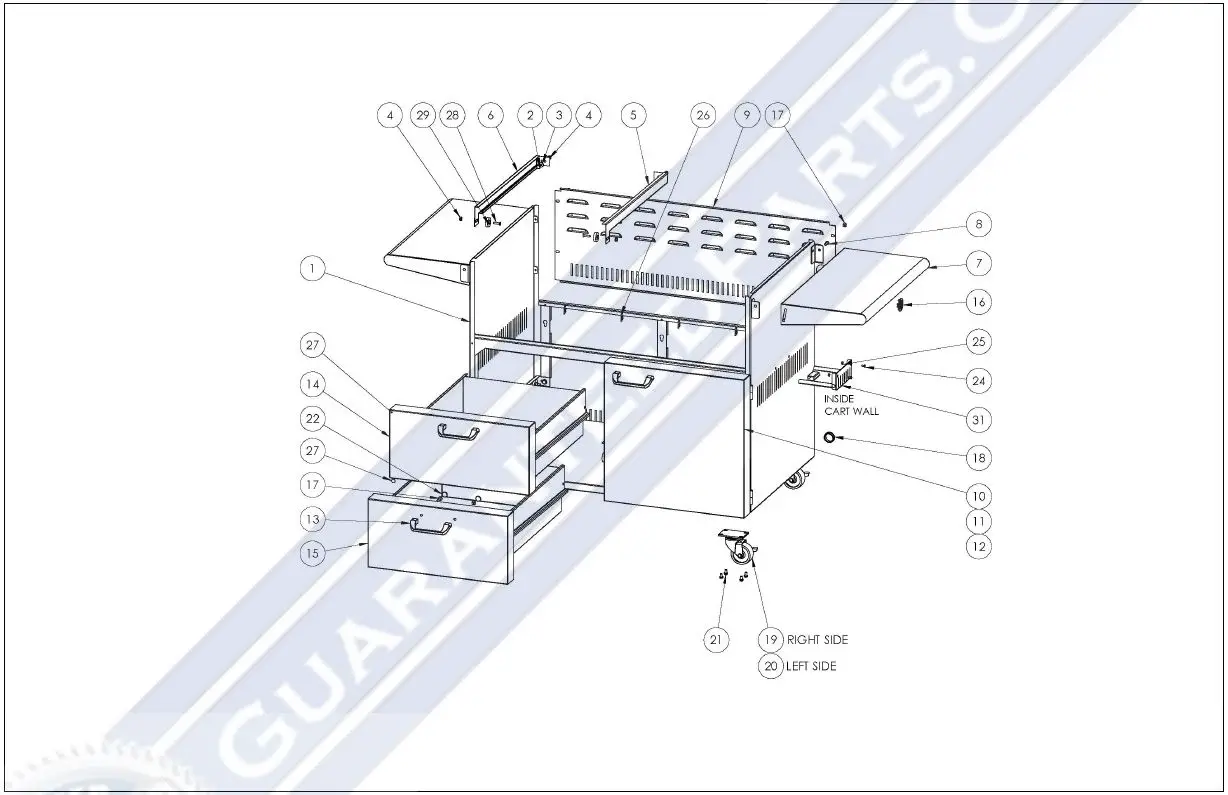

OVERVIEW
| Item Part No. Name Qty Uom NOTES | |||||
| 1 | 70034 | FRAME ASSY 42″ CABINET | 1 | EA | |
| 2 | 31930 | BOLT, HEX HEAD, 1/4-20 X 3/8″
S/S |
4 | EA | |
| 3 | 14044 | Washer, 1/4, Flat, SS, 11/16 O.D. | 4 | EA | |
| 4 | 31876 | NUT, 1/4-20, KEPS EXT TOOTH, SS | 8 | EA | |
| 5 | 18093 | Large Drawer Slide, RH | 2 | EA | |
| 6 | 18092 | Large Drawer Slide, LH | 2 | EA | |
| 7 | 32164 | Side Shelf, 30/42/54 | 2 | EA | |
| 8 | 32202 | SCREW, 1/4-20 X 3/4, PHP, SS | 2 | EA | |
| 9 | 35402 | Rear Access Panel, 42 | 1 | EA | |
| 10 | 70033 | DOOR ASSY 42″ CABINET | 1 | EA | |
| 11 | 32222 | SCREW, SHOULDER, #10-32 X 1/4, SLOTTED, SS | 2 | EA | |
| 12 | 31756 | BOTTLE HOLDER 42 | 1 | EA | |
| 13 | 11174 | HANDLE, 5″ OFFSET SS | 3 | EA | |
| 14 | 70032 | DRAWER ASSY, 42 CART, UPPER | 1 | EA | |
| 15 | 70135 | DRAWER ASSY, 42 CART, LOWER | 1 | EA | |
| 16 | 30003 | CB ACCESS PLUG | 1 | EA | |
| 17 | 14012 | SCREW, 1/4-20 X 3/8 PH TRUSS HD, S/S | 10 | EA | |
| 18 | 31205 | GROMMET, PLSTC, 1 I.D. X 1 3/8 O.D. | 1 | EA | |
| 19 | 20024 | Caster, 3″ w/Brake | 2 | EA | |
| 20 | 20047 | Caster, 3″ w/o Brake | 2 | EA | |
| 21 | 30223 | SCREW, 1/4-20 X 1/2, HWH, ST, ZN, SERR | 16 | EA | |
| 22 | 30666 | HOLE PLUG 3/4 | 4 | EA | |
| NI | 31132 | MAGNET, SINGLE, SNAP IN .38″ | 1 | EA | |
| 24 | 14014 | SCREW | 6 | EA | |
| 25 | 14024 | LOCK NUT, #8-32, S/S | 6 | EA | |
| 26 | 16067 | CABLE TIE, 8 IN, NYLON | 4 | EA | |
| 27 | 31583 | Rubber Bumper, 1/2″ dia x 1/16 | 4 | EA | |
| 28 | 14043 | SCREW, 1/4-20 X 1, FHP, SS | 8 | EA | |
| Item Part No. Name Qty Uom NOTES | |||||
| 29 | 10192 | BEARING, FLT SS 1.3125 DIA | 8 | EA | |
| NI | 10193 | SPACER, 1/4 NOM, 1/2 O.D. X
.21, SS, RND |
8 | EA | |
| 31 | 70110 | TANK BRACKET ASSY | 1 | EA | |

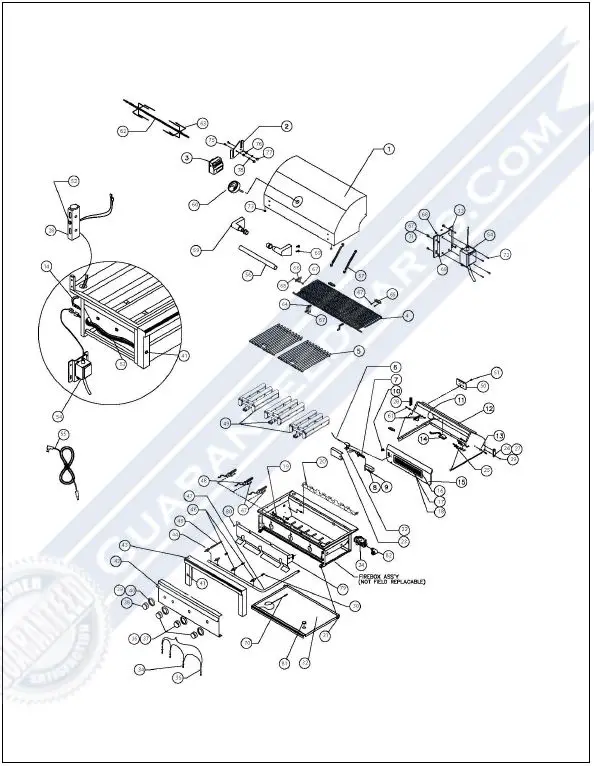

L42ATRF GRILL
| Item Part No. Name Qty Uom NOTES | |||||
| 1 | 80311 | FRONT HOOD ASSY, 42″ | 1 | EA | |
| 2 | 90132 | MOTOR MOUNTING BRACKET, KIT, ALL PRO | 1 | EA | |
| 3 | 80277 | MOTOR ASSY, HEAVY DUTY 3 SPEED | 1 | EA | |
| 4 | 32111 | WARMING SHELF, PRO 42″ | 1 | EA | |
| 5 | 34704 | (2) GRATES- 13 1/2° X 21′ | 2 | EA | |
| 5 | 34705 | GRATE-12″ X 21″ (CENTER) | 1 | EA | |
| 6 | 20018 | IR THERMOCOUPLE | 1 | EA | |
| 7 | 33052 | IR ELECTRODE, HOT SURFACE | 1 | EA | |
| NI | 80487 | WIRE ASSEMBLY, ROTIS | 1 | EA | |
| 8 | 33093 | GAS COLLECTOR BOX, IR ROTIS | 1 | EA | |
| 9 | 14018 | SCREW, #6-32 X 1/4 PH. PAN HD | 1 | EA | |
| 10 | 31795 | IR BRASS ELBOW, 7/16-20 MALE THREAD | 1 | EA | |
| 11 | 32442 | LIGHT PANEL FOR DUAL LIGHTS, 42″ | 1 | EA | |
| 12 | 81420 | REAR HOOD ASSEMBLY 42 | 1 | EACH | |
| 13 | 90237 | HOOD SPACER KIT | 1 | EA | |
| 14 | 80447 | HOOD LIGHT ASSY, DUAL W/10W BULB | 1 | EA | |
| NI | 31979 | BULB, REPLACEMENT, 10W HALOGEN | 1 | EA | |
| NI | 32322 | GLASS REPLACEMENT COVER W/CLIP | 1 | EA | |
| 15 | 80275 | IR PANEL ASSY, 42″ (INCLUDES BURNER) | 1 | EA | |
| 16 | 32990 | IT ROTIS. BURNER ONLY (28 IN.) | 1 | EA | |
| 17 | 32993 | IR BURNER FRAME ONLY (28 IN.) | 1 | EA | |
| 18 | 32644 | SCREW, #8-32 X 516 PH. FLAT HD | 2 | EA | |
| 19 | 32485 | BURNER HANGER, PRO 42″ | 1 | EA | |
| 20 | 33747 | BURNER HANGER, REAR, 42″ ALL-TRIDENT | 1 | EA | |
| NI | 31692 | STIFFENER, FIREBOX, 30/42 | 1 | EA | |
| Item Part No. Name Qty Uom NOTES | |||||
| 22 | 80790 | IR IGNITER BRACKET, ALL PRO | 1 | EA | |
| 23 | 33136 | IR IGNITER COVER, 4-1/8″ | 1 | EA | |
| 24 | 30781 | REGULATOR 4/11 N/G ONLY | 1 | EA | |
| 24 | 13053 | REGULATOR W/30″ HOSE DOUBLE STAGE – LP | 1 | EA | |
| 25 | 90128 | ROLLER BEARING KIT – ROTISSERIE (2 PARTS EA) | 1 | EA | |
| 26 | 32468 | HOOD STOP | 1 | EA | |
| 27 | 32470 | BUMPER FOR HOOD STOP,
.750 DIA |
2 | EA | |
| 28 | 33389 | HOOD STOP, LEFT, ALL PRO | 1 | EA | |
| 29 | 32469 | SCREW/HOOD STOP – #8-32 X 1″ PH TRUSS HD | 4 | EA | |
| 30 | 90176 | COMPLETE ORIFICE FIELD KIT
– LP TO NG |
1 | EA | |
| NI | 90177 | COMPLETE ORIFICE FIELD KIT
– NG TO LP |
1 | EA | |
| NI | 30470 | ORIFICE, IR ROTIS., NG (#48 SHORT) | 1 | EA | |
| NI | 31342 | ORIFICE, IR ROTIS., LP (#56 SHORT) | 1 | EA | |
| NI | 13014 | BURNER ORIFICE, NG (#42 SHORT) | 3 | EA | |
| NI | 13020 | ORIFICE, BURNER, LP (#54 SHORT) | 3 | EA | |
| 31 | 90129 | ROLLER BEARING KIT | 1 | EA | |
| 32 | 18051 | Drip Pan 42″ | 1 | EA | |
| 33 | 33130 | TRANSFORMER MOUNTING BRKT B/I & F/S | 1 | EA | |
| 34 | 80436 | LED HARNESS ASSY, L600/L700 W/IR | 1 | EA | |
| 35 | 32554 | LED HOLDER (INCLUDES NUT) | 4 | EA | |
| NI | 32055 | WASHER | 4 | EA | |
| 36 | 90230 | KNOB, TRIDENT BURNER | 3 | EA | |
| 37 | 90232 | KNOB, KIT, STAINLESS (3 BURNER + 1 ROTIS) | 1 | EA | |
| 38 | 90136 | KNOB, ROTIS, STAINLESS | 1 | EA | |
| 39 | 10001 | BEZEL | 4 | EA | |
| Item Part No. Name Qty Uom NOTES | |||||
| 40 | 31929 | BEZEL SCREW, #6-32 X 1/8 PH PAN | 8 | EA | |
| 41 | 33148 | LIGHT SWITCH + HARNESS, BLUE LIGHTED | 1 | EA | |
| 42 | 80540 | FRONT PANEL, PRO 42″ | 1 | EA | |
| NI | 11074 | LOGO, LYNX | 1 | EA | |
| 43 | 80517 | BULLNOSE ASS’Y, PRO 42″ | 1 | EA | |
| 44 | 31772 | IR BURNER VALVE W/MICROSWITCH | 1 | EA | |
| 45 | 31794 | FLEX HOSE, 9MM X 38″ W/ 7/16 FITTINGS | 1 | EA | |
| 46 | 34103 | MAIN BURNER VALVE W/MICROSWITCH | 3 | EA | |
| NI | 32845 | MICROSWITCH | 3 | EA | |
| NI | 34197 | SCREW | 3 | EA | |
| 47 | 80653 | MANIFOLD ASSY W/VALVES, 42″ NG ALL – TRIDENT | 1 | EA | |
| 47 | 80652 | MANIFOLD ASSY W/VALVES, 42″ LP ALL – TRIDENT | 1 | EA | |
| 48 | 33556 | IGNITER SHORT, HOT POINT | 3 | EA | |
| 49 | 33415 | PROSEAR-2 BURNER, 30″, 42″,
54″ |
3 | EA | |
| NI | 90181 | SCREEN REPLACEMENT, PROSEAR 2 BURNER | 3 | EA | |
| 50 | 30417 | IR ACCESS COVER | 1 | EA | |
| 51 | 14012 | SCREW, 1/4-20 X 3/8 PH TRUSS HD, S/S | 1 | EA | |
| 52 | 80440 | ROTISERIE JACK + INTERNAL HARNESS | 1 | EA | |
| NI | 33129 | JACK ONLY, DC PANEL MOUNT | 1 | EA | |
| 53 | 80533 | MAIN POWER HARNESS (27IR, 30, 36, 42, 54) | 1 | EA | |
| 54 | 36971 | POWER SUPPLY (5 AMP) | 1 | each | |
| 55 | 33416 | ROTISERIE EXTERNAL CORD | 1 | EA | |
| 56 | 32524 | HOOD HANDLE, 42″ | 1 | EA | |
| 57 | 31874 | EXTENSION SPRING ASM W/HOOK (NEED TWO PER UNIT) | 2 | EA | |
| NI | 14024 | LOCK NUT, #8-32, S/S | 2 | EA | |
| Item Part No. Name Qty Uom NOTES | |||||
| NI | 31782 | SHOULDER SCREW | 2 | EA | |
| 59 | 31736 | END CAP, HOOD HANDLE WITH INSU | 2 | EA | |
| 60 | 35765 | HOOD THERMOMETER, SEALED BLACK | 1 | EA | |
| 61 | 14013 | PIVOT SCREW, 1/4-20 X 1″ HEX DRIVE | 2 | EA | |
| NI | 14009 | PIVOT SCREW NUT, HEX, 1/4- 20 S/S | 2 | EA | |
| NI | 14026 | PIVOT WASHER, SPLIT LOCK,
1/4 S/S |
6 | EA | |
| 62 | 32130 | SPIT ROD, PRO 42″ | 1 | EA | |
| 63 | 31563 | SPIT FORK, HEAVY DUTY, ALL SIZES | 2 | EA | |
| NI | 31061 | THUMB SCREW | 2 | EA | |
| 64 | 33033 | FRONT RETAINING BKT, WARMING RACK | 2 | EA | |
| 65 | 32133 | REAR RETAINING BRACKET, WARMING RACK | 2 | EA | |
| 66 | 33597 | LEFT RETAINING BRACKET, WARMING RACK | 1 | EA | |
| 67 | 14014 | SCREW | 4 | EA | |
| 68 | 14024 | LOCK NUT, #8-32, S/S | 4 | EA | |
| 69 | 31930 | BOLT, HEX HEAD, 1/4-20 X 3/8″
S/S |
4 | EA | |
| 70 | 31031 | ALTERNATE LIGHT DEVICE, MATCH HOLDER | 1 | EA | |
| 71 | 31013 | SCREW, #8 X 1/2 PH TRUSS HD TYPE ‘A’ | 1 | EA | |
| 72 | 31649 | SCREW, #8-32 X 5/8, PHP, SS | 4 | EA | |
| 73 | 32477 | BUMPER 1/2″ DIA, RUBBER, PRESS IN | 2 | EA | |
| 75 | 14099 | SCREW, #10-24 X 3/4 PH FLAT HD S/S | 6 | EA | |
| 76 | 32939 | ROTIS. SPACER | 2 | EA | |
| 77 | 32196 | NUT, ACORN, #10-24, S/S | 2 | EA | |
| 78 | 32197 | WASHER, #10 SPLIT LOCK, S/S | 2 | EA | |
| 79 | 33651 | HEAT SHIELD, 42″ AT | 1 | EA | |
| 80 | 14023 | NUT, COMBINATION (FOR HEAT SHIELD) | 2 | EA | |
| Item Part No. Name Qty Uom NOTES | |||||
| 81 | 90151 | DRAIN PLUG AND SEAL KIT, DRIP PAN | 1 | EA | |
| 82 | 13010 | ELBOW, STREET, 1/2″ 90 DEGREE – NG ONLY | 1 | EA | |
| 82 | 13054 | ELBOW, 3/8″ FLARE TO 1/2″ FIP
– LP ONLY |
1 | EA | |
| NI | CC42 | 42″ GRILL COVER BUILT-IN | 1 | EA | |
| NI | CC42F | 42″ GRILL COVER FREESTANDING | 1 | EA | |
| NI | CC42FCB | 42″ GRILL COVER FREESTANDING WITH SIDE BURNER | 1 | EA | |
| NI | 20011 | DRIP PAN, PORCELAIN | 1 | EA | |
| NI | 34586 | SMOKER BOX KIT | 1 | EA | |
| NI | 90110 | WINDSCREEN 42″ | 1 | EA | |
| NI | LIJ42 | 42″ INSULATED JACKET | 1 | EA | |
