LYNX L30ATRF-01 Free Standing Grills User Manual
CART DOORS
| Item | Part No. | Name | Qty | Uom | NOTES |
| 1 | 70693 | DOOR WELDMENT (LH), L30 | 1 | EA | |
| 2 | 70689 | DOOR WELDMENT (RH), L30 | 1 | EA | |
| 3 | 11174 | HANDLE, 5″ OFFSET SS | 2 | EA | |
| 4 | 37167 | SCREW, 1/4-20 X 1/2 PAN HEAD TORX, NYLOK | 4 | EA | |
| 5 | 35792 | MOUNTING PLATE, HINGE, SOFT CLOSE | 4 | EA | |
| 6 | 35624 | HINGE, SOFT CLOSE | 4 | EA | |
| 7 | 32477 | BUMPER 1/2″ DIA, RUBBER, PRESS IN | 4 | EA | |
| 8 | 31754 | BOTTLE HOLDER LDR30/18 | 2 | EA | |
| 9 | 32222 | SCREW, SHOULDER, #10-32 X 1/4, SLOTTED, SS | 4 | EA |
CART INTERIOR
| Item | Part No. | Name | Qty | Uom | NOTES |
| 1 | 37092 | SHELF, INNER L30 | 1 | EA | |
| 2 | 81403 | CROSS CHANNEL ASSY, L30 | 1 | EA | |
| 3 | 70110 | TANK BRACKET ASSY | 1 | EA | |
| 4 | 70696 | BRKT, SHELF, RH, MOVEABLE, WLDMT | 2 | EA | |
| 5 | 70697 | BRKT, SHELF, LH, MOVEABLE, WLDMT | 2 | EA | |
| 6 | 81417 | TRANSFORMER ASSY | 1 | EA | |
| 7 | 37095 | PANEL, ACCESS BACK, L30 | 1 | EA | |
| 8 | 32164 | Side Shelf, 30/42/54 | 2 | EA | |
| 9 | 37168 | SCREW, 1/4-20 X 1/2 FLAT HEAD TORX, LOCTITE | 2 | EA | |
| 10 | 37167 | SCREW, 1/4-20 X 1/2 PAN HEAD TORX, NYLOK | 16 | EA | |
| 11 | 31205 | GROMMET, PLSTC, 1 I.D. X 1 3/8 O.D. | 1 | EA |

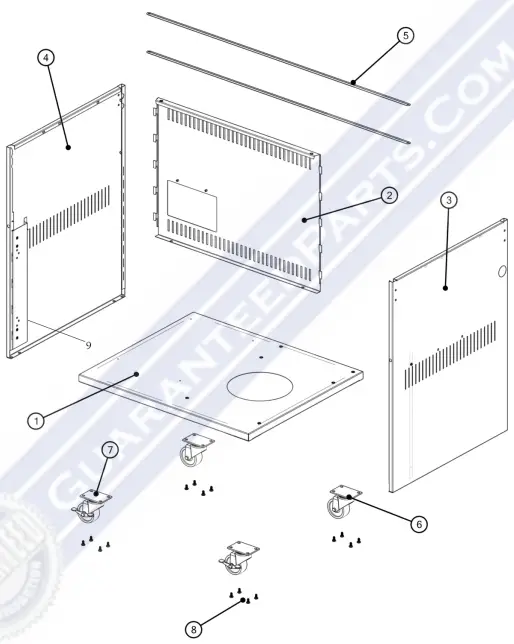

CABINET BODY
| Item | Part No. | Name | Qty | Uom | NOTES |
| 1 | 81398 | Base, L30 | 1 | EA | |
| 2 | 81388 | BACK PANEL ASSY, L30 | 1 | EA | |
| 3 | 80393 | SIDE PANEL ASSY, RH, PRO | 1 | EA | |
| NOTE | (BEFORE 04/11/2022) | EA | |||
| 3 | 90275 | RH SIDE PANEL W/INSERT NUTS | 1 | EA | |
| NOTE | (ON OR AFTER 04/11/2022 OR IF ASSEMBLY PREVIOUSLY INSTALLED) | EA | |||
| 4 | 81396 | SIDE PANEL ASSY, LH, L30/54 | 1 | EA | |
| NOTE | (BEFORE 04/11/2022) | EA | |||
| 4 | 90276 | LH SIDE PANEL W/INSERT NUTS | 1 | EA | |
| NOTE | (ON OR AFTER 04/11/2022 OR IF ASSEMBLY PREVIOUSLY INSTALLED) | EA | |||
| 5 | 37064 | BRACE, CROSS, L30 | 2 | EA | |
| 6 | 20047 | Caster, 3″ w/o Brake | 2 | EA | |
| 7 | 20024 | Caster, 3″ w/Brake | 2 | EA | |
| 8 | 37165 | SCREW, #8-32 X 1/2 PAN HEAD TORX, LOCTITE | 16 | EA | |
| 9 | 90279 | CHANNEL, SIDE SUPPORT | 2 | EA | |
| NOTE | (ON OR AFTER 04/11/2022 OR IF ASSEMBLY PREVIOUSLY INSTALLED) | EA |
GRILL
| Item | Part No. | Name | Qty | Uom | NOTES |
| 1 | 80309 | FRONT HOOD ASSY 30° | 1 | EA | |
| 2 | 90132 | MOTOR MOUNTING BRACKET, KIT, ALL PRO | 1 | EA | |
| 3 | 80277 | MOTOR ASSY, HEAVY DUTY 3 SPEED | 1 | EA | |
| 4 | 32109 | WARMING SHELF, PRO 30′ | 1 | EA | |
| 5 | 34704 | (2) GRATES- 13 1/2° X 21′ | 2 | EA | |
| 6 | 20018 | IR THERMOCOUPLE | 1 | EA | |
| 7 | 33052 | IR ELECTRODE, HOT SURFACE | 1 | EA | |
| NI | 80487 | WIRE ASSEMBLY, ROTIS | 1 | EA | |
| 8 | 33093 | GAS COLLECTOR BOX, IR ROTIS | 1 | EA | |
| 9 | 14018 | SCREW, #6-32 X 1/4 PH. PAN HD | 3 | EA | |
| 10 | 31795 | IR BRASS ELBOW, 7/16-20 MALE THREAD | 1 | EA | |
| 11 | 32156 | LIGHT PANEL/REAR HOOD LINER, 30′ | 1 | EA | |
| 12 | 81419 | REAR HOOD ASSEMBLY 30 | 1 | EACH | |
| 13 | 90237 | HOOD SPACER KIT | 1 | EA | |
| 14 | 80446 | HOOD LIGHT ASSY, SINGLE W/10W BULB | 1 | EA | |
| NI | 31979 | BULB, REPLACEMENT, 10W HALOGEN | 1 | EA | |
| NI | 32322 | GLASS REPLACEMENT COVER W/CLIP | 1 | EA | |
| 15 | 80273 | IR PANEL ASSY, 30′ (INCLUDES BURNER) | 1 | EA | |
| 16 | 32989 | IT ROTIS. BURNER ONLY (21 IN.) | 1 | EA | |
| 17 | 32992 | IR BURNER FRAME ONLY (21 IN.) | 1 | EA | |
| 18 | 32644 | SCREW, #8-32 X 516 PH. FLAT HD | 2 | EA | |
| 19 | 36675 | BURNER HANGER, PRO 30″ | 2 | EA | |
| 22 | 80790 | IR IGNITER BRACKET, ALL PRO | 1 | EA | |
| 23 | 33135 | IR IGNITER COVER, 3 5/8″ | 1 | EA | |
| 24 | 30781 | REGULATOR 4/11 N/G ONLY | 1 | EA |
| Item | Part No. | Name | Qty | Uom | NOTES | |
| 24 | 13053 | REGULATOR W/30″ HOSE DOUBLE STAGE – LP | 1 | EA | ||
| 25 | 90128 | ROLLER BEARING KIT – ROTISSERIE (2 PARTS EA) | 1 | EA | ||
| 26 | 32468 | HOOD STOP | 1 | EA | ||
| 27 | 32470 | BUMPER FOR HOOD STOP,.750 DIA | 2 | EA | ||
| 28 | 33389 | HOOD STOP, LEFT, ALL PRO | 1 | EA | ||
| 29 | 32469 | SCREW/HOOD STOP – #8-32 X 1″ PH TRUSS HD | 4 | EA | ||
| 30 | 90176 | COMPLETE ORIFICE FIELD KIT- LP TO NG | 1 | EA | ||
| NI | 90177 | COMPLETE ORIFICE FIELD KIT- NG TO LP | 1 | EA | ||
| NI | 13016 | ORIFICE, IR ROTIS, NG (#50 SHORT) | 1 | EA | ||
| NI | 13021 | ORIFICE, IR ROTIS, LP (#57 SHORT) | 1 | EA | ||
| NI | 13014 | BURNER ORIFICE, NG (#42 SHORT) | 2 | EA | ||
| NI | 13020 | ORIFICE, BURNER, LP (#54 SHORT) | 2 | EA | ||
| 31 | 90129 | ROLLER BEARING KIT | 1 | EA | ||
| 32 | 18050 | DRIP | PAN, 30° | 1 | EA | |
| 33 | 33130 | TRANSFORMER MOUNTING BRKT B/I & F/S | 1 | EA | ||
| 34 | 80435 | LED HARNESS ASSY, L500 W/IR | 1 | EA | ||
| 35 | 32554 | LED HOLDER (INCLUDES NUT) | 3 | EA | ||
| NI | 32055 | WASHER | 3 | EA | ||
| 36 | 90230 | KNOB, TRIDENT BURNER | 2 | EA | ||
| 38 | 90136 | KNOB, ROTIS, STAINLESS | 1 | EA | ||
| 39 | 10001 | BEZEL | 3 | EA | ||
| 40 | 31929 | BEZEL SCREW, #6-32 X 1/8 PH PAN | 6 | EA | ||
| 41 | 33148 | LIGHT SWITCH + HARNESS, BLUE LIGHTED | 1 | EA | ||
| 42 | 80539 | FRONT PANEL, 30″ | 1 | EA | ||
| NI | 11074 | LOGO, LYNX | 1 | EA | ||
| Item | Part No. | Name | Qty | Uom | NOTES | |
| 43 | 80516 | BULLNOSE ASS’Y, PRO 30″ | 1 | EA | ||
| 44 | 31772 | IR BURNER VALVE W/MICROSWITCH | 1 | EA | ||
| 45 | 31794 | FLEX HOSE, 9MM X 38″ W/ 7/16 FITTINGS | 1 | EA | ||
| 46 | 34103 | MAIN BURNER VALVE W/MICROSWITCH | 2 | EA | ||
| NI | 32845 | MICROSWITCH | 2 | EA | ||
| NI | 34197 | SCREW | 2 | EA | ||
| 47 | 80669 | MANIFOLD ASSY W/VALVES, 30″ NG ALL – TRIDENT | 1 | EA | ||
| 47 | 80668 | MANIFOLD ASSY W/VALVES, 30″ LP ALL – TRIDENT | 1 | EA | ||
| 48 | 33556 | IGNITER SHORT, HOT POINT | 2 | EA | ||
| NOTE | (FOR ASSEMBLY SEE ITEM 74) | EA | ||||
| 49 | 33415 | PROSEAR-2 BURNER, 30″, 42″,54″ | 2 | EA | ||
| NI | 90181 | SCREEN REPLACEMENT, PROSEAR 2 BURNER | 2 | EA | ||
| 50 | 30417 | IR ACCESS COVER | 1 | EA | ||
| 51 | 14012 | SCREW, 1/4-20 X 3/8 PH TRUSS HD, S/S | 1 | EA | ||
| 52 | 80440 | ROTISERIE JACK + INTERNAL HARNESS | 1 | EA | ||
| NI | 33129 | JACK ONLY, DC PANEL MOUNT | 1 | EA | ||
| 53 | 80533 | MAIN POWER HARNESS (27IR, 30, 36, 42, 54) | 1 | EA | ||
| 54 | 36971 | POWER SUPPLY (5 AMP) | 1 | each | ||
| 55 | 33416 | ROTISERIE EXTERNAL CORD | 1 | EA | ||
| 56 | 32522 | HOOD | HANDLE, 30° | 1 | EA | |
| 57 | 31874 | EXTENSION SPRING ASM W/HOOK (NEED TWO PER UNIT) | 2 | EA | ||
| NI | 14024 | LOCK NUT, #8-32, S/S | 4 | EA | ||
| NI | 31782 | SHOULDER SCREW | 4 | EA | ||
| 59 | 31736 | END CAP, HOOD HANDLE WITH INSU | 2 | EA | ||
| 60 | 35765 | HOOD THERMOMETER, SEALED BLACK | 1 | EA | ||
| Item Part No. Name | Qty | Uom | NOTES | ||||
| 61 | 14013 | PIVOT SCREW, 1/4-20 X 1″ HEX DRIVE | 2 | EA | |||
| NI | 14009 | PIVOT SCREW NUT, HEX, 1/4- 20 S/S | 2 | EA | |||
| NI | 14026 | PIVOT WASHER, SPLIT1/4 S/S | LOCK, | 6 | EA | ||
| 62 | 32128 | SPIT | ROD, 30′ | 1 | EA | ||
| 63 | 36995 | FORK ROTIS, L500-L36, SMALL | 2 | EA | |||
| NI | 31061 | THUMB SCREW | 2 | EA | |||
| 64 | 33033 | FRONT RETAINING BKT, WARMING RACK | 2 | EA | |||
| 65 | 32133 | REAR RETAINING BRACKET, WARMING RACK | 2 | EA | |||
| 66 | 33597 | LEFT RETAINING BRACKET, WARMING RACK | 1 | EA | |||
| 67 | 14014 | SCREW | 4 | EA | |||
| 68 | 14024 | LOCK NUT, #8-32, S/S | 2 | EA | |||
| 69 | 31930 | BOLT, HEX HEAD, 1/4-20 X 3/8″S/S | 1 | EA | |||
| 70 | 31031 | ALTERNATE LIGHT DEVICE, MATCH HOLDER | 1 | EA | |||
| 71 | 31013 | SCREW, #8 X 1/2 PH TRUSS HD TYPE ‘A’ | 1 | EA | |||
| 72 | 31649 | SCREW, #8-32 X 5/8, PHP, SS | 4 | EA | |||
| 73 | 32477 | BUMPER 1/2″ DIA, RUBBER, PRESS IN | 2 | EA | |||
| 74 | 90178 | COMPLETE ELECTRODE KIT, 30/36/42 ALL TRIDENT | 1 | EA | |||
| 75 | 14099 | SCREW, #10-24 X 3/4 PH FLAT HD S/S | 6 | EA | |||
| 76 | 32939 | ROTIS. SPACER | 2 | EA | |||
| 77 | 32196 | NUT, ACORN, #10-24, S/S | 2 | EA | |||
| 78 | 32197 | WASHER, #10 SPLIT LOCK, S/S | 2 | EA | |||
| 79 | 33864 | HEAT SHIELD, 30″ AT | 1 | EA | |||
| 80 | 14023 | NUT, COMBINATION (FOR HEAT SHIELD) | 2 | EA | |||
| 81 | 90151 | DRAIN PLUG AND SEAL KIT, DRIP PAN | 1 | EA | |||
| 82 | 13010 | ELBOW, STREET, 1/2″ 90 DEGREE – NG ONLY | 1 | EA | |||
| Item | Part No. | Name | Qty | Uom | NOTES |
| 82 | 13054 | ELBOW, 3/8″ FLARE TO 1/2″ FIP- LP ONLY | 1 | EA | |
| NI | CC30 | 30″ GRILL COVER BUILT-IN | 1 | EA | |
| NI | CC30F | 30″ GRILL COVER FREESTANDING | 1 | EA | |
| NI | CC30FCB | 30″ GRILL COVER FREESTANDING WITH SIDE BURNER | 1 | EA | |
| NI | 20011 | DRIP PAN, PORCELAIN | 1 | EA | |
| NI | 90109 | WINDSCREEN 30″ | 1 | EA | |
| NI | LIJ30 | 30″ INSULATED JACKET | 1 | EA |
