P-PKG1W-WH Caseta Wireless In-Wall Dimmer
User Guide
In-wall dimmer
Welcome—and thank you for purchasing a Caséta TM Wireless in-wall dimmer. In order to control your lights from an app or remote, you’ll need to replace an existing switch with a CasétaT Wireless in-wall dimmer.
Before you install the dimmer, please watch the installation video at www.casetawireless.com/support
We hope you enjoy the convenience of Caséta TM Wireless!
Double your warranty
Love Caséta TM Wireless dimmers? Have ideas for making them better? Tell us what you think and we’ll extend your warranty by 1 year. www.casetawireless.com/register

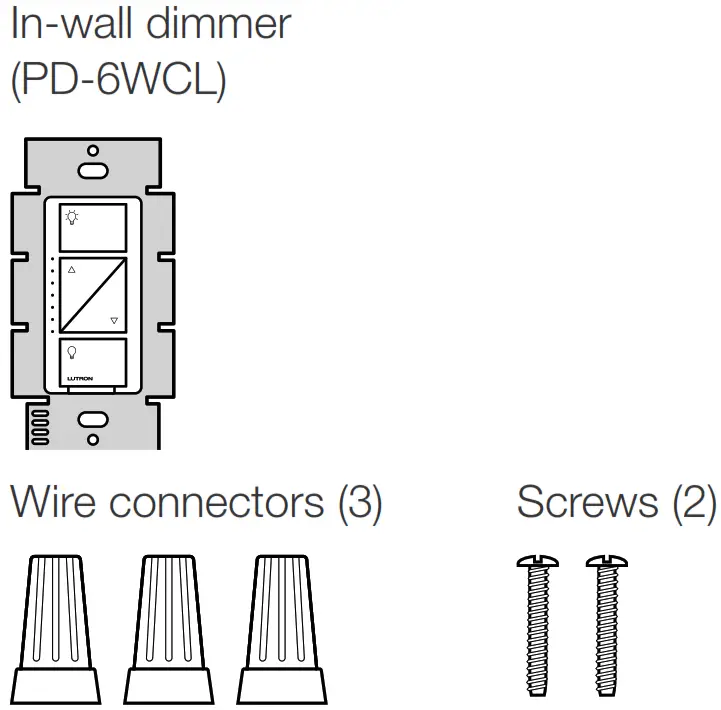

Contents supplied

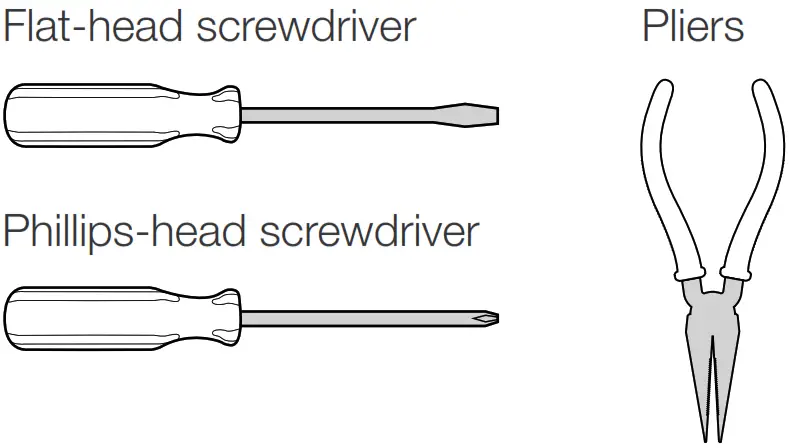

Tools you’ll need
Contents
Installing your dimmer
Installation for lights with one wall switch (single pole)

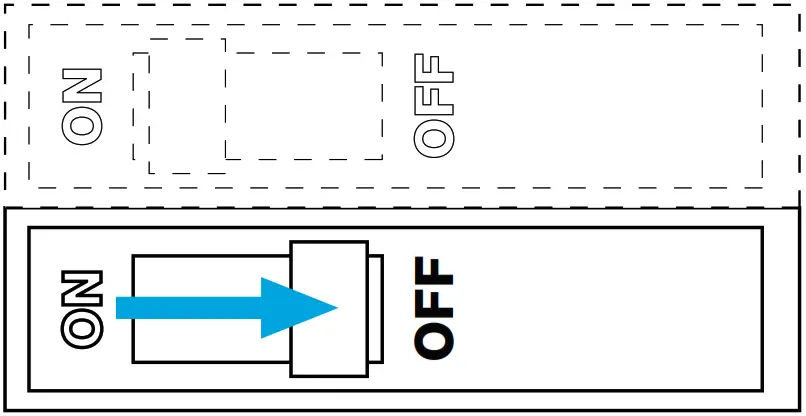

- Turn the power off at the circuit breaker!
WARNING: SHOCK HAZARD.
It May result in serious injury or death. Turn off power at the circuit breaker or fuse before installing.
Important note:
Some lights have one wall switch, while others have two or more wall switches (such as stair lights, which have a switch at both the top and bottom of the stairs). We’ve included instructions for lights with one wall switch (called a single pole). If your light has more than one switch (called a 3-way), please visit www.casetawireless.com/3way for complete installation instructions and how-to videos. - Remove the existing switch from the wall

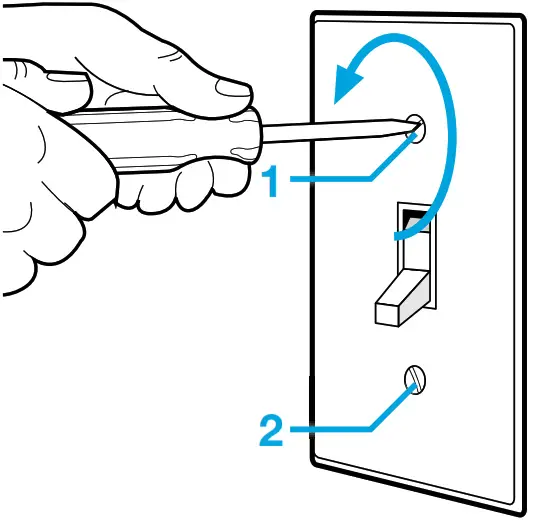

Remove the wallplate from the switch.
Remove the switch and pull it away from the wall.
Disconnect all three wires* from the switch.

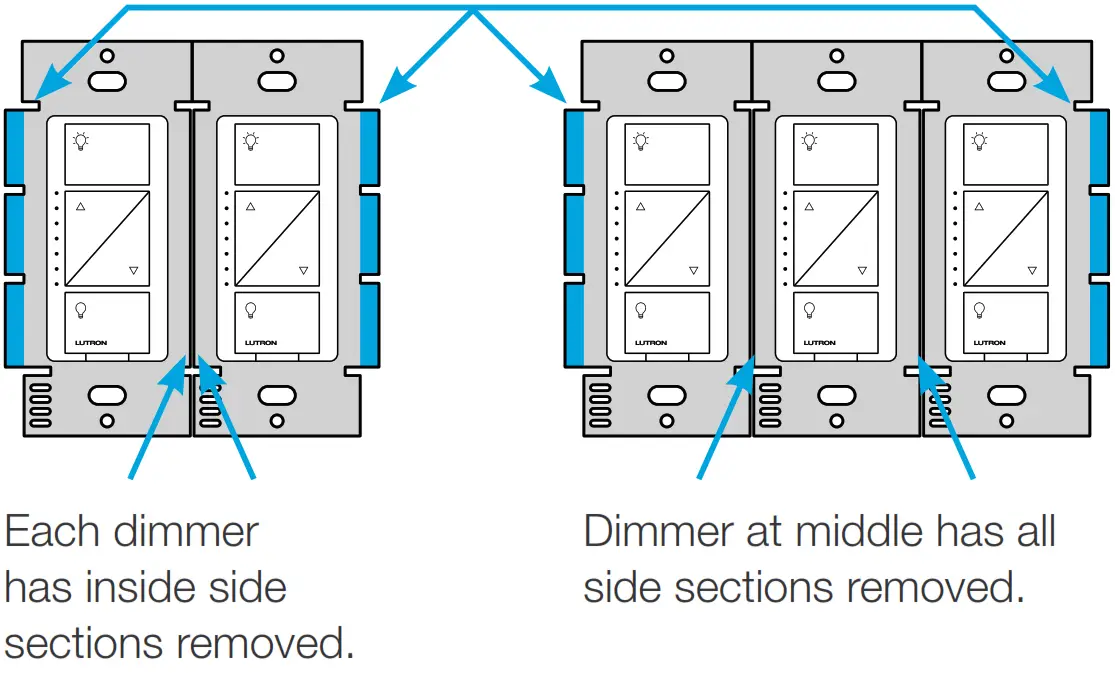

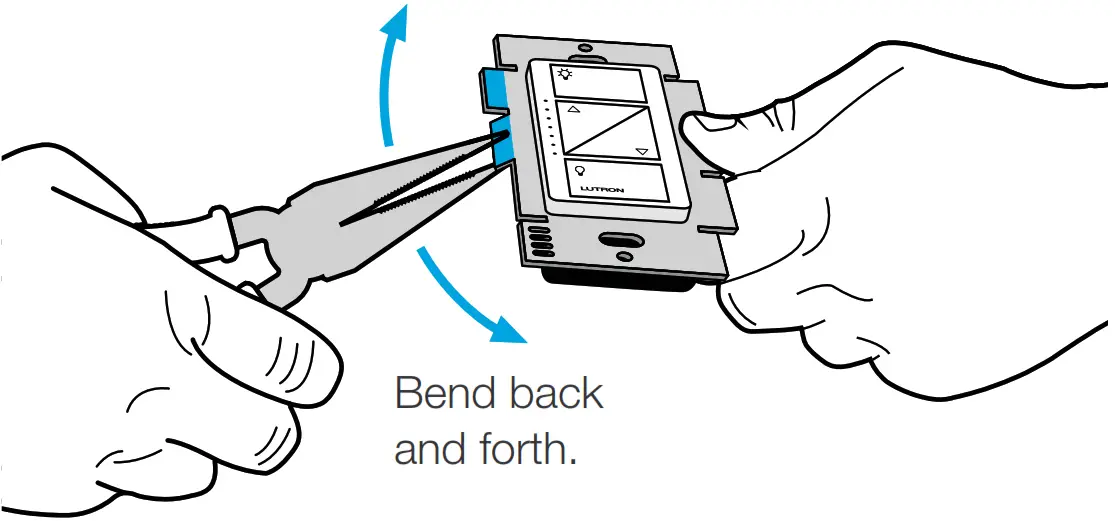

* If your switch has more than 3 wires attached, see the “Installing Caséta Wireless in a 3-way switch application” video at www.casetawireless.com/3way - Remove side sections (if necessary)
Do not remove outside side sections on dimmers at the end of the gang.
Important note:
Removing side sections reduces the dimmer’ s maximum wattage rating. See the chart below for maximum wattage information.
Maximum* wattage derating chart (120 V~ 50/60 Hz)
Side sections removed None 1 side 2 sides LED & CFL 150 W 150 W 150 W or* Incandescent & Halogen 600 W 500 W 400 W * For maximum wattage information when mixing light bulb types seewww.casetawireless.com/ganging.

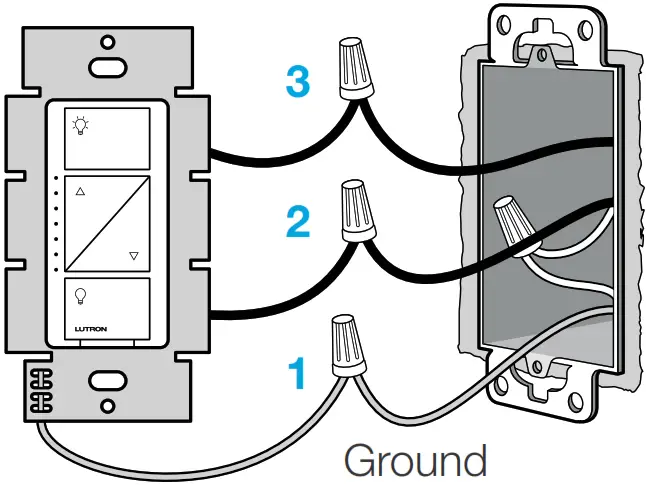

- Connect the dimmer
1. Connect the bare copper (or green) “ground” wire from the wall box to the green wire on the dimmer using a wire connector.
2. Connect either of the remaining wires from the wall box to either of the remaining wires on the dimmer using a second wire connector.

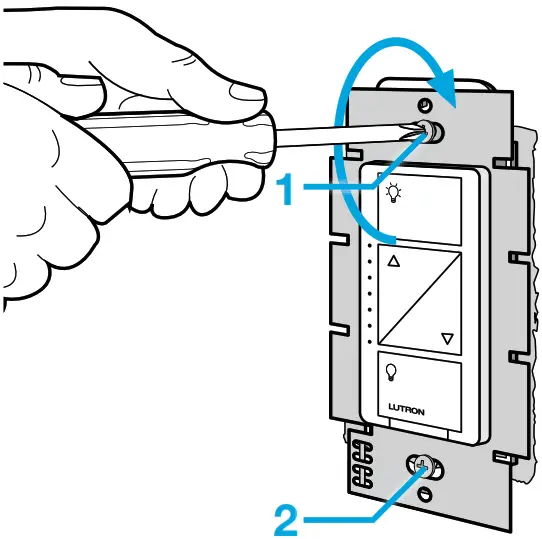

3. Connect the remaining wire from the wall to the remaining wire on the dimmer using a third wire connector. - Mount the dimmer
Use the screws provided.

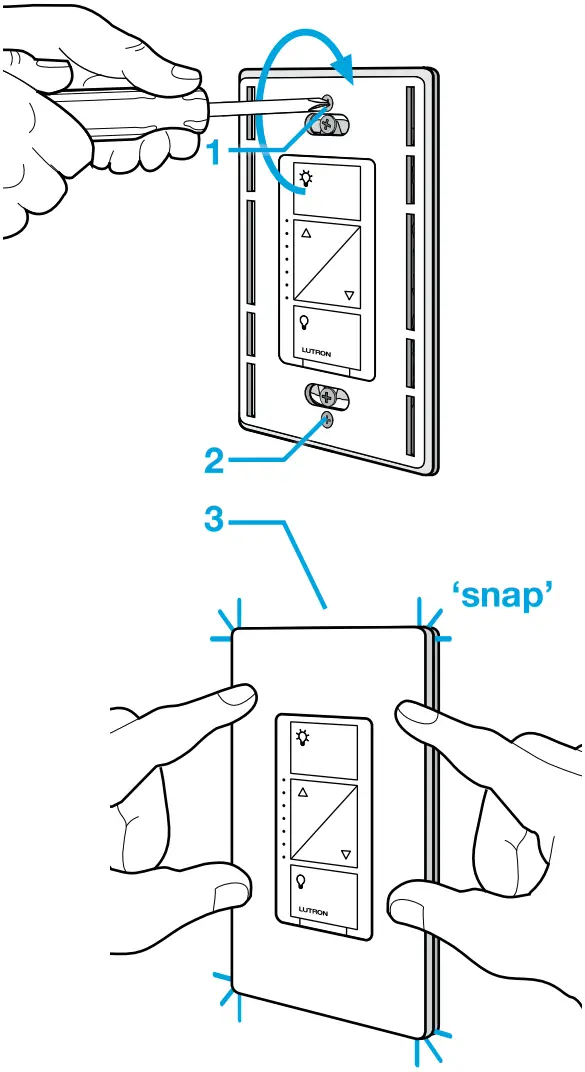

- Attach the wallplate
Attach the adapter to the dimmer using the screws provided and snap on the wallplate.

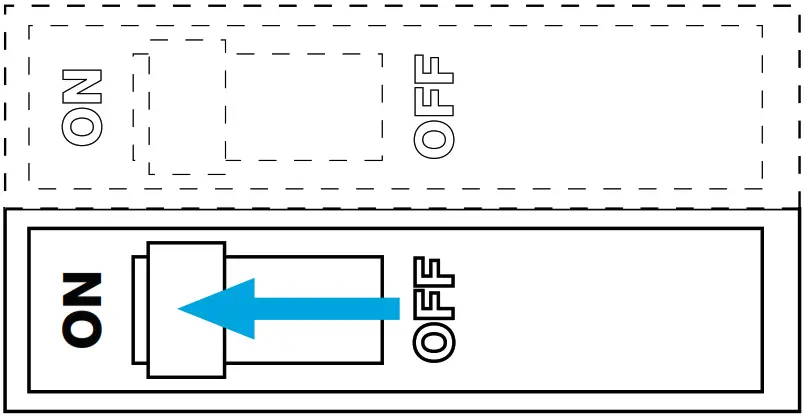

(If you installed the dimmer next to other dimmers or switches, you’ll need to install a wall plate with the correct size/number of openings to accommodate all the devices.) - Turn the power on at circuit breaker
Use your Caseta Wireless kit (sold separately)

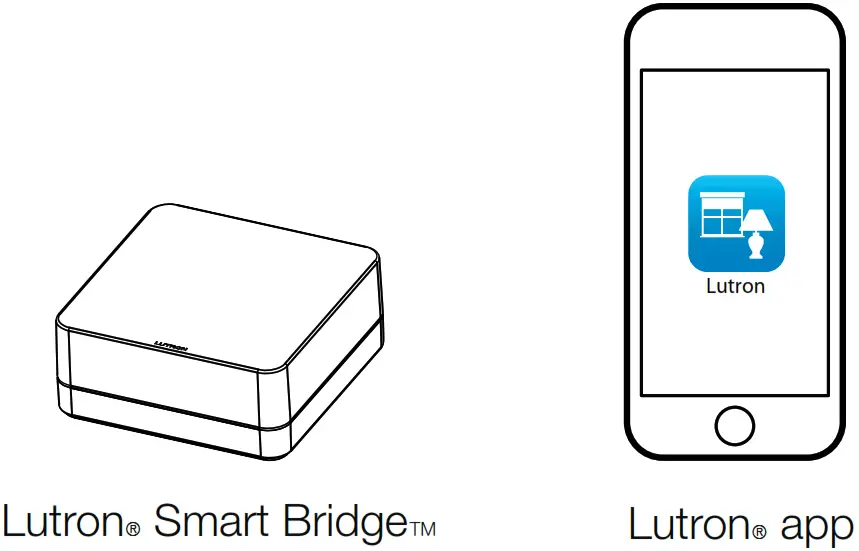

With a smartphone or tablet (Bridge required, sold separately)
The CasétaT Wireless dimmer can be controlled from a smartphone when used with the Lutron® Smart Bridge™.
If you are using the dimmer and remote control with the Lutron® Smart Bridge™ follow the instructions below.
Note: If you are using the dimer and remote control with another manufactures bides. please refer to that manufacturer’s instructions for set-up.

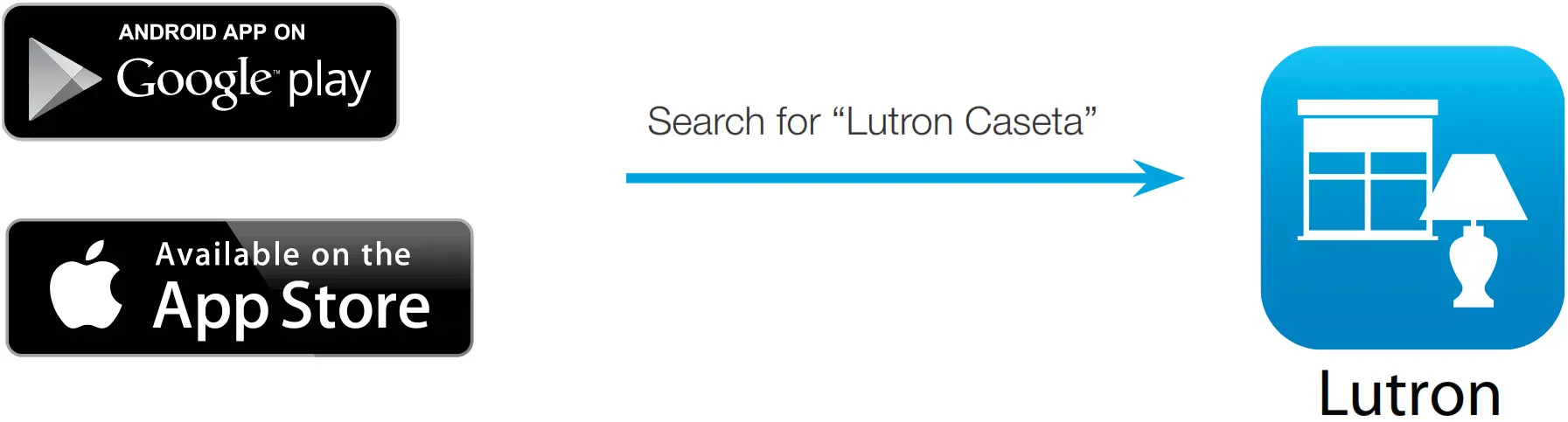

- Download the Lutron® app
www.casetawireless.com/LutronApp

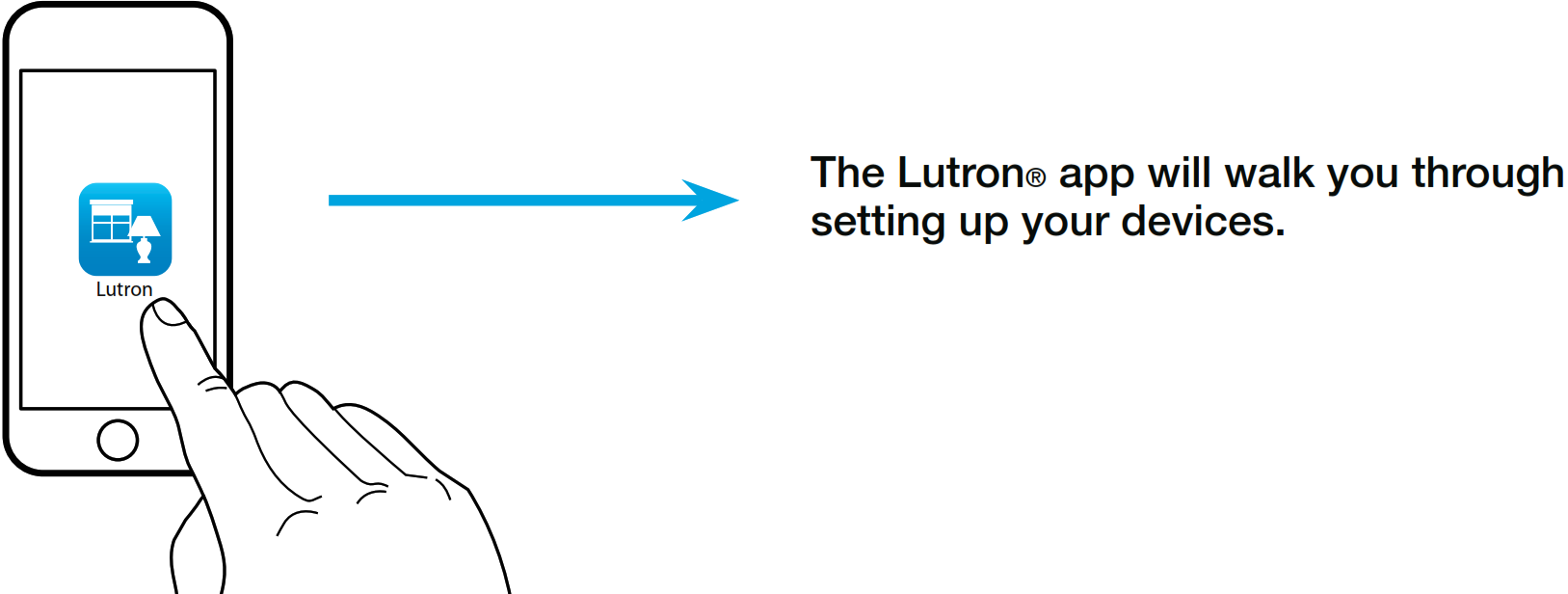

Apple is a trademark of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc. - Launch the Lutron® app
- Use the Lutron® app to complete ALL remaining steps
Add devices
• PicoR remotes
• Dimmers
• Shades
Control three ways
Schedule your lights
Connect while away
Without a smartphone or tablet (Bridge not required)
Pairing the dimmer and Pico® remote control

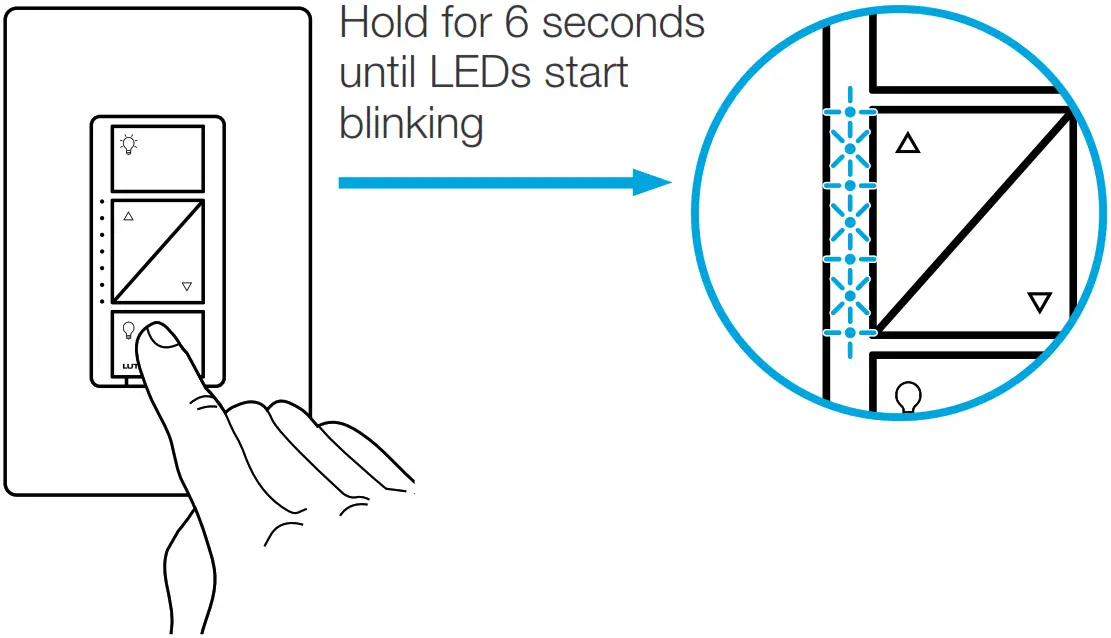

- Press and hold the “off” button on dimmer

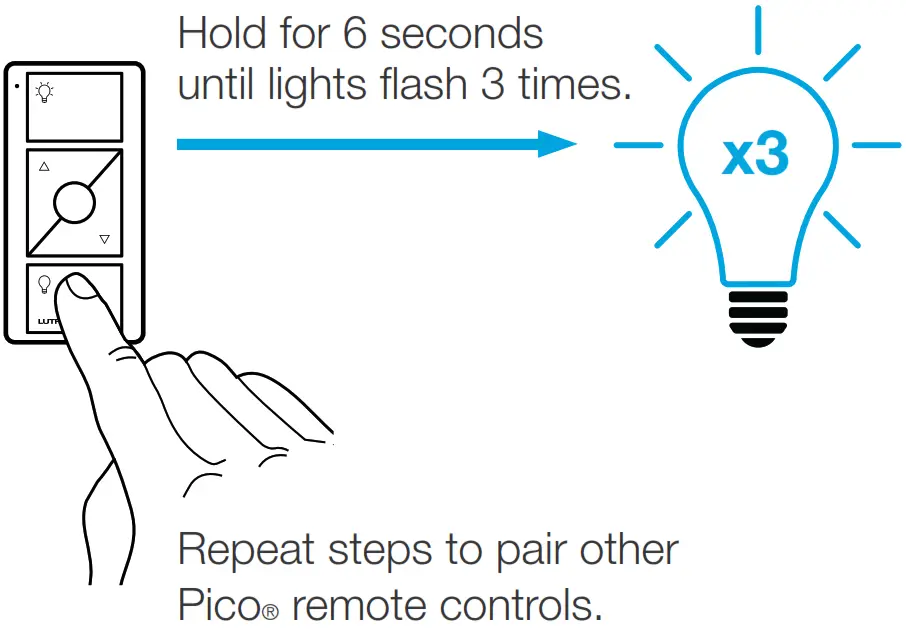

- Press and hold the “off” button on the remote

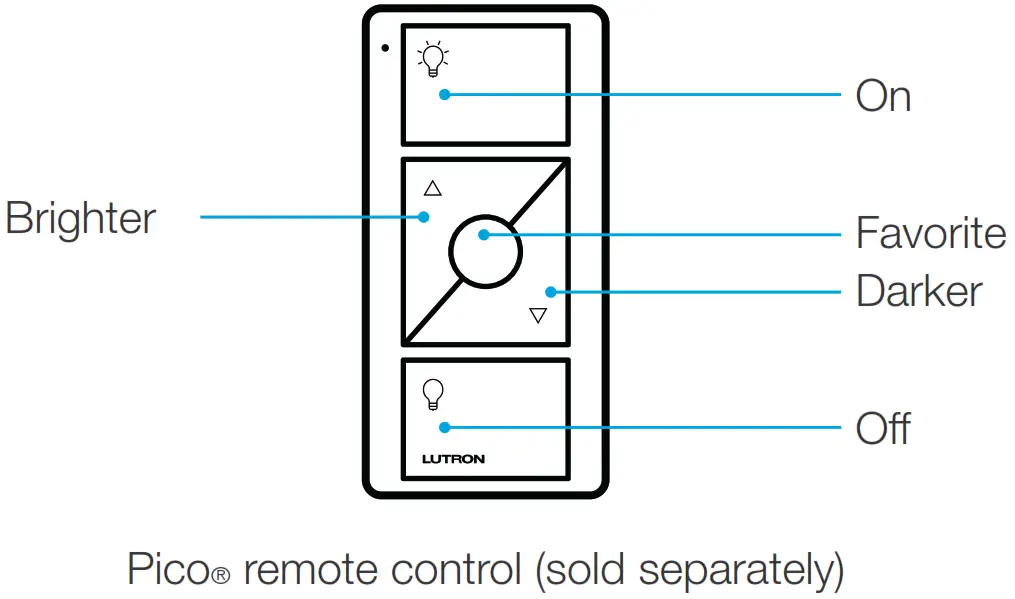

Changing the favorite light level on the Pico® remote control (sold separately)

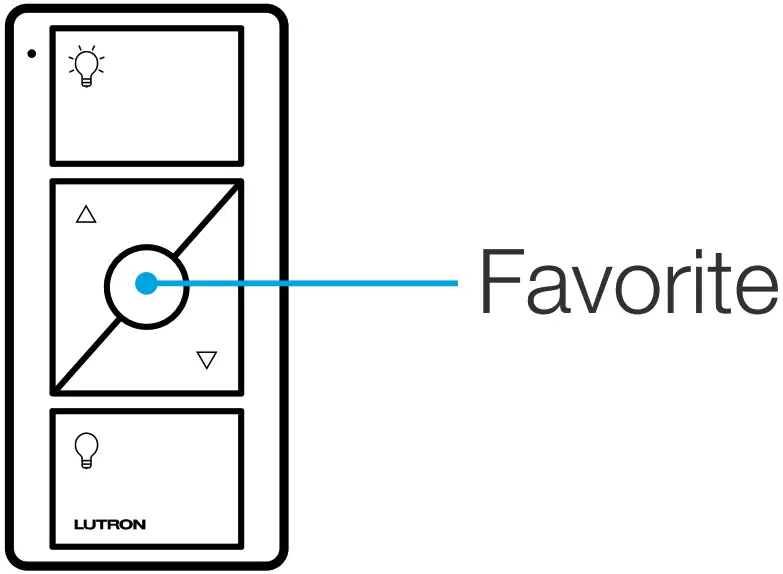

You can use the round “favorite” button on the Pico® remote control to recall a favorite light level. We’ve set it to 50%, but you can change it to any level you like.

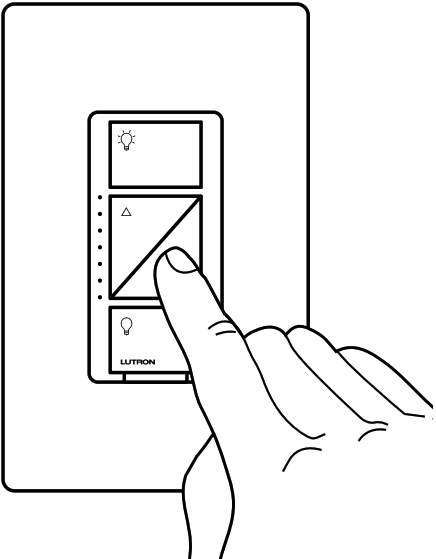

- Set desired light level on dimmer

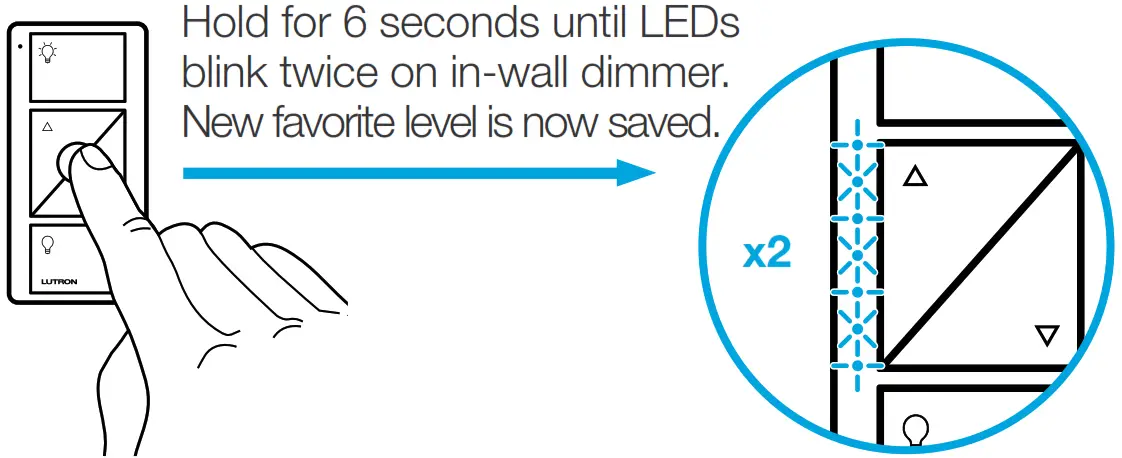

- Press and hold the “favorite” button on remote
For advanced features, tips for using Caséta TM Wireless dimmers with CFLs and LEDs, the complete Caséta TM Wireless product line, and more, please visit www.casetawireless.com/features

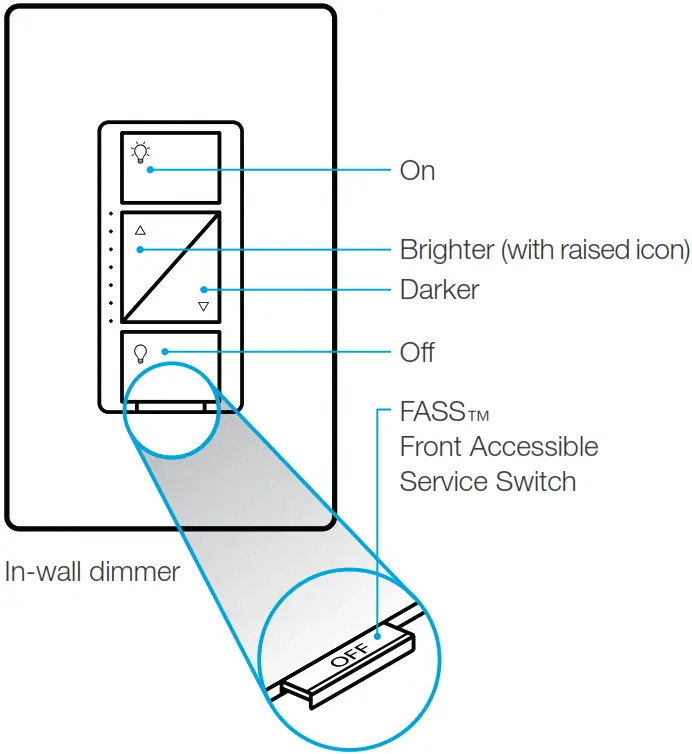

Using your controls
Replacing light bulbs using FASS™
Pull the FASS™ switch out on the in-wall dimmer to remove power at the light socket.
Important notes:
- For indoor use only.
- Operate between 32 ˚F (0 ˚C) and 104 ˚F (40 ˚C).
Device Ratings
In-wall dimmer
PD-6WCL
120 V~ 50/60 Hz
Troubleshooting
| Symptoms | Probable cause and action |
| Light does not turn on or in-wall dimmer LEDs do not light up. | • Light bulb(s) burned out. • Breaker is OFF or tripped. • Light not properly installed. • Wiring error. • FASS™ switch on the dimmer is in the Off position. |
| Light does not respond to Pico® remote control. | • The dimmer failed to pair with Pico® remote control; see Pairing the dimmer and Pico® remote control. • The dimmer is already at the light level the Pico® remote control is sending. • The Pico® remote control is outside the 30 ft (9 m) operating range. • The Pico® remote control battery is low. • The Pico® remote control battery is installed incorrectly. |
| • Bulbs turn off while being dimmed. • Bulbs turn on at a high light level but do not turn on at a low light level. • Bulbs flicker or flash when dimmed to a low light level. |
Verify bulbs are marked dimmable and visit www.casetawireless.com/lowend for information on adjusting the dimmer for best bulb performance. |
Go to www.casetawirless.com/support for additional troubleshooting suggestions.
CAUTION
Use only with permanently installed fixtures with dimmable LED, dimmable CFL, halogen, or incandescent lamps. To avoid overheating and possible damage to other equipment, do not use to control receptacles, motor-driven appliances, or transformer-supplied appliances.
Codes
Install in accordance with all national and local electrical codes.
Grounding
When no “grounding means” exists in a wall box, the National Electrical Code (NEC® ) allows a control to be installed as a replacement if
- A nonmetallic, noncombustible faceplate is used with nonmetallic attachment screws or
- The circuit is protected by a ground fault circuit interrupter (GFCI).
When installing a control according to these methods, cap or remove the green wire before screwing the control into the wall box.
FCC/IC Information
This device complies with part 15 of the FCC Rules and Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:
- This device may not cause interference, and
- this device must accept any interference, including interference that may cause undesired operation.
Modifications not expressly approved by Lutron Electronics Co., Inc. could void the user s authority to operate this equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Warranty
For warranty information, please visit www.casetawireless.com/warranty.
Works with energy efficient dimmable light bulbs:
 |
LED | up to 150 W |
 |
CFL | up to 150 W |
 |
Halogen | up to 600 W |
 |
Incandescent | up to 600 W |
NOTE: You can mix and match dimmable LED and CFLs, as well as halogen and incandescent light bulbs, with Caséta TM Wireless dimmers.
Dimmable LED and CFL light bulbs vary in their dimming performance. If you’re using these bulbs and they flicker or turn off, please visit www.casetawireless.com/lowend for information on adjusting the dimmer for best bulb performance.
For a complete list of compatible dimmable LEDs and CFLs, please visit www.casetawireless.com/bulblist
Compatible light bulbs include:
Cree®
BA19-08027OMF-12DE26-1U100
CR6-575L
EcoSmart®
ECS BR30 W27 FL 120
ECS 20 WW FL 50WE 120
Feit®
A19/OM/LED
Philips®
9290002295
Sylvania®
LED12A19/DIM/O/827
LED21PAR38/DIM/P/930/FL30
Lutron,
, and Pico are registered trademarks and FASS, Caséta, and Smart Bridge are trademarks of Lutron Electronics Co., Inc. NEC is a registered trademark of the National Fire Protection Association, Quincy, Massachusetts. Google and the Google logo are registered trademarks of Google Inc., used with permission.
© 2014 Lutron Electronics Co., Inc
Lutron Electronics Co., Inc.
7200 Suter Road
Coopersburg, PA 18036-1299, U.S.A.
P/N 0301730 REV B
