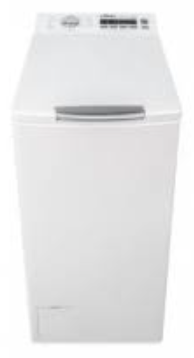

Lord W9 Washing Machine User Manual

Lord W9 Washing Machine User Manual

SAFETY INSTRUCTIONS

For your safety,the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent
property damage, personal injury or loss of life. Explanation of the
symbols:
 WARNING! This combination of symbol and signal word indicates a potentially dangerous situation which may result in death or serious injuries unless it’s avoided.
CAUTION!
This combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries or 0damage to property and the environment.
NOTE!
This combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries.
WARNING!
]The electric shock!

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.
• Before any maintenance the device, unplug the appliance from the mains.
• Always unplug the machine and turn off the water supply after
  use. The max. inlet water pressure, in pascals. The min. inlet
  water pressure, in pascals.
  • To ensure your safety, power plug must be inserted into an
  earthed three-pole socket. Check carefully and make sure that
  your socket is properly and reliably earthed.
  • Make sure that the water and electrical devices must be
  connected by a qualified technician in accordance with the
  manufacturer’s instructions and local safety regulations.

Risk to children!

• countries: the appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning  use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children of less than 3 years should be supervised to ensure that they do not play with appliance.
• Animals and children may climb into the machine. Check the
  machine before every operation.
• Kids should be supervised that they do not play with the appliance.
• Remove all packages and transport bolts before using the appliance. Otherwise, serious damage may result.
• Plug must be accessible after installation.
• Risk of explosion!
  • Do not wash or dry articles that have been cleaned in, washed
  in, soaked in, or dabbed with combustible or explosive
  substances( such as wax, oil, paint, gasoline, degreasers, drycleaning solvents, kerosene, etc.) This may result in fire or
  explosion.
  • Before hand thoroughly rinse items of washing by hand.
  CAUTION!
  Installing the product!
• This washing machine is for indoor use only.
• It isn’t intended to be built-in using.
• The openings must not be obstructed by a carpet.
•  Washing machine shall not be installed in bath room or very wet rooms as well as in the rooms with explosive or caustic gases.
• The washing machine with single inlet valve only can be connected to the cold water supply. The product with double inlet valves should be correctly connected to the hot water and cold water supply.
• Plug must be accessible after installation.
• Remove all packages and transport bolts before using the appliance. Otherwise, serious damage may result.
• Risk of damaging appliance!
• Your product is only for home use and is only designed for the textiles suitable for machine washing.
• Do not climb up and sit on top cover of the machine.
• Do not lean against machine door.
• Cautions during Handling Machine:
  1. Transport bolts shall be reinstalled to the machine by a specialized person.
  2. The accumulated water shall be drained out of the machine.
  3. Handle the machine carefully. Never hold each protruded part on the machine while lifting. Machine door can not be used as the handle during the conveyance.
  4. This appliance is heavy. Transport with care.
     • Please do not close the door with excessive forces. If it is found difficult to close the door, please check if the clothes are put in or distributed well.
     • It is forbidden to wash carpets. Operating the appliance!
     • Flammable and explosive or toxic solvents are forbidden. Gasoline and alcohol etc. Shall not be used as detergents. Please only select the detergents suitable for machine washing, especially for drum.
     • Make sure that all pockets are emptied. Sharp and rigid items such as coin, brooch, nail, screw or stone etc. may cause serious damages to this machine.
     • Please check whether the water inside the drum has been drained before opening its door. Please do not open the door if there is any water visible.
     • Be careful of burning when the product drains hot washing water.
     • Never refill the water by hand during washing.
     • After the program is completed, Please wait for two minutes to open the door

Packaging/Old appliance
This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal ,recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the collection systems or contact the retailer where the product was purchased. They return and can take this product for environmental safe recycling.

PRODUCT DESCRIPTION

Note! The product line chart is for reference only, please refer to real product as standard.

Accessories

Transport hole plug

Supply hose cold water

Drain hose (optional support)

Owner’s manual

Warning!!

•  Stability is important to prevent the product from wandering!
•  Make sure that the product should not stand on the power cord.


Before installing the machine, the location characterized as follows shall be selected:

1. Rigid, dry, and level surface
2.  Avoid direct sunlight
3.  Sufficient ventilation
4.  Room temperature is above 0 °C
5.  Keep far away from the heat resources such as coal or gas.
6. Unpacking the washing machine

   Warning!
   • Packaging material (e.g. Films, Styrofoam) can be dangerous for
   children.
   • There is a risk of suffocation ! Keep all packaging well away from
   children.

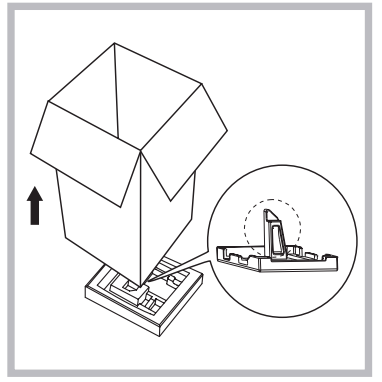

1. Remove the cardboard box and Styrofoam packing. Make sure he small triangle foam is removed with the bottom one together. If not, lay the unit down with side surface, then

1. move the small foam from the unit bottom manually.
2. Lift the washing machine and remove the base packing.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.


Remove transport bolts
Warning!

• You must remove the transport bolts from the backside before using the product.
• You’ll need the transport bolts again if you move the , so make sure keep them in a
safe place.
Please take the following steps to remove the bolts:

1. Loosen 4 bolts with spanner and then remove them.
2. Stop the holes with transport hole plugs.
3. Keep the transport bolts properly for future use.

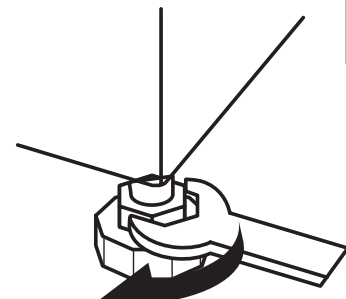

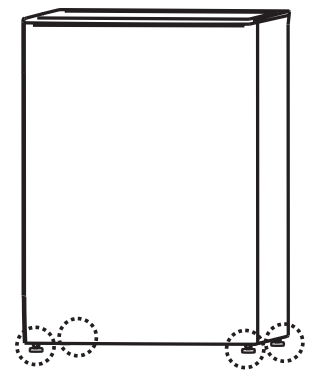

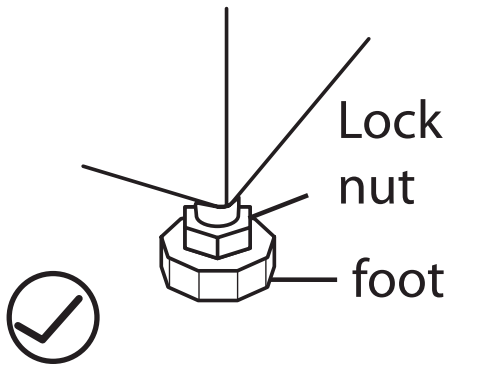

Levelling the washing machine
Warning!
The lock nuts on all four feet must be screwed tightly against the housing.

1. Check if the legs are closely attached to the cabinet. If not, please turn them to their original positions tighten the nuts.
2. Loosen the lock nut turn the feet until it closely contacts with the floor.
3. Adjust the legs and lock them with a spanner, make sure the machine is steady.

   Raise

   Lower

   Lock nut foot
   Connect Water Supply Hose


Warning!

• For the model equips hot valve, connect it to hot water tap with hot water supply
• To prevent leakage or water damage, follow the instructions in this chapter
• Do not kink, crush, modify or sever water inlet hose
• hose. Energy consumption will decrease automatically for some program.

Connect the inlet pipe as indicated, There are two ways to connect the inlet pipe.
. Connection between ordinary tap and inlet hose

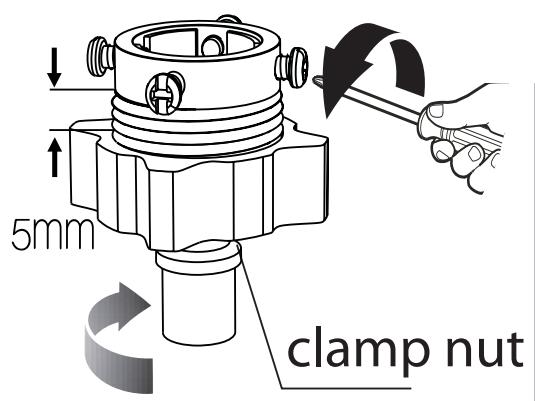

Loosen clamp nut and four bolts
slide bushing
clamp nut

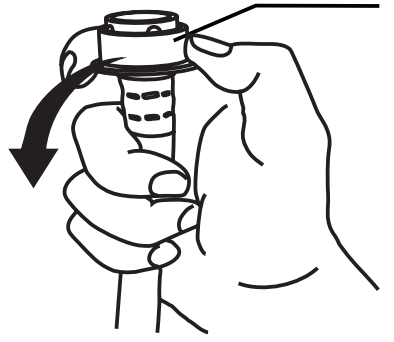

Tighten clamp nut Press slide bushing, insert inlet hose into connecting base

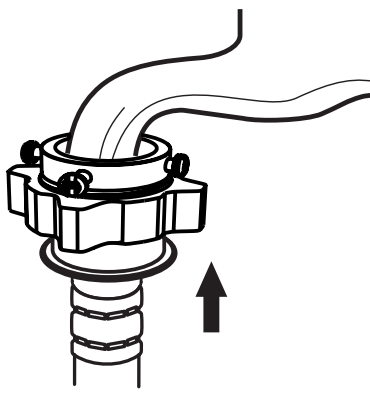

Connection finished

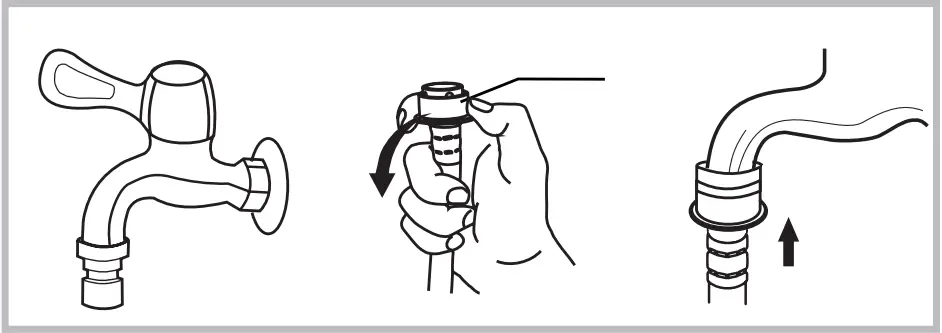

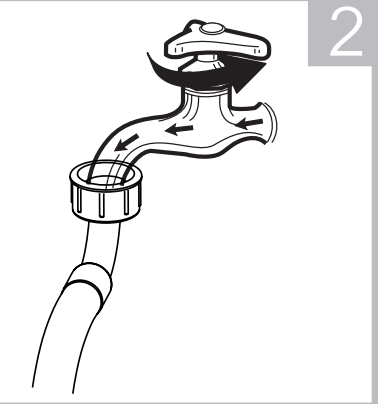

Connection between screw tap and inlet hose.
Tap with threads and inlet hose

Special tap for washing machine

Connect the other end of inlet pipe to the inlet valve at the backside of product
and fasten the pipe tightly clockwise.

Drain Hose
Warning!

• Do not kink or protract the drain hose.
• Position drain hose properly ,otherwise damage might result of water leakage.
  There are two ways to place the end of drain hose:

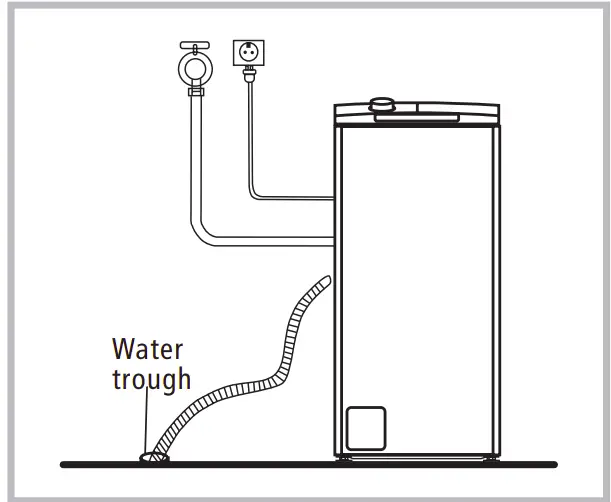

1. Put it into the water trough

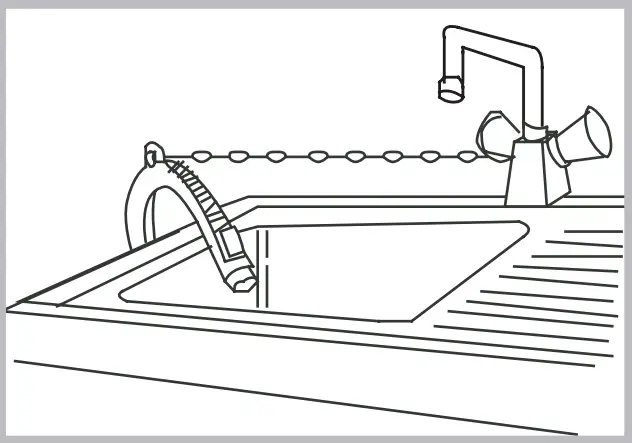

2. Connect it to the branch drain pipe of the trough.

Note!
The product line chart is for reference only, please refer to real product as standard.

Warning!

• When installing drain hose, fix it properly with a rope.
• • If drain hose is too long, do not force it into washing machine as it will cause abnormal noises

OPERATIONS

Quick Start            Caution!
Before washing, please make sure it’s installed properly.

Note!

• Detergentneedtobe ad-Din “case I “after selecting pre-washing for machines with this function.
• Make sure that the drum flaps are properly locked.


Plug in

Open tap

Load

Add detergent

Close drum door

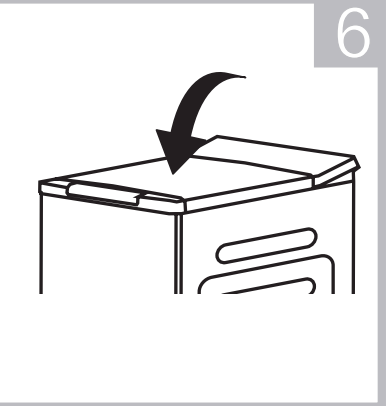

Close machine door

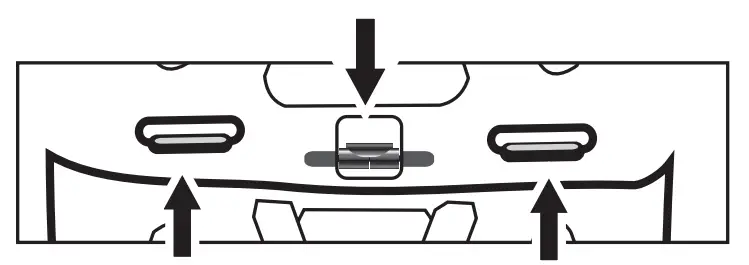

All metal hooks must be properly hooked inside the rear door flap.
Check the roller before each laundry ,it must roll smoothly.

Washing

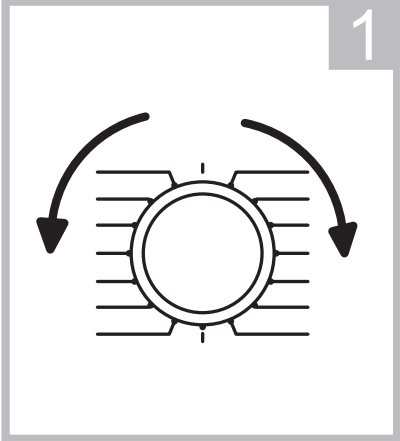

Select Programmed

Select function or default

Start up

Note!
If default is selected, step 2 can be skipped.

After Washing
“End” on display

Before Each Washing

• The working condition of the washer should be(0-40)°C. If used under 0°C,the inlet valve and draining system may be damaged. If the machine is placed under condition of 0°C or less, then it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose are not frozen before use.
• Please check the labels and the explanation of using detergent before wash. Use non-foaming or less-foaming detergent suitable for machine washing properly.

Check the label

Take out the items out of the pockets

Knot the long strips,zip or button

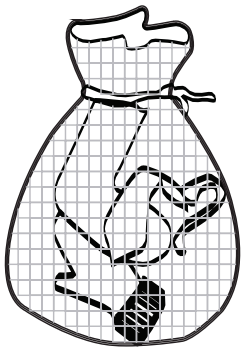

Put small clothes into the pillow slip

Turn easy-pilling and long-pile fabric inside out

Separate clothes with different textures

Warning!
• When washing a single clothes, it may easily cause great eccentricity and give alarm
due to great unbalance. Therefore it is suggested to add one or two more clothes to
be washed together so that draining can be done smoothly.
• Don’t washing the clothes touching with kerosene, gasoline, alcohol and other flammable materials.

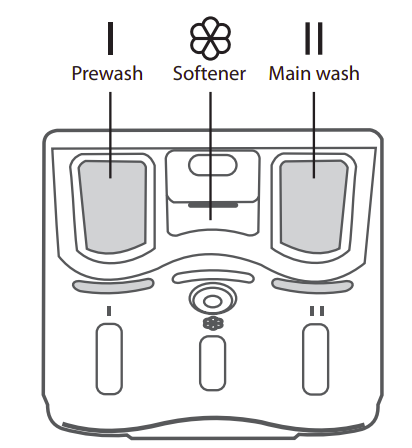

Detergent Dispenser
I Pre wash detergent
II Main wash detergent
Softener

Caution!

• Detergent only need to be added in“case I “after selecting pre-washing for machines with this function.
• Do not exceed the “MAX”level mark when filling in detergent, additives or softener

Pull out the dispenser

Note!
As for the agglomerated or ropy detergent or additive, before they are poured into the detergent box, it is suggested to use some water for dilution to prevent the inlet of detergent box from being blocked and overflowing while filling water. • Please choose suitable type of detergent for the various washing temperature to get the best washing performance with less water and energy consumption.

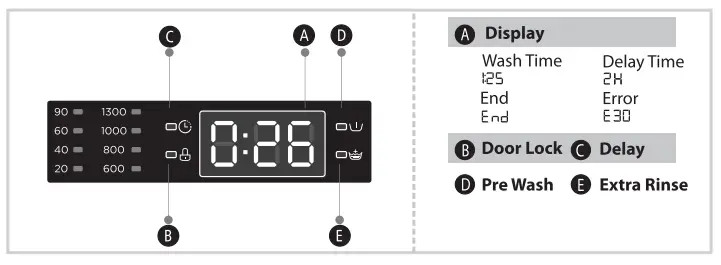

 Control Panel

Note!
The chart is for reference only, Please refer to real product as standard.

1. On-Off
   Product is switched On/Off.
2. Start-Pause
   Press the button to start or pause the washing cycle.
3. Option
   This allows you to select an additional function and will light when selected.

4. Programmed
   Available according to the laundry type.
5. Display
   The display shows the settings, estimated time remaining, options, and status messages for your washer. The display will remain on through the cycle.


Option

Pre Wash
The Prewash function can get an extra wash before main wash,it is suitable
for washing the dust rises to surface of the clothes;You need to put
detergent into the Case (I) when select it.
Extra Rinse Extra Rinse
The laundry will undergo extra rinse once after you select it.
Delay
Set the Delay function:
1. Select a programme;
2. Press the Delay button to choose the time (the delaying time is 0-24
H/3H-6H-9H);
3. Press [Start/Pause] to commence the delay operation
Cancel the Delay function: Press the [Delay] button until the display be 0H. It should be pressed before starting the programmer. If the programmer already started, should switch off programmed to reset a new one.

Caution!
If there is any break in the power supply while the machine is operating, a special memory stores the selected programmed and when the power is restarted, the program will continue.

• Caution! During the “Child Lock” function is activin, the buzzer will beep 3 times, When the buttons are pressed.
• Press the two button 3 sec. also to be released the function.
• The “Child Lock” will lock all buttons except Power button.
• Cut off the power supply, the kid’s protection is to be released.

Mute the buzzer

Choose the Programmer
Press the [Spin]button for 3
sec., the buzzer is mute.
To act the buzzer function, press the button again for 3 seconds. The setting will be kept until the next reset.

Caution!
• After Muting the buzzer function, the sounds will not be activated any more.
After Muting the buzzer function, the sounds will not be activated any more.

My Cycle
To memory the frequently used programmer.
After choosing the programmed and setting the options, press [Temp.] 3 sec. before start to wash. The default setting course is Cotton.

Other Functions

Temp. Press the button to regulate the temperature(Cold,20 °C, 40 °C,60 °C,90 °C)

Child Lock To avoid mis operation by children.

Choose the Programme

Start

Press [Spin] and [Delay]

Caution!

•  During the “Child Lock”function is activing, the buzzer will beep 3 times, When the buttons are pressed.
• Press the two button 3 sec. also to be released the function.
• The “Child Lock”will lock all buttons except Power button.  •
• Cut off the power supply , the kid’s protection is to be released.

Mute the buzzer

Choose the Programme

Press the [Spin]button for 3
sec., the buzzer is mute.

Caution!
• After Muting the buzzer function, the sounds will not be activated any more. After Muting the buzzer function, the sounds will not be activated any more.

My Cycle To memory the frequently used programmed. After choosing the programmer and setting the options, press [Temp.] 3 sec. before start to wash. The default setting course is Cotton.

Washing Programmed Table

Concerning to EN 60456:2016/prA2019 With (EU)2019/2014, (EU)2019/2023, The EU energy efficiency class is: C Energy test program: ECO 40-60. Other as the default. Half load for 8.0Kg machine:4.0Kg. Quarter load for 8.0Kg machine:2.0Kg.

Note!
The parameters in this table are only for user’s reference. The actual parameters maybe different with the parameters in above mentioned table.

MAINTENANCES CLEANING AND CARE

Cleaning And Care
Warning!
Before your maintenance starts, please unplug the machine and close the tap.
Cleaning The Cabinet

Proper periodical maintenance on the washing machine every two weeks can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use the wet cloth to wipe it off immediately. No sharp items are allowed.

Note!
• Formic acid and its diluted solvents or equivalent are forbidden, such as alcohol solvents or chemical products,etc.
Cleaning The Drum
The rusts left inside the drum by the metal articles shall be removed immediately with chlorine-free detergents. Never use steel wool.
Note!
Don’t put laundry in the washing machine during the drum cleaning.

Cleaning The Inlet Filter

Note!
• Inlet filter must be cleaned if there is less water.

Washing the filter in the tap

1. Close the tap.
2.  Remove the water supply hose from the tap.
3. Clean the filter.
4.  Reconnect the water supply hose


Washing the filter in washing machine:

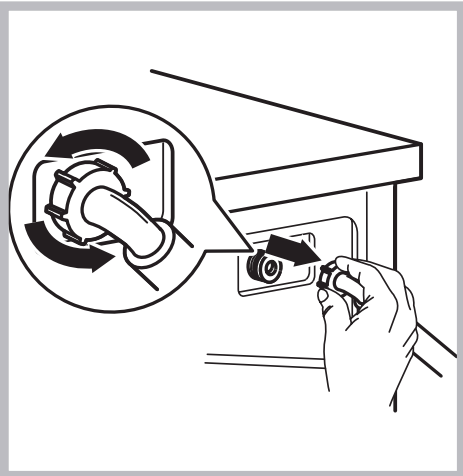

Screw off the inlet pipe from the back side of the machine.

1.  Pull out the filter with long nose pliers and reinstall it back after being washed.

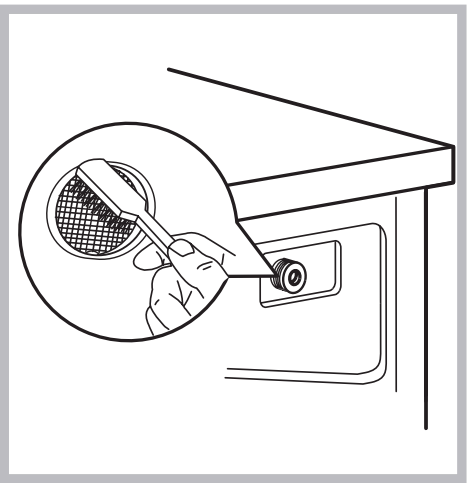

2.  Use the brush to clean the filter.
3.  Reconnect the inlet pipe.


   Note!
   • If the brush is not clean, you can pull out the filter washed separately;

   Clean The Detergent Dispenser

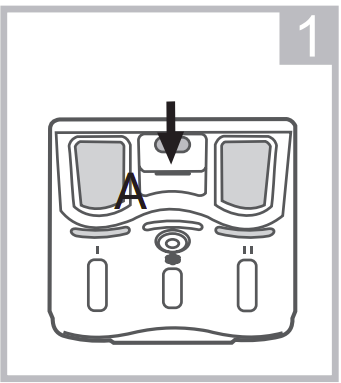

   1. Press down the arrow location on softener cover inside the dispenser drawer.
   2. Lift the clip up and take out softener cover and wash all grooves with water.
   3. Restore the softener cover and push the drawer onto position.• Reconnect, tur on the tap
   Pull out the dispenser drawer with press the A

   Clean the dispenser drawer under water

Note!  Do not use alcohol,solvents or chemical products to clean the machine.

• Cleaning The Drain Pump Filter

Warning!

• Be careful of the hot water!
• Allow detergent solution to cool down.
• Unplug the machine to avoid electrical shock before washing.
• Drain pump filter can filter the yarns and small foreign matters from the washing.
• Clean the filter periodically after each washing to ensure the normal operation of
  washing machine.

Open the lower cover cap

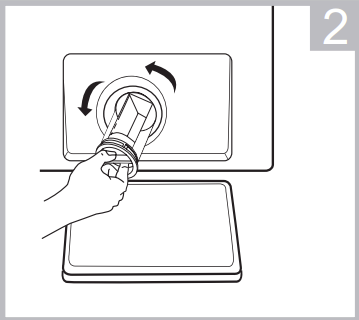

Open the filter by turning to the counter clockwise

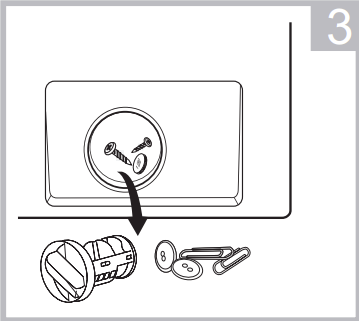

Remove extraneous matter

Close the lower cover cap

Caution!

• Make sure that valve cap and emergency drain hose are reinstalled properly, cap plates should be inserted aligning to hole plates otherwise water may leak.
• When the appliance is in use and depending on the programme selected there can be hot water in the pump. Never remove the pump cover during a wash cycle, always wait until the appliance has finished the cycle, and is empty. When replacing the cover, ensure it is securely re-tightened.

TROUBLE SHOOTING

The start of the appliance does not work or it stops during operation. First try to find a solution to the problem, If not, contact the service center

LED display models:

Note!
After the check, activate the appliance. If the problem occurs or the display shows
other alarm codes again, contact the service.

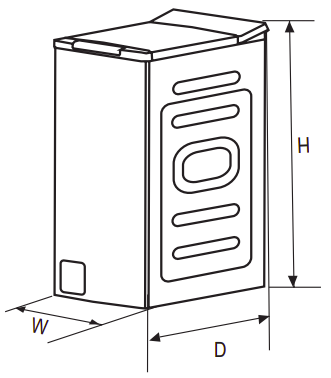

TECHNICAL SPECIFICATIONS

Power Supply : 220 – 240 V ~, 50 Hz

MAX. Current:  10 A
Standard Water Pressure : 0.1 MPa ~ 1 MPa
