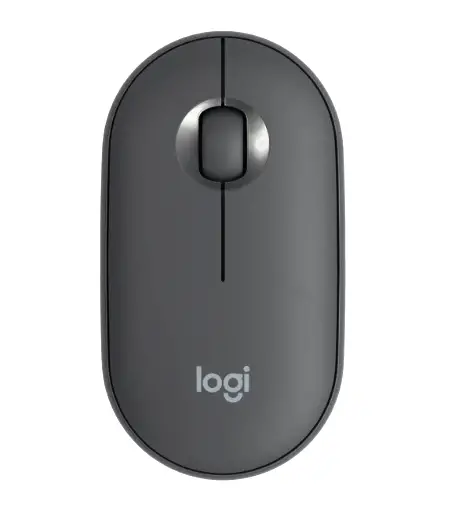

Logitech Pebble i345 Wireless Mouse For iPad User Manual
PEBBLE i345 WIRELESS MOUSE FOR iPad
In the Box
Compatibility
Getting Started
Battery removal for recycling
M/N: MR0075
EU Directive 2014/53/EU:
MR0075-Bluetooth LE 1M (2400 – 2483.5 MHz):2402 – 2480 MHz;6.54 dBm
MR0075-Bluetooth LE 1M (2400 – 2483.5 MHz):2402 – 2480 MHz;6.54 dBm
Specs & Details
Specifications
| Product Information | ||
|---|---|---|
| Component | Model Number (M/N) | Location |
| Mouse | Serial Number (S/N) | Belly Label inside the battery cage |
| Product Dimensions | ||||
|---|---|---|---|---|
| Component | Height | Width | Depth | Weight |
| Mouse | 4.21 in (107 mm) | 2.32 in (59 mm) | 1.04 in (26.5 mm) | 3.53 oz (100 g) |
| General Product Specifications | |
|---|---|
| Wireless Protocol | Bluetooth Low Energy Technology |
| Software Support (at release) | None |
| Apps Available (at release) | None |
| System Requirements | iPad with iPadOS 13.4 or later |
| Power Type | 1 AA Battery |
| Power Button | On/Off switch on the bottom of the mouse |
| Mouse Specifications | |
|---|---|
| Connection Type | BLE (Bluetooth Low Energy) technology |
| Wireless Range | 10 m / 33 ft |
| Battery Details | 1 AA Battery |
| Battery Life (not rechargeable) | 18 Months |
| Sensor technology | High Precision Optical Tracking |
| Sensor resolution | 1000 DPI |
| Sensor | Optical |
| Number of buttons | 3 |
| Scroll wheel | Yes- Mechanical |
| Scroll Buttons | Middle Button |
| Battery Life (not rechargeable) | 18 Months |
FAQ
Frequently Asked Questions
Can the Logitech Pebble i345 be used with a Unifying receiver?
No, Logitech Pebble i345 is Bluetooth only.
Logitech Pebble i345 mouse button mapping on iPadOS
By default, the Logitech Pebble i345 mouse buttons are assigned to the following actions:
| Mouse button | iPadOS button number | Default action |
| Left-click | Button 1 | Single tap |
| Right-click | Button 2 | Open menu |
| Scroll wheel press | Button 3 | Home button |

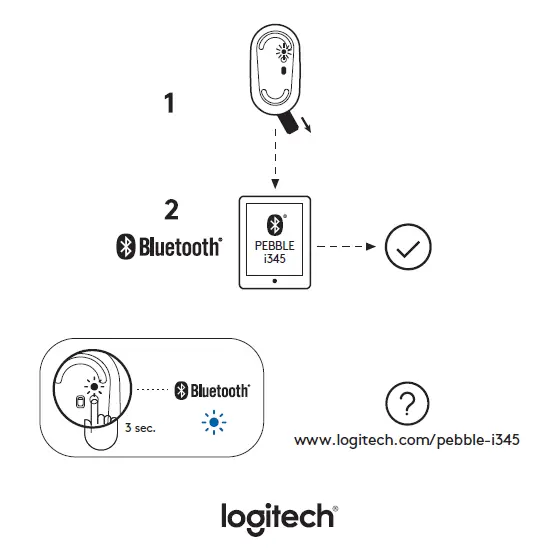

Set up and use Logitech Pebble i345 on iPadOS
To set up and use your Logitech Pebble:
- Turn on your Logitech Pebble i345 and do a long-press on the Bluetooth Easy-Switch button.
- The Bluetooth LED will start blinking quickly, indicating your Logitech Pebble i345 is in discoverable mode.
- Complete the pairing in the Bluetooth settings on your iPad.
