C920e HD WEBCAM
Contents
C920e HD Business Webcam
Complete Setup Guide Guide d’installation complet
KNOW YOUR PRODUCT
WHAT’S IN THE BOX
- Webcam with 5 ft (1 5 m) attached USB-A cable
- Privacy shutter
- User documentation
ATTACH THE PRIVACY SHUTTER
- Attach external privacy shutter by locating the lens on the webcam
- Snap it onto the front of the webcam, directly over the center
- Manually adjust the privacy shutter to open or close as desired
SETTING UP THE WEBCAM
For placement on a monitor
- Place your webcam on a computer,laptop or monitor at a position or angle you desire
- Adjust the webcam to make sure the foot on the universal mounting clip is flush with the back of your device
- Manually adjust the webcam up/down to the best position to frame yourself
For placement on a tripod*

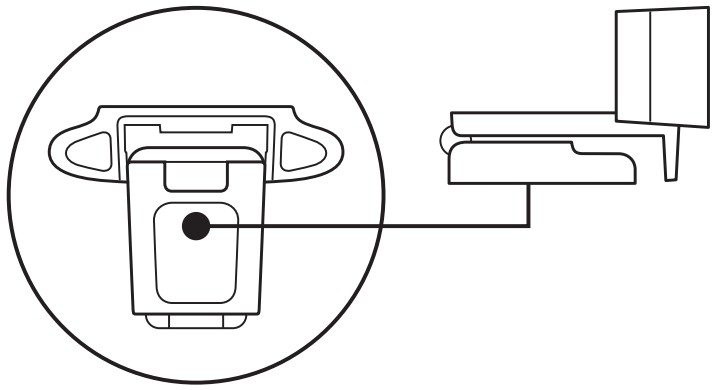

- Locate the ¼ inch tripod thread on the bottom of the universal mounting clip

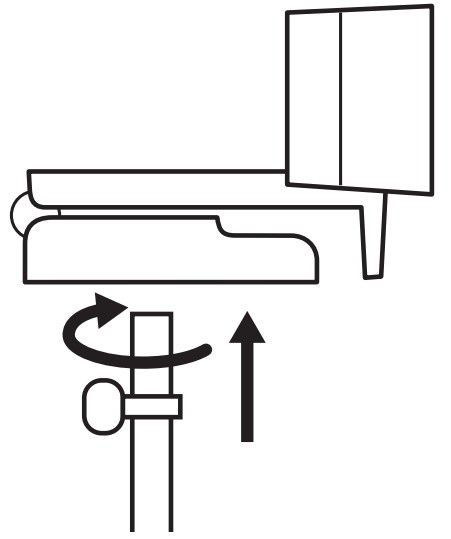

- Secure the webcam on your tripod by twisting it into the ¼ inch thread
- Place your webcam with the tripod in the best position to frame yourself
* Tripod not included

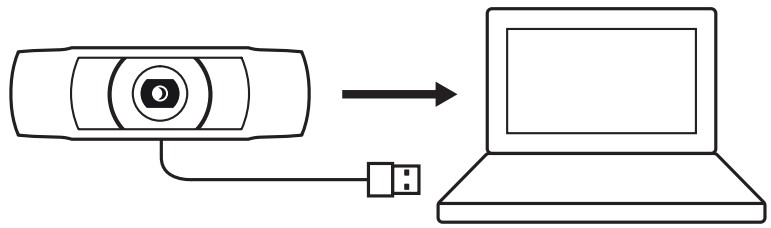

CONNECTING THE WEBCAM VIA USB-A
Plug the USB-A connector into the USB-A port on your computer

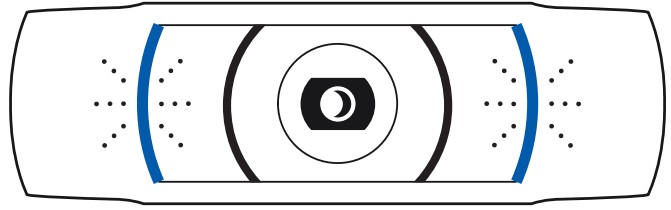

SUCCESSFUL CONNECTION
LED activity light will light up when the webcam is in use by an application
DIMENSIONS
INCLUDING FIXED MOUNTING CLIP:
Height x Width x Depth: 1 70 in (43 3 mm) x 3 70 in (94 mm) x 2 80 in (71 mm)
Cable Length: 5 ft (1 5 m)
Weight: 5 71 oz (162 g)
www.logitech.com/support/C920e
