LED MIRROR
With Front and Backlit
User Manual
Contents
Before Installation
Thank you so much for choosing LOAAO mirrors, in order to facilitate the use of our products, please read this instruction carefully before you begin installation.
Please Notice:
- Please read all instructions carefully before assembling the item.
- After opening the package, inspect the product immediately upon receipt for transit damage or missing parts.
- Please power the mirror with plug to test the all of functions of the mirror before wall mount.
- Assembly by two or more adults is highly recommended.
- Disconnect power before installing, adding or changing any components.
- Ensure that the fixing location is able to take the weight of the complete ftting.
- Keep the voltages 110V. If the voltage exceeds 110V, please use transformer.
- To connect the wires to electrical junction box, a qualified technician or electrician is highly recommended.
DANGER – To reduce the risk of electric shock:
- Always disconnect this furnishing from supply main before cleaning or servicing
For any problems, please feel free to contact us: [email protected]
Product Description
Before installation, please check to make sure these functions work properly:
Anti-fog switch: After connecting the power, the anti-fog function is already turn on automatically.
If you don’t need to use it, just touch it to turn it off, to prevent wasting energy. The defogging will take effect within 10 minutes after it’s turned on and close in 1 hour, so you can turn it on 10 minutes before taking a bath.
Dim switch: The led light supports 10% to 100% brightness adjustment, just long press the button. This button has memory function, the next time you open the mirror it will be in the same brightness it was in before it was last closed, which means that you don’t have to touch the buttons each time.
Color temperature switch: The front and back lights all have three color temperatures that can be switch(3000K/4000K/6000K), just need to short press this button. And this button has a memory function as well.
Product Information
| Anti-fog | Yes |
| Memory | Yes |
| Certificate | ETL |
| Light Source | LED |
| Cable Length | 1.5M |
| Material | Tempered Glass |
| Input Voltage | 110V~; 50/60Hz |
| Warranty | 3-year manufacturer |
Specifications and Parameters
| Model | Size | Thickness | Touch Button |
LED Stripe Model |
Color Temperature |
Lumen | CR1 | Power (W) | Input Voltage (V) |
Weight (kg) |
| L-L001AC5070 | 20″ X 28″ | 1.5″ | 3 | 2835 3 colors 192LED |
3000/4000/6000 | 6780 | 90 | 48 | 110V-, 50/60Hz | 7. |
| L-1001AC6080 | 24″ X 32″ | 1.5″ | 3 | 2835 3 colors 192LED |
3000/4000/6000 | 8220 | 90 | 60 | 110V-, 50/60Hz | 9. |
| L-L001AC6090 | 24″ X 36″ | 1.5″ | 3 | 2835 3 colors 192LED |
3000/4000/6000 | 8943 | 90 | 60 | 110V-, 50/60Hz | 10. |
| L-L001AC7090 | 28″X 36″ | 1.5″ | 3 | 2835 3 colors 192LED |
3000/4000/6000 | 9376 | 90 | 60 | 110V-, 50/60Hz | 11 |
| L-L001AC15070 | 28″X60″ | 1.5″ | 3 | 2835 3 colors 192LED |
3000/4000/6000 | 14250 | 90 | 100 | 110V-, 50/60Hz | 17. |
| L-LOO1AC10080 | 32″ X 40″ | 1.5″ | 3 | 2835 3 colors 192LED |
3000/4000/6000 | 12216 | 90 | 75 | 110V-, 50/60Hz | 15. |
| L-L00IAC12080 | 32″ X 48′ | 1.5″ | 3 | 2835 3 colors 192LED |
3000/4000/6000 | 13611 | 90 | 100 | 110V-, 50/60Hz | 15. |
| L-L001AC18181 | 32″X 72″ | 1.5″ | 3 | 2835 3 colors 192LED |
3000/4000/6000 | 12210 | 90 | 150 | 110V-, 50/60Hz | 23. |
| L-L001AC9080 | 36′ X 32′ | 1.5″ | 3 | 2835 3 colors 192LE0 |
3000/4000/6000 | 11304 | 90 | 75 | 110V-, 50/60Hz | 12. |
| L-LOO1AC9090 | 36″X 36″ | 1.5″ | 3 | 2835 3 colors 192LED |
3000/4000/6000 | 12216 | 90 | 75 | 110V-, 50/60Hz | 15. |
| L-L001ACl2191 | 36″ X 48″ | 1.5″ | 3 | 2835 3 colors 192LED |
3000/4000/6000 | 14490 | 90 | 100 | 110V-, 50/60Hz | 17. |
| L-L001AC9696 | 38′ X 38′ | 1.5′ | 3 | 2835 3 colors 192LE0 |
3000/4000/6000 | 13093 | 90 | 75 | 110V-, 50/60Hz | 15. |
| L-L001AC10075 | 40′ X 30′ | 1.5″ | 3 | 2835 3 colors 192LED |
3000/4000/6000 | 11771 | 90 | 75 | 110V-, 50/60Hz | 13. |
| L-L001 AC10090 | 40′ X 36″ | 1.5″ | 3 | 2835 3 colors 192LED |
3000/4000/6000 | 12860 | 90 | 75 | 110V-, 50/60Hz | 15. |
| L-LOO1AC12075 | 48′ X 30′ | 1.5″ | 3 | 2835 3 colors 192LE0 |
3000/4000/6000 | 13326 | 90 | 75 | 110V-, 50/60Hz | 17. |
| L-L001AC120100 | 48′ X 40″ | 1.5″ | 3 | 2835 3 colors 192LED |
3000/4000/6000 | 15192 | 90 | 100 | 110V-, 50/60Hz | 21. |
| L-L001AC13975 | 55″ X 30″ | 1.5″ | 3 | 2835 3 colors 192LED |
3000/4000/6000 | 14250 | 90 | 100 | 110V-, 50/60Hz | 19 |
| L-L001AC13990 | 55′ X 36″ | 1.5″ | 3 | 2835 3 colors 192LED |
3000/4000/6000 | 15986 | 90 | 150 | 110V-, 50/60Hz | 23. |
| L-LOO1AC15075 | 60″ X 30″ | 1.5″ | 3 | 2835 3 colors 192LED |
3000/4000/6000 | 16102 | 90 | 150 | 110V-, 50/60Hz | 20. |
| L-L001A0 5090 | 60″ X 36″ | 1.5″ | 3 | 2835 3 colors 192LED |
3000/4000/6000 | 16250 | 90 | 150 | 110V-, 50/60Hz | 27. |
| L-L001AC150100 | 60′ X 40′ | 1.5″ | 3 | 2835 3 colors 192LED |
3000/4000/6000 | 17525 | 90 | 150 | 110V-, 50/60Hz | 29. |
| L-L001AC18191 | 72″ X 36″ | 1.5″ | 3 | 2835 3 colors 192LED |
3000/4000/6000 | 18000 | 90 | 150 | 110V-, 50/60Hz | 31. |
| L-L001ACI81100 | 72′ X 40″ | 1.5″ | 3 | 2835 3 colors 192LED |
3000/4000/6000 | 19990 | 90 | 150 | 110V-, 50/60Hz | 34. |
| L-L001AC21080 | 84″X 32′ | 1.5″ | 3 | 2835 3 colors 192LED |
3000/4000/6000 | 22380 | 90 | 150 | 110V-, 50/60Hz | 33. |
| L-LOO1AC213100 | 84″ X 40′ | 1.5″ | 3 | 2835 3 colors 192LED |
3000/4000/6000 | 22424 | 90 | 150 | 110V-, 50/60Hz | 41. |
| L-L001AC24091 | 96″ X 36″ | 1.5″ | 3 | 2835 3 colors 192LE0 |
3000/4000/6000 | 18620 | 90 | 150 | 110V-, 50/60Hz | 43 |
| L-L001AC280100 | 110″ X 40″ | 1.5″ | 3 | 2835 3 colors 192LED |
3000/4000/6000 | 27634 | 90 | 150 | 110V-, 50/60Hz | 55. |
Installation Instruction
Method 1: Plug in
Insert the plug into the socket, keep the voltages between 110V and 120V. If the voltage exceeds 120V, please use transformer.
Method 2: Hardwire
Cut the plug, connect the same color wire and tighten them (Disconnect power before hardwire).
Step 1
Draw a straight line with a ruler to keep the mirror horizontal
Step 2
Use a electric drill to punch four holes at the marked spots.
Step 3
Apply wall anchors with hammer.
Step 4
Use a screwdriver to screw the screws into the wall anchors.
Step 5
Hang the mirror on the wall

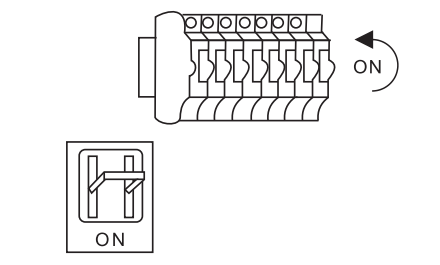

Step 6
Turn on the power.
Package contents
You may need these tools
PS: The location of the button is locate the power box.
Meaning of LED Lights
| State of LED Light | Meaning |
| White Light ON | Founction is Working |
| Blue Light ON | Function Standby |
| Light OFF | Power OFF |
Troubleshooting
| LED doesn’t turn on / Defogging doesn’t work | Open the cover of the power supply on the back of the mirror to test the power cables, tighten the cables if they are loose. ( Please cut off the power firstly before testing the power supply and cables) |
| Part of light strip is fault | Firstly, please pull the outer silicone strip away and press the inner light strip inward. If it still doesn’t work, need replace the strip light. |
| After using for a few month, the light doesn’t work. | Please contact us to replace the power supply. |
Manufacturer:Zhongshan Chengjiang Glass
Technology Co.,Ltd.
Address: Jichang Village, Dongfeng Town,
Zhongshan City,Guangdong Province, China
Contact us: [email protected]
