LIMENTE SMART 500 Smart Sensor
Product Information
The LIMENTE SMART 500, 511, 512 is a lighting system that includes LED lights and sensors. The system has a wattage of 0-96W and operates at 24V or 4x24V. The product is manufactured by Limente and can be found on their website.
Product Components
- LIMENTE SMART 500
- LIMENTE SMART 511 PIR SENSOR
- LIMENTE SMART 512 IR SENSOR
- 4x LED 640500
- 1-4x PIR-SENSOR
Product Usage Instructions

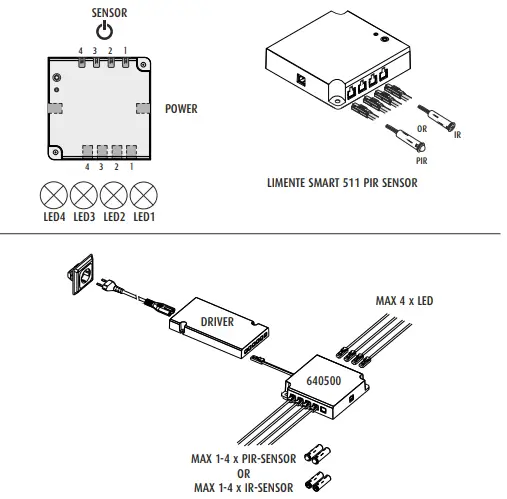

- Assemble the LIMENTE SMART system according to the assembling instructions provided.
- Connect the system to a power source.

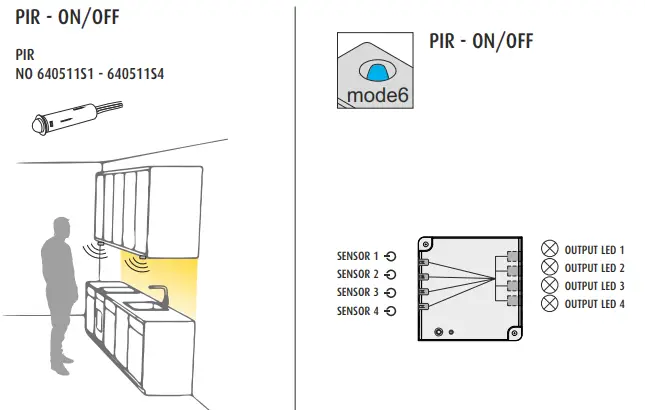

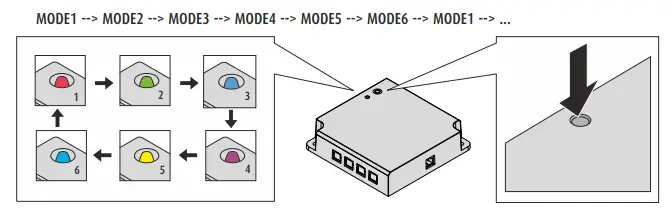

- Choose the desired mode for the PIR and IR sensors using the ON/OFF switch.

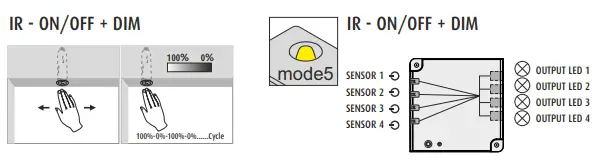

- For IR sensor, choose the desired mode using the ON/OFF switch and adjust the dimming level using the dimming cycle.
- The LED lights will respond to the sensors based on the chosen mode.
Note: Please refer to the assembling instructions provided for additional information on how to assemble the LIMENTE SMART system.

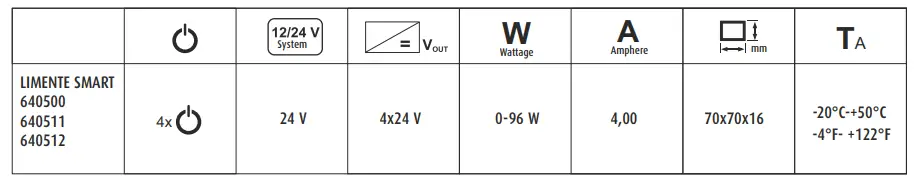

Technical data
NOTE!
Together with Limente 640500 must always be used a suitable 24 V DC -driver. Guaranty is not valid for damages caused by using wrong type of driver. The sensor part must not be installed close to reflecting materials (f.ex. S/S sink or fluorescent lamp). Reflections may cause unwanted switching. In case it happens the sensor must be moved to a place where reflections don’t disturb it’s function. Installation must be done in a way that reinstalling for both lamps, driver and Smart 500 are possible without removing f.ex. fixed furniture. It must also be done by a competent person according to valid rules.
