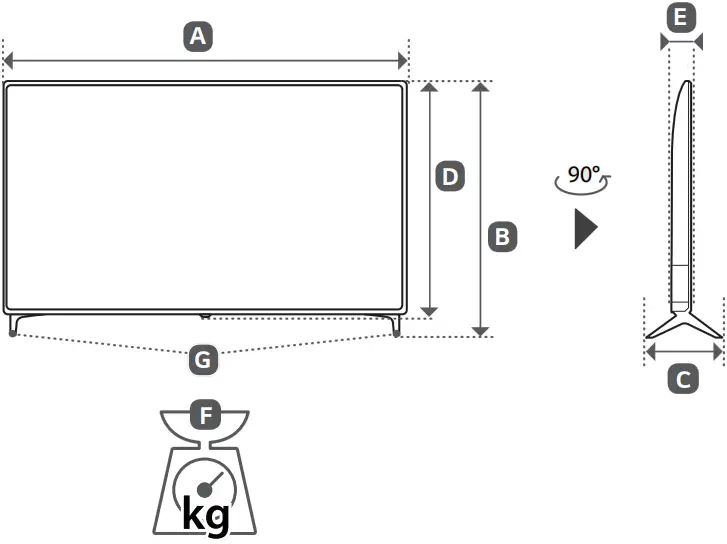

[A], [B], [C], [D], [E] : mm (inches)
[F], [G] : kg (lbs)
|
MODELS |
[A] | [B] | [C] | [D] | [E] | [F] | [F]-[G] | Power Consumption | |||||||
| 50UQ7590PUB 50UQ7590PUK 50UQ8000AUB 50UQ8000AUK | 1,121 (44.1) | 1 121 (44,1) | 713 (28.0) | 713 (28,0) | 231 (9.0) | 231 (9,0) | 651 (25.6) | 651 (25,6) | 57.1 (2.2) | 57,1 (2,2) | 11.9 (26.2) | 11,9 (26,2) | 11.7 (25.7) | 11,7 (25,7) |
130 W |
|
55UQ7590PUB 55UQ7590PUK 55UQ8000AUB 55UQ8000AUK |
1,235 (48.6) | 1 235 (48,6) | 776 (30.5) | 776 (30,5) | 231 (9.0) | 231 (9,0) | 715 (28.1) | 715 (28,1) | 57.5 (2.2) | 57,5 (2,2) | 14.2 (31.3) | 14,2 (31,3) | 14.0 (30.8) | 14,0 (30,8) | 135 W |
| 65UQ7590PUB 65UQ7590PUK 65UQ8000AUB 65UQ8000AUK | 1,454 (57.2) | 1 454 (57,2) | 906 (35.6) | 906 (35,6) | 269 (10.5) | 269 (10,5) | 838 (32.9) | 838 (32,9) | 57.7 (2.2) | 57,7 (2,2) | 21.8 (48.0) | 21,8 (48,0) | 21.5 (47.3) | 21,5 (47,3) |
185 W |
|
Power requirement |
AC 120 V~ 50/60 Hz |
||||||||||||||
[C], [D] : mm (inches)
|
[A] |
[B] | [C] x [D] | [E] |
| LSW240B MSW240 |
50UQ75* 50UQ80* |
200 (7.8) x 200 (7.8) |
M6 |
|
200 (7,8) x 200 (7,8) |
|||
| OLW480B MSW240 |
55UQ75* 55UQ80* |
300 (11.8) x 300 (11.8) |
M6 |
|
300 (11,8) x 300 (11,8) |
|||
| OLW480B | 65UQ75* 65UQ80* |
300 (11.8) x 300 (11.8) |
M6 |
|
300 (11,8) x 300 (11,8) |

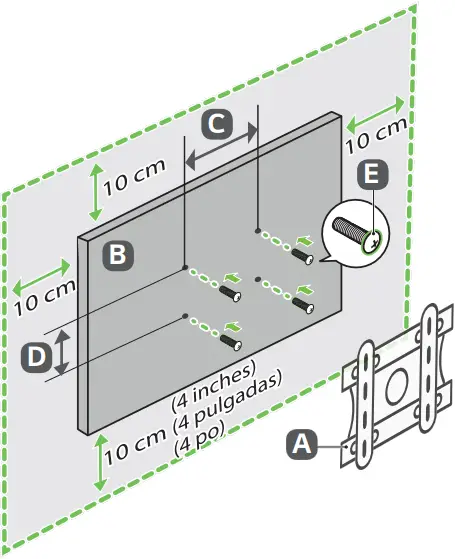

[C] : mm (inches)
|
[A] |
[B] | [C] | [D] |
| WB21LMB | 50UQ75* 50UQ80* |
200 (7.8) |
M6 |
|
200 (7,8) |
|||
| WB21LMB | 55/65UQ75* 55/65UQ80* |
300 (11.8) |
M6 |
|
300 (11,8) |
