LG 27GN95R 27 Inch UHD 4K UltraGear Nano IPS 1ms Gaming Monitor
WHAT’S IN THE BOX
Quick Setup Guide
- Please read this manual carefully before operating your set and retain it for future reference.
- It is recommended that use the supplied components.
- You can download manuals from the LGE website.
WARNING

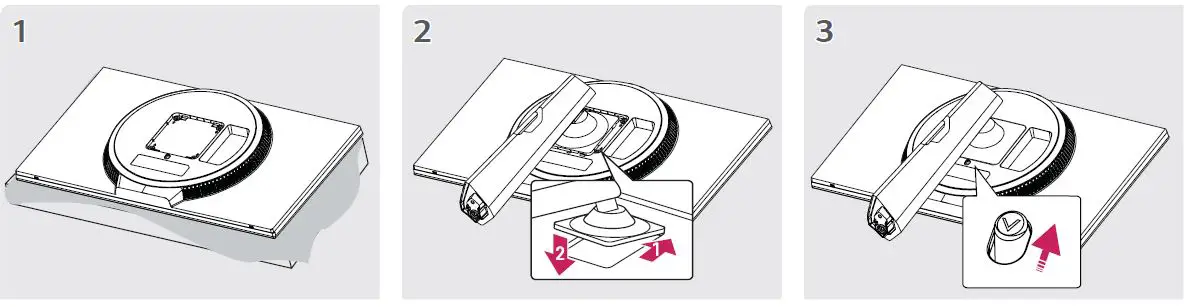

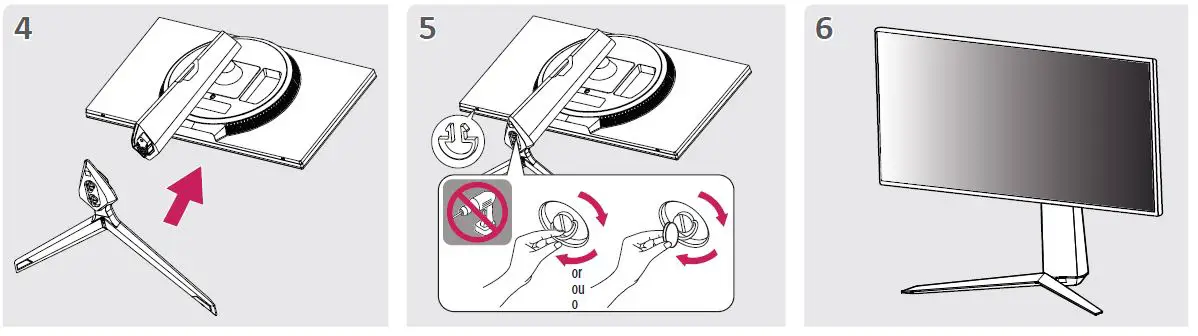

INSTALLATIONS INSTRUCTIONS

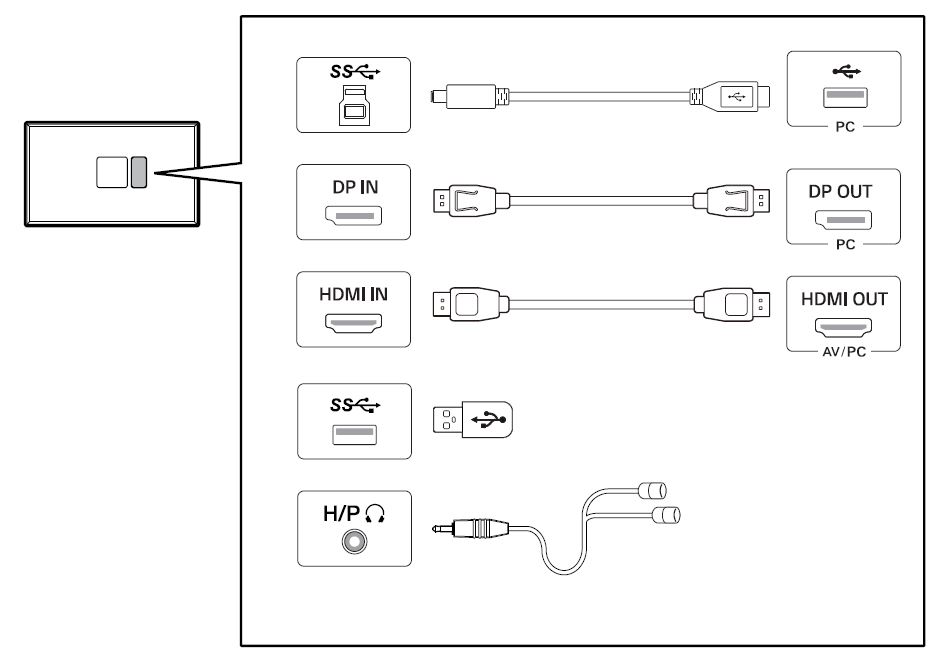

PLUGINS

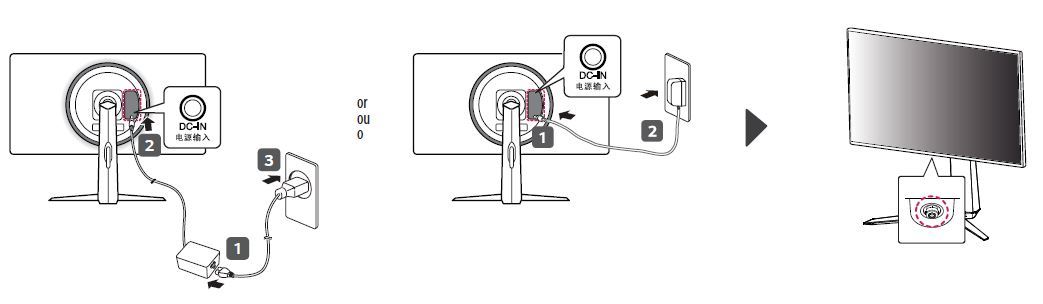

POWER
- Using a DVI to HDMI / DP (DisplayPort) to HDMI cable may cause compatibility issues.
- The USB port on the product functions as a USB hub.
- Make sure to use the supplied cable. Otherwise, this may cause the device to malfunction.
SPECIFICATIONS
Dimensions (Width x Height x Depth) | Weight | Recommended Resolution | Vertical Frequency | ||
With Stand
609.2 x 570.6 x 291.2 (mm) 23.9 x 22.4 x 11.4 (inches) |
Without Stand 609.2 x 352.9 x 53.7 (mm)
23.9 x 13.8 x 2.1 (inches) |
With Stand
7.3 kg (16.0 lbs) |
Without Stand
5.2 kg (11.4 lbs) |
HDMI: 3840 x 2160 DisplayPort: 3840 x 2160 |
HDMI: 60 Hz DisplayPort: 144 Hz |
- power rating: 19 V
5,0 A
- Salida: 19 V
5,79 A
- Salida: 19 V
- AC/DC Adapter Specifications
- Prohibited: 100-240 V ~ 50/60 Hz 1,5 A
- 100-240 V ~ 50/60 Hz 1,5 A
- 100-240 V ~ 50/60 Hz 1,6 A
- Prohibited: 100-240 V ~ 50/60 Hz 1,5 A
