LEZYNE Drive 300 LED Strip Lights User Guide

LEZYNE Drive 300 LED Strip Lights

LED Strip Series Light

Run Times and Modes

STRIP DRIVE FRONT

	BLAST	ENDURO	ECONOMY	FLASH 1	FLASH 2	FLASH 3	FLASH 4	FLASH 5	FLASH 6	DAY FLASH
	100 LUMENS	50 LUMENS	15 LUMENS	25 LUMENS	50 LUMENS	50 LUMENS	75 LUMENS	25/5 LUMENS	50 LUMENS	400 LUMENS
	2:30 h:min	4:30 h:min	11:00 h:min	13:00 h:min	4:00 h:min	5:30 h:min	4:30 h:min	11:00 h:min	21:30 h:min	5:00 h:min

STRIP DRIVE 300+ REAR

	ECONOMY	BLAST	PULSE	FLASH 1	DAY FLASH 1	DAY FLASH 2	FEMTO
	15 LUMENS	60 LUMENS	60 LUMENS	40 LUMENS	150 LUMENS	300 LUMENS	5 LUMENS
	18:00 h:min	5:30 h:min	12:00 h:min	32:00 h:min	24:00 h:min	17:00 h:min	80:00 h:min

STRIP DRIVE PRO 400 + REAR

	ECONOMY	BLAST	PULSE	FLASH 1	DAY FLASH 1	DAY FLASH 2	FEMTO
	15 LUMENS	80 LUMENS	80 LUMENS	50 LUMENS	200 LUMENS	400 LUMENS	5 LUMENS
	26:00h:min	5:30 h:min	14:00h:min	11:00h:min	30:00h:min	80:00 h:min	80:00 h:min

STRIP DRIVE PRO ALERT 400+ REAR

	ECONOMY	BLAST	PULSE	FLASH 1	DAY FLASH 1	DAY FLASH 2	FEMTO
	15 LUMENS	80 LUMENS	80 LUMENS	50 LUMENS	200 LUMENS	400 LUMENS	5 LUMENS
	26:00h:min	5:30 h:min	14:00h:min	11:00h:min	30:00h:min	80:00 h:min	80:00 h:min

ACTIVE ALERT

150 LUMENS

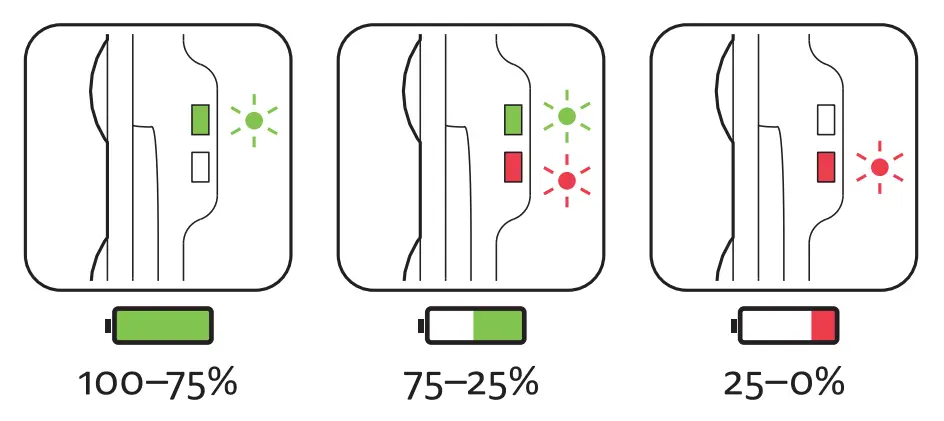

Battery

Charging

Mounting

• Before using your Lezyne LED light for the first time, fully charge battery.

Customers Support

For more info go to: www.lezyne.com/support.php
