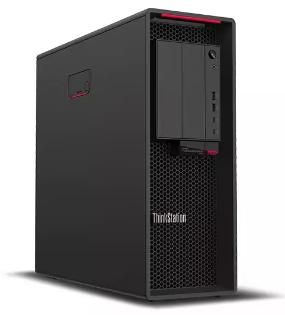

Lenovo P620 PRO Workstation
Specifications
- CPU: AMD Ryzen Threadripper PRO processor
- Operating Systems: Windows 10 Pro, Windows 10 Pro for Workstations, Ubuntu Linux 20.04 LTS
- Memory: Up to 512GB DDR4 ECC RDIMM
- Storage: Up to 6 SATA drives, up to 4 M.2 PCIe drives, optional eSATA support
- Video: Integrated graphics or discrete graphics with multi-GPU support
- Front I/O: 2 USB Type-C ports, 15 USB Type-A ports, headphone and microphone combo jack, media card reader
- Flex Bay: Supports one 5.25″ drive or one Flex module
Product Usage Instructions
CPU Support
The Lenovo ThinkStation P620 supports AMD Ryzen Threadripper PRO processors. The CPU socket type is Socket-SP (SM-LGA). Please note that AMD overclocking is not supported.
Operating Systems
The ThinkStation P620 is compatible with the following operating systems:
- Windows 10 Pro
- Windows 10 Pro for Workstations
- Ubuntu Linux 20.04 LTS
Memory
The ThinkStation P620 supports up to 512GB of DDR4 ECC RDIMM
memory. It has 8 DIMM slots and supports up to 3200MHz memory
speed.
Storage
The ThinkStation P620 has multiple storage options:
- Up to 6 SATA drives
- Up to 4 M.2 PCIe drives
- Optional eSATA support
Video
The ThinkStation P620 supports both integrated graphics and
discrete graphics with multi-GPU support. The video interface
depends on the graphics card installed.
Front I/O
The front I/O of the ThinkStation P620 includes:
- 2 USB Type-C ports
- 15 USB Type-A ports
- Headphone and microphone combo jack
- Media card reader
Flex Bay
The ThinkStation P620 has a Flex Bay that can support either one 5.25″ drive or one Flex module. The Flex Bay also supports several optional integrated features such as a DVD cage or a front eSATA port.
Frequently Asked Questions (FAQ)
- Can I overclock the AMD Ryzen Threadripper PRO processor?
- No, AMD overclocking is not supported on the ThinkStation P620.
- What operating systems are supported?
- The ThinkStation P620 is compatible with Windows 10 Pro, Windows 10 Pro for Workstations, and Ubuntu Linux 20.04 LTS.
- What is the maximum memory capacity?
- The ThinkStation P620 supports up to 512GB of DDR4 ECC RDIMM memory.
- How many storage drives can I install?
- The ThinkStation P620 can accommodate up to 6 SATA drives and up to 4 M.2 PCIe drives.
- What graphics options are available?
- The ThinkStation P620 supports both integrated graphics and discrete graphics with multi-GPU support. The specific options depend on the graphics card installed.
Downloads
| Hardware Maintenance Manual | P620 HMM |
| Drivers & Software | P620 Drivers & Software |
Platform Overview
| Description | Introducing the new ThinkStation P620. The first ever AMD Ryzen Threadripper PRO powered workstation offers stunning performance with up to 64 cores and up to 4.0GHz. Perfect for those who demand more power for today’s multithreaded applications, the P620 combines Lenovo’s legendary reliability and customer-driven innovation with professional manageability and enterprise-class support. |
CPU
| Processor Support | AMD Castle Peak Workstation Processor |
| Socket Type | Socket-SP3 (SM-LGA) |
| Disclaimers | Threadripper Pro CPUs support AMD vendor lock. |
Operating Systems
| Preloaded | Windows 10 Pro 64-bit
Ubuntu 20.04 LTS (configuration specific) |
| Supported | Ubuntu 20.04 LTS
Red Hat Enterprise Linux 8.3 |
| Disclaimers | Note: 1TB of system memory is not currently supported with AMD Threadripper Pro 5000 series CPU’s. |
Memory
| Slots | Up to 8 DIMMs |
| Channels | Supports up to 8 DIMM Sockets, 8 Channels |
| Type | 288-Pin, 3200MHz ECC RDIMM |
| ECC Support | Yes |
| Speed | Up to 3200MHz |
| Max DIMM Size | 64GB |
| Max System Memory | 512 GB |
Storage
| Total Bays/Size | 4 x 3.5″ |
| SATA | 6 x SATA Connectors, Gen 3 |
| PCIe | 2 x M.2 PCIe Connectors Onboard, Gen 4
Additional M.2 NVMe Drives Supported by Single Adapters |
| eSATA | 1 x eSATA Connector, Gen 3 |
| Disclaimers | Additional parts/enclosures may be required for some configurations |
Video
| Integrated Graphics | Not Available |
| Discrete Graphics | PCIe Add-In-Card, Details in Section Below |
| Multi-GPU Support | Yes |
| Type | PCIe Add-In-Card |
| Bus Interface | PCIe x16 |
Slots
| Slot 1 | PCIe 4.0 x16, Full Height, Full Length, 75W, Without Latch |
| Slot 2 | PCIe 4.0 x8, Full Height, Full Length, 25W, Open-Ended |
| Slot 3 | PCIe 4.0 x16, Full Height, Full Length, 75W, With Latch |
| Slot 4 | PCIe 4.0 x16, Full Height, Full Length, 75W, With Latch |
| Slot 5 | PCIe 4.0 x16, Full Height, Full Length, 75W, With Latch |
| Slot 6 | PCIe 4.0 x8, Full Height, Full Length, 25W, Open-Ended |
Front I/O
| USB | 2 x USB 3.2 Gen 2 Type-C (15W) 20Gb/s
1 x USB 3.2 Gen 2 Type-A (11W) 10Gb/s 1 x USB 3.2 Gen 2 Type-A 10Gb/s |
| Audio | 1 x Front Stereo + MIC Headset |
| Media Card Reader | Optional: Front 15-in-1 Media Card Reader supporting SD-UHS-II (requires Flex module) |
| Flex Bay | Flex Bay: Supports One 5.25″ Flex Bay With Several Options Integrated
• Up to One 5.25” Slim ODD Cages • Up to One 5.25” Slim ODD and HDD Cage (FBSE) • Up to One Front Access Storage Enclosure (FASE) • Up to One Flex Module for One or More of the Following Options: – 9.0mm Optical/15-in-1 USB 3.1 Gen 1 Reader/Front USB 3.1 Gen 1 Type- C/Front eSATA Note: 1. Only one 15-in-1 media card reader can be supported. 2. Only one USB 3.1 Gen 1 Type-C cable can be supported. 3. Only one front eSATA cable can be supported. |
| Disclaimers | Note: Actual USB throughout will vary depending on the type and quantity of USB devices used. |
Rear I/O
| USB | 4 x USB 3.2 Gen 2 Type-A 10Gb/s
2 x USB 2.0 Type-A 480Mb/s |
| Audio | 3 x Rear (Line Out, Line In, MIC); Retaskable to 5.1 |
| DisplayPort | As Supported by GPU |
| HDMI | As Supported by GPU |
| DVI | As Supported by GPU |
| VirtualLink | As Supported by GPU |
| VGA Port | As Supported by GPU |
| Serial Port | Optional 1 x Rear Port |
| Ethernet | 1 x 10GbE – RJ45 |
| PS/2 | 2 x PS/2 |
| IEEE 1394 | Not Available |
| eSATA | Optional PCIe Bracket |
| Parallel Port | Not Available |
| Optional USB Adapter | Not Available |
| Optional Network Adapter | Aquantia Single Port 10G Ethernet Adapter
PCI-E 1 x WiFi Card With BT HP External Antenna Kit (9260 AC) |
| Disclaimers | Note: Actual USB throughput will vary depending on the type and quantity of USB devices used. |
Ethernet
| Vendor | Marvell AQC107 10G Ethernet |
| Speeds | 10G/5G/2.5G/1G/100Mbps |
| Functions | PXE, ASF, WOL, Jumbo Frames, Teaming |
| Connectors | 1 x RJ45 |
Audio
| Vendor | Realtek |
| Type | HD (5.1) |
| Internal Speaker | Yes |
| Connectors | 3 x Rear 3.5mm Jacks (Line In, Line Out, Microphone In) |
| Chipset | ALC4050 |
| Number of Channels | 6 (rear) + 2 (front) |
| Number of Bits/Audio Resolution | 6 Channel DAC supports 16/20/24 bit PCM Stereo ADC supports 16/20 bit PCM |
Thermal
| Temp Sensors | CPU VR Sensor – Thermal Diode – Connected to Super I/O
PCI Zone 1 Sensor – Thermal Thermistor – Connected to Super I/O PCI Zone 2/Chipset Sensor – Thermal Thermistor – Connected to Super I/O PCI Zone 3 Sensor – Thermal Diode – Connected to Super I/O M.2 Sensor – Thermal Thermistor – Connected to Super I/O Ambient Cabled Sensor – Thermal Diode – Connected to Super I/O PSU Thermal Sensor – Thermal Thermistor – Connected to Super I/O |
| Fans | 2 x CPU Fan 4-pin Header With 3-pin Key
1 x Rear System Fan 4-pin Header With 3-pin Key 1 x Front System Fan 4-pin Header With 3-pin Key 2 x ODD Bay Fan 4-pin Header With 3-pin Key (optional) 2 x Memory Fan 4-pin Header with 3-pin Key 1 x PSU Fan Main PSU Power Connector |
Power Specifications
| Power Supply | 1000W |
| Power Efficiency | 92% Efficient @ 50% Load |
| Main | C14 |
| Operating Voltage Range | 100 – 240V |
| Rated Voltage Range | 90-264VAC |
| Rated Line Frequency | 47Hz / 63Hz |
| Operating Line Frequency Range | 50Hz / 60Hz |
| Rated Input Current | 9A-15A |
| Graphics | 2 x 8 pin (6+2)
2 x 6 pin |
| Power Supply Fan | Yes |
| ENERGY STAR® Qualified (config dependent) | Yes |
| 80 PLUS Compliant | Yes |
| Built-in Self Test (BIST) LED | Yes |
| Aux Power Drop | Yes |
BIOS
| Vendor | AMI |
| Self-Healing BIOS | Yes |
Chassis Information
| Color | Graphite Black |
| PSU | 1000W Available, Autosensing, 92% PSU, 80 PLUS Platinum Qualified |
| Thermal Solutions | Two System Fans Standard (1 front, 1 rear), One PSU Fan, Two CPU Fans, Two MEM Fans |
| Dimensions | 440mm/17.3″ H
460mm/18.1″ D 165mm/6.5″ W |
| Weight | 24kg / 52.91lbs |
Packaging Dimensions
| Height (mm/in) | 575mm / 22.64″ |
| Width (mm/in) | 302mm / 11.89″ |
| Depth (mm) | 580mm / 22.83″ |
| Weight (kgs/lbs) | 27.48kg / 60.58lbs |
| Disclaimers | Note: Actual Weight of the packaging will depend on the system configuration. |
Security & Serviceability
| TPM | Infineon SLB9670 TPM 2.0 |
| Asset ID | Yes, 1024 x 8bit |
| vPro | NA |
| Cable Lock Support | Yes, Optional Kensington Cable Lock |
| Serial, Parallel, USB, Audio, Network, Enable/Disable Port Control | Yes |
| Power-On Password | Yes |
| Setup Password | Yes |
| NIC LEDs (integrated) | Yes |
| Access Panel Key Lock | Unique Key Lock Kit – Optional Common Key Lock Kit – Optional |
| Boot Sequence Control | Yes |
| Padlock Support | Not Supported |
| Boot without keyboard and/or mouse | Yes |
| Access Panel | Tool-less Side Cover Removal |
| Optical Drive | Tool-less |
| Hard Drives | Tool-less |
| Expansion Cards | Tool-less |
| Processor Socket | Retained With Screws |
| Color coded User Touch Points | Yes |
| Color-coordinated Cables and Connectors | Yes |
| Memory | Tool-less |
| System Board | Retained With Screws |
| Restore CD/DVD/USB Set | Not Included, Restore Media Available via Lenovo Customer Support Center |
Operating Environment
| Air Temperature | Operating: 10⁰C to 35⁰C (50⁰F to 95⁰F) |
| Storage | Storage: -40⁰C to 60⁰C (-40⁰F to 140⁰F) in Original Shipping Carton Storage: -10⁰C to 60⁰C (14⁰F to 140⁰F) Without Carton |
| Humidity | Relative Humidity Operating: 10% to 80% (non-condensing) Relative Humidity Storage/Transit: 10% to 90% (non-condensing) Wet Bulb Temperature Operating: 25⁰C (77⁰F) max
Wet Bulb Temperature Non-operating: 40⁰C (104⁰F) max |
| Altitude | Operating: -15.2m to 3048m (-50ft to 10000ft) Storage: -15.2m to 10668m (-50ft to 35000ft) |
| Vibration | Package Vibration:
Random,1.04G at 2-200 Hz, 15 Minutes XYZ 6 faces |
| Operating Vibration:
Random,0.27G at 5-500 Hz, 30 Minutes Per Surface (X,Y,Z) Non-Operating Vibration: Random,1.04G at 2-200 Hz, 15 Minutes Per Surface (±X,±Y,±Z) |
|
| Shock | Operation Shock: 3ms (15G) for 4 Axis (+X, -X, +Y,-Y)
3ms (30G) for 2 Axis (+Z, -Z), Half-sine Wave, Each Side Will do One Time Rack Operation Shock: 5ms (15G) for 6 Axis (+X, -X, +Y,-Y,+Z, -Z), Half- sine Wave, Each Side Will do One Time Non-operating Shock: Trapezoidal Wave, 35G, 11ms, 6 Sides (+X, -X, +Y,- Y, +Z ,-Z), Filter 300Hz, Each Side Shock One Time |
Platform Detail
| Board Size | 13.44″ x 9.96″ (341.5mm x 253mm) |
| Layout | Custom ATX |
Motherboard Core
| Processor Support | AMD Castle Peak Workstation processor |
| Socket Type | Socket-SP3 (SM-LGA) |
| Memory Support | DDR4 up to 3200MHz RDIMM Memory |
| CPU-CPU Interconnect | N/A |
| Voltage Regulator | IR35204MTRPBF+TDA21475 IR35201MTRPBF+TDA21475 |
| Chipset (PCH) | AMD 2019 Premium Chipset BXB-B |
| Flash | 32MB |
| Super I/O | Nuvoton NCT6686D-L |
| Clock | AMD Integrated Clock |
| Audio | Realtek ALC4050H Codec on Motherboard Realtek ALC4050 on Front Panel I/O |
| Ethernet | Marvell AQC10710Gb DASH |
Supported Components
| Processor Level | Castlepeak | Chagall |
| Processor | AMD Threadripper Pro 3945WX 4.0GHz/12C/64M/3200/280W
AMD Threadripper Pro 3955WX 3.9GHz/16C/64M/3200/280W AMD Threadripper Pro 3975WX 3.5GHz/32C/128M/3200/280W |
AMD Ryzen Threadripper Pro 5945WX
4.1GHz/12C/64M/3200/280W AMD Ryzen Threadripper Pro 5955WX 4.0GHz/16C/64M/3200/280W AMD Ryzen Threadripper Pro |
| AMD Threadripper Pro 3995WX 2.7GHz/64C/256M/3200/280W | 5965WX
3.8GHz/24C/128M/3200/280W AMD Ryzen Threadripper Pro 5975WX 3.6GHz/32C/128M/3200/280W AMD Ryzen Threadripper Pro 5995WX 2.7GHz/64C/256M/3200/280W |
|
| Memory Type | RDIMMs – 3200MHz | – |
| Memory | 16GB DDR4 ECC RDIMM PC4-
3200 32GB DDR4 ECC RDIMM PC4- 3200 64GB DDR4 ECC RDIMM PC4- 3200 128GB DDR4 ECC 3DS RDIMM PC4-3200 |
– |
| Disclaimers | P620 fully supports AMD’s PSB (Platform Secure Boot) security feature. As a result of this, Threadripper Pro CPUs used in P620 are fused to Lenovo’s BIOS signing key and will only work in Lenovo platforms. | P620 fully supports AMD’s PSB (Platform Secure Boot) security feature. As a result of this, Threadripper Pro CPUs used in P620 are fused to Lenovo’s BIOS signing key and will only work in Lenovo platforms. |
Storage
| 3.5″ SATA Hard Disk Drive (HDD) | 1TB SATA HDD 7200rpm, 6Gb/s, 3.5″
2TB SATA HDD 7200rpm, 6Gb/s, 3.5″ 4TB SATA HDD 7200rpm, 6Gb/s, 3.5″ (enterprise class) |
| M.2 PCIe Solid State Drive (SSD) | “256GB M.2 PCIe SSD, Gen 3 x4, NVMe, OPAL 512GB M.2 PCIe SSD, Gen 3 x4, NVMe, OPAL
1024GB M.2 PCIe SSD, Gen 3 x4, NVMe, OPAL 2048GB M.2 PCIe SSD, Gen 3 x4, NVMe, OPAL 256GB M.2 PCIe SSD, Gen 4 x4, NVMe, OPAL 512GB M.2 PCIe SSD, Gen 4 x4, NVMe, OPAL 1024GB M.2 PCIe SSD, Gen 4 x4, NVMe, OPAL 2048GB M.2 PCIe SSD, Gen 4 x4, NVMe, OPAL 4096GB M.2 PCIe SSD, Gen 4 x4, NVMe, OPAL” |
RAID
| RAID Levels and Requirements | M.2 RAID via AMD CPU – supports RAID 0, 1
SATA RAID via Onboard AMD SATA Controller – supports RAID 0, 1, 5, 10 |
| Notes | Supported RAID levels for a system will vary from the stated capabilities of the RAID controller due to dependencies on the number and capacity of physical disks in the system and on customer requirements for performance, fault tolerance, or data redundancy.
Max supported RAID 0/1/5/10. |
Optical Drive/Removable Media
| DVD-ROM Drive | DVD-ROM, 9.0mm Slim, SATA |
| DVD Burner/CD-RW Drive | DVD Burner/CD-RW Rambo, 9.0mm Slim, SATA |
| Blu-Ray Burner Drive | Blu Ray Burner w/AACS encryption, 9.0mm Slim, SATA |
| Media Card Reader Specifications | Optional Front USB 3.0 15-in-1 Media card reader supporting SD UHS-II (requires Flex module) |
Keyboard and Pointing Devices
| Keyboard | Traditional USB Keyboard Traditional PS/2 Keyboard Smart Card USB Keyboard Calliope USB Keyboard |
| Pointing Devices | Calliope USB Mouse Lenovo USB Laser Mouse Fingerprint USB Mouse PS/2 Optical Mouse |
Expansion Bays
| 5.25″ External Access Bays | Flex Bay: Supports One 5.25″ Flex Bay With Several Options Integrated
• Up to One 5.25” Slim ODD Cages • Up to One 5.25” Slim ODD and HDD Cage (FBSE) • Up to One Front Access Storage Enclosure (FASE) • Up to One Flex Module for One or More of the Following Options: – 9.0mm Optical/15-in-1 USB 3.1 Gen 1 Reader/Front USB 3.1 Gen 1 Type- C/Front eSATA Note: 1. Only one 15-in-1 media card reader can be supported. 2. Only one USB 3.1 Gen 1 Type-C cable can be supported. 3. Only one front eSATA cable can be supported. |
PCIe Adapters
| Network | Marvell 10G Ethernet Adapter (single port) Intel X550-T2 10G Ethernet Adapter (dual port) Intel I350-T4 1G Ethernet Adapter (quad port) |
| Thunderbolt | Rear Thunderbolt PCIe Adapter |
| WiFi Cards | Intel PCIe WiFi Card With BT (9260 AC) |
| PCIe to M.2 Adapter Card | Single M.2 PCIe Adapter Quad M.2 PCIe Adapter |
Supported Component Detail
| CPU | Ryzen Threadrip per PRO 3995WX | Ryzen Threadrip per PRO 3975WX | Ryzen Threadrip per PRO 3955WX | Ryzen Threadrip per PRO 3945WX | Ryzen Threadrip per PRO 5995WX | Ryzen Threadrip per PRO 5975WX |
| # of Cores | 64 | 32 | 16 | 12 | 64 | 32 |
| # of Threads | 128 | 64 | 32 | 24 | 128 | 64 |
| Processor Base Frequency | 2.7GHz | 3.5GHz | 3.9GHz | 4.0GHz | 2.7GHz | 3.6GHz |
| Max Turbo Frequency | 4.2GHz | 4.2GHz | 4.3GHz | 4.3GHz | 4.5GHz | 4.5GHz |
| Cache | 256MB | 128MB | 64MB | 64MB | 256MB | 128MB |
| TDP | 280W | 280W | 280W | 280W | 280W | 280W |
| Disclaimers | Threadrip per Pro CPUs
support AMD vendor lock. |
Threadrip per Pro CPUs
support AMD vendor lock. |
Threadrip per Pro CPUs
support AMD vendor lock. |
Threadrip per Pro CPUs
support AMD vendor lock. |
Threadrip per Pro CPUs
support AMD vendor lock. |
Threadrip per Pro CPUs
support AMD vendor lock. |
CPU Specifications
| CPU | Ryzen Threadripper PRO 5965WX | Ryzen Threadripper PRO 9555WX | Ryzen Threadripper PRO 5945WX |
| # of Cores | 24 | 16 | 12 |
| # of Threads | 48 | 32 | 24 |
| Processor Base Frequency | 3.8GHz | 4.0GHz | 4.1GHz |
| Max Turbo Frequency | 4.5 GHz | 4.5GHz | 4.5GHz |
| Cache | 128MB | 64MB | 64MB |
| TDP | 280W | 280W | 280W |
| Disclaimers | Threadripper Pro CPUs support AMD vendor lock. | Threadripper Pro CPUs support AMD vendor lock. | Threadripper Pro CPUs support AMD vendor lock. |
HDD Specifications
| Drive | 500GB SATA –
7200rpm, 6Gb/s, 2.5″ |
1TB SATA –
7200rpm, 6Gb/s, 3.5″ |
2TB SATA –
7200rpm, 6Gb/s, 3.5″ |
4TB SATA –
7200rpm, 6Gb/s, 3.5″ |
6TB SATA –
7200rpm, 6Gb/s, 3.5″ |
| 3.5″ SATA Hard Disk Drive (HDD) | Not Available | Yes | Yes | Yes | Yes |
| 2.5″ SATA Hard Disk Drive (HDD) | Yes | Not Available | Not Available | Not Available | Not Available |
| Connector | SATA | SATA | SATA | SATA | SATA |
| Transfer Rate (Gb/sec) | 160MB/s OD
Read |
Average Data Rate, Read/Write 156MB/s | Average Data Rate, Read/Write 156MB/s | Sustained Data Transfer Rate 216- 226MB/s | Sustained Data Transfer Rate 216- 226MB/s |
| Spindle Speed (RPM) | 7,200 | 7,200 | 7,200 | 7,200 | 7,200 |
| Power Off to Spindle Stop (sec) | NA | NA | NA | NA | NA |
| DC Power to Drive Ready (sec) | 3.5 | <10.0 | <17.0 | <17.0 | <17.0 |
| Average Latency (msec) | 4.2 | 4.16 | 4.16 | 4.16 | 4.16 |
| Input (VDC) | 5 | 5 | 5 | 5 | 5 |
| Typical (Watts) | 1.9 | 6.19 | 6.7 | 7.35 | 8.13 |
| Idle (Watts) | 0.7 | 4.6 | 4.5 | 5.45 | 6.21 |
| Physical Dimensions | 69.85mm x 100.34mm x 7mm | 101.6mm x 146.99mm x 19.88mm | 101.6mm x 146.99mm x 26.1mm | 101.85mm x 147mm x 26.1mm | 101.85mm x 147mm x 26.1mm |
| Weight (grams) | 90 | 420 | 535 | 680 | 705 |
| Operating (C) Ambient | 0 to 60 | 0 to 60 | 0 to 60 | 5 to 60 | 5 to 60 |
| Operating (C) Base Casting | 60 | 60 | 60 | 60 | 60 |
| Non-Operating (C) Ambient | (-40 to 70) | (-40 to 70) | (-40 to 70) | (-40 to 70) | (-40 to 70) |
| Gradient (C per Hour) | 20 | 20 | 20 | 20 | 20 |
| Operating (Gs @ 2ms) | 400 | 70 | 80 | Read 70 Gs
/ Write 40 Gs |
Read 70 Gs
/ Write 40 Gs |
| Non-Operating (Gs @ 2ms) | 1000 | 350 | 300 | 300 | 250 |
Solid State Storage Specifications
| Drive | 1024GB
M.2 SSD, NVMe, Opal, GEN4x4 , TLC,228 0 |
512GB
M.2 SSD, NVMe, Opal, GEN4x4 , TLC,228 0 |
256GB
M.2 SSD, NVMe, Opal, GEN4x4 , TLC,228 0 |
256GB NVMe
M.2 SSD TLC |
512GB NVMe
M.2 SSD TLC |
1024GB NVMe
M.2 SSD TLC |
2048GB NVMe
M.2 SSD TLC |
| Dimensions Millimeters (W x D x H) | – | – | – | 22 x 80
x 2.3 |
22 x 80
x 2.3 |
22 x 80
x 2.3 |
22 x 80
x 2.3 |
| Interface Type | PCIe
Gen 4×4 NVMe |
PCIe
Gen 4×4 NVMe |
PCIe
Gen 4×4 NVMe |
PCIe
Gen 3 x4 NVMe |
PCIe
Gen 3 x4 NVMe |
PCIe
Gen 3 x4 NVMe |
PCIe
Gen 3 x4 NVMe |
| Power Active (AVG) | – | – | – | 5W | 5W | 5W | 5W |
HDD Controllers
| Power Idle | – | – | – | 50mW | 50mW | 50mW | 50mW |
| Typical Sequential Read | 6400
MB/s |
6000
MB/s |
5000
MB/s |
3000M
B/s |
3200MB
/s |
3200MB
/s |
3500MB
/s |
| Typical Sequential Write | 3800
MB/s |
3200
MB/s |
1600
MB/s |
1300MB
/s |
1600MB
/s |
1600MB
/s |
3000M
B/s |
| Burst Random Read (4K Queue Depth 32/8 thread); | 550K IOPS | 500K IOPS | 250K IOPS | – | – | – | – |
| Burst Random Write (4K Queue Depth 32/8 thread) | 400K IOPS | 370K IOPS | 200K IOPS | – | – | – | – |
| Operating Temperature Range | – | – | – | 0 to 55°C | 0 to 55°C | 0 to 55°C | 0 to 55°C |
| Endurance Rating (Lifetime Writes) | – | – | – | 85TB | 150TB | 300TB | 600TB |
| Mean Time Between Failures (MTBF) | – | – | – | 2.0M POH | 2.0M POH | 2.0M POH | 2.0M POH |
| Hardware Encryption | AES
256-bit |
AES
256-bit |
AES
256-bit |
AES
256-bit |
AES
256-bit |
AES
256-bit |
AES
256-bit |
Optical Drive Specifications
| PCI Bus | PCIe Gen4 |
| PCI Modes | RAID, AHCI |
| RAID Levels | 0, 1, 5, 10, Volume and RAIDable |
| Data Transfer Rates | AMD RAIDXpert2 (OS)
RAID and PD operations in BIOS |
| PCI Card Type | SATA 6Gbs
NVMe 16Gbs |
| PCI Voltage | Onboard AMD controller (Bixby) |
| Disclaimers | SATA, M.2 NVMe |
Discrete Graphics Adapter
| Description | 9.0mm Slim DVD ROM | 9.0mm Slim DVD Writer |
| SATA 1.5 Gb/s | SATA 1.5 Gb/s | |
| Interface Type | See Extermal Dimensions | See Extermal Dimensions |
| Dimensions | NA | NA |
| Disc Capacity | DVDROM | DVDWriter |
| Type | 128±0.4×9.0 ±0.4×127±0.4(Max)
Unit:mm（Without Bezel-W x H x D) |
128±0.4×9.0 ±0.4×127±0.4(Max)
Unit:mm（Without Bezel-W x H x D) |
| External Dimensions | see Writes & Reads line | see Writes & Reads line |
| Speed | 9.0mm Tray | 9.0mm Tray |
| Bay Type | Business Black or without bezel | Business Black or without bezel |
| Color | No | No |
| Removable | 0.5MB Max | 0.5MB Max |
| Internal Buffer Size | DVDROM have no write function | 8xDVD+R / 8xDVD+RW /
6xDVD+R DL 8xDVD-R / 6xDVD-RW / 6xDVD-R DL 24xCD-R / 16xCD-RW |
| Writes | 8xDVD / 24xCD | 8xDVD / 24xCD |
| Reads | DC Power 5V | DC Power 5V |
| Source | +5V±5% Ripple less than 100mVp- p | +5V±5% Ripple less than 100mVp- p |
| DC Power Requirements | Max 1.5A@5v | Max 1.5A@5v |
| DC Current | All Windows OS | All Windows OS |
| Operating Systems Supported | Operating:
Read: 5 to 50 ºc Write: 5 to 45 ºC Storage/Transportation -40 to 60 ºC |
Operating:
Read: 5 to 50 ºc Write: 5 to 45 ºC Storage/Transportation -40 to 60 ºC |
| Temperature | Operating :
Read: 15 % to 85 % (Non- Condensing) Write 15 % to 80 % (Depend on the Temperature) Storage/Transportation: 10 % to 80 % (Non-Condensing) |
Operating :
Read: 15 % to 85 % (Non- Condensing) Write 15 % to 80 % (Depend on the Temperature) Storage/Transportation: 10 % to 80 % (Non-Condensing) |
| Relative Humidity | NA | NA |
Discrete Graphics Adapter
| Adapter | Quadro P2200 | T400 | T600 | T1000 | Quadro RTX 4000 | Quadro RTX 5000 |
| Bus Interface | PCIe 3.0
x16 |
PCIe 3.0
x16 |
PCIe 3.0
x16 |
PCIe 3.0
x16 |
PCIe 3.0
x16 |
PCIe 3.0
x16 |
| Display Interface | 4 x DP 1.4 | 3 x mDP
1.4 |
4 x mDP
1.4 |
4 x mDP
1.4 |
3 x DP 1.4
1 x VirtualLin k |
4 x DP 1.4
1 x VirtualLin k |
| Graphics Chipset | Pascal | Turing | Turing | Turing | Turing | Turing |
| Memory Clock Frequency (MHz) | 1251MHz | 1625MHz | 1750MHz | |||
| Memory Size | 5GB GDDR5X | 4GB GDDR6 | 4GB GDDR6 | 4GB GDDR6/8 GB GDDR6 | 8GB GDDR6 | 16GB GDDR6 |
| Memory Interface | 160-bit | 64-bit | 128-bit | 128-bit | 256-bit | 256-bit |
| Memory Bandwidth | Up to 200GB/s | 80GB/s | 160GB/s | 160GB/s | Up to 416GB/s | Up to 448GB/s |
| GPU Cores | CUDA
Cores: 1280 |
CUDA
Cores: 384 |
CUDA
Cores: 640 |
CUDA
Cores: 896 |
CUDA
Cores: 2304 Tensor Cores: |
CUDA
Cores: 3072 Tensor Cores: |
| 288
RT Cores: 36 |
384
RT Cores: 48 |
|||||||
| GPU Core Frequency (MHz) | 1000MHz | 1005MHz | 1620MHz | |||||
| Maximum Power Consumption | 75W | 30W | 40W | 50W | Total board power: 160W
Total graphics power: 125W |
Total board power: 265W
Total graphics power: 230W |
||
| Supported Resolutions and Max Refresh Rates (Hz) (Note: Analog and/or Digital) | 4 x 4096×2160
@ 120Hz 4 x 5120×2880 @ 60Hz |
3 x 4096×2160
@ 120Hz 3 x 5120×2880 @ 60Hz |
4 x 3840×2160
@ 120Hz 4 x 5120×2880 @ 60Hz 4 x 7680×4320 @ 60Hz |
4 x 4096×2160
@ 120Hz 4 x 5120×2880 @ 60Hz 2 x 7680×4320 @ 60Hz |
||||
| Thermal Solution | Ultra- quiet Active Fansink | Active | Active | Active | Ultra- quiet Active Fansink | Ultra- quiet Active Fansink | ||
| Dimension | 4.4″ H x
7.9″ L Single Slot |
2.7″ H x
6.1″ L Single Slot |
2.7″ H x
6.1″ L Single Slot |
2.7″ H x
6.1″ L Single Slot |
4.4″ H x
9.5″ L Single Slot |
4.4″ H x
10.5″ L Dual Slot, Full Height |
||
| Advanced Display | Not Available | Not Available | Not Available | Not Available | SYNC 2 | SYNC 2 | ||
| SLI/NVLink Support | Not Available | Not Available | Not Available | Not Available | Not Available | NVLink | ||
Discrete Graphics Adapter
| Adapter | Quadro RTX 6000 | Quadro RTX 8000 | RTX A2000 | RTX A4000 | RTX A4500 | RTX A5000 |
| Bus Interface | PCIe 3.0
x16 |
PCIe 3.0
x16 |
PCIe 4.0
x16 |
PCIe 4.0
x16 |
PCIe 4.0
x16 |
PCIe 4.0
x16 |
| Display Interface | 4 x DP 1.4
1 x VirtualLin k |
4 x DP 1.4
1 x VirtualLin k |
4 x DP
1.4a |
4 x DP
1.4a |
4 x DP 1.4 | 4 x DP
1.4a |
| Graphics Chipset | Turing | Turing | Ampere | Ampere | Ampere | Ampere |
| Memory Clock Frequency (MHz) | 1750MHz | 1750MHz | ||||
| Memory Size | 24GB GDDR6 | 48GB GDDR6 | 6GB/12GB GDDR6 | 16GB GDDR6 | 20GB GDDR6 | 24GB GDDR6 |
| Memory Interface | 384-bit | 384-bit | 192-bit | 256-bit | 320-bit | 384-bit |
| Memory Bandwidth | Up to 672GB/s | Up to 672GB/s | 288GB/s | 448 GB/s | 640GB/s | Up to 768GB/s |
| GPU Cores | CUDA
Cores: 4608 Tensor Cores: 576 |
CUDA
Cores: 4608 Tensor Cores: 576 |
CUDA
Cores: 3328 Tensor Cores: 104 |
CUDA
Cores: 6411 Tensor Cores: 192 |
CUDA
Cores: 7,168 Tensor Cores: 224 |
CUDA
Cores: 8,192 Tensor Cores: 256 |
| RT Cores: 72 | RT Cores: 72 | RT Cores: 26 | RT Cores: 48 | RT Cores: 56 | RT Cores: 64 | |
| GPU Core Frequency (MHz) | 1440MHz | 1395MHz | ||||
| Maximum Power Consumption | Total board power: 295W
Total graphics power: 260W |
Total board power: 295W
Total graphics power: 260W |
70W | 140W | 200W | 230W |
| Supported Resolutions and Max Refresh Rates (Hz) (Note: Analog and/or Digital) | 4 x
4096×216 0 @ 120Hz 4 x 5120×288 0 @ 60Hz 2 x 7680×432 0 @ 60Hz |
4 x 3840
x 2160 @ 120Hz 4 x 5120×288 0 @ 60Hz 2 x 7680×432 0 @ 60Hz |
4 x
4096×216 0 @ 120Hz 4 x 5120×288 0 @ 60Hz 2 x 7680×432 0 @ 60Hz |
4 x
4096×216 0 @ 120Hz 4 x 5120×288 0 @ 60Hz 2 x 7680×432 0 @ 60Hz |
4 x
4096×216 0 @ 120Hz 4 x 5120×288 0 @ 60Hz 2 x 7680×432 0 @ 60Hz |
4 x
4096×216 0 @ 120Hz 4 x 5120×288 0 @ 60Hz 2 x 7680×432 0 @ 60Hz |
| Thermal Solution | Ultra- quiet Active Fansink | Ultra- quiet Active Fansink | Active | Active | Active | Active |
| Dimension | 4.4″ H x
10.5″ L Dual Slot, Full Height |
4.4″ H x
10.5″ L Dual Slot, Full Height |
2.7″ H x
6.6″ L, Dual slot |
4.4″ H x
9.5″ L Single Slot |
4.4″ H x
10.5″ L Dual Slot, Full Height |
4.4″ H x
10.5″ L Dual Slot, Full Height |
| Advanced Display | SYNC 2 | SYNC 2 | Not Available | SYNC 2 | SYNC 2 | SYNC 2 |
| SLI/NVLink Support | NVLink | NVLink | Not Available | Not Available | NVLink | NVLink |
Intel® Ethernet Specifications
| Card | Intel I350-T4 Quad Port Gigabit Ethernet Adapter (Stony Lake T4) | Intel X710-DA2 Dual Port Fiber 10Gb Ethernet Adapter | Intel Ethernet SFP+ SR Optics Module |
| Supplier PN | I350T4G1P20, MM# 928942 | MM# 952103 | MM#: 941243 |
| Data Rates Supported | 10/100/1000Mbps (Copper), 1000Mbps (Fiber) | 1GbE/10GbE Optical fiber
10GbE Direct Attach (DAC) |
Not Available |
| Controller Details | Intel Ethernet Controller I351 | Intel Ethernet Controller X710-AM2 | Not Available |
| Controller Bus Architecture | PCIe 2.1 (5GT/s) | PCIe 3.0 (8GT/s) | Not Available |
| Data Transfer Mode | Ethernet | Ethernet | Not Available |
| Power Consumption | Copper: I350T4V2= 5W
LC-Fiber: I350F4= 6W |
Dual-port 10GBASE- SR= 4.3W typ/4.8W
max Dual-port 1000BASE- SX= 4W typ/4.3W max Dual-port 10GBASE- LR= 4.5W typ/ 5.1W max Dual-port Direct Attach (Twinax)= 3.3W typ/3.7W max |
Not Available |
| IEEE Standards Compliance | IEEE 802.3/10BASE-T, 100BASE-TX,
1000BASE-T |
IEEE 802.3 1/1010GBASE-SR/LR, SFF-8431 10GSFP+DAC | Not Available |
| Boot ROM Support | PXE boot, Intel iSCSI Remote Boot for Windows, Linux and | PXE boot, Intel iSCSI Remote Boot for Windows, Linux and | Not Available |
| Vmware, Intel BootAgent Software via PXE or BootP, WDMS or UEFI | Vmware, Intel BootAgent Software via PXE or BootP, WDMS or UEFI | |||
| Network Transfer Mode (Full/Half Duplex) | Supported | Supported | Not Available | |
| Network Transfer Rate | 1,000Mbps Full Duplex | 1,000Mbps Full Duplex | Not Available | |
| Operating System Driver Support | Windows 7/8/10, Linux, Free BSD, XEN,Vmware | Windows 2008, 2012; RHEL 6.5/7.0,
FreeBSD 9/10, Vmware ESXi 5.x |
Not Available | |
| Manageability | Supported | Supported | Not Available | |
| Manageability Capabilities Alerting | Supported | Supported | Not Available | |
| TDP | Firmware Based Thermal Management | Not Available | Not Available | |
| Operating Temperature Range | 0°C to 55°C (32°F to
131°F) |
0°C to 55°C (32°F to
131°F) |
Not Available | |
| # of Ports | 4 | 2 | Not Available | |
| Data Rate Per Port | 10/100/1000Mbps (copper), 1000Mbps (fiber) | 1Gbps, 10Gbps | Not Available | |
| System Interface Type | PCIe Gen 2.1 | PCIe 3.0 | Not Available | |
| NC Sideband Interface | Not Available | Yes | Not Available | |
| Jumbo Frames Supported | Yes | Yes | Not Available | |
| 1000Base-T | Yes | Not Available | ||
| IEEE 1588 | Supported | Supported | Not Available | |
| Supported Under vPro | Not Available | Not Available | Not Available | |
Ethernet
| Model | Dual Port Copper= I350-T4 V2 Dual Port LC-Fiber= I350-F4 | X710-DA2 |
| Connector | 4 x Ports RJ-45 Copper or 4 x Ports LC-Fiber | 2 x SFPs Receptable |
| Website | i350 T4/F4 | x710 DA2 |
Media Card Reader
| Description | 15 in 1 Media Card Reader |
Certifications
BIOS / Certifications / Standards /Environmental
BIOS Specifications
| WMI Support | Compliant With Microsoft WBEM and the DMTF Common Information Model |
| ROM-Based Setup Utility (F1) | System Configuration Setup Program (text-only interface) Available at Power-on With F1 Key |
| Bootblock Recovery | Recover system BIOS if the Flash ROM Becomes Corrupted |
| Replicated Setup | Saves System Configuration Settings to a File That Can Then be Used to Replicate the Settings to Other Systems |
| Boot Control | Boot Control Available Through ROM-based Setup Utility or With F12 Key at Power-on |
| Memory Change Alert | Power-on Error Message in the Event of a Decrease in System Memory |
| Thermal Alert | Power-on Error message in the Event of a Fan Failure |
| Asset Tag | Supports the Ability to Set SMBIOS Type 2 Baseboard Asset Tag Field |
| System/Emergency ROM Flash Recovery with Video | Supports Process to Recover the System BIOS if the Flash ROM Becomes Corrupted |
| Remote Wakeup/Remote Shutdown | System Admin Can Power On/Off a Client Computer from a Remote Location to Provide Maintenance |
| Quick Resume Time | Supports Low Power S3 (suspend to RAM) and Prompt Resume Times |
| ROM Revision Level | System UEFI (BIOS) Version Reported in SMBIOS Type 0 Structure and in BIOS Setup |
| Keyboard-less Operation | System Can be Booted Without a Keyboard |
| Per-port Control | Allows I/O Ports to be Enabled/Disabled Through ROM-based Setup or WMI Interface* Some Limitations |
| Adaptive Cooling | Offers Multiple Settings for Fan Control Ranging Between Better Performance and Better Acoustics |
| Security | User and Administrator Passwords Can Protect Boot and ROM-based Setup
– Support Electronic Lock – Chassis Intrusion Detection – UEFI Secure Boot Support – HDD Password Can Protect HDD Data – Windows UEFI Firmware Update Support – Device Guard Support – Optional Access Panel Lock, Kensington Lock, and Pad Lock |
| Intel(R) AMT (includes ASF 2.0) | N/A |
| Intel(R) TXT | N/a |
| Memory Modes | Supports Mirroring, Lock Step, and Sparing Memory Modes |
| Windows 10 Ready | Supports Windows 10 Requirements for Secure Flash, UEFI v 2.6 Device Guard Support Spec |
Industry Standard Specification Support
| UEFI | Unified Extensible Firmware Interface v2.7 |
| ACPI (Advanced Configuration and power Management Interface) | Advanced Configuration and Power Interface v6.1 |
| ASF 2.0 | DMTF Alert Standard Format Specification v2.0 |
| ATA (IDE) | AT Attachment 6 with Packet Interface (ATA/ATAPI-6) |
| CD Boot | El Torito Bootable CD-Rom Format Specification, v1.0 |
| EHCI | Enhanced Host Controller Interface for Universal Serial Bus, Revision v1.0 |
| PCI | NA (No PCI slot) |
| PCI Express | PCI Express Base Specification v3.0 |
| SATA | Serial ATA Revision 3.0 Specification |
| TPM | Trusted Computing Group TPM Specification v2.0 |
| UHCI | Universal Host Controller Interface Design Guide, Revision v1.1 |
| USB | Universal Serial Bus Revision v1.1 Universal Serial Bus v2.0 Universal Serial Bus v3.0 |
| SMBIOS | DMTF System Management Spec v3.2.1 |
| XHCI | XHCI SPEC Revision v1.2 |
Social and Environmental Responsibility
| Quality Control | Lenovo is a member of an eco-declaration system that enforces regular independent quality control |
| Hazardous Substances and Preparation | • Products do not contain more than; 0.1% lead, 0.01% cadmium, 0.1% mercury, 0.1% hexavalent chromium, 0.1% polybrominated biphenyls (PBB) or 0.1% polybrominated diphenyl ethers (PBDE). (See legal reference and Note B1)
• Products do not contain Asbestos • Products do not contain Ozone Depleting Substances: Chlorofluorocarbons (CFC), hydrobromofluorocarbons (HBFC), hydrochlorofluorocarbons (HCFC), Halons, carbon tetrachloride, 1,1,1- trichloroethane, methyl bromide • Products do not contain more than; 0.005% polychlorinated biphenyl (PCB), 0.005% polychlorinated terphenyl (PCT) in preparation • Products do not contain more than 0.1% short-chain chloroparaffins (SCCP) with 10-13 carbon atoms in the chain containing at least 48% per mass of chlorine in the SCCP • Parts with direct and prolonged skin contact do not release nickel in concentrations above 0.5 microgram/cm²/week REACH Article 33 information about substances in articles is available at: http: /www.lenovo.com/social_responsibility/us/en/ThinkGreen_produc ts.html#environment |
| Batteries | Not Available |
| Safety, EMC Connection to the Telephone Network and Labeling | Not Applicable, no Connection to a Telephone Network |
Acoustic Noise Emissions Declaration
Safety, EMC Connection to the Telephone Networkand Labeling
| System Software Manager | Lenovo ThinkStation Supports Software Management Tools by Lenovo Vantage |
Regulations & Standards
| EMC & Safety | FCC DoC for North America VCCI Certification for Japan BSMI Certification for Taiwan EU/EFTA CE Mark & DoC
UL/CUL(P920,P720,P520,P520c), cTUVus(P330) UL-GS(P920,P720,P520,P520c), TUV-GS(P330) IEC60950-1 CB Report/Certificate Saudi Arabia SASO Kuwait KUCAS China CCC Mark Hong Kong SAR (CB report) Singapore PSB South Africa SABS Russia-EAC Morocco-CM Mexico-NOM Kazakhstan-EAC Belarus-EAC Serbia KVALITET Ukraine UKrCEPRO India-BIS USA Chemical Emission Test |
Environmentals
| Energy Star | ENERGY STAR® v8.0 |
| EPEAT | EPEAT Certification Available on Select Models |
| ErP Lot-3 2013 | Yes |
| Hazardous Substances | • Products do not contain more than; 0.1% lead, 0.01% cadmium, 0.1% mercury, 0.1% hexavalent chromium, 0.1% polybrominated biphenyls (PBB) or 0.1% polybrominated diphenol ethers (PBDE)
• Products do not contain Asbestos • Products do not contain Ozone Depleting Substances: Chlorofluorocarbons (CFC), hydrobromofluorocarbons (HBFC), hydrochlorofluorocarbons (HCFC), Halons, carbon tetrachloride, 1,1,1- trichloroethane, methyl bromide • Products do not contain more than; 0.005% polychlorinated biphenyl (PCB), 0.005% polychlorinated terphenyl (PCT) in preparation • Products do not contain more than 0.1% short-chain chloroparaffins (SCCP) with 10-13 carbon atoms in the chain containing at least 48% per mass of chlorine in the SCCP |
| • Parts with direct and prolonged skin contact do not release nickel in concentrations above 0.5 microgram/cm_/week |
