Lenovo 21ML005GGE ThinkPad T14 Gen 5 Laptop
Product Information
Specifications
- Product: ThinkPad T14 Gen 5 / ThinkPad T16 Gen 3
- Wireless Technology: WLAN 802.11b/g/n/ax/be, Bluetooth BR/EDR/LE, WWAN UMTS, WWAN LTE, WWAN LTE HPUE, WWAN 5G NR, NFC
- Frequency Bands: 2400 – 2483.5 MHz
- Maximum Transmit Power: < 20 dBm to < 27.5 dBm
- Note: Wireless bands may vary depending on product configuration. Indoor location usage recommended within specific frequency bands.
Product Usage Instructions
TrackPoint Quick Menu
Launch TrackPoint Quick Menu by double tapping for quick configuration of device settings.
Lenovo Commercial Vantage
Access Commercial Vantage to adjust device settings and check for system updates.
Vantage – Lock on Leave
Protect your privacy and improve battery life with the Lock on Leave feature.
Lenovo View Features
- Background Removal*
- Privacy Guard
- Posture Warning
Frequently Asked Questions
What is the Specific Absorption Rate (SAR) of the device?
The SAR values for the ThinkPad T14 Gen 5 and ThinkPad T16 Gen 3 are within international guidelines. Refer to the Safety and Warranty Guide for detailed SAR information.
How can I access the TrackPoint Quick Menu?
You can access the TrackPoint Quick Menu by double-tapping on the device.
What is the purpose of Lenovo Commercial Vantage?
Lenovo Commercial Vantage allows users to adjust device settings and check for system updates easily.

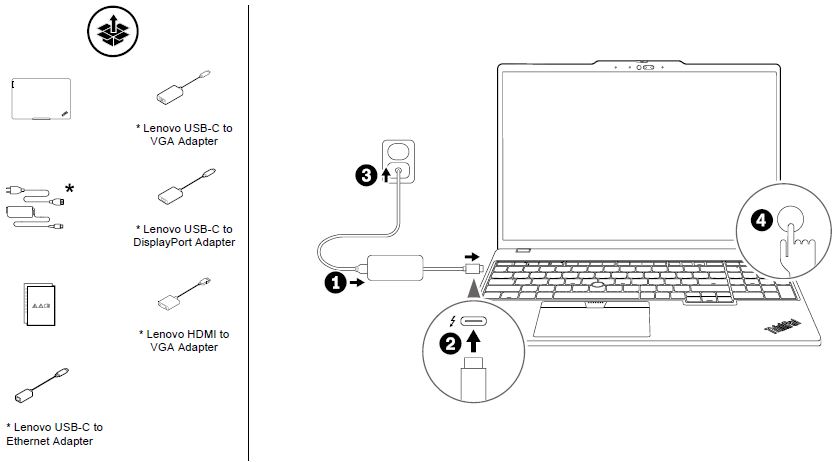

Get started
* For selected models
Overview
Press to log in to the computer*
Navigate as a traditional mouse

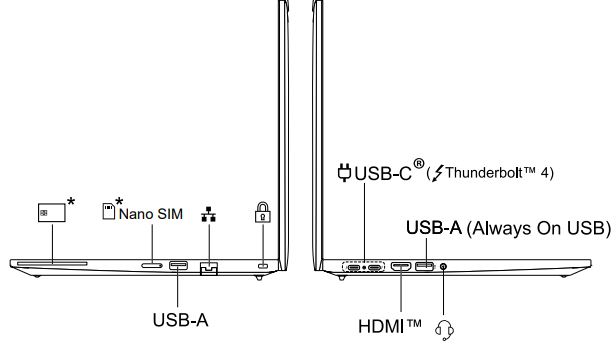

Overview
Read the statement on USB transfer rate in the User Guide. To access the User Guide, refer to methods mentioned on the back cover.

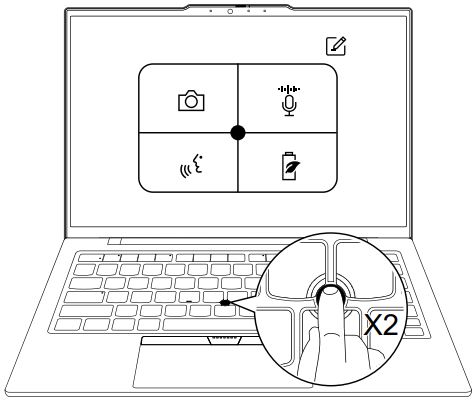

TrackPoint Quick Menu
Launch TrackPoint Quick Menu by double tapping1 for quick configuration of some device settings.
It can be set to single tapping.
Lenovo Commercial Vantage
Access Commercial Vantage to adjust device settings and check for system updates.

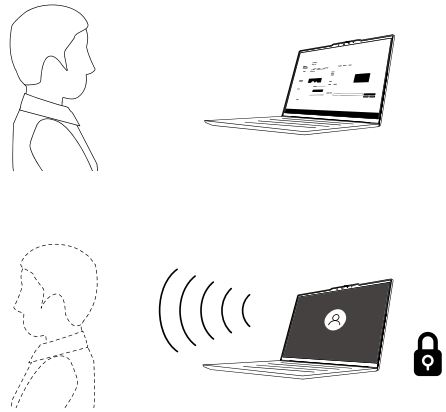

Lock on leave
Protect your privacy and improve battery life.
Note: The initial BIOS disabled this function. It will be enabled by software update soon. Refer to README file for BIOS on system support site.
Lenovo View
Video Enhancer

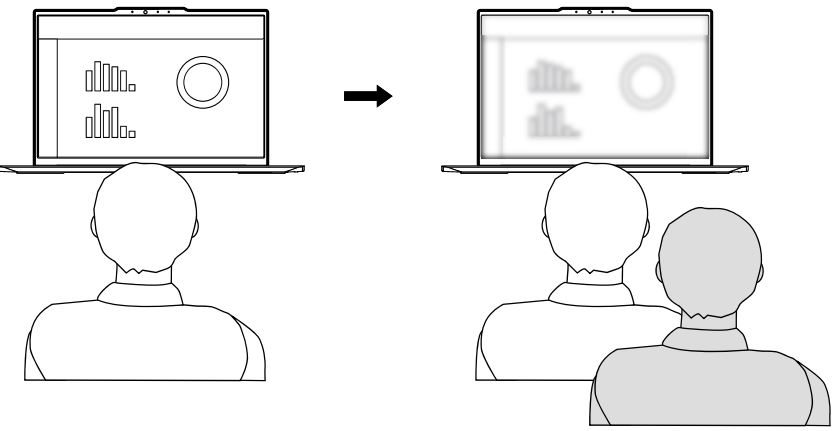

Privacy Guard
Background Removal
Posture Warning
Specific absorption rate (SAR)
YOUR DEVICE MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO RADIO WAVES.
Refer to the following for 10g SAR limit and maximum reported SAR values:
10g SAR limit: 2 W/kg (body-worn SAR); 4 W/kg (limb SAR)
Maximum SAR with 0 mm separation distance:
| Product name | Body-worn SAR value | Limb SAR value |
| ThinkPad T14 Gen 5 | 1.600 W/kg | 1.929 W/kg |
| ThinkPad T16 Gen 3 | 1.569 W/kg | 1.569 W/kg |
For more information about SAR, refer to the Safety and Warranty Guide that came with your device.
European Union (EU) / United Kingdom (UK) — radio frequency and power
This radio equipment operates with the following frequency bands and maximum radio-frequency power:
| Technology | Frequency [MHz] / band | Maximum transmit power |
| WLAN 802.11b/g/n/ax/be Bluetooth BR/EDR/LE | 2400 – 2483.5 | < 20 dBm |
| WLAN 802.11a/n/ac/ax/be | 5150 – 5350; 5470 – 5725 | < 23 dBm |
| WLAN 802.11a/n/ac/ax/be | 5725 – 5875 | < 13.98 dBm |
| WLAN 802.11ax/be | 5945 – 6425 | < 23 dBm |
| WWAN UMTS | 1/3/8 | < 25.2 dBm |
| WWAN LTE | 1/3/7/8/20/28/34/38/40/41/42/43 | < 25 dBm |
| WWAN LTE HPUE | 41 | < 27 dBm |
| WWAN 5G NR | 1/3/7/8/20/28/38/40/41/77/78 | < 25 dBm |
| WWAN 5G NR HPUE | 41/77/78 | < 27.5 dBm |
| NFC | 13.56 | < -5.31 dBμA/m@10m |

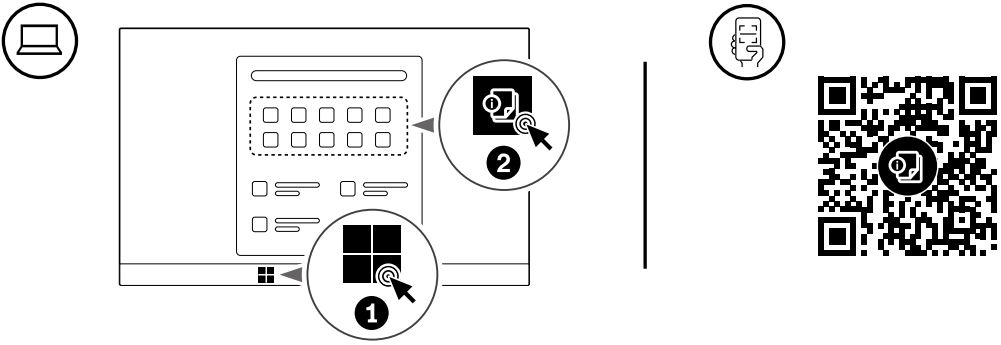

Access User Guide
Note: Not all wireless bands may be enabled depending on your product configuration. Usage of this device is limited to indoor locations in the bands 5150 – 5350 MHz and 5945 – 6425 MHz.
First Edition (April 2024)
© Copyright Lenovo 2024.
LIMITED AND RESTRICTED RIGHTS NOTICE:
If data or software is delivered pursuant to a General Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-35F-05925. Lenovo, Lenovo logo, ThinkPad, and ThinkPad logo are trademarks of Lenovo. Intel and Thunderbolt are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries. The terms HDMI and HDMI High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. USB-C® is a registered trademark of USB Implementers Forum. All other trademarks are the property of their respective owners.
