LED Lighting Wholesale Inc DM03-120W50-C LED Linear Highbay Instruction Manual

LED Lighting Wholesale Inc DM03-120W50-C LED Linear Highbay

Product Information: LED Linear Highbay

The LED Linear Highbay is a popular choice for warehouse lighting. It is designed to be easy to hang using two gribber cables and simple to connect with the junction box located on the back. This high bay lighting option is well-known for its wide light distribution, making it an excellent choice for those looking to switch to LED lighting and save energy. The product features a color rendering index (Ra) of over 80, ensuring high-quality illumination.

Key Features:

• ETL, FCC & DLC listed
• Compliant with LM79 & LM80 standards
• Available in 2ft and 4ft sizes with various wattage options:
  • 2ft: 110W, 130W, 160W, 170W
  • 4ft: 160W, 255W, 300W, 400W
• High luminous efficacy of 125 lm/w
• 0-10V dimming capability
• Power factor (PF) of 0.90
• Driver efficiency of 90%
• Total Harmonic Distortion (THD)

Product Usage Instructions

To install and use the LED Linear Highbay, please follow these steps:

1. Choose an appropriate location for installation, ensuring it is suitable for high bay lighting.
2. Identify two suitable points for hanging the high bay lights using gribber cables. Ensure the points are secure and capable of supporting the weight of the lights.
3. Attach the gribber cables to the designated points on the high bay lights.
4. Connect the high bay lights to the power supply using the junction box located on the back of the lights.
5. Ensure the power supply is compatible with the required voltage for the LED Linear Highbay.
6. Turn on the power supply and verify that the lights are functioning properly.
7. (Optional) If dimming functionality is desired, connect a compatible 0-10V dimmer to the high bay lights.
8. Adjust the dimming level as desired using the connected dimmer.

LED Lighting Wholesale Inc DM03-120W50-C LED Linear Highbay

It is recommended to consult a professional electrician for installation and to ensure compliance with local electrical regulations.

LED Linear Highbay

LED Linear high bay lighting is a popular choice in warehouse lighting. They are easy to hang with two gribber cables and easy to connect with the junction box right on back. Popular for their wide light distribution, they are a great choice for going LED and saving energy. No.

Product Features

1. ETL, FCC & DLC listed; With LM79 & LM80;
2. 2ft:110W&130W&160W&170W;4ft:160W&255W&300W&400W
3. High luminous efficacy 125 lm/w;
4. 0-10V dimming;
5. PF＞0.90,driver efficiency＞90%,THD<20%;
6. Installation: Chain Installation and steeve Installation;
7. Suitable for dry/damp location;
8. Designed for warehouses, gymnasiums, and industrial spaces;
9. Easy installation of emergency and motion sensors;
10. CCT Tunable: 3500K & 4000K & 5000K ;

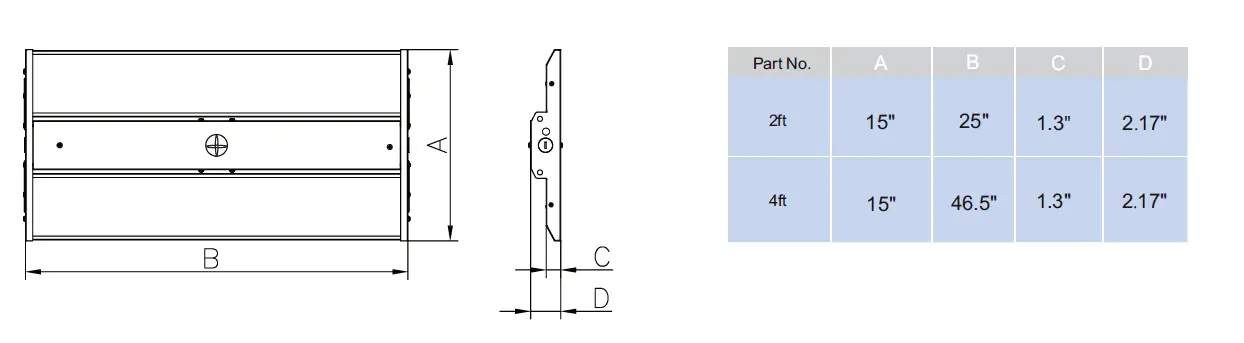

Product Dimension

	Part No.	A	B	C	D
	2ft	15″	25″	1.3″	2.17″
	4ft	15″	46.5″	1.3″	2.17″

Specification

Name	Part No.	Power	Input Voltage	Input Current	PF	Light Efficacy	CCT	Ra
		110W		0.99A
	2FT	130W		1.17A
		160W		1.44A
Linear high bay			AC120-277V AC120-347V		＞0.9	125lm/w	3500K 4000K 5000K	80
		170W		1.53A
		160W		1.44A
		255W		2.29A
	4FT
		300W		2.7A
		400W		3.6A

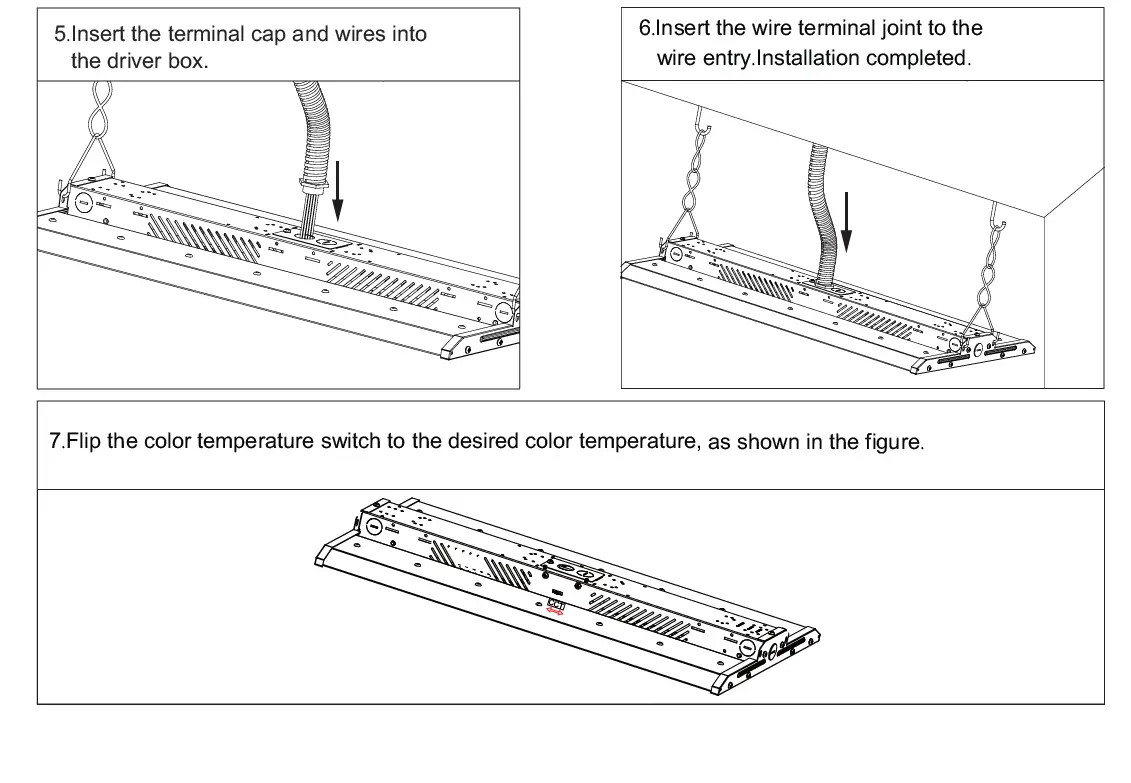

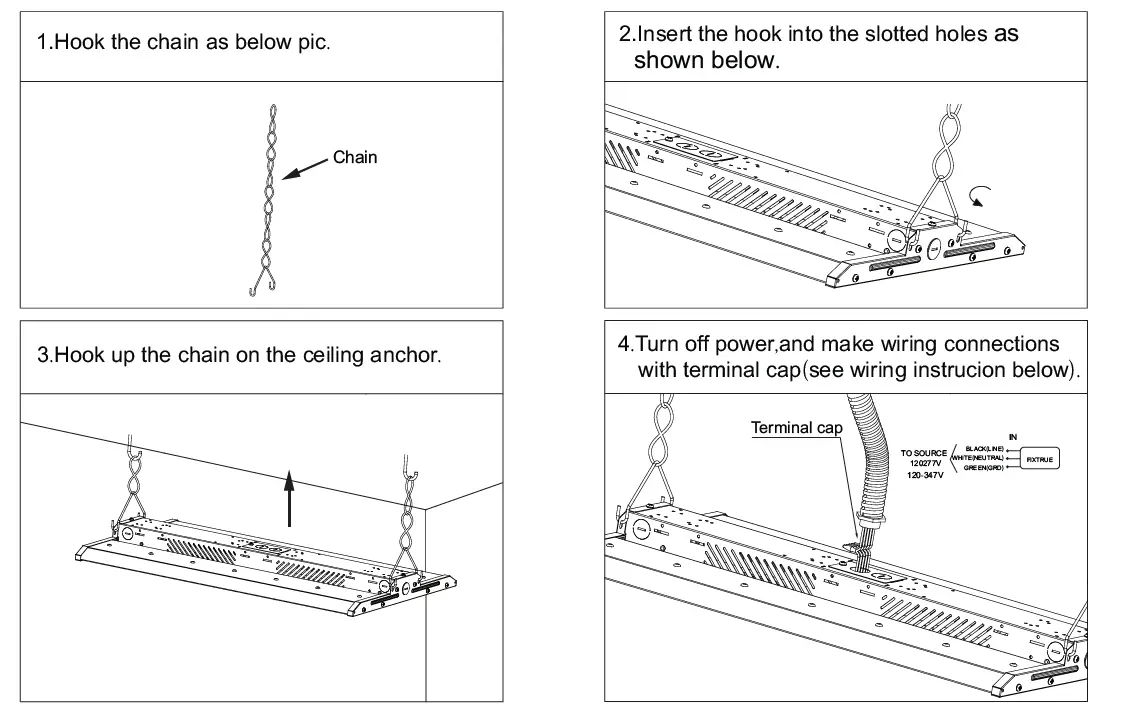

Chain Installation

Steeve Installation

Motion sensing Installation

Packing/Weight

Packing info

Model	Packing way	Carton size(mm)	Pallet Loading			Non-Pallet Loading
			20’GP	40’GP	40’HP	20’GP	40’GP	40’HP
2ft	2PCS/Carton	670*165*425mm				1800PCS	3500PCS	3600PCS
4ft	2PCS/Carton	1220*165*425mm				1000PCS	1900PCS	2000PCS

Applications

Note

1. The installation and maintenance must be completed by electricians or professionals.
2. Please cut off the power before installation and maintenance.
3. The thermally insulating material is not allowed to cover the fixture.
4. Please keep away from the corrosive substance,and keep the fixture dry and clean.
5. Working temperature: -4°F~122°F, storage temperature: -22°F~158°F.
