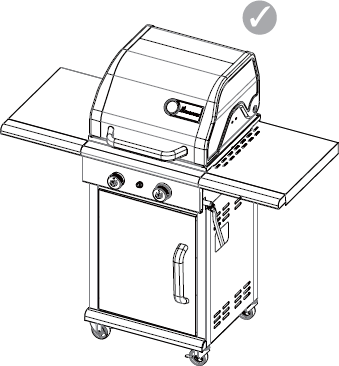

TRITON 2.0 Gas BBQ Grill
LANDMANN
HOME OF FIRE

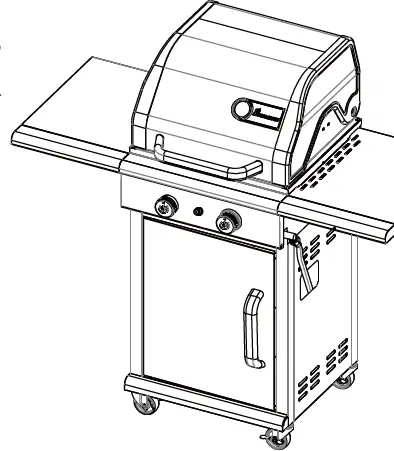

TRITON 2.0
Assembly instructions
#12901
03214
06217
04132
#12903
06218
06223
03748
02357
00786
03015
2 LANDMANN
|
2531CU0061 |
7,4 kW |
37,7 kg |
48 x 44 cm |
124 x 121 x 57 cm |
max. 8 kg |
1,5 kg/h |
|
|
I3B/P (30) |
I3B/P (50) |
I3P (37) |
I3+ (28-30/37) |
|
|
CY, CZ, DK, EE, FI, FR, GB, HU, IT, LT, NL, NO, SE, SI, SK, RO, HR, TR, BG, IS, LU, MT |
AT, CH, DE |
PL |
BE, CZ, ES, FR, GB, GR, IE, IT, LT, LU, LV, PT, SK, SI |
|
Main burner nozzle |
Ø 0,94 mm |
Ø 0,83 mm |
Ø 0,88 mm |
Ø 0,94 mm |
|
Consumption |
G30: 540 g/h |
G30: 540 g/h |
G30: 540 g/h |
G30: 540 g/h |
|
Consumption |
G31: 530 g/h |
G31: 530 g/h |
G31: 530 g/h |
G31: 530 g/h |
LANDMANN
Part list
Item Qty. Part name
- 1 Side frame, left
- 1 Side frame, right
- 1 Cart base
- 1 Rear panel
- 1 Front panel strut, top
- 1 Grease catchment tray, right
- 1 Grease catchment tray, left
- 4 Rollers
- 1 Front panel strut, bottom
- 1 Barbecue unit, preassembled
- 2 Side rack bracket, front
- 2 Side table bracket, rear
- 1 Side table, left
- 1 Side table, right
- 2 Side table bar

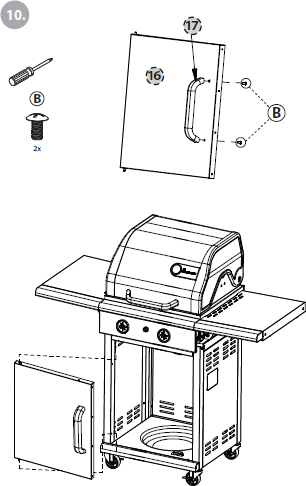

- 1 Lower cupboard door
- 1 Door handle
- 2 Adjusting knob
- 2 Flame tamer
- 2 Cooking grill
- 1 Warming rack
- 1 Grease tray
- 1 Fat catcher tray
- 1 KIT (Regulator & Hose set)
1 Screw set with assembly material

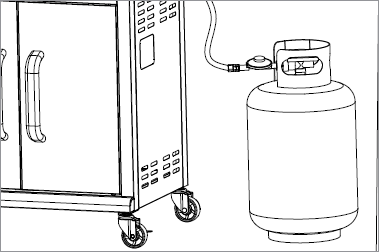

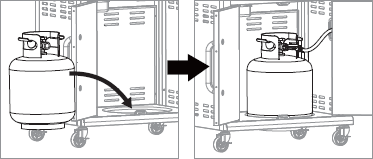

Placement of the gas cylinder during use
Position the gas cylinder next to the barbecue during use.
Placement of the gas cylinder after use
The gas cylinder can be stored in the base cabinet after use, provided
that it does not exceed the specified maximum dimensions (see
page 3). Place the gas cylinder in the recess provided for this purpose
in the base.
EC – Declaration of Conformity
We, LANDMANN Germany GmbH, hereby declare that the gas
appliance described here complies with EU regulation 2016/426.
Conformity has been verified by a type examination according to EN
498:2012.
The type examination was carried out by the notified body DBI (2531).
Product identification number: 2531CU-0061
Please contact our service department for further information.
Utilization

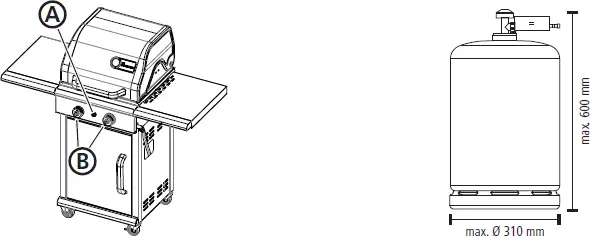

Functional elements (see page 3):
A. Electronic ignition
B. Main burner control knob

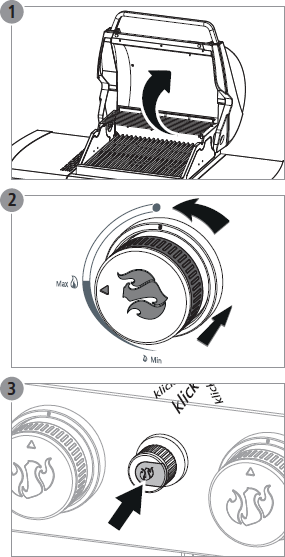

Starting up the barbecue:
- Open the lid on the grill unit (1).
- Open the gas supply on the gas cylinder (see operating manual).
- Each burner has its own ignition system and they can therefore be ignited individually. Press the control knob and turn it anticlockwise to the MAX position. Hold down the control knob (2).
- Press the electronic ignition button (3). You should hear a clicking sound.
- Check whether the burner has been ignited. Carefully look through the cooking grill to see if flames come out of the burner.
- If the burner has not ignited, press the control knob and turn it back to the 0 position. Wait for 5 minutes to allow the gas in the combustion chamber to dissipate. Then repeat the ignition process.
- If the burner has ignited, repeat the above steps for the remaining burners.
WARNING! Open the cover during the ignition process.
WARNING! Do not bend over the cooking area when igniting the
burners.
WARNING! Each burner must be ignited individually by pressing
the electronic ignition.
WARNING! If the burner has not ignited, press the control knob
and turn it back to the 0 position. Wait for 5 minutes to allow the gas in
the combustion chamber to dissipate. Then repeat the ignition process.
Switching off the barbecue:
- Close the gas supply on the gas cylinder (see operating manual).
- Press the control knob and turn it clockwise to the 0 position.
Replacing the electronic ignition battery:
Turn the electronic ignition button anticlockwise and insert or replace an AA battery.
