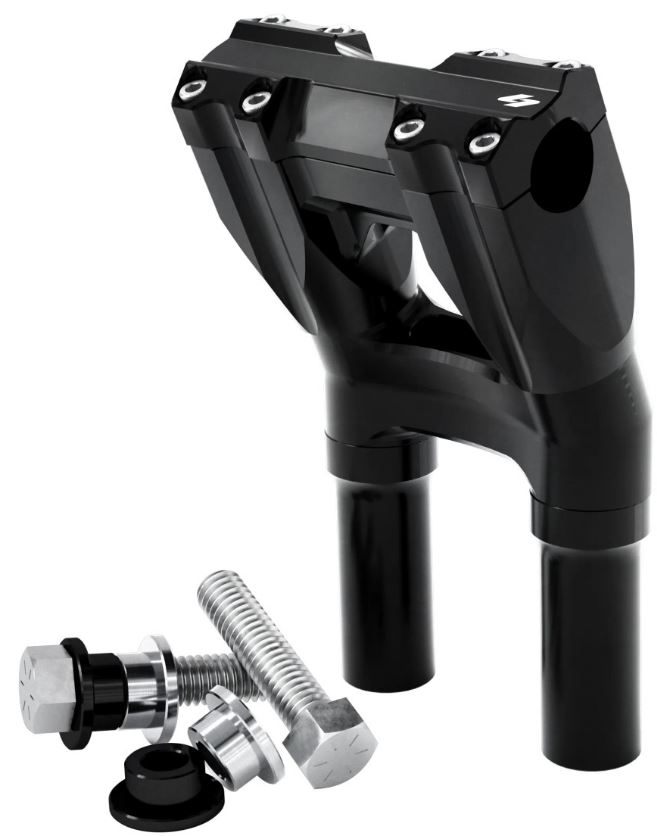

Kraus UN-ISO-68-A Solid-Mount Isolated and Pullback Handlebar Risers
Product Information
Kraus Isolated Risers for <Bar Name>
The Kraus Isolated Risers are designed for use with <Bar Name>. These risers provide enhanced vibration isolation and improved ergonomics for a comfortable riding experience. They are compatible with various touring models, Softails, Dyna, FXR, and below Softails. The risers feature durable construction with stainless steel and medium-strength grade steel components.
Replacement Part List
| Item | Qty | Part No. |
|---|---|---|
| ISO Riser Mid Section | <Qty> | <Part No.> |
| ISO Riser Top Clamp | <Qty> | <Part No.> |
| ISO Riser Legs | <Qty> | <Part No.> |
| Stainless Steel Socket Head Screw | <Qty> | <Part No.> |
| Medium Strength Grade Steel Hex Head Screw, Zinc Plated, Partially Threaded |
<Qty> | <Part No.> |
| Riser Bushing Washer | <Qty> | <Part No.> |
| Touring Polyurethane Riser Bushing | <Qty> | <Part No.> |
| Metal Sleeve for Poly Riser Bushing | <Qty> | <Part No.> |
| Medium Strength Grade Steel Hex Head Screw, Zinc Plated, Fully Threaded |
<Qty> | <Part No.> |
| Mounting Bushing Sets (Included, quantity depends on fitment) |
– | – |
Torque Specs
| Type | Apply Blue Loc Tite | Grade | Hex Head Screw | Zinc Plated | Threaded | Torque (ft. lbs.) |
|---|---|---|---|---|---|---|
| Solid Mount Riser Bushing Touring/Up SF | Yes | – | Fully Threaded | – | – | <Torque Value> |
| DYNA/FXR/Below SF Solid Riser Bushing | Yes | Medium Strength | Hex Head Screw | Zinc Plated | Fully Threaded | <Torque Value> |
| Kraus Dynamoto Solid Riser Bolt Washer No Bushing | No | Medium Strength | Hex Head Screw | Zinc Plated | Fully Threaded | <Torque Value> |
| Stainless Steel Socket Head Screw | No | – | – | – | – | <Torque Value> |
| Medium Strength Grade Steel Hex Head Screw, Zinc Plated, Partially Threaded |
No | Medium Strength | Hex Head Screw | Zinc Plated | Partially Threaded | <Torque Value> |
If you have any further questions or need assistance, please contact our support team at [email protected].

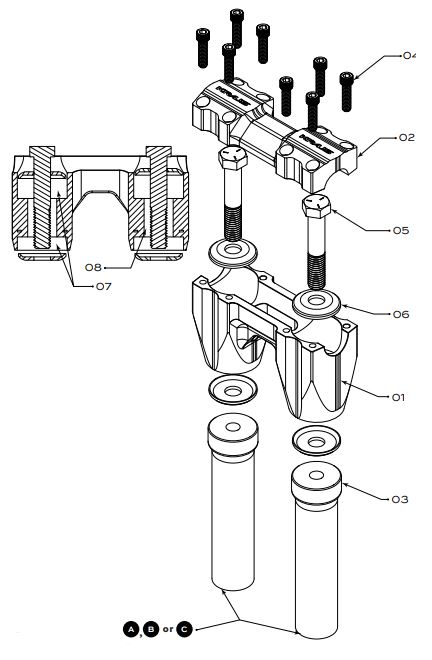

REPLACEMENT PART LIST
| ITEM | QTY | PART NO. | PART |
| 1 | 2 | UN-ISO-001/021 | ISO RISER MID-SECTION (1˝/1-1/8˝) |
| 2 | 1 | UN-ISO-002/022 | ISO RISER TOP CLAMP (1˝/1-1/8˝) |
| 3 | 2 | UN-RI-35/45/75/95 | ISO RISER LEGS 3.5″, 5.5″, 7.5″, 9.5″ |
| 4 | 8 | 1173462 | 18-8 STAINLESS STEEL SOCKET HEAD SCREW, 1/4-20 X 1 |
| 5 | 2 | 110120384 | MEDIUM-STRENGTH GRADE 5 STEEL HEX HEAD SCREW, ZINC-PLATED, 1/2-13 X 2-1/2, PARTIALLY THREADED |
| 6 | 4 | UN-RI-014 | RISER BUSHING WASHER – TOURING |
| 7 | 4 EA. | UN-RI-004 | POLYURETHANE RISER BUSHING |
| 8 | 2 EA. | UN-RI-004 | METAL SLEEVE FOR POLY RISER BUSHING |
| A or B | 2 | 13824 | MEDIUM-STRENGTH GRADE 5 STEEL HEX HEAD SCREW, ZINC-PLATED, 1/2-13 X 3, FULLY THREADED |
| C | 2 | 1113821 | MEDIUM-STRENGTH GRADE 5 STEEL HEX HEAD SCREW, ZINC-PLATED, 1/2-13 X 2, FULLY THREADED |
MOUNTING BUSHING SETS INCLUDED: DEPENDS ON FITMENT
- FITMENT: ALL TOURING MODELS AND 2018 & UP SOFTAIL
- FITMENT: ALL DYNA, FXR, AND 2017 & BELOW SOFTAILS
- FITMENT: ALL MODELS RUNNING A KRAUS DYNAMOTO INVERTED FRONT END
TORQUE SPECS
- (SOLID MOUNT RISER BUSHING – TOURING /18 & UP SF) APPLY BLUE LOC-TITE 243 TO 1/2-13 X2-1/2,
- GRADE 5 ZINC PLATED HEX HEAD SCREW, FULLY THREADED – 55 FT. LBS.
- (DYNA/FX/17-BELOW SF SOLID RISER BUSHING) APPLY BLUE LOC-TITE 243 TO MEDIUM-STRENGTH
- GRADE 5 STEEL HEX HEAD SCREW ZINC-PLATED, 1/2-13 X 3, FULLY THREADED – 55 FT. LBS.
- (KRAUS DYNAMOTO SOLID RISER BOLT & WASHER (NO BUSING)) MEDIUM-STRENGTH GRADE 5 STEEL HEX HEAD SCREW ZINC-PLATED, 1/2-13 X2 LONG, FULLY THREADED – 55 FT. LBS.
- #0418-8 STAINLESS STEEL SOCKET HEAD SCREW, 1/4-20 X1 – 13 FT. LBS.
- #05 MEDIUM-STRENGTH GRADE 5 STEEL HEX HEAD SCREW, ZINC-PLATED, 1/2-13 X2-1/2, PARTIALLY THREADED – 55 FT. LBS.
KRAUS ISOLATED RISER LEG REPLACEMENT INSTALLATION
INSTALLATION GUIDE:
- Loosen but do not remove two ½ x 13 bolts on the bottom of the triple tree.
- Remove one bolt and swing riser assembly to one side of the motorcycle
- Use heat to loosen Loctite in the upper portion of the riser leg.
- Use impact gun and 5/8 Allen to loosen the riser leg.
- Apply blue Loctite 243 to the new riser leg inner threads
- Install new riser leg and torque to 55 fibs
- Repeat the process for the opposite side
- Reinstall two ½ •13 × 3 bolts with blue Loctite to the riser leg and torque to 55 ft-lbs.
TOOLS NEEDED
- ⅝ allen 3/8 or 1/2 drive
- ¾ socket 3/8 drive
- Impact gun air or electric
- Heat source map gas, heat gun
- [email protected]
