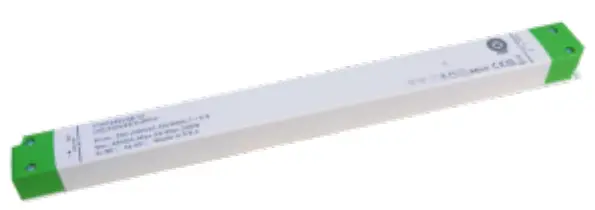

FTPC240V48-S2
Contents
Features:
- Constant voltage design
- European AC input range
- Protections: Short circuit / Over current / Over voltage / Over Temperature
- Cooling by free air convection
- Compliance to worldwide regulations for lighting
- Extremely short and slim case size
ELECTRICAL SPECIFICATION
| Output Voltage | 48V DC |
| Rated Current | 5A |
| Power (W) | 240W |
| Dimming | No |
| Voltage Ripple & Noise (max.) | 1440mVp-p |
| Line Regulation | ± 1% |
| Load Regulation | ± 1% |
| Setup, Rise Time | 300ms, 100ms |
| AC input voltage range | European |
| PFC | Yes |
| Protection class | II |
| Efficiency (typ.) | 93% |
| AC Current (typ.) | 1.8A |
| No Load Power Consumption (typ. / max.) | 0.21W |
| Inrush Current (typ.) | 75A |
| IP protection level | IP20 |
| Over Current / Overload protection | Type: hiccup mode, auto-recovery. |
| Short Circuit protection | Type: hiccup mode, auto-recovery. |
| Over Voltage protection | Type: shut down output voltage. Re-power on to recovery. |
| Working Temperature range | -20°C ÷ +45°C |
| Working Humidity range | 10 ÷ 90% RH non-condensing |
| Storage Temperature and Humidity | -40°C ÷ +85°C, 5 ÷ 95% RH non-condensing |
| Safety Standards | EN 61347-2-13,Compliance to EN 61347-1 |
| Withstand Voltage | IN/OUT: 3750VAC / 5mA, 60s |
| Isolation Resistance | IN/OUT: ≥ 10MΩ / 500VDC |
| EMC Emission | Compliance to EN55015 |
| EMC Immunity | Compliance to EN61547 |
| Harmonic Current | Compliance to EN61000-3-2 Class C |
| Dimmensions (L x W x H) | 356.4 x 32.1 x 222.3 |
| Weight (kg) | 0.34 |
| Packing | 20PCS/Carton |
| Warranty | 5 years |
| Mounting | surface |
| Programmable | No |
MECHANICAL SPECIFICATION
