USER GUIDE
32 FULL HD 75HZ
FREESYNC MONITOR
(1920 X1080)
KAMN32F7SC
Contents
SAFETY & WARNINGS
- Read allinstructions in this guide before using this monitor. Retain this guide for future reference.
- Unplug the monitor before cleaning it.
- Useaclean, slightly dampened cloth to wipe the monitor body.
- Toclean the screen, turn the monitor off, unplug it and wait for it to cool completely. Then, wipe it with a dry micro-fibre cloth.
- Do not use cleaning alcohol, ammonia-based liquids cr other harsh cleaners to clean this monitor.
- This monitor is designed with ventilation holes on the back of the casing. Do not cover or block them.
- Do not insert any object or spray any liquid into the vents.
- Avoid placing the monitor near heaters, stoves, fireplaces or other sources of heat, as well as in rooms lacking adequate ventilation.
- Do not position the monitor in unsafe locations. If the monitor falls, it may be damaged and may injure nearby people.
- Unplug the monitor if it is not going to be used for an extended period.
- Do not place heavy objects on the monitor, its power cord or any connected cable. o
- Do not open the back panel of the monitor, as it contains a high-voltage current even when not plugged in.
The terms HDMI, HDMI High-Defnition Multimedia Interface, HDMI Trade Dress and the HDMI Logos are trademarks or registerec trademarks of HDMI Licensing Administrator, Inc.
COMPONENTS
OVERVIEW

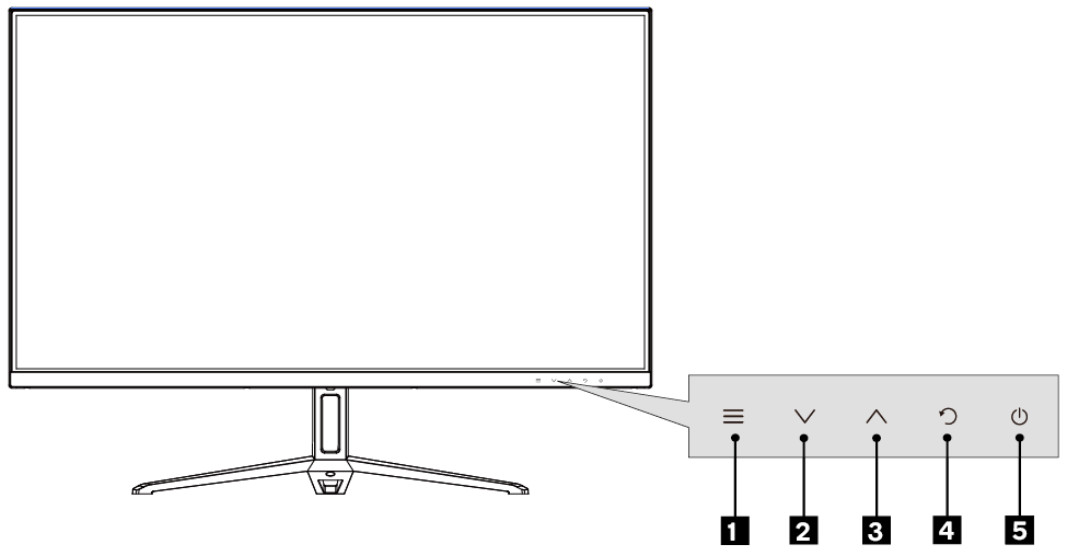

Monitor Controls
| 1 |  |
Menu button | Press to display the OSD menu or enter sub-menus. |
| 2 |  |
Down button | Press to move down in the menu. |
| 3 |  |
Up button | Press to move up in the menu. |
| 4 |  |
Exitbutton | Press to exit the menu. |
| 5 |  |
Power button | Press to turn the monitor on/off. |
Monitor Ports
| 6 | HDMI port |
| 7 | VGA port |
| 8 | Audio in (3.5mm) |
| 9 | Audio out (3.5mm) |
| 10 | Power port (DC 12V) |

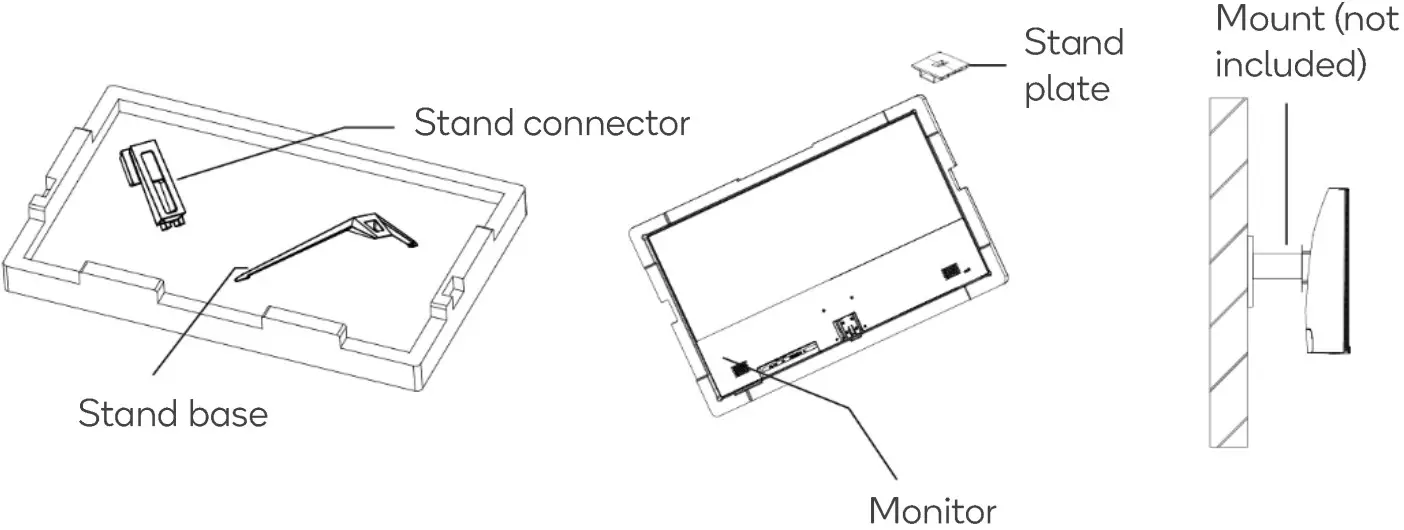

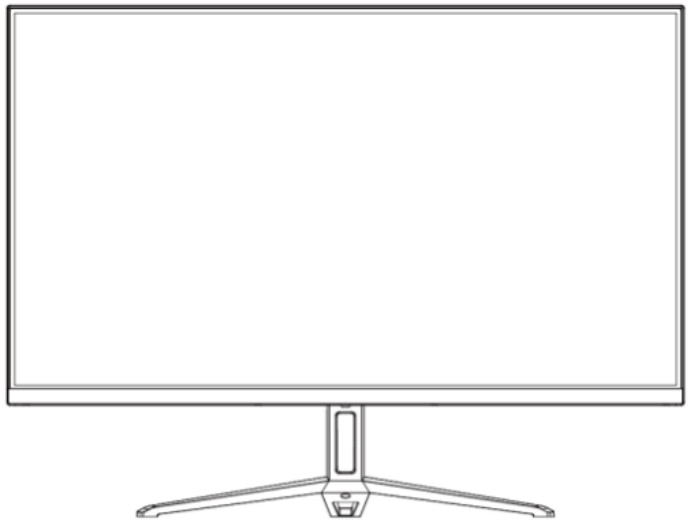

STAND ASSEMBLY
WARNING: The panel of the monitor is fragile. Keep the foam underneath the monitor screen while assembling the stand.
- Carefully remove the monitor, stand connector and stand base from the box.
- Attach the stand base to the stand connector using the provided M4 screw.
- Insert the assembled stand into the rear of the monitor and push down until firmly connected.
- Lift the monitor up straight and remove the bottom foam. Stand the monitor up on the assembled base.
VESA MOUNT
VESA mounting pattern 75 x 75mm, screw size M4.
Note: VESA mount and mounting accessories are not included.
- Open the box, take out the monitor with protective foam attached and gently place it on a desktop or table. Remove all components and the protective foam frem the back of the monitor.
If the monitor is already attached to the stand, press the quick release button to remove the stand plate and detach the stand.
- Assemble the mount as per the instructions provided with the mount.
CONNECTIVITY
Power Cable
Connect the included power cable to the monitor power port, then connect the other end to a power outlet.
Earphones (Audio Out)
Earphones, headphones or other audio devices can be connected to the 3.5mm audio port (Audio Out) on the monitor. The monitor may need to be set as the PC’s default sound output device.

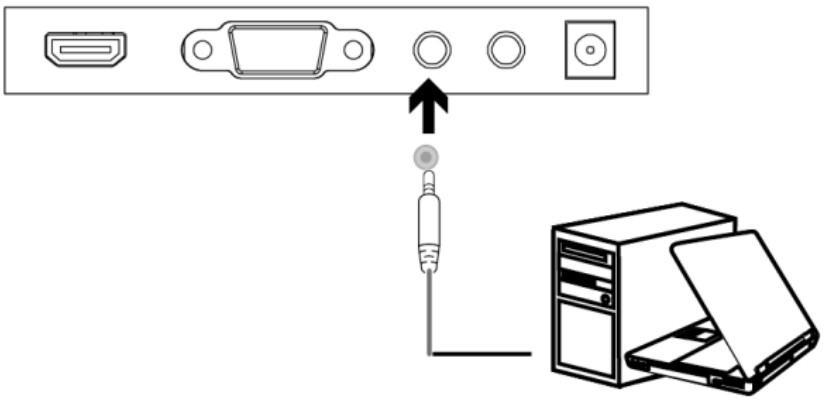

Audio In
Connect an audio cable to the 3.5mm audio port (Audic In) on the monitor and the audio port on your computer.

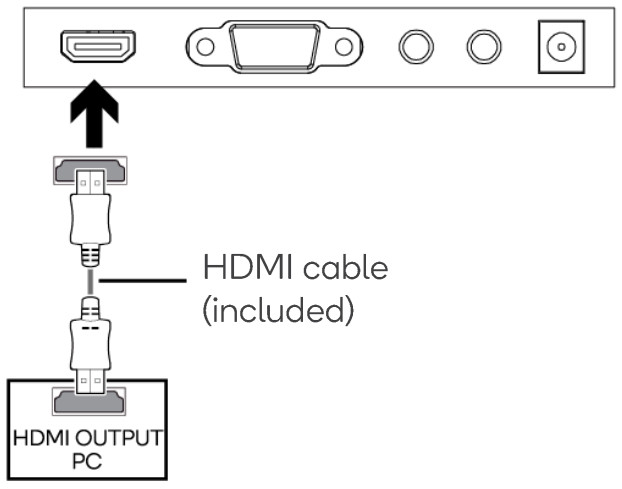

HDMI
In order for the monitor to receive HDMI signals from the computer, use the HDMI cable to connect the monitor to the computer.
VGA
Connect a computer, DVD/Blu-ray player or console to the monitor using a VGA cable.
OPERATION
- Connect the monitor to the input device via HDMI or VGA.
- Cornect the power cable to the monitor, then connect the other end directly to an electrical socket.
- Use the power button to turn the monitor on.
FreeSync
- In order to use this feature, ensure your hardware has FreeSync capability and the graphics drivers are fully up to date.
- After connecting, you may receive a prompt to enable the feature on your computer. If you do not receive the prompt, you may need to enable the functionin your graphics card menu.
- See your graphics card manufacturer’s documentation for instructions on how to turn on and/or enable FreeSync.
On-Screen Display (OSD)
- The On-Screen Display (OSD) menu may be used to adjust your monitor’s settings.
- Turn the monitor on and press the menu kutton to view the OSD menu.
When using the monitor for the first time, the monitor will configure optimal settings automatically.

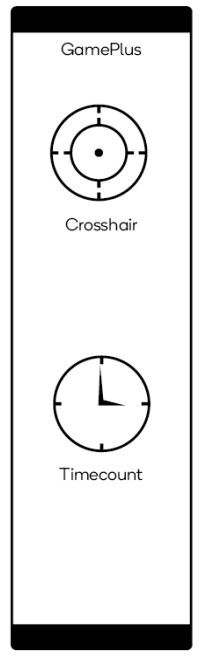

GamePlus
- Press the exit button to switch to GamePlus mode.
- These overlay icons are primarily designed to assist aim during FPS games, though they can be used in other scenarios.
Modes
- Press the down button to switch modes (Standard, Text, Game, Movie, FPS and RTS) and optimise settings according to your activity.
- Standard mode is suitable for most activities.
On-Screen Display (OSD) Functions
| Main Menu | Sub-Menu | Options | Description |
| Brightness | Picture | -0-100 | Adjust display brightness |
| Contrast | -0-100 | Adjust display contrast | |
| Blacklight | -0-100 | Adjust display blacklight | |
| Low blue Off |
On | Enable/disable blue light reduction | |
| Off | |||
| ECO | STANDARD/ TEXT/GAME/ MOVIE/ FPS/RTS | Preset colour modes | |
| DCR | On | Enable/disable dynamic contrast ratio | |
| Off | |||
| Image | H.POSITION | – 0-100 | Adjust video display area left to right (VGA only) |
| V.POSITION | – 0-100 | Adjust video display area up and down (VGA only) | |
| Clock | -0-100 | Adjust display Clock | |
| Phase | -0-100 | Adjust display Phase | |
| Aspect | Wide (16:9), 4:3 | Adjust display Phase Aspect | |
| FreeSync | On/Off | Adjust display FreeSync On/Off | |
| Colour | Warm mode | Red/green/blue | Adjust red/green/blue levels |
| Cool mode | Red/green/blue | Adjust red/green/blue levels | |
| User mode | Red/green/blue | Adjust red/green/blue levels | |
| HDR | On/Off | Enable or disable HDR mode | |
| OSD Settings | Language | English,PyccKId, Espanol, Deutsch, Italiano, Francais, Portugues, Turkce, Polski, Nederlands | Set OSD language |
| OSD H.POS. | -0-100 | Adjust OSD horizontal position | |
| OSD V.POS. | -0-100 | Adjust OSD vertical position | |
| OSD TIMER | 5-60 | Set how long the OSD remains open after last input | |
| Transparency | -0-100 | Set OSD overall transparency | |
| Reset | Image | None | Restore VGA image defaults |
| Colour | None | Automatically configure VGA colour setting | |
| Reset | None | Restore factory defaults | |
| Power down | On | Enable/disable power down function | |
| Off | |||
| Time count | 10-90min | Adjust time count | |
| Misc | Signal source | VGA/HDMI | Adjust input source |
| Mute | On | Enable or disable monitor speaker output | |
| Off | |||
| Volume | -0-100 | Adjust monitor speaker volume | |
| MPRT | On | When the refresh rote reaches 75Hz, MPRT can be turned on |
|
| Off |
SPECIFIIONS
| Screen size | 32 |
| Aspect ratio | 16:09 |
| Brightness | 300cd/r (typical) |
| Panel | IPS |
| Resolution | 1920×1080 |
| Refresh rate | 75Hz |
| Response time | 4ms |
| Viewing angle | 2178°(H) / 178°(V) |
| Contrast ratio | 1200:01:00 |
| VESA mounting | 75x75mm |
| Colours | 16.7M |
| Signalinput | HDMI 1.4 x1, VGA X1 |
| Power | DCI2V — 4.0A |
| Audio | |
| Speakers | N/A |
| Audio out/ Audio in | YES |
| Accessories | |
| Power cable | YES |
| Power adapter | YES |
| HDMI Cable | YES |
| Additional functions | |
| Low Blue Light | YES |
| Flicker Free | YES |
| Physical dimensions | |
| Dimensions (w. stand) | 715.1×540.2×198.9mm |
| Dimensions (/o stand) | 715.1×422.8×49.3mm |
| Net weight | 5.65kg |
| Gross weight | 7.27g |
NOTES
Need more information?
We hope that this user guide has given you
the assistance needed for a simple set-up.
For the most up-to-date guide for your product,
as well as any additional assistance you may require,
head online to help.kogan.com
