Kmart 43152452 2 Tier Garment Rack Instructions

Contents

43152452 2-Tier: Garment Rack
MAXIMUM SAFE LOAD: 8KGS FOR TOP CLOTHES RAIL. 6KGS FOR MIDDLE CLOTHES RAIL. 10KGS FOR THE BOTTOM SHELF, 24KGS IN TOTAL

STEP1:

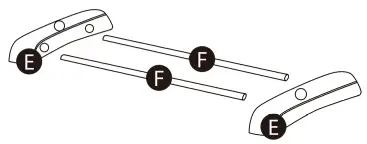

Insert rods “F” into base “E” as shown.
STEP2:
Insert rods “G” into base “E” as shown, and ensure the hole is at the top as shown.
STEP3:

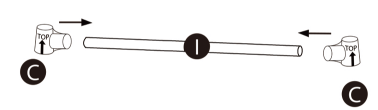

Insert rod “I” into parts “C” as shown. NOTE, small diameter of part “C” is upward.
STEP4:

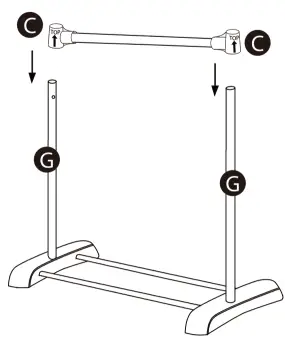

Insert rods “G” into parts “C” as shown.
STEP5:

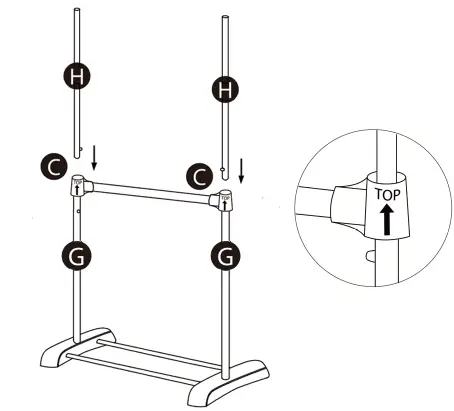

Insert rods “H” through Parts “C” and into rods “G” as shown. NOTE, allow the pin in rod “H” to come through the holes in rod “G”.
STEP6:

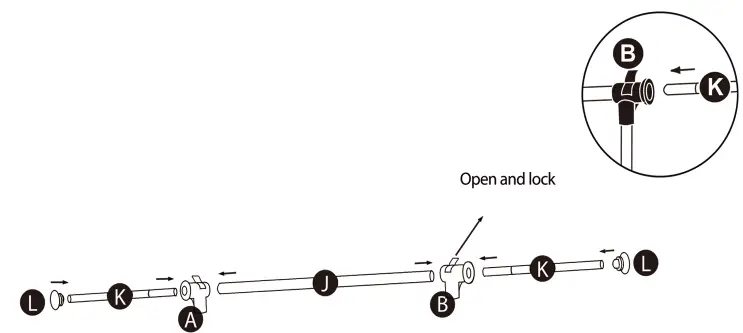

Open locks on parts “A” and “B” and insert rods “J” and “K”, close lock afterward. Insert parts “L” into rods “K” as shown.
STEP7:

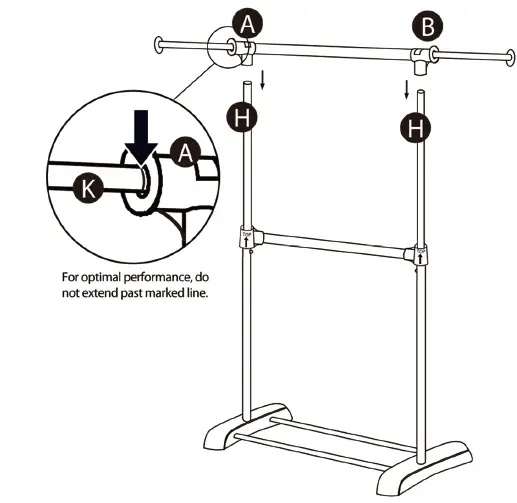

Insert rods “H” into parts “A” and “B” as shown.
STEP8:

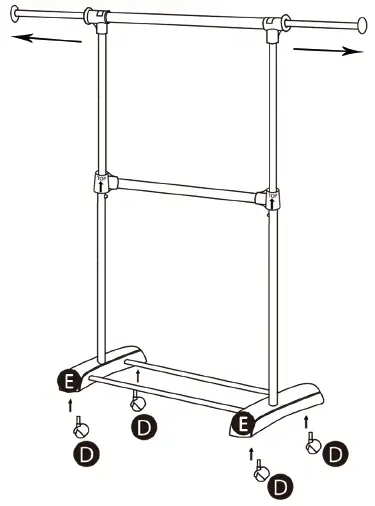

Insert castors “D” into base “E” as shown.
