Single Base Cabinet Instructions
DOCU0033B
Contents

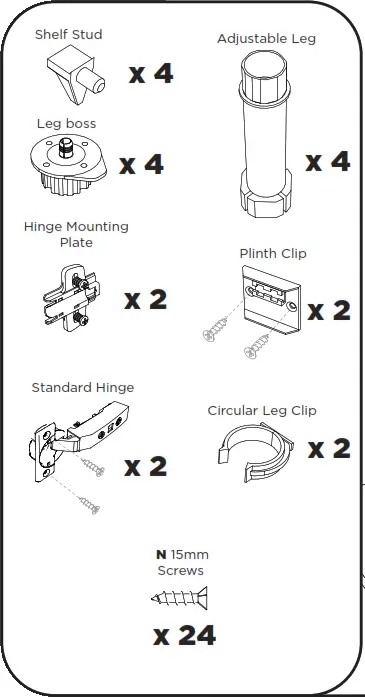

Fittings
A Base End Panel
B Top/Bottom Panel
C Back Panel
D Shelf
E Door
Assembly
- We recommend using PVA glue for an additional bond
– simply run a bead of glue along each joint line during assembly

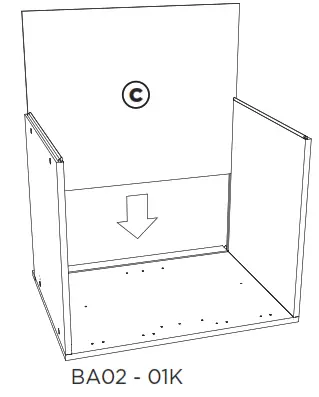

- Slide back panel C into place

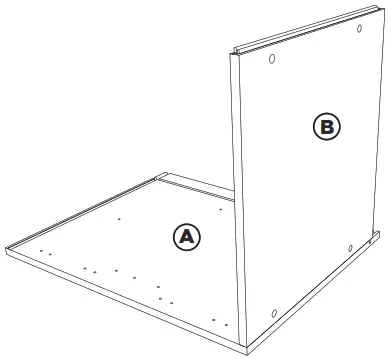

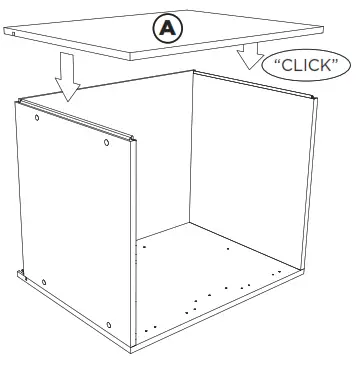

- Press end panel A into top/bottom panel B and gently tap with a mallet
- Insert shelf studs

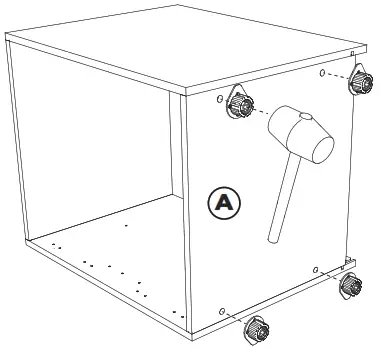

- Gently tap leg boss into place

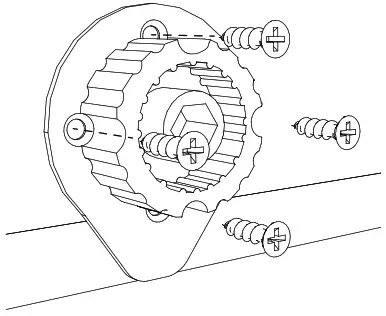

- Screw leg boss in place
- Insert adjustable legs into leg boss
- Slide shelf D into position

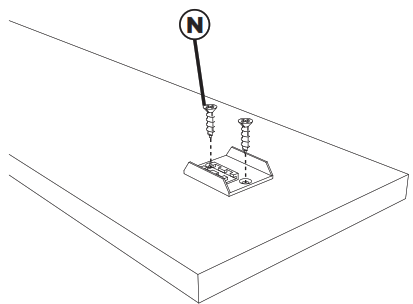

- Attach plinth clip to plinth

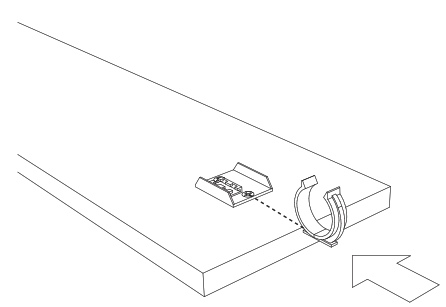

- Slide circular leg clip into plinth clip
- Fix plinth into place

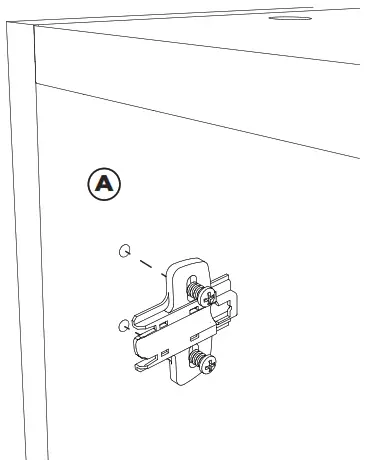

- Attach hinge mounting plate to inside of end panel A
Ensure the front edge faces forward as shown

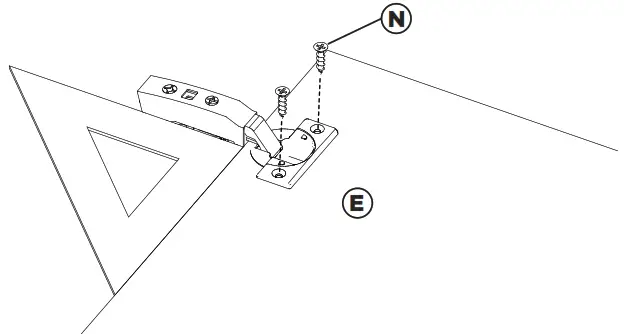

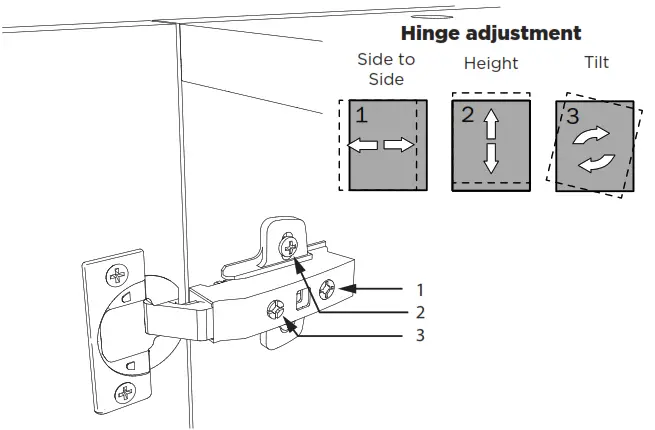

- Ensure the hinge arm is at 90 degrees to the door before fixing in position with 15mm screws as shown
