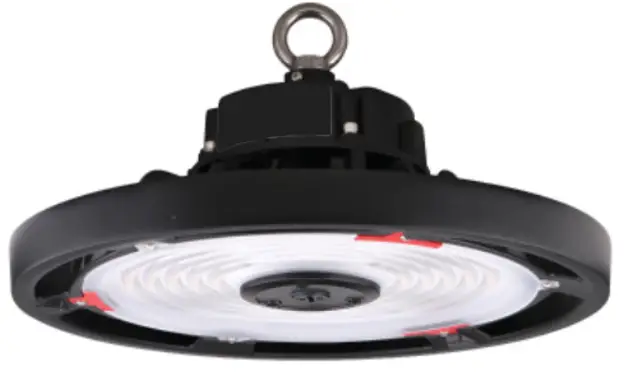

RH-LED-14-200-8XX-P /G2
ROUND LED HIGH BAY FIXTURE
200W, 120-277V Input, 0-10V Dimming
Instruction Manual
Contents
PRODUCT FEATURES
- Designed to accept easy screw-in installation of optional sensors
- 0–10V dimming LED driver
- Ring-bolt mounting accessory included
- 6′ cord for input and dimming wires
- Powder-coated aluminum housing; Polycarbonate lens
- Ribbed lens to reduce glare
- Low optical flicker
- Built-in 6kV surge protection
- LED lifetime: L70 >100,000 hours @ 25°C fixture ambient
- Ambient operating temperature: −40°C/−40°F to 50°C/122°F
- IP65 rated, wet location
PERFORMANCE SPECIFICATIONS
| Catalog Number | Input Voltage | Wattage | Color Temperature | Lumen Output | Efficacy | Rated Life | CRI | Power Factor |
| RH-LED-14-200-840-P /G2 | 120–277V | 200W | 4000K | 31,800 | 159 lm/W | 50,000 hrs | > 0.9 | > 80 |
| RH-LED-14-200-850-P /G2 | 5000K | 32,000 | 160 lm/W |

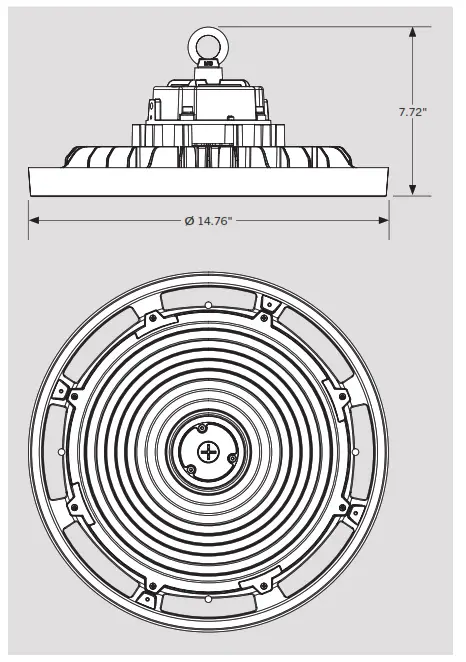

PHYSICAL SPECIFICATIONS
