IF98
User Manual
Contents

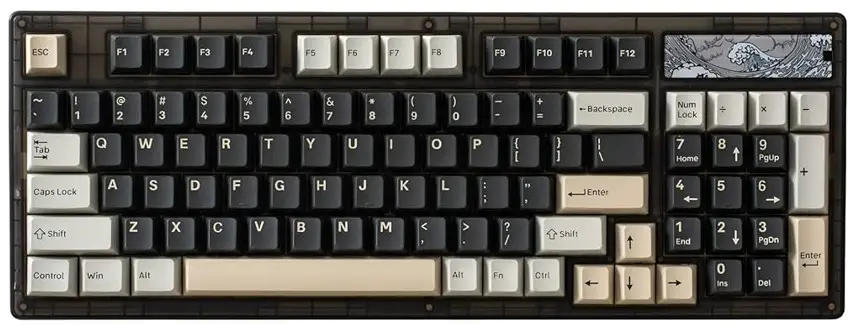

IF98 PRO Mechanical Keyboard
User Guide
 |
 |
 |
| Product name: | IF98 PRO |
| Keyboard Type: | Mechanical Keyboard |
| Warranty Period: | 12 Months |
| Number of Keys: | 98 Keys |
| Keycaps: | Double Shot PBT Keycap |
| Switch Brand: | Gatarom |
| RGB Color: | 16 Million |
| Connection Method: | 2.4GHZ Wireless / Bluetooth / Wired Connection |
| Structure: | Gasket Mechanical Keyboard |
| Rated Input: | 5V+0.25V |
| Response Time: | 1Tms (wired) |
| Response Rate: | 1000HZ (wired) |
| Onboard Storage: | Supported |
| NKRO: | Support |
| Product Net Weight: | Around 1300g |
| Cable Length: | About 200cm |
| Product Size: | 384*143*47 mm |
| System Support: | Windows, Mac OS, iOS, Android |
| WIN | KEYBOARD SETTINGS |
| Fn+ Esc: | Long Press For 3 Seconds To Reset |
| Fn+F1: | + Screen Brightness |
| Fn+F2: | – Screen Brightness |
| Fn+F3: | WIN + TAB |
| Fn+F4: | WIN + E |
| Fn+F7: | Previous Song |
| Fn+F8: | Play/Pause |
| Fn+F9: | Next Song |
| Fn+F10: | Mute |
| Fn+F11: | Volume Down |
| Fn+F12: | Volume Up |
| Fn+ Left Win: | Lock Win |
| Fn+~: | Long Press For 3 Seconds To Bluetooth Pairing |
| Fn+1/2/3: | Change To The Bluetooth Channel 1/2/3 |
| Fn+ A: | Windows System |
| Fn+ S: | Mac System |
| Fn+ Esc: | Long Press For 3 Seconds To Reset |
| F1: | + Screen Brightness |
| F2: | – Screen Brightness |
| F3: | WIN + TAB |
| F4: | WIN + E |
| F7: | Previous Song |
| F8: | Play/Pause |
| F9: | Next Song |
| F10: | Mute |
| F11: | Volume Down |
| F12: | Volume Up |
| Fn+ Left Win: | Lock Win |
| Fn+~: | Long Press For 3 Seconds To Bluetooth Pairing |
| Fn+1/2/3: | Change To The Bluetooth Channel 1/2/3 |
| Fn+ A: | Windows System |
| Fn+ S: | Mac System |
RGB SETTINGS
| Fn+ Right shift: | RGB Backlight ON/OFF |
| Fn+ Right Ctrl: | Change RGB Backlight Effect |
| Fn+ Number Pad 8: | Increase Brightness of Log Led |
| Fn+ Number Pad 2: | Reduce Brightness of Log Led |
| Fn+ Number Pad 6: | Increase Effect Speed of Log Led |
| Fn+ Number Pad 4: | Decrease Effect Speed of Log Led |
| Fn+ Left Alt: | Change Log Led RGB |
| Fn+ ↑: | Increase Brightness |
| Fn+ ↓: | Reduce Brightness |
| Fn+←: | Reduce Effect Speed |
| Fn+→: | Increase Effect Speed |
| Fn+ -: | Backlight Color (Effects 1-6) |
| Fn+=: | Backlight Color (Effects 7-12) |
CONNECTIONS
Wired Connection
Plug the cable into your keyboard. Switch the button to the middle to the Wired mode.
2.4G Wireless Connection
- Switch the button to the top to the 2.4G wireless mode.
- Long press Fn+~ for 3 seconds to the 2.4G pairing mode. (The LOG indicator light will keep flashing)
- Plug the 2.4G wireless receiver into your device.
- When the LOG indicator light stops flashing, the pairing is successful.
Bluetooth Connection
- Switch the button to the bottom to Bluetooth mode.
- Short press Fn+1/2/3 to choose the Bluetooth device 1/2/3.
- Long press Fn+~ for 3 seconds to the Bluetooth pairing mode. (The LOG indicator light will keep flashing)
- The indicator light will flash fast and start searching the device when the LOG indicator light stops flashing, and then the pairing is successful.
CHARGING INDICATOR
When the battery is low, the last indicator light of the LOG flashes red. When charging, the indicator light runs from bottom to top When fully charged, the color is always on.
ABOUT THE BUTTON
Switch the button to the top —— 2.4G mode.
Switch the button to the middies—— Wired mode.
Switch the button to the bottom—— Bluetooth mode.
CONTACT US: [email protected]
WEBSITE: www.yunzii.com
SOFTWARE DOWNLOAD: https://www.yunzii.com/pages/software
For any support: [email protected]
