Kensington SD4810P USB-C Triple Video Driverless Dock
Product Information
| Port | Description |
|---|---|
| DP++ 1.2 port | DisplayPort++ port version 1.2 |
| HDMI 1.4 port | HDMI port version 1.4 |
| VGA port | VGA port for video output |
| Gigabit Ethernet port | Port for connecting to a wired network with speeds of 10/100/1000Mbps |
| USB-A 3.2 Gen1 ports | Two USB-A ports supporting USB 3.2 Gen1 standard with speeds of up to 5V/0.9A/5Gbps. Can be used for connecting accessories such as keyboards, mice, and USB drives. |
| Headphone jack | Port for connecting headphones or speakers |
| USB-C 3.2 Gen1 port | USB-C port supporting USB 3.2 Gen1 standard with speeds of up to 5V/0.9A/5Gbps. Can be used for connecting a USB-C power adapter. Requires a minimum of 75W PD from the USB-C power adapter (not included). |
| DC 20V port | Port for connecting the included power adapter |
| USB-A 3.2 Gen1 port | USB-A port supporting USB 3.2 Gen1 standard with speeds of up to 5V/0.9A/5Gbps. Can be used for connecting accessories such as keyboards, mice, and USB drives. |
| USB-A 3.2 Gen1 ports | Two USB-A ports supporting USB 3.2 Gen1 standard with speeds of up to 5V/1.5A/5Gbps. Can be used for charging accessories such as smartphones. |
| Audio combo jack | Port for connecting headphones or speakers |
| USB-C 3.2 Gen1 host port | USB-C port supporting USB 3.2 Gen1 standard with speeds of up to 85W PD. Can be used for connecting a laptop or other device. |
Product Usage Instructions

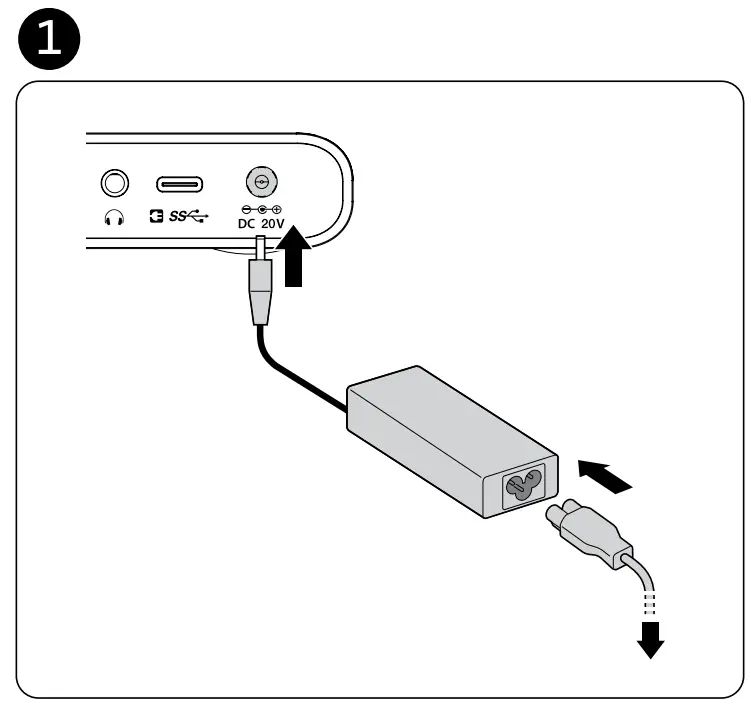

- Connect the power adapter:
- Connect the included AC adapter to the back of the dock.
- Connect the power cable to the adapter.

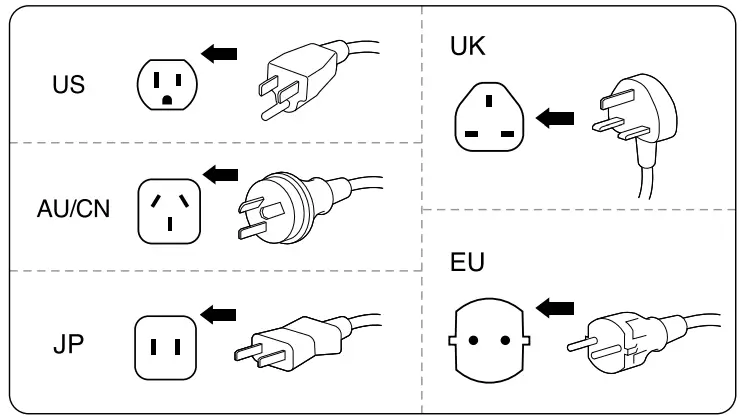

- Plug the power cable into a wall outlet.

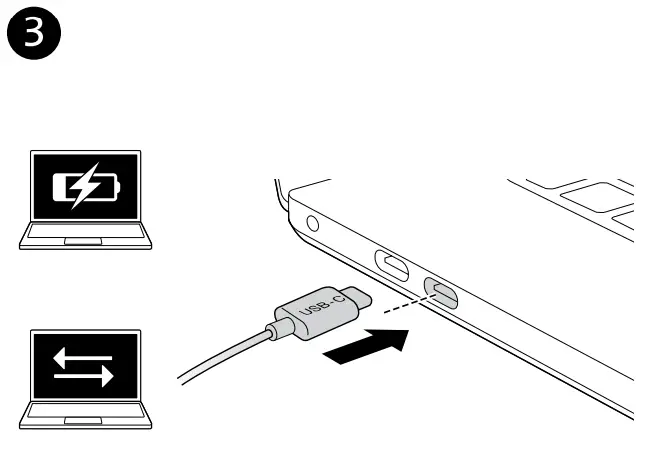

- Connect the USB-C cable:
- Connect one end of the USB-C cable to a USB-C port on the laptop.

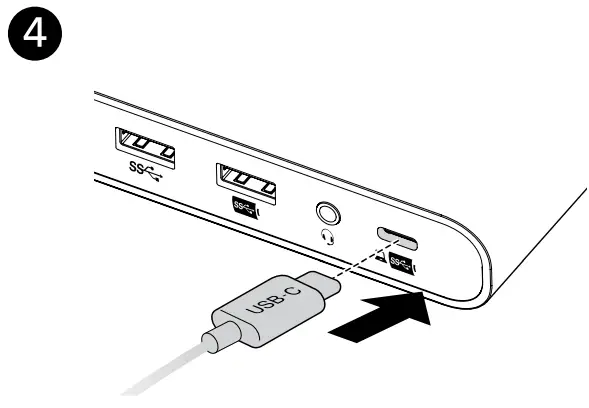

- Connect the other end of the included USB-C cable to the USB-C 3.2 Gen1 host port on the front of the dock.

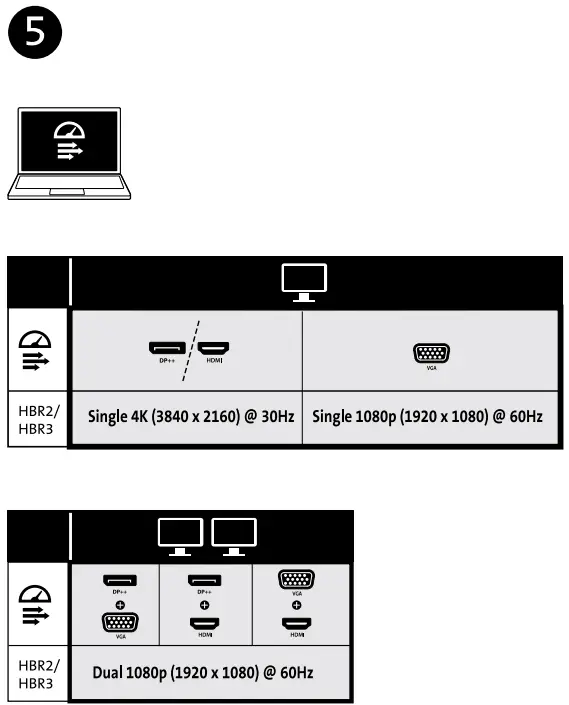

- Video specifications:
- For one monitor: DP++ and HDMI ports support Single 4K (3840×2160) @ 30Hz. VGA port supports Single 1080p (1920×1080) @ 60Hz.
- For two monitors: DP++ and VGA or DP++ and HDMI or VGA and HDMI ports support Dual 1080p (1920×1080) @ 60Hz.

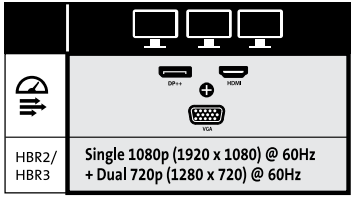

- For three monitors: DP++ and VGA and HDMI ports support Single 1080p (1920×1080) @ 60Hz and Dual 720p (1280×720) @ 60Hz.
- If you want to use three displays:
- Option 1: Use the DP++ and HDMI ports for a triple monitor setup, with your laptop as the first screen.
- Option 2: Connect three external monitors via the DP++, HDMI, and VGA ports, but your laptop screen will not be available.
For support, please visit kensington.com/support.

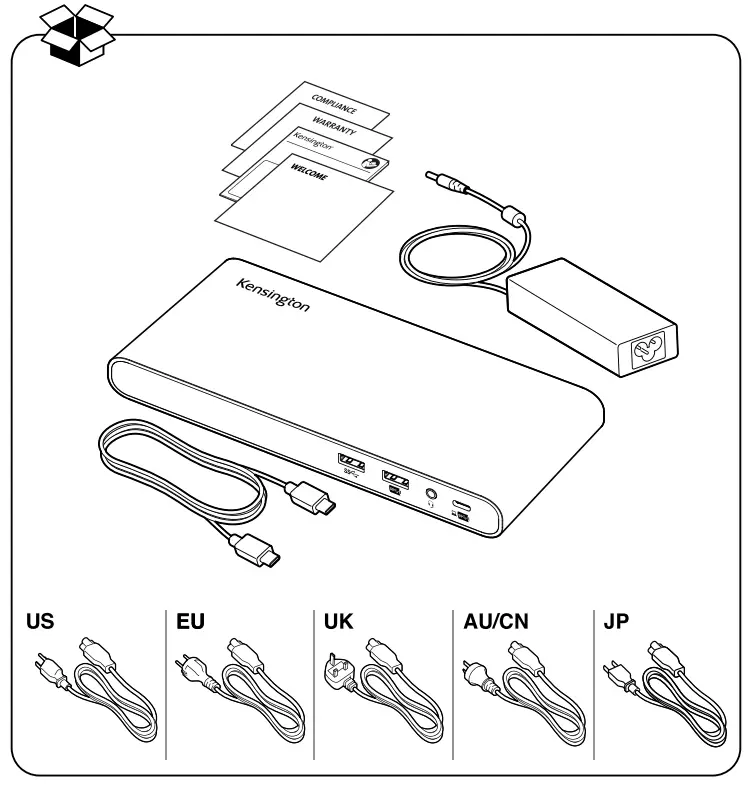

WHAT’S INCLUDE
CONNECTION
*Minimum of 75W PD required from your USB-C power adapter.

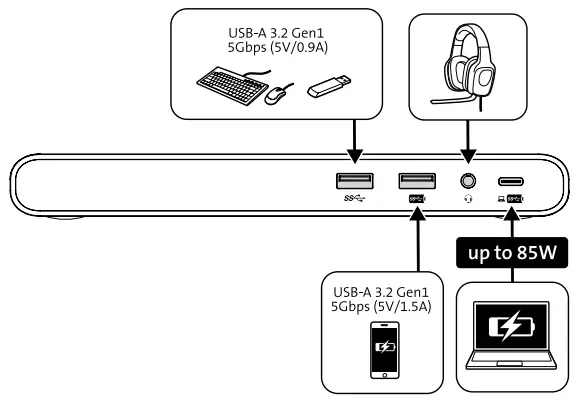

CHARGING
PORT SPEED
