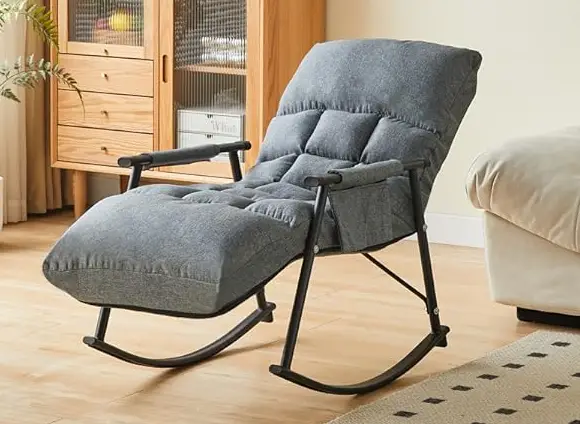

KAIHAOWIN RC Rocking Chair Fabric Lounge Gravity Chair

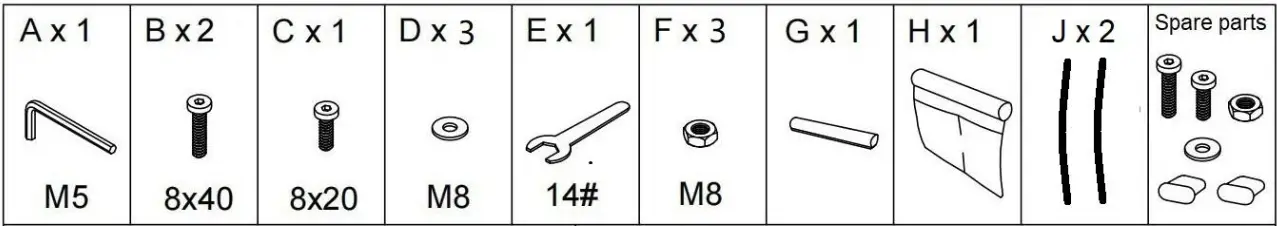

WHAT IN THE BOX
INSTALLATION INSTRUCTION
Specifications
| Part | Quantity | Description |
|---|---|---|
| A | x1 | M5 |
| B | x2 | 8×40 |
| C | x1 | 8×20 |
| D | x3 | M8 |
| E | x1 | 14# |
| F | x3 | M8 |
| G | x1 | M8 |
| H | x1 | |
| J | x2 | Spare parts |

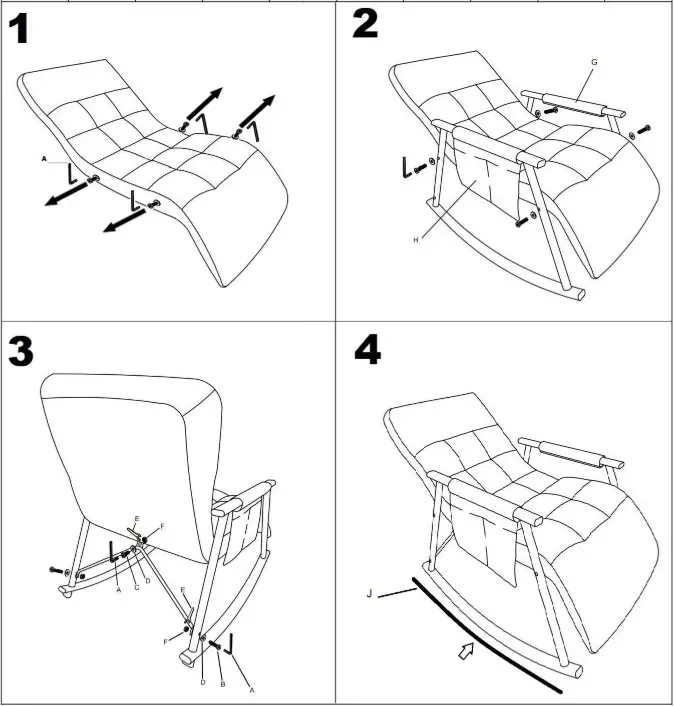

Step-by-Step Assembly
- Step 1: Arrange the main frame of the chair by expanding it outwards, ensuring the parts are aligned correctly as indicated by the arrows.
- Step 2: Attach the armrests (G) to the sides of the chair frame using the appropriate fixtures (L, H).
- Step 3: Secure the backrest to the frame using bolts (A, B, E, F) and nuts (D), with the assistance of the tool (J).
- Step 4: Ensure that the chair is stable and all parts are securely attached. The footrest can be adjusted with the lever (J).
FAQ
- What tools are required for assembly?
No additional tools are required; all necessary parts and a tool (14#) are included. - Can I get spare parts in case I lose any?
Yes, spare parts are provided and listed in the specifications table. - What should I do if the chair is unstable after assembly?
Recheck all bolts and nuts to ensure they are tightened properly. If instability persists, refer to the assembly instructions to make sure all steps were followed correctly.
