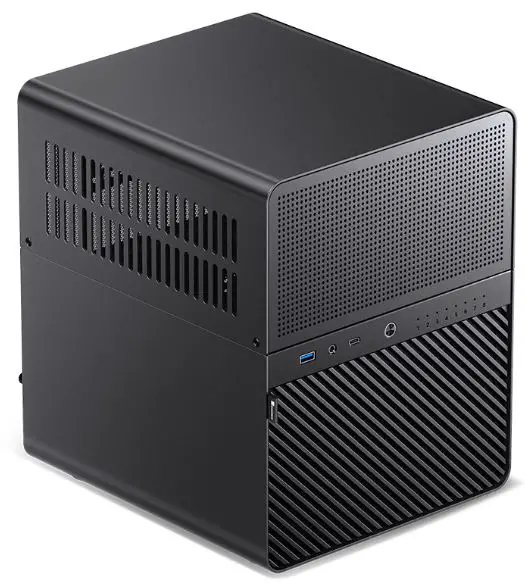

JONSBO N3 Nine External Storage Devices Fit

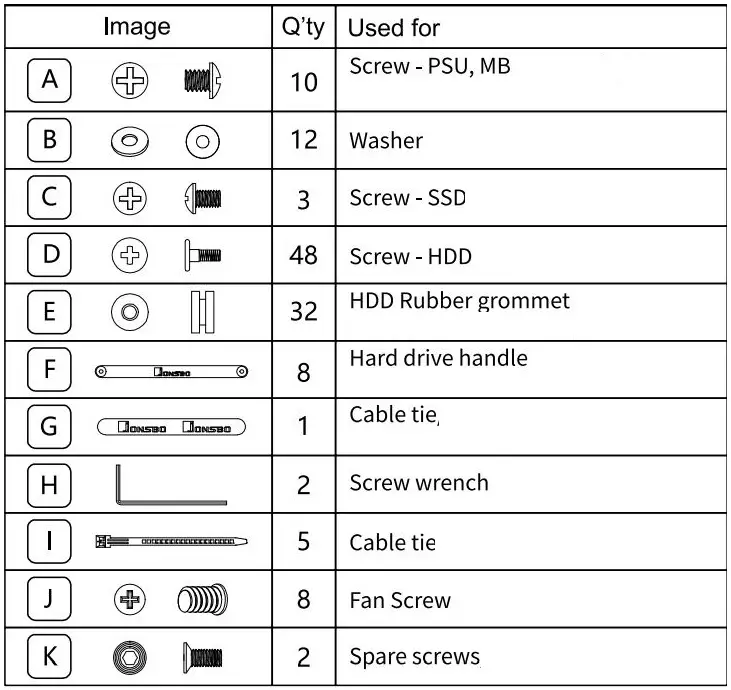

Package Content

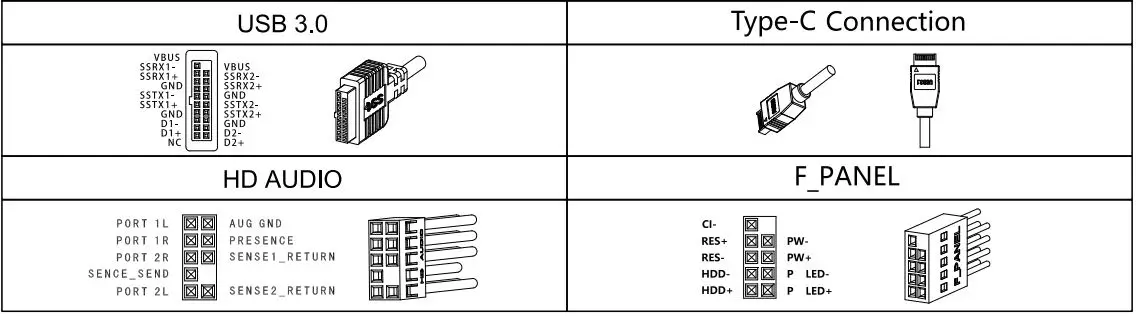

Connectors
Parts Diagram
Installation Guide
PSU installation
- Use the screw wrench to loosen the screw
- Remove the fan bracket
PSU installation
- Install the power supply on the power supply rack.
- The installed power supply is placed inside the chassis and locked with screws.
Cable management
Before install the motherboard, please refer to illustration to organize the cabels.
Motherboard Installation
The motherboard is placed in the installation area and secured with screws.
Fan bracket installation
First connect the fan cable to fan socket, than install the bracket and fan.
Motherboard Installation
- Remove the PCI-E bracket.
- Insert the graphics card to MB slot, secure with screw.
2.5″ SSD Installation
2.S”SSD installation position, secure with screws.
Top cover installation
After install all the hardware, install the top cover, secure with screw by wrench.
3.5″ HDD installation
- Pull out the front panel.

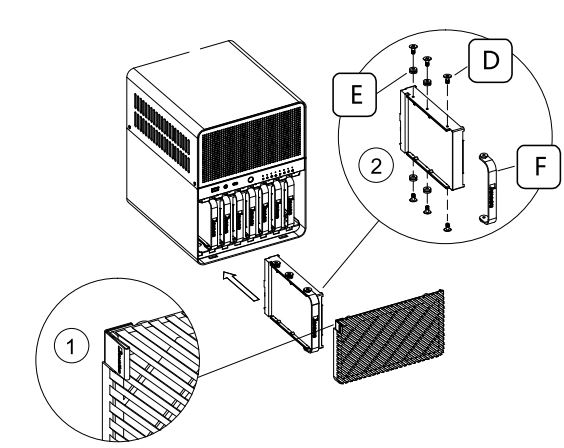

- Install rubber grommet to HDD with screws first, insert the assembled HDD into the corresponding slots.
