johansson 7722L2 VHF-UHF Wide Band Amplifier
Contents

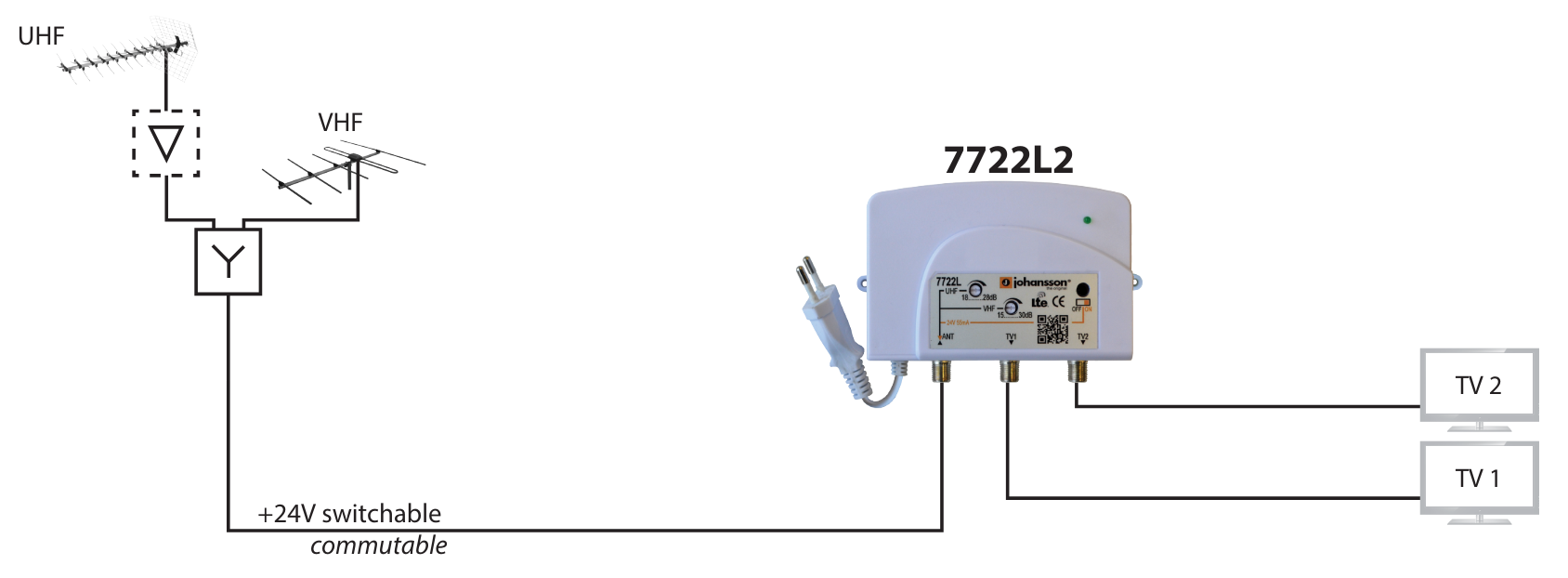

Application

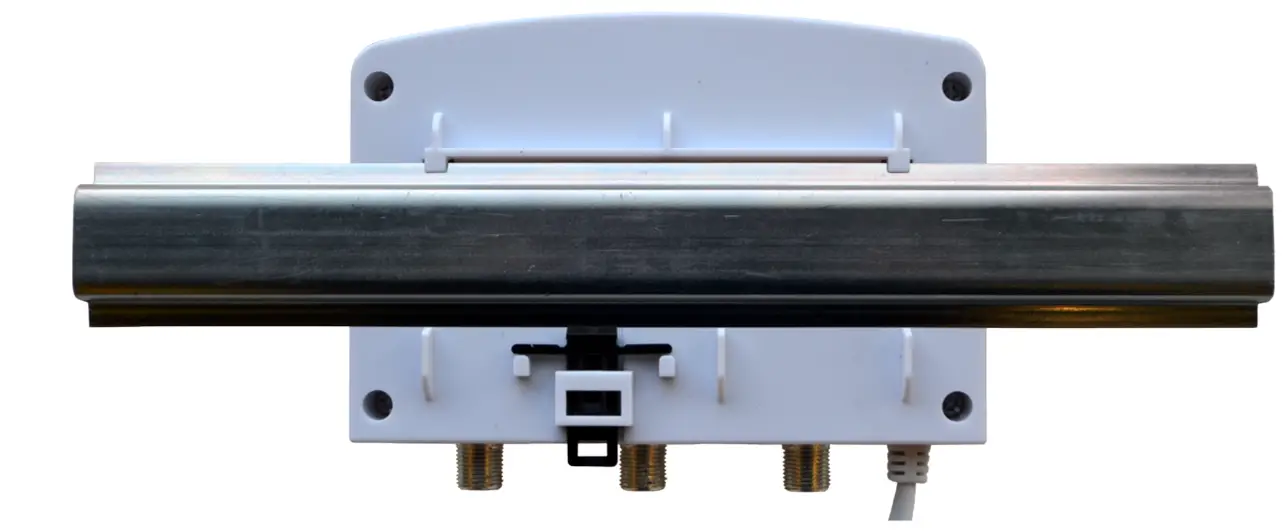

Wall or DIN rail mounting
Technical specifications
| Frequencies | 40-320 + 470-694 MHz |
| Adjustable gain: | VHF: 15 – 30 dB UHF: 18 – 28 dB |
| Noise gure: | 3.0 dB typ. |
| Max. output level: | 107 dBµV |
| Return loss: | 10 dB |
| Isolation between outputs: | 15 dB |
| Switchable remote power: | (24V / 55 mA) |
| Power : | 230 V~ / 6.9 VA |
| Mounting | Wall or DIN rail mounting |
Customer Support
UNITRON n.v.
www.unitrongroup.com
e-mail : [email protected]
