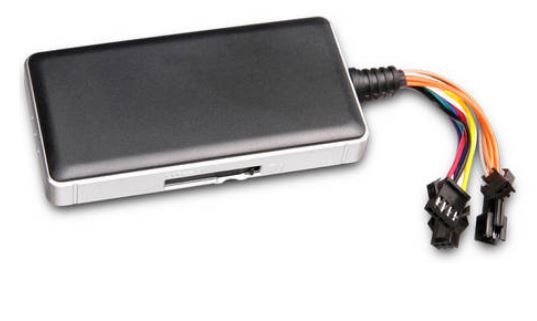

Jimi IoT GT06N Multifunctional Vehicle Tracker
FLEET MANAGEMENT
Vehicle GNSS Tracker
The GT06N GPS vehicle tracker is trusted by customers around the world for its rich feature set and durability. From standard tracker telematics like GPS tracking and ACC status to more advanced functions like an SOS button and audio monitoring, the GT06N has them all.
Remote Cut-Off (Fuel/Power)
Immobilize a vehicle by cutting off its power source/fuel supply via an installed relay.
Panic Button
Contact dispatch or emergency support with a discreet, In-cabin SOS button.
Ignition Detection
Constant, real-time ACC/lgnltlon status from the vehicle.
Additional Tx/Rx Interface
Connect to other accessories that support same protocol for forming better performance.
External Mic for Audio Monitoring
Extended microphone cable makes it easier to put microphone Inside cab.
Multiple Alerts
Instant alerts for atypical events such as abnormal vibration, low battery, power-oft speeding, etc.
GNSS
- Positioning system GPS+BD S+LBS
- Frequency Ll
- Positioning accuracy <2.5mCEP
- Track sensitivity -165dBm
- Acquisition sensitivity -148dBm
- TTFF (open sky) Avg. hot start ,a;; 1 sec
Avg. cold start ,a;; 32sec
Cellular
- Communication network GSM
- Frequency Quad-band 850/900/1800/1900 MHz
Power
- Battery 450mAh/3.7V industrial-grade Li-Polymer battery
- Input voltage 9-50V DC
Interface
- LED indication GNSS (Blue), Cellular (Green), Power (Red)
- SIM Standard-SIM
- Data storage 32+32Mb
- Digital inputs ;,cc sos, input
- Digital outputs Relay, output
Physical specification
- Dimensions 105.8 x 54.5 x 16.4mm
- Weight 96g
Operating environment
- Operating temperature -20’C: to +70’C
- Operating humidity 5%-95%, non-condensing
Feature
- Voice monitoring range ≤5 meters
- Sensors Accelerometer
- Scenarios Vehicle movement alert, Over-speed alert, Geo-fence,Voice monitoring Power supply disconnection
