JBL E25BT User Manual

Contents

User Manual

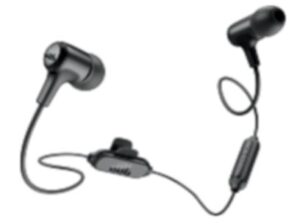

JBL E25BT

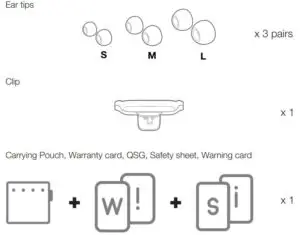

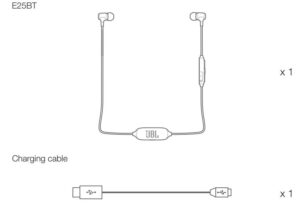

What’s in the box

Overview

1. Buttons and LEDs

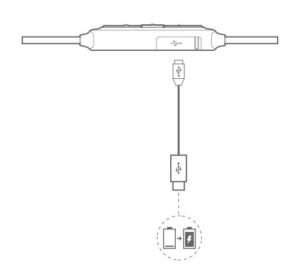

2. Connection

Wearing the headphone

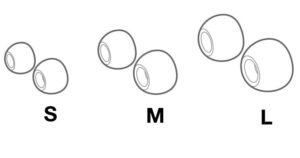

Select the right ear tips

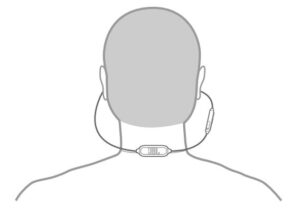

Wear behind the neck

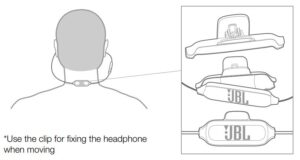

Use the clip

Bluetooth connection

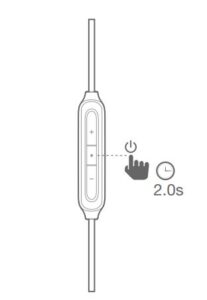

Turn on the headphone

If connecting for the first time, the headphone will enter pairing mode automatically after it is powered on.
Connect to Bluetooth device

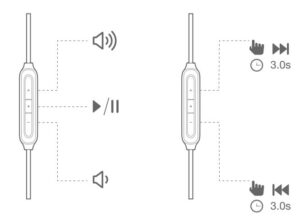

Music control

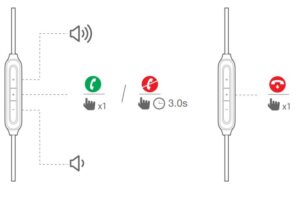

Phone call

Seamlessly switch between devices

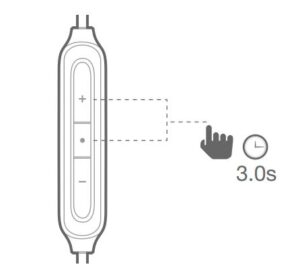

Pair and connect the headphone with the 1st device (see Section 4 Bluetooth Connection).
Pair and connect the headphone with the 2nd Bluetooth device

Connect to Bluetooth device

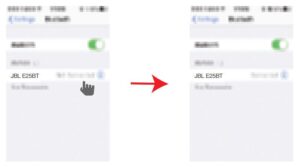

Go back to the Bluetooth device list on the 1st device and select the headphone to connect

Items to note:
Maximum 2 devices can be connected simultaneously

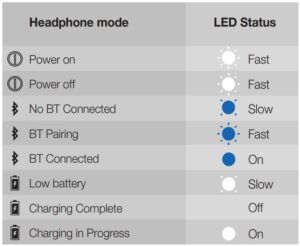

LED Behavior

Specifications

Driver size:8mm
Dynamic frequency response range: 20Hz-20kHz
Sensitivity:102dB
Maximum SPL:110dB
Microphone sensitivity @1kHz dB v/pa:-42
Impedance:16ohm
Bluetooth transmitted power:0-4dbm
Bluetooth transmitted modulation:GFSK, π/4DQPSK, 8DPSK
Bluetooth frequency:2.402GHz-2.48GHz
Bluetooth profiles:HFP v1.6, HSP v1.1, A2DP v1.2, AVRCP v1.5
Bluetooth version:V4.1
Battery type:Polymer Li-ion Battery (3.7V, 120mAh)
Charging time:2 hours
Music play time with BT on:Up to 8 hours
Talk time with BT on:Up to 8 hours
Weight (g):16.5g

Bluetooth

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.
