QUICK START GUIDE
WAVE200TWS
Contents

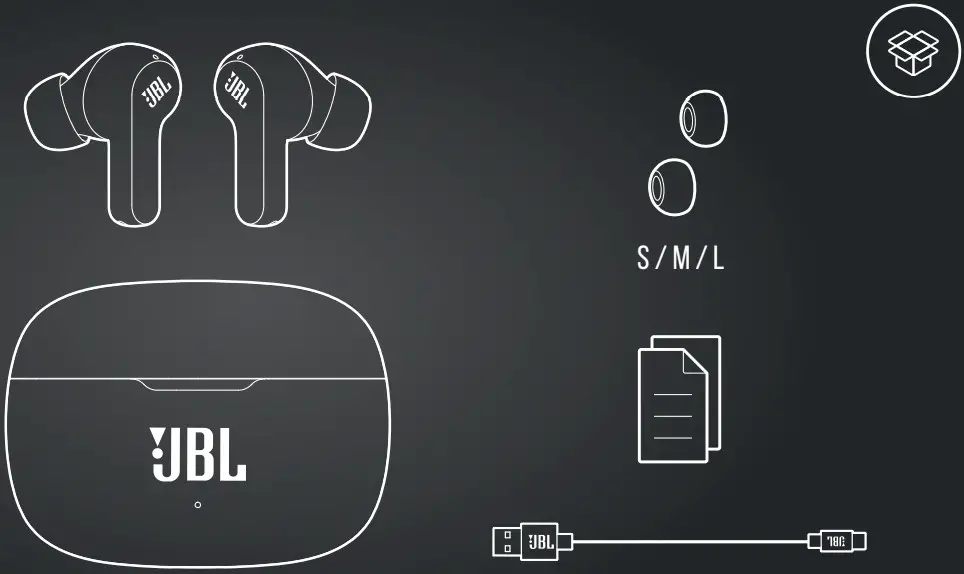

WHAT’S IN THE BOX

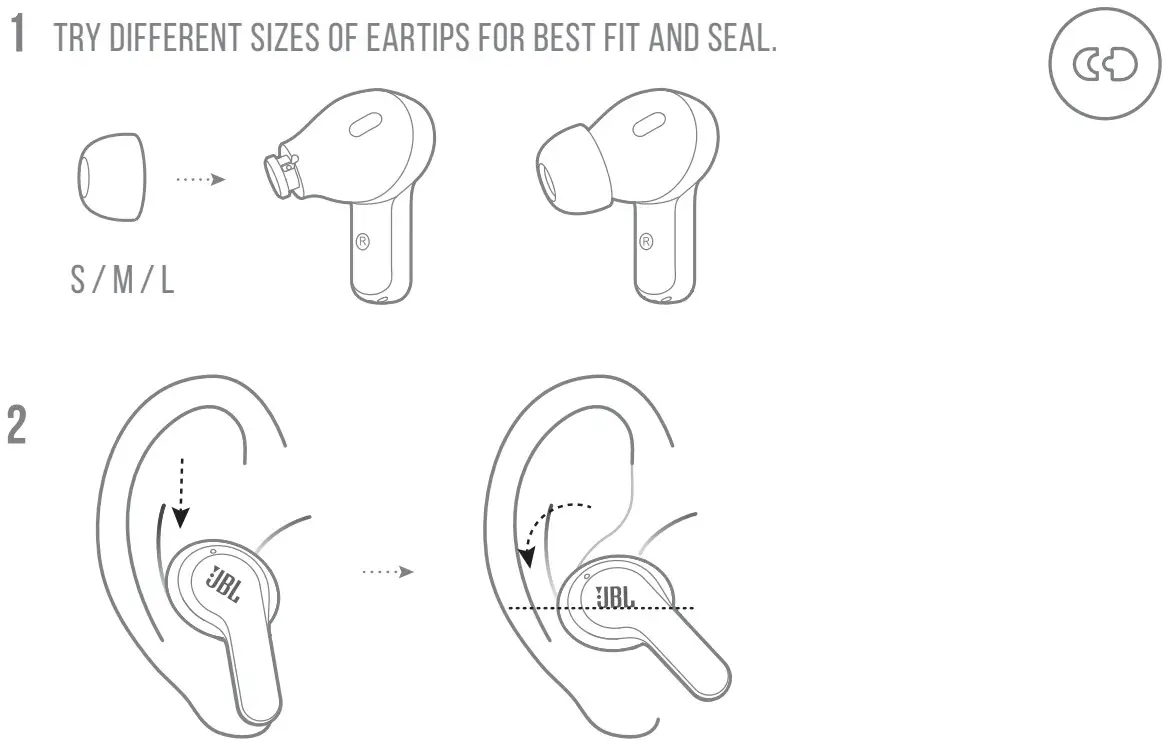

HOW TO WEAR
FIRST TIME USE

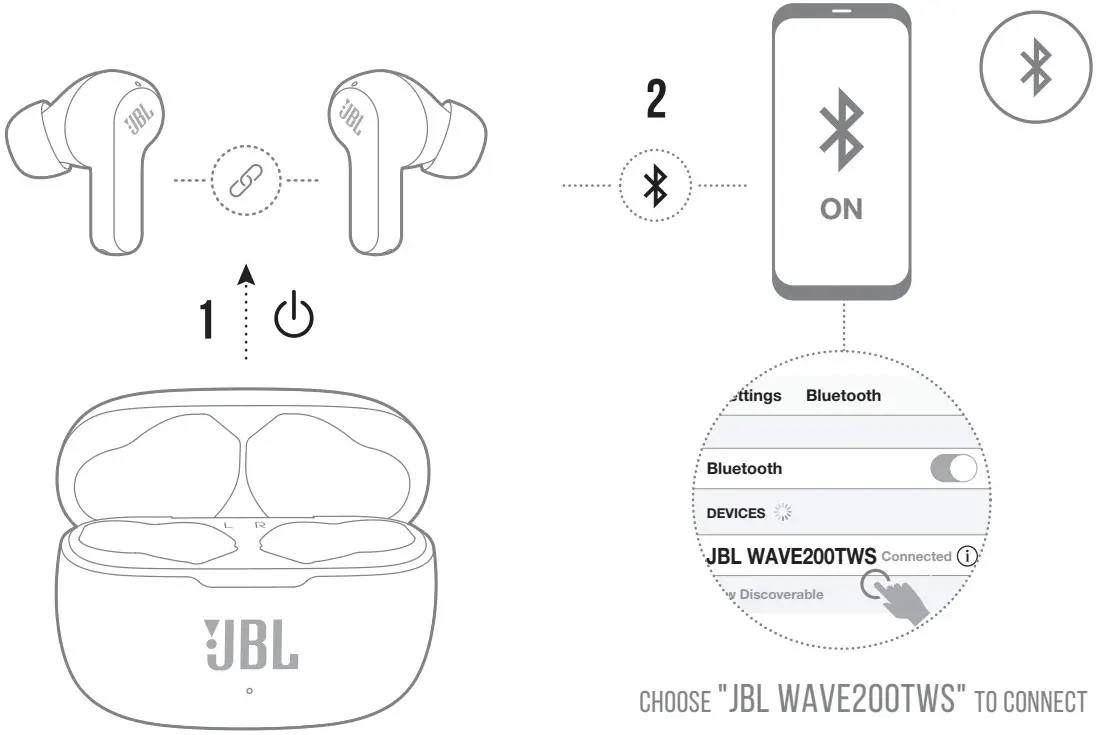

POWER ON & CONNECT

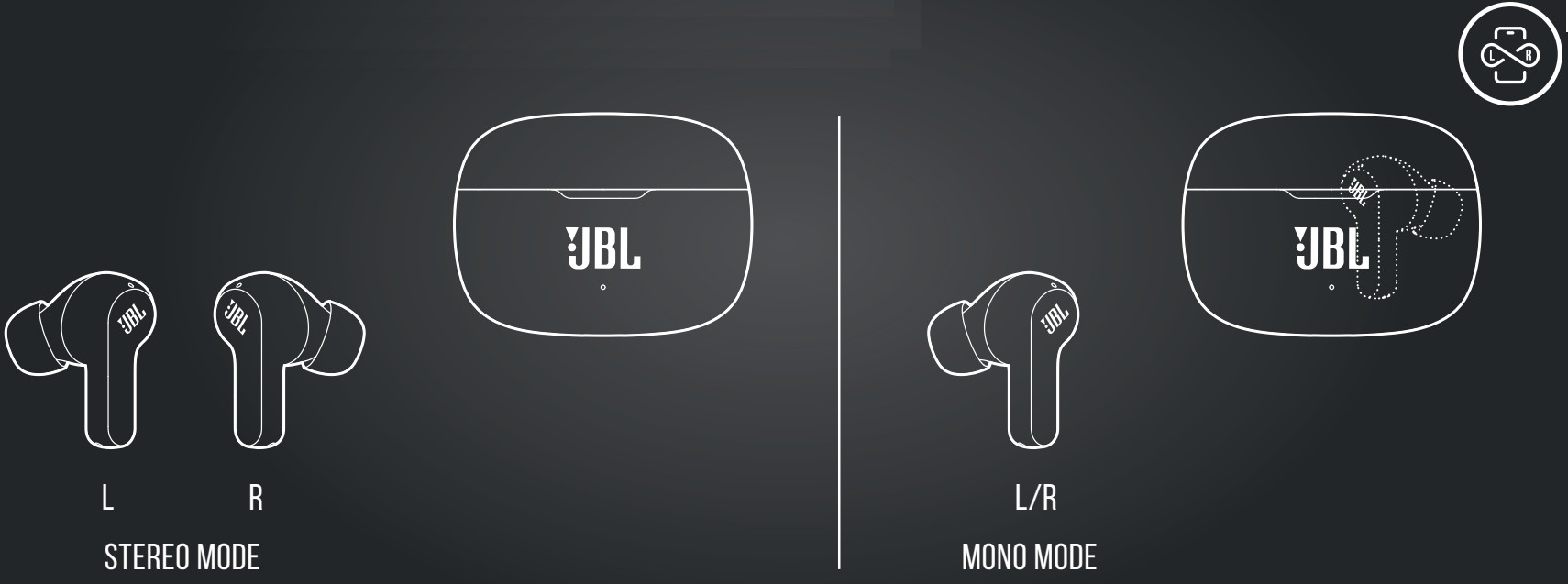

DUAL CONNECT
BUTTON COMMAND

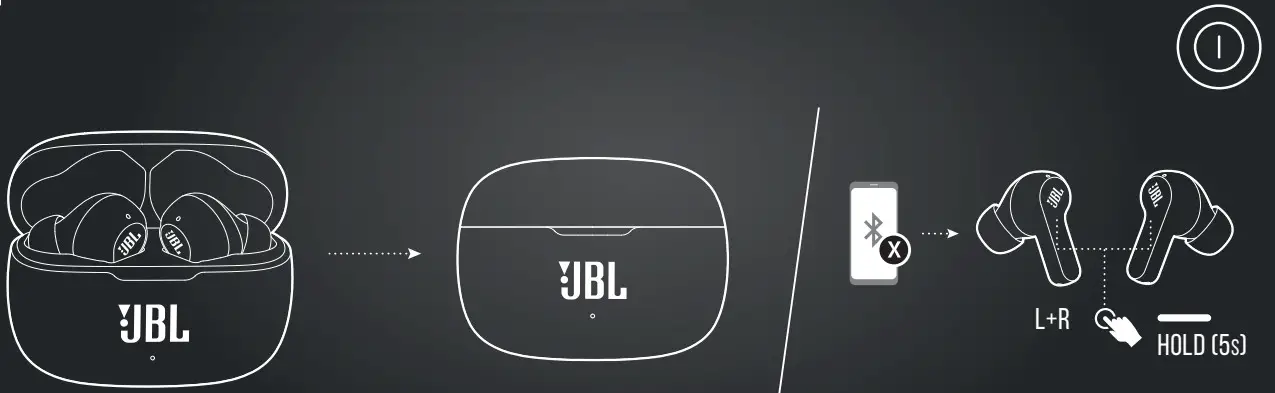

POWER OFF
MANUAL CONTROLS

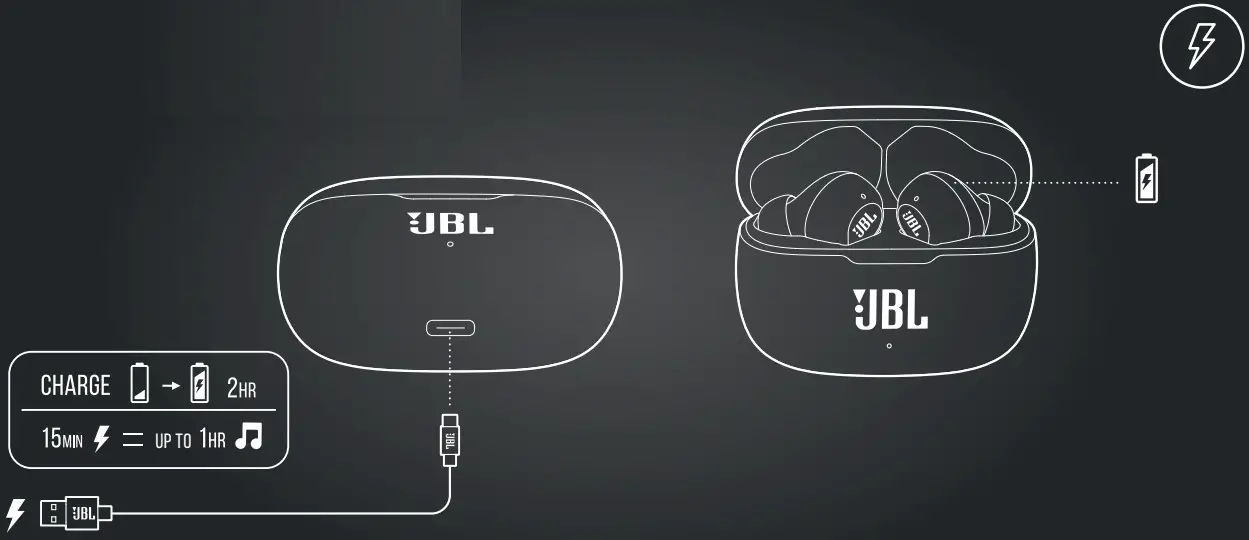

CHARGING

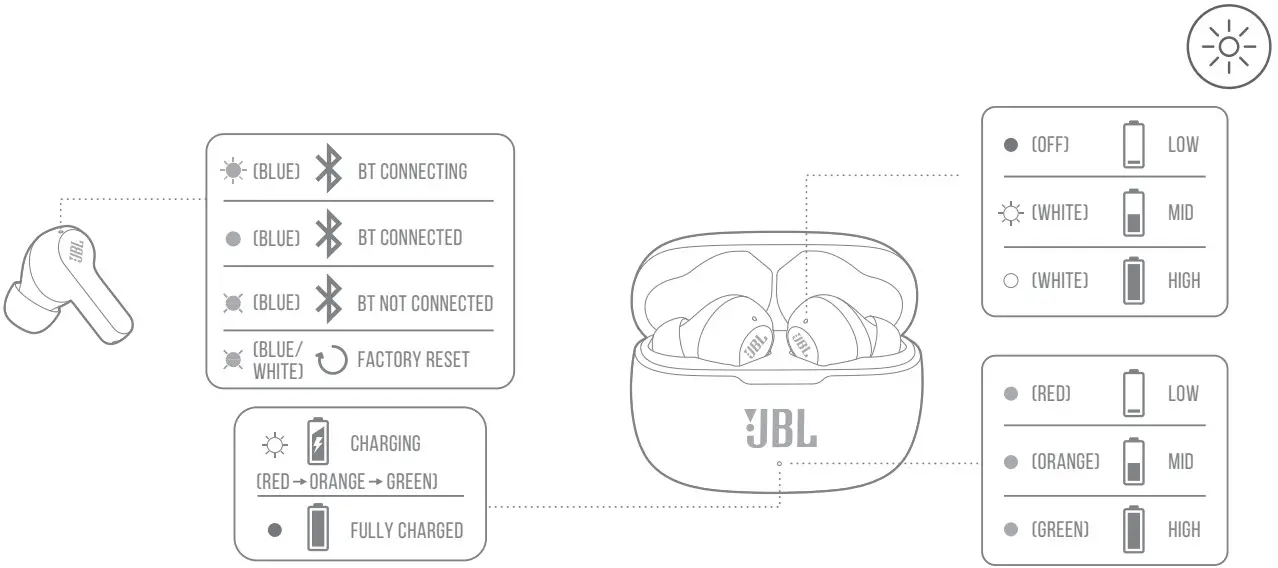

LED BEHAVIORS
TECH SPEC
| Model: | WAVE200TWS |
| Driver size: | 8 mm/ 0.315” Dynamic Driver |
| Power supply: | 5 V 1 A |
| Weight: | 47.5 g/ 0.105 lbs |
| Headset battery type: | Lithium-ion Battery (48 mAh/ 3.7 V) |
| Charging case battery type: | Lithium-ion Battery(500 mAh/ 3.7 V) |
| Charging time: | 2 hrs from empty |
| Music playtime with BT on: | up to 5 hrs |
| Frequency response: | 20 Hz – 20 kHz |
| Impedance: | 16 ohm |
| Sensitivity: | 108 dB SPL@1 kHz |
| Maximum SPL: | 93 dB |
| Microphone sensitivity: | -38 dBV/Pa @1 kHz |
| Bluetooth version: | 5.0 |
| Bluetooth profile version: | A2DP V1.3, AVRCP V1.6, HFP V1.7 |
| Bluetooth transmitter frequency range: | 2.400 GHz – 2.4835 GHz |
| Bluetooth transmitter power: | 12 dBm |
| Bluetooth transmitter modulation: | GFSK, π/4 QPSK, 8DPSK |
| Maximum operation temperature: | 45°C |
TO PROLONG BATTERY LIFESPAN, FULLY CHARGE AT LEAST ONCE EVERY 3 MONTHS. BATTERY LIFE VARIES BY USE AND SETTINGS.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license.
Other trademarks and trade names are those of their respective owners.
215-JLX049
HP_JBL_WAVE200TWS_QSG_Global_SOP_V14
