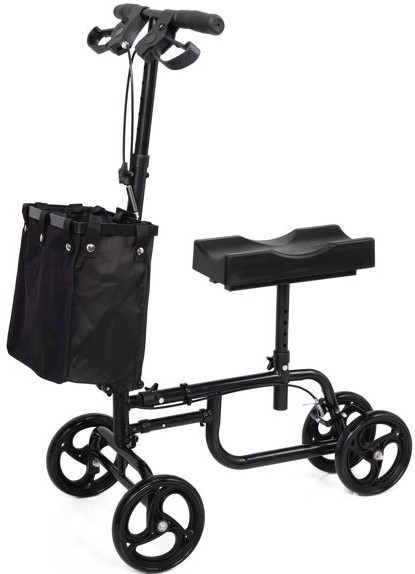

PRODUCT OVERVIEW

MAINTENANCE

1. The exterior of this relator walker should be cleaned periodically with a soft damp cloth. Do not use abrasive cleaners or caustic chemicals.
2. Check the parts for any looseness, wear, or damage periodically. If any problems are found, correct them before using them.
3. If haven’t used it for a long time, store it in a cool, dry, and safe place.

PART LIST

• Rear wheel
• Mainframe
• Knee pad
• Bag

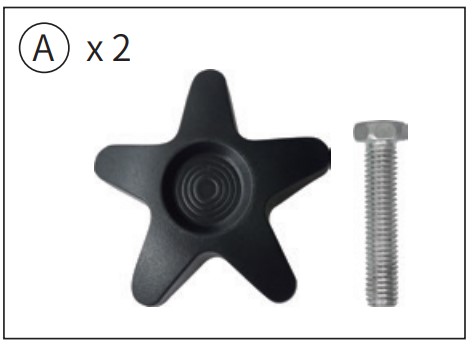

• Star bolt / Screw

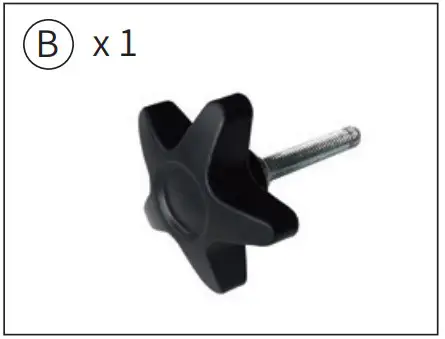

• Star screw

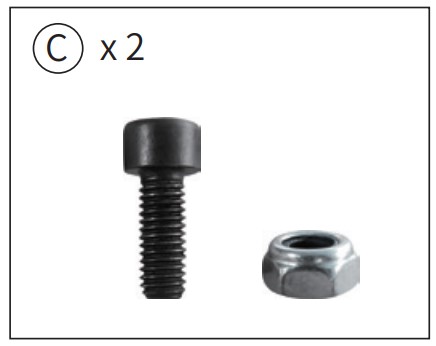

• Bag screw

• Installation tool


ASSEMBLY INSTRUCTIONS

1 STEP

ROLLATORS POLE INSTALLATION

Open the mainframe and lock the lever If you find the frame is unsteady, please tighten the screw

2 STEP

REAR WHEELS INSTALLATION

1. Insert the rear wheels into the mainframe and make sure the holes are aligned
2. Insert the screw into the hole and secure the “star bolt”


3 STEP

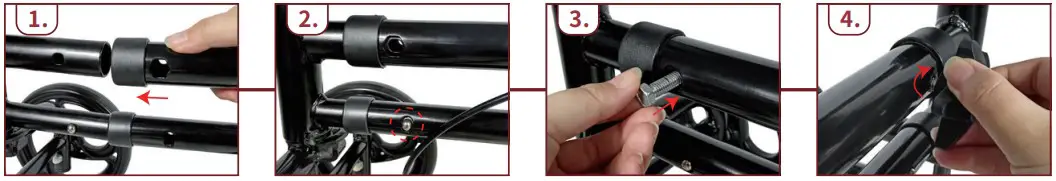

LIFTING LEVER INSTALLATION

1. Insert the lifting lever into the mainframe
2. Adjusting the suitable height, then make sure the holes are aligned
3. Insert the star bolt into the hole and tighten it
4. Attach the Card buckle to the lifting rod


4 STEP

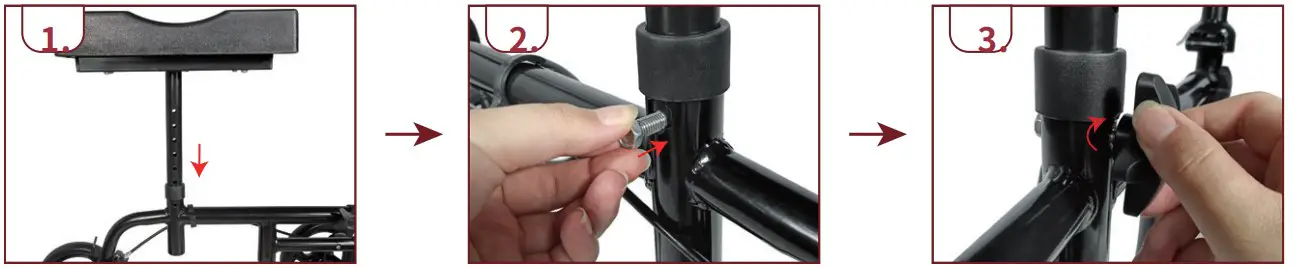

KNEE PAD INSTALLATION

1. Insert the knee pad into the tube
2. Adjusting the suitable height, then make sure the holes are aligned
3. Insert the screw into the hole and secure the star bolt


5 STEP

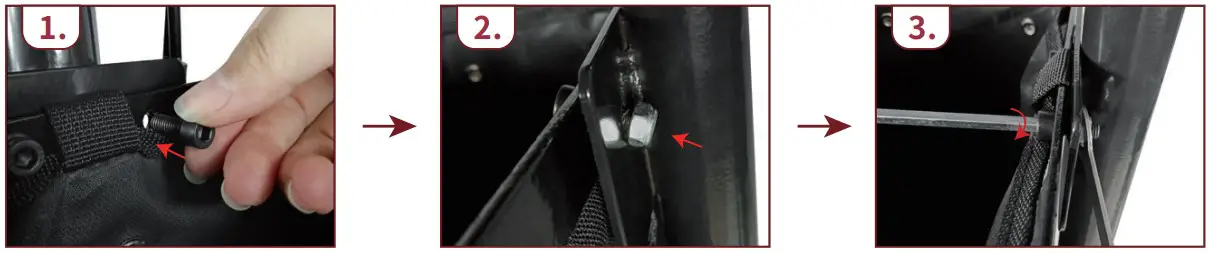

BAG INSTALLATION

Make sure the holes are aligned, then insert the screw into the hole and secure the nut with a tool,
