ITC 69554 Decor Overhead Light Instruction Manual

ITC 69554 Decor Overhead Light

PARTS/TOOLS NEEDED

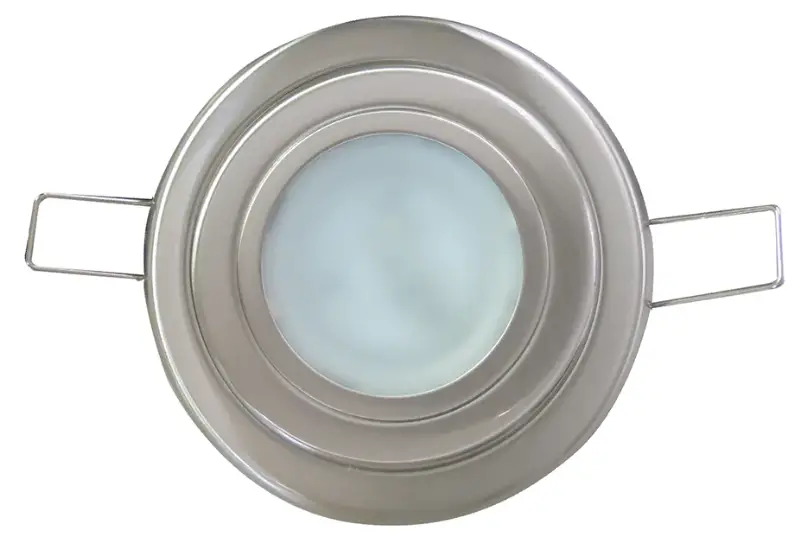

Decor Overhead Light	Mounting Screws (Qty: 2)	Butt Splice Connectors (Not Provided)	Power Drill & 2.25” Hole Saw

IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY FOR YOUR PROTECTION AND SAVE ALL INSTRUCTIONS.

• Disconnect power before installing, adding or changing any component.
• To avoid a hazard to children, account for all parts and destroy all packing materials.
•  It is recommended that fuse protection be added to the positive(+) input.

INSTALLATION INSTRUCTIONS

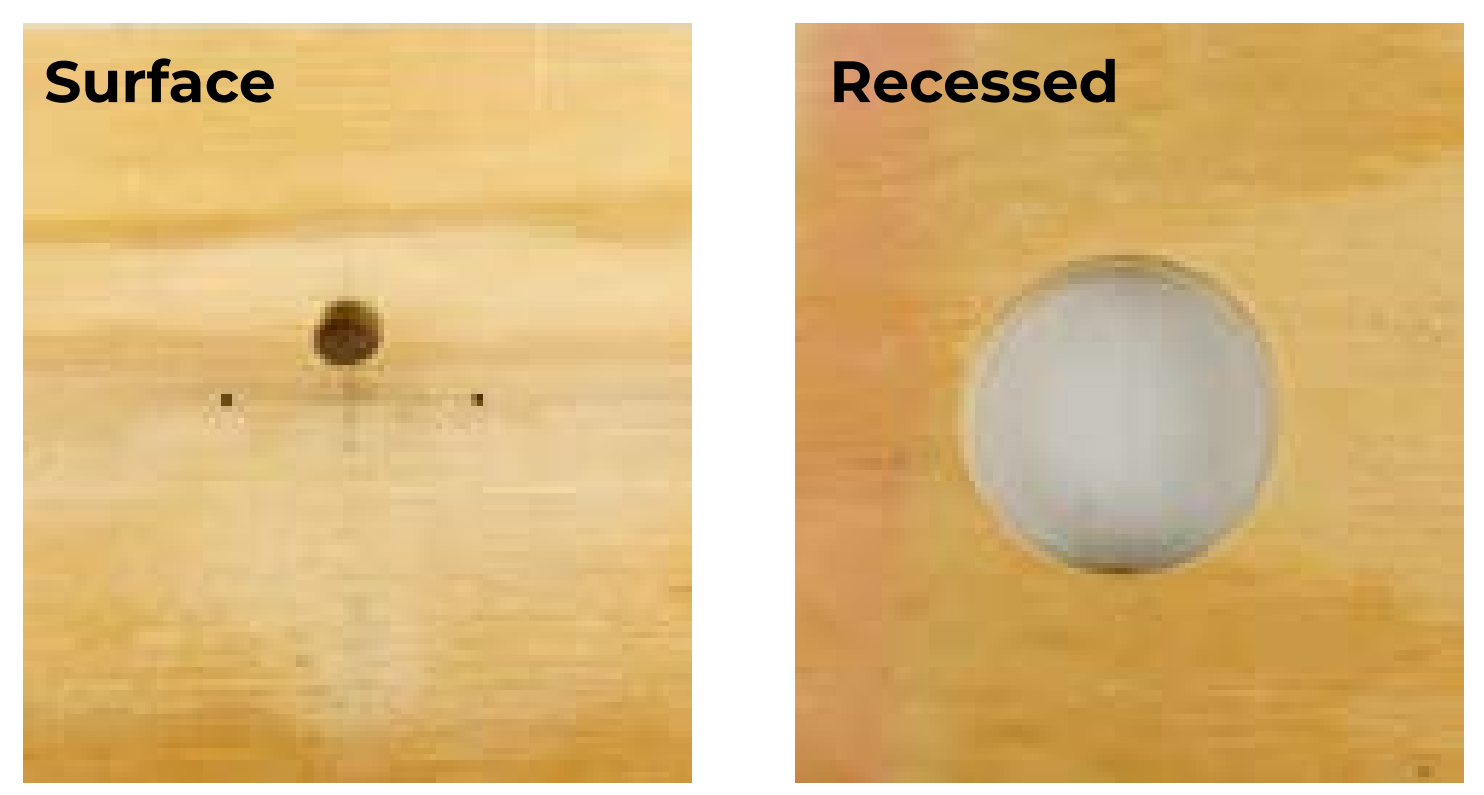

1. 69554 | Determine the installation location and use the bezel to mark the location of the screw holes and wiring hole. 69553 | cut out 2.25” hole for light.

2. 69554 | Drill a hole and pull the units wiring through.
   Screw down the bezel using the provided screws.

3. 69554 & 69553 |Using the wiring diagrams below, wire the light to a three way switch and your incoming 12V DC power.
   Test the light.

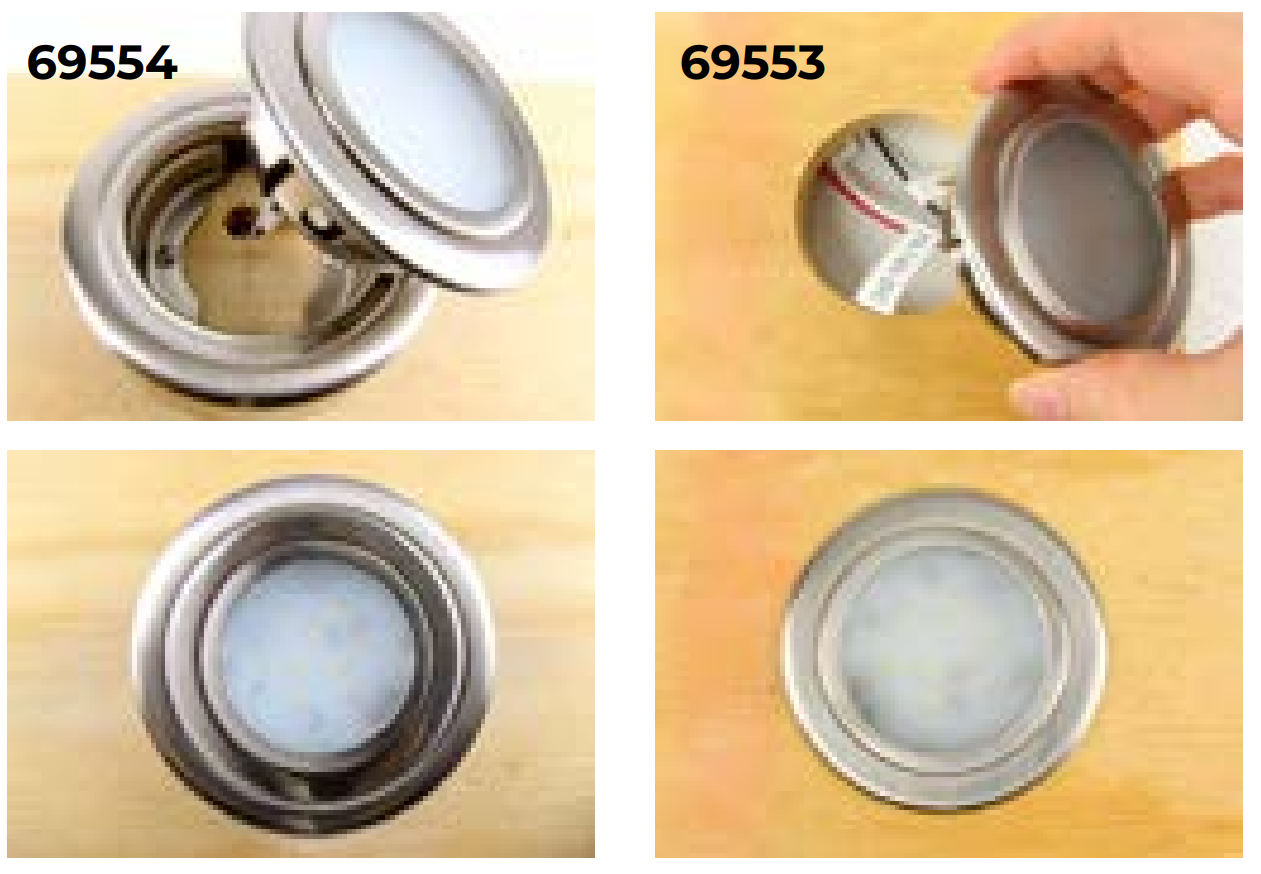

4. 69554 |Feed the wires back through the hole and push the light into the bezel. 69553 |Push light into hole.


For warranty information please visit www.itc-us.com/warranty-return-policy
