IRM-20 Series 20W AC-DC PCB Mount Green Power Module Instructions

Contents

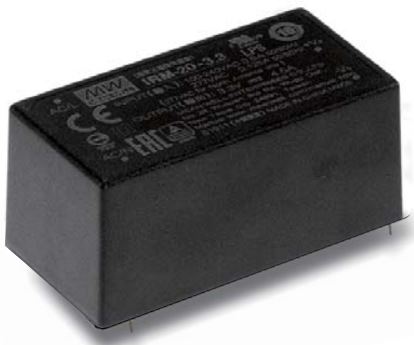

IRM-20 Series 20W AC-DC PCB Mount Green Power Module

Features

2.06″x1.07″ compact size
Universal input 85~305VAC
No load power consumption<0.1 W
EMI Class B without additional components
Wide operating temp. range -30~70°C
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Isolation Class II
Pass LPS
3 years warranty

Applications

Industrial electrical equipment
Mechanical equipment
Factory automation equipment
Hand-held electronic device

GTIN CODE

MW Search: https://www.meanwell.com/serviceGTIN.aspx

Description

IRM-20 is a 20W miniature (52.4*27.2*24mm) AC-DC module-type power supply, ready to be soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipment. This product allows the universal input voltage range of 85~305VAC. The 94V-0 flame retardant plastic case potted with silicone enhances heat dissipation and meets the anti-vibration demand up to 2G; moreover, it provides fundamental resistance to dust and moisture. With a high efficiency up to 85% and extremely low no-load power consumption below 0.1W, the IRM-20 series fulfils the worldwide regulation for the low power consumption requirement for electronics. The entire series is a Class Il design (no FG pin), incorporating the built-in EMI filtering components, enabling compliance with BS EN/EN55032 Class B; the supreme EMC features to keep the end electronic units from electromagnetic interference.

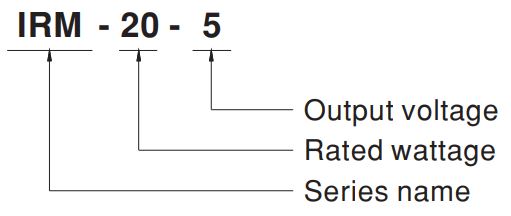

Model Encoding

SPECIFICATION

MODEL		IRM-20-3.3	IRM-20-5		IRM-20-12		IRM-20-15	IRM-20-24
OUTPUT	DC VOLTAGE	3.3V	5V		12V		15V	24V
	RATED CURRENT	4.5A	4A		1.8A		1.4A	0.9A
	CURRENT RANGE	0 ~ 4.5A	0 ~ 4A		0 ~ 1.8A		0 ~ 1.4A	0 ~ 0.9A
	RATED POWER	14.85W	20W		21.6W		21W	21.6W
	RIPPLE & NOISE (max.) Note.2	200mVp-p	200mVp-p		200mVp-p		200mVp-p	200mVp-p
	VOLTAGE TOLERANCE Note.3	±2.5%	±2.5%		±2.5%		±2.5%	±2.5%
	LINE REGULATION	±0.5%	±0.5%		±0.3%		±0.3%	±0.3%
	LOAD REGULATION	±1%	±1%		±0.5%		±0.5%	±0.5%
	SETUP, RISE TIME	1000ms, 20ms/230VAC 1000ms, 20ms/115VAC at full load
	HOLD UP TIME (Typ.)	40ms/230VAC 8ms/115VAC at full load
INPUT	VOLTAGE RANGE	85 ~ 305VAC 120 ~ 430VDC
	FREQUENCY RANGE	47 ~ 440Hz
	EFFICIENCY (Typ.)	76%	79%		84%		84%	85%
	AC CURRENT (Typ.)	0.6A/115VAC 0.4A/230VAC 0.3A/277VAC
	INRUSH CURRENT (Typ.)	COLD START 20A/115VAC 40A/230VAC
	LEAKAGE CURRENT	< 0.25mA/277VAC
PROTECTION	OVERLOAD	115%~160% rated output power
		Protection type : Hiccup mode, recovers automatically after fault condition is removed
	OVER VOLTAGE	3.8 ~ 4.46V	5.75 ~ 6.75V		13.8 ~ 16.2V		17.25 ~ 20.25V	27.6 ~ 32.4V
		Protection type : Shut off o/p voltage, clamping by zener diode
ENVIRONMENT	WORKING TEMP.	-30 ~ +70℃ (Refer to “Derating Curve”)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40 ~ +85℃, 10 ~ 95% RH
	TEMP. COEFFICIENT	±0.03%/℃ (0 ~ 50℃)
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
	SOLDERING TEMPERATURE	Wave soldering: 265℃,5s (max.); Manual soldering: 390℃,3s (max.)
	OPERATING ALTITUDE Note.4	2000 meters
SAFETY & EMC (Note.5)	SAFETY STANDARDS	IEC62368-1, UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS14336-1 approved
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC
	ISOLATION RESISTANCE	I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
	EMC EMISSION	Parameter		Standard		Test Level / Note
		Conducted		BS EN/EN55032(CISPR32), CNS13438		Class B
		Radiated		BS EN/EN55032(CISPR32), CNS13438		Class B
		Harmonic Current (Note 5)		BS EN/EN61000-3-2		Class A
		Voltage Flicker		BS EN/EN61000-3-3		——-
	EMC IMMUNITY	BS EN/EN55035, BS EN/EN61000-6-2
		Parameter		Standard		Test Level /Note
		ESD		BS EN/EN61000-4-2		Level 3, 8KV air; Level 2, 4KV contact, criteria A
		Radiated Susceptibility		BS EN/EN61000-4-3		Level 3, Criteria A
		EFT/Burest		BS EN/EN61000-4-4		Level 3, Criteria A
		Surge		BS EN/EN61000-4-5		Level 4,2KV/L-N, criteria A
		Conducted		BS EN/EN61000-4-6		Level 3, Criteria A
		Magnetic Field		BS EN/EN61000-4-8		Level 4, Criteria A
		Voltage Dips and interruptions		BS EN/EN61000-4-11		＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods
OTHERS	MTBF	10656.2K hrs min. Telcordia SR-332 (Bellcore) ; 970.3K hrs min. MIL-HDBK-217F (25℃)
	DIMENSION	52.427.224mm (LWH)
	PACKING	0.05Kg/240pcs/13Kg/0.94CUFT
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″ twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance:includes set up tolerance, line regulation and load regulation. 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitudes higher than 2000m(6500ft). 5. The power supply is considered as an independent unit,but the final equipment still needs to confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com) ※ Product Liability Disclaimer：For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx

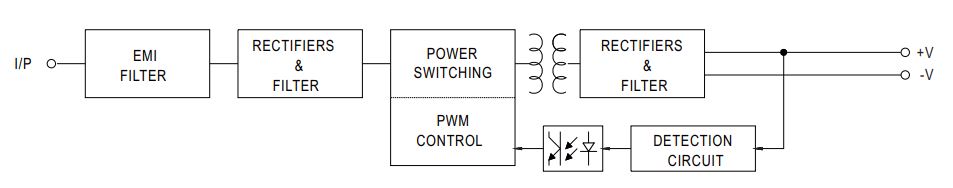

Block Diagram

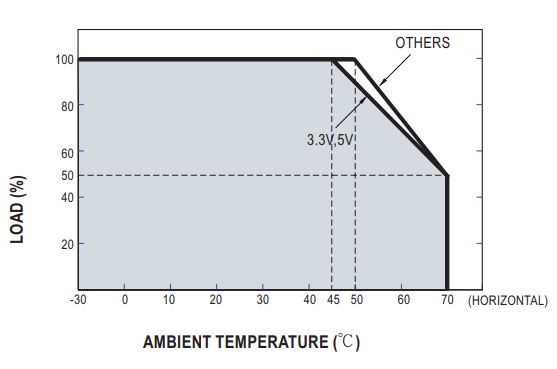

Derating Curve

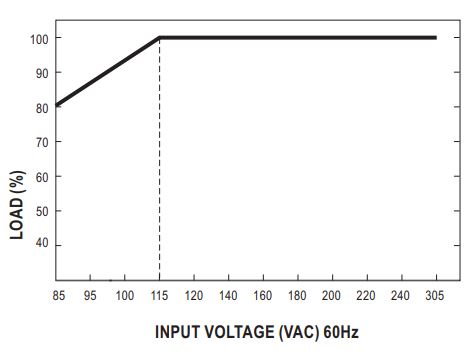

Output Derating VS Input Voltage

Mechanical Specification

Installation Manual

Please refer to : https://www.meanwell.com/manual.html
