Quick Start Guide
INSIGNIA NS-CF-300A 800 Lumen Rechargeable Flashlight
Before using your new product, please read these instructions to prevent any damage.
PACKAGE CONTENTS
- 800 Lumen Rechargeable Flashlight
- USB charging cable
- Carrying case
- Carrying strap
- Quick Setup Guide
FEATURES
- 800 lumen output with a maximum beam distance of 623 ft. (190 m) makes your flashlight ideal for general indoor and outdoor use.
- Ultra-high capacity, internal, rechargeable battery is small and light and provides a long runtime.
- Battery indicator lets you know when the battery is low, charging, or fully charged.
- Integrated Micro USB port lets you recharge from any powered device with a standard USB port.
- IPX4 rating provides protection in dusty and damp environments (not waterproof).
- Four brightness levels plus a strobe (flashing) mode provide a wide range of lighting options.
- Carrying case and strap makes it easy to carry and keep track of your flashlight
CHARGING THE BATTERY
Notes:
- Your flashlight contains a non-replaceable lithium battery that is sealed inside your flashlight. Trying to replace the battery will damage your flashlight.
- When the flashlight is charging, the
(power) button LED lights red. When it is fully charged, the (power) button LED lights green. - When the battery level is below 3.2V, the
(mode) button LED lights red and you need to charge the battery.
- Plug the small plug on the USB cable into the USB port on your flashlight.
- Plug the large plug into a powered USB port on a device with a standard USB port.
Note: A powered USB port is needed to recharge the flashlight. This can be a standard home or car USB adapter, or a powered USB port on a computer or other device. - When the battery charge indicator turns green, unplug the USB cable.
USING YOUR FLASHLIGHT

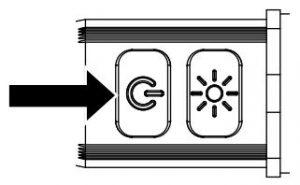

- Press and hold the (power) button for 1.5 seconds to turn on.

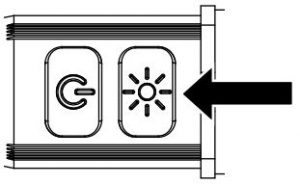

- Quickly press and release the (mode) button one or more times to select a brightness level (Eco, high, medium, or low), or press and hold the button for 1.5 seconds to select strobe mode.
Note: To exit strobe mode, press and hold the (mode) button again. Your flashlight returns to the last brightness level you selected.
- To turn off your flashlight, press and hold the (power) button.
TROUBLESHOOTING
The LED does not light or I cannot select a brightness level.
- Make sure that your flashlight is turned on.
- Make sure that the battery is charged.
The flashlight body is overheating.
- Make sure that your flashlight is turned off during charging.
- If you set the brightness level to high, the LED generates a moderate amount of heat. This is normal. If your flashlight is too hot to hold, turn it off and wait 10 minutes for it to cool.
The light level dims on its own.
- The LED and battery are thermally-controlled for protection and long life. If the LED or battery gets too warm, the light level with automatically dim. This is normal operation.

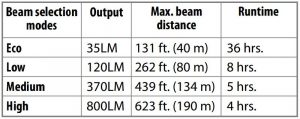

SPECIFICATIONS
- Dimensions (H × W): 5.9 × 1.27 in. (15 × 3.2 cm)
- Weight: 5.0 oz.
- Battery: 2600mAh lithium battery (sealed inside, non-replaceable)
- Battery indicator: LED located behind the power and mode selection buttons.
- Maximum output: 800 LM
- Maximum beam distance: 623 ft. (190 m)
- Maximum run time: 4 hrs. on high beam selection mode
- Charging time: 5 hrs.
- USB Cable specification: 5V 1A, .98ft. (30 cm)
- IP rating: IPX4 (rain and splash resistant)
- Impact resistance: 3 ft. (1 m)
SAFETY INFORMATION
Charging cautions:
- Do not use your flashlight while the battery is charging because it shortens the life of the battery due to excess heat.
- Promptly remove the USB cable when charging is complete.
Flashlight cautions:
- Do not shine the flashlight into a person’s eyes. This might damage the person’s eyesight.
- When your flashlight is on, do not touch the flashlight head. The head may be hot enough to burn your skin.
- Keep your flashlight away from children under 18 years of age.
ONE-YEAR LIMITED WARRANTY
Visit www.insigniaproducts.com for details.
CONTACT INSIGNIA:
For customer service, call 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico)
www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its affiliated companies
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richfield, MN 55423 U.S.A.
©2017 Best Buy. All rights reserved.
Made in China
