IMOU 1.2.51.32.19719-001 Digital Zoom Night Vision Camera

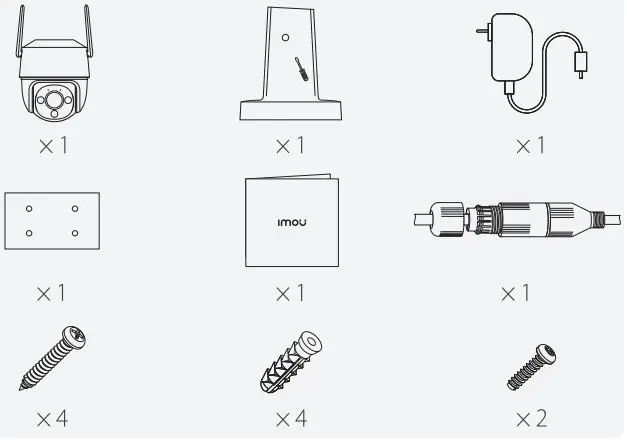

What In The Box

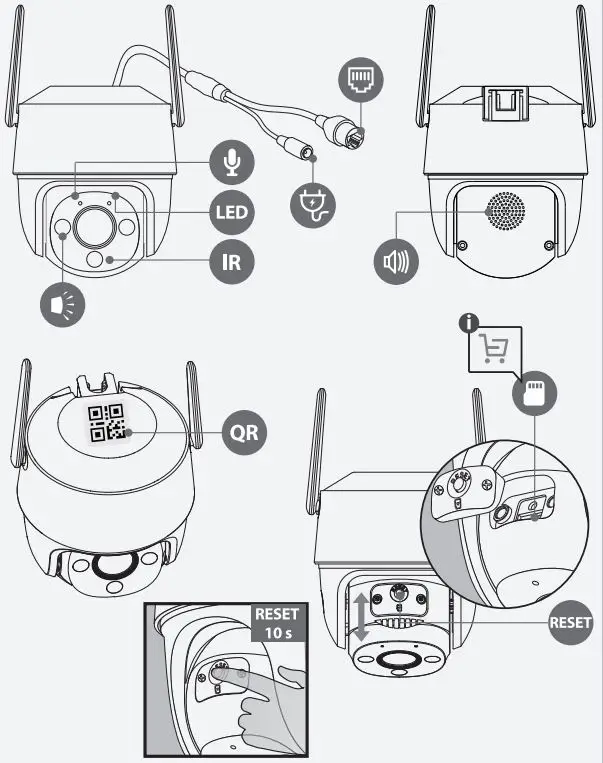

Product Overview
Connections
Scan
Installation Instructions
Using Instructions

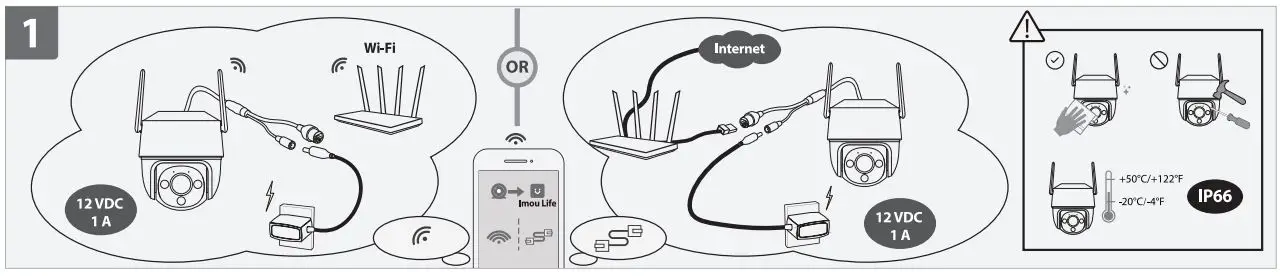

Power On the Camera
- Connect the camera to power. You can choose a wireless or wired network connection (see part 1).

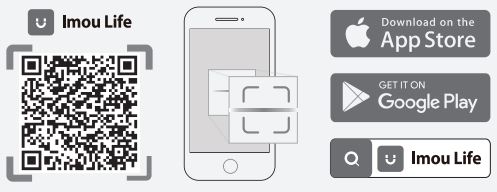

Get the Imou Life App
- Scan the QR code on part 2 or search for “Imou Life” to download and install the app. Create an account and log in.
Set Up the Camera
- Scan the QR code on the body of the device or on the cover of this guide with the app, and then follow on-screen instructions to complete the setup (see part 3).

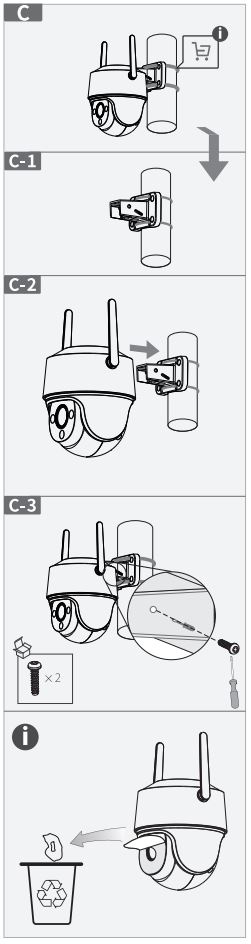

Install the Camera
- Make sure the mounting surface is strong enough to hold three times the weight of the camera. For a detailed installation process, please see part 4.
LED Status
| LED Status Device Status | ||
| Green | Flashing | Ready to set up the device |
| Solid | Working properly | |
|
Red |
Flashing | Network disconnected |
| Failed to set up the device | ||
| Solid | Booting | |
| Device malfunction | ||
| Green &Red | Alternating | Updating firmware |
| Off | Power off | |
| LEDturned off | ||
- If you need to reset the camera, press and hold the reset button for 10 s. The LED turns solid red when the camera is booting.
