SD1 NEMA 1 Kit
Installation Guide
Contents
SD1 Torque Vector Inverter

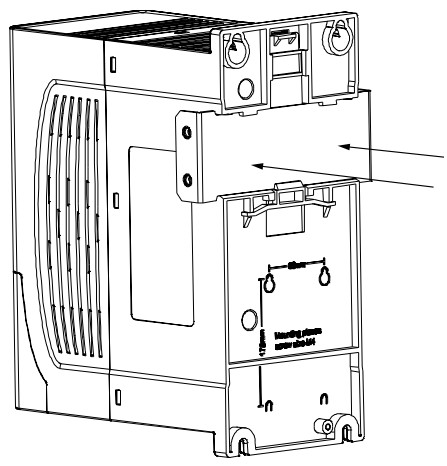

Step 1
Plug in the drip-cover DIN rail plate into the DIN rail bracket of the inverter.
Step 2
Place the drip-mounting cover’s holes in line with the DIN rail plate’s mounting holes. Use the four screws to secure the drip-cover to the mounting plate.
Screw quantity supplied: 4
Screw Specifications: M4x10
Step 3
Put the junction box base on the drive’s rear such that the mounting holes on the junction box base match the mounting holes on the drive’s base.
Step 4
Secure the drive and junction box base to the wall by putting your four surface mounting screws through the drive mounting holes.
Step 5
Connect the ground conductor from the junction box frame into the drive’s ground terminal.

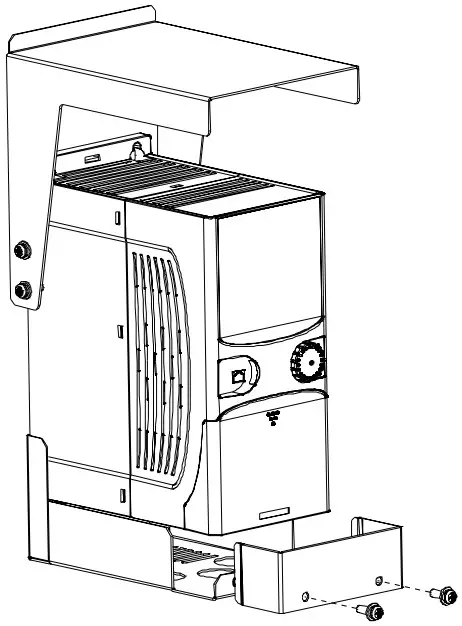

Step 6
Connect the junction box base to the face plate of the junction box. Align the junction box face plate holes with the junction box base. The junction box face plate should be screwed to the junction box base using two screws.
Screw quantity supplied: 2
Screw Specifications: M4x10
NEMA Kit Cross Reference
| Models | Width (mm) | Depth (mm) | |
| Inverter | SD1-4.2A-21 | 80 | 123.5 |
| SD1-7.5A-21 | |||
| NEMA KIT | SD1-NK1-1 | 102 (top), 83 (bottom) | 150 (top), 122 (bottom) |
| Inverter | SD1-2.5A-11 | 80 | 140.5 |
| SD1-4.2A-11 | |||
| SD1-5.8A-11 | |||
| SD1-7.5A-21 | |||
| SD1-10A-21 | |||
| SD1-4.2A-23 | |||
| SD1-7.5A-23 | |||
| SD1-2.5A-43 | |||
| SD1-4.2A-43 | |||
| SD1-5.5A-43 | |||
| NEMA KIT | SD1-NK1-2 | 102 (top), 83 (bottom) | 150 (top), 138 (bottom) |
| Inverter | SD1-7.5A-23 | 146 | 167 |
| SD1-10A-23 | |||
| SD1-9.5A-43 | |||
| SD1-14A-43 | |||
| NEMA KIT | SD1-NK1-3 | 167.5 (top), 155.5 (bottom) | 240 (top), 169 (bottom) |
| Inverter | SD1-18.5A-43 | 170 | 196.3 |
| SD1-25A-43 | |||
| NEMA KIT | SD1-NK1-4 | 187.5 (top), 175.5 (bottom) | 260 (top), 196 (bottom) |
IMO Precision Controls Ltd
The Interchange, Frobisher Way, Hatfield, Herts. AL10 9TG UK
Telephone: +44 (0)1707 414444
Fax: +44 (0)1707 414445
Email: [email protected]
For more information visit www.imopc.com
Errors and omissions excepted.
Subject to change without notice.
© 2023 IMO Precision Controls Ltd
REF: SD1 NEMA 1 Kit Installation Guide 0423
