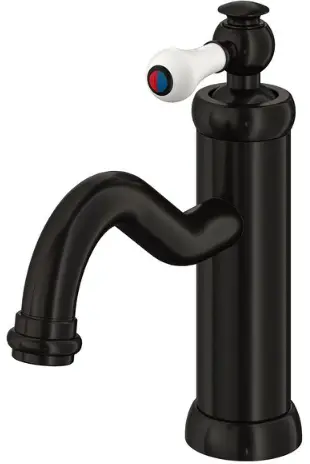

IKEA HAMNSKÄR Wash Basin Mixer Tap Black
Product Information

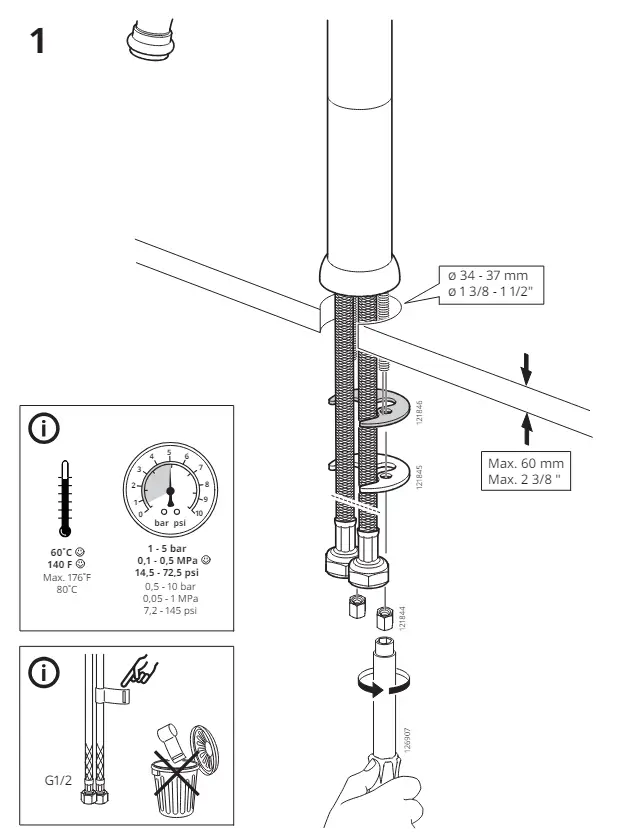

Specifications:
- Max. Pressure: 1 – 5 bar / 0.1 – 0.5 MPa / 14.5 – 72.5 psi
- Connection Size: G1/2
- Max. Depth: 60 mm / 2 3/8 inches
Product Usage Instructions
Installation:
Installation must be performed in compliance with current local construction and plumbing regulations. If in doubt, contact a professional.
Switching Mixer Tap:
-
- Switch off the main shut-off valve before changing the mixer tap.
- English: Before changing the mixer tap, turn off the main valve.
- Deutsch: Vor dem Auswechseln der Mischbatterie den Haupthahn abdrehen.
Important Note:

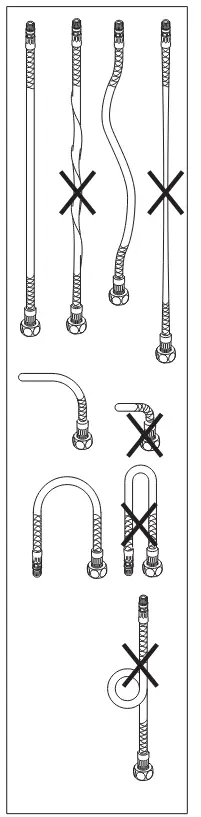

IMPORTANT! Do not tighten too hard: this can damage hoses/pipes and washers.
FAQ
- Q: What should I do if I encounter leaks after installation?
- A: Check the connections for any loose fittings and tighten as needed. If leaks persist, consult a professional plumber.
- Q: Can this product be used with a water pressure above 10 bar?
- A: No, the product is recommended for use within the specified pressure range of 0.1 – 0.5 MPa.
Installation must be performed in compliance with current local construction and plumbing regulations. If in doubt, contact a professional.

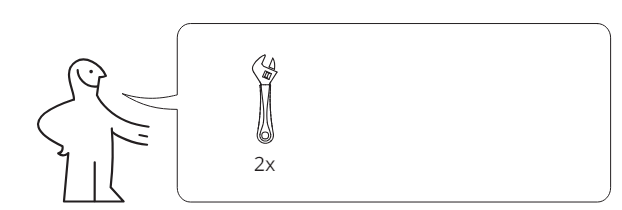

Tools Required
- Switch off main shut-off valve before changing the mixer tap.
Installation Instruction

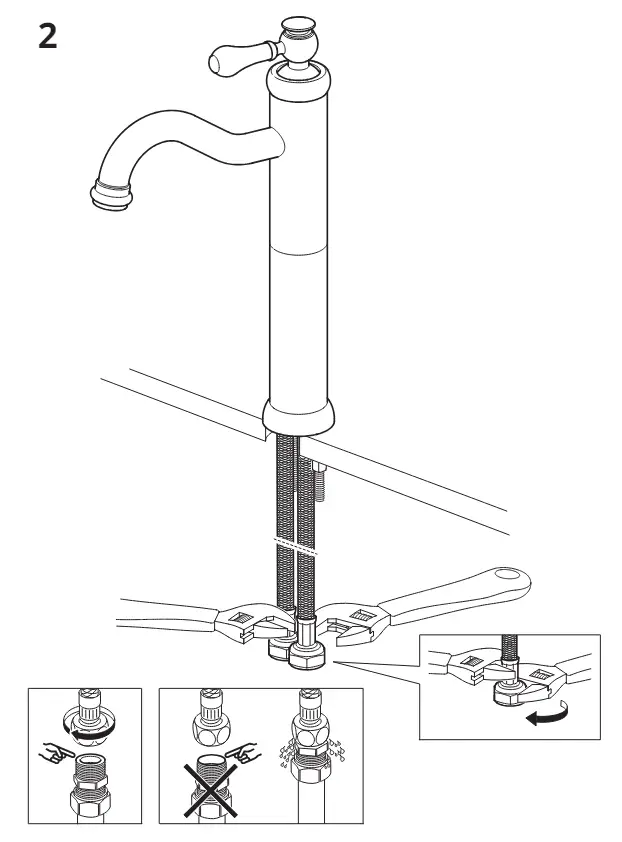

IMPORTANT! Do not tighten too hard: this can damage hoses/pipes and washers.

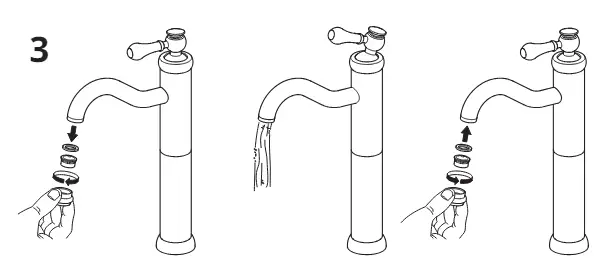

Before use: Unscrew the Aerator/Flow Guide and allow the water to run freely for a few minutes. Then screw the Aerator/Flow Guide back in place. Ensure that it is tight to prevent removal by hand.
Check at regular intervals to make sure that the installation is not leaking.
