Product description

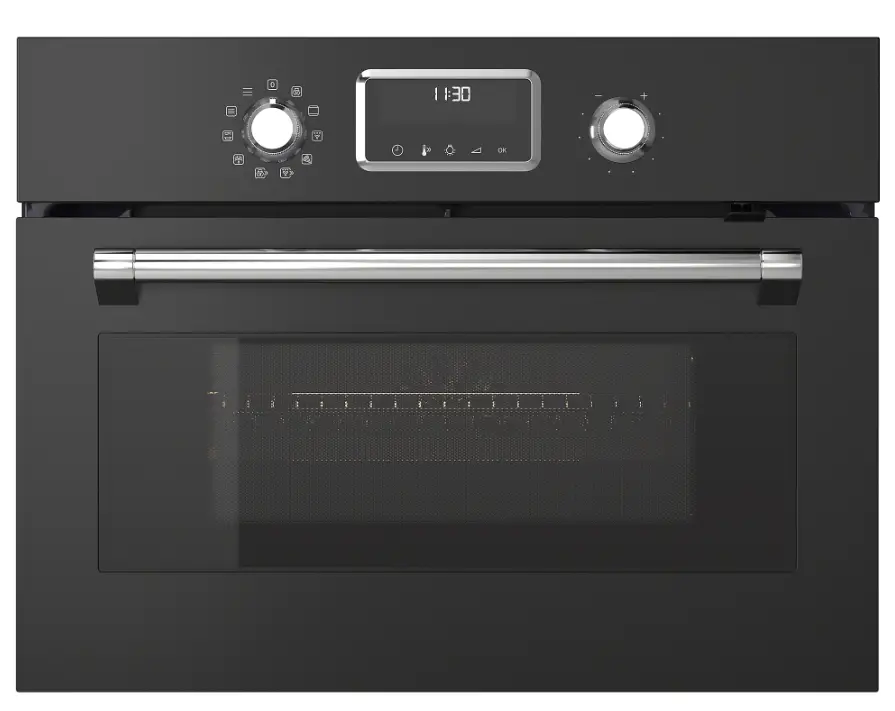

General overview

Product description

  1. Control panel
  2. Knob for the heating functions
  3. Display
  4. Control knob
  5. Heating element
  6. Lamp
  7. Fan
  8. Cavity embossment
  9. Shelf support, removable
  10. Shelf positions

Control panel

Control panel overview

Select a heating function to turn on the appliance. Turn the knob for the heating functions to the off position to turn the appliance off.

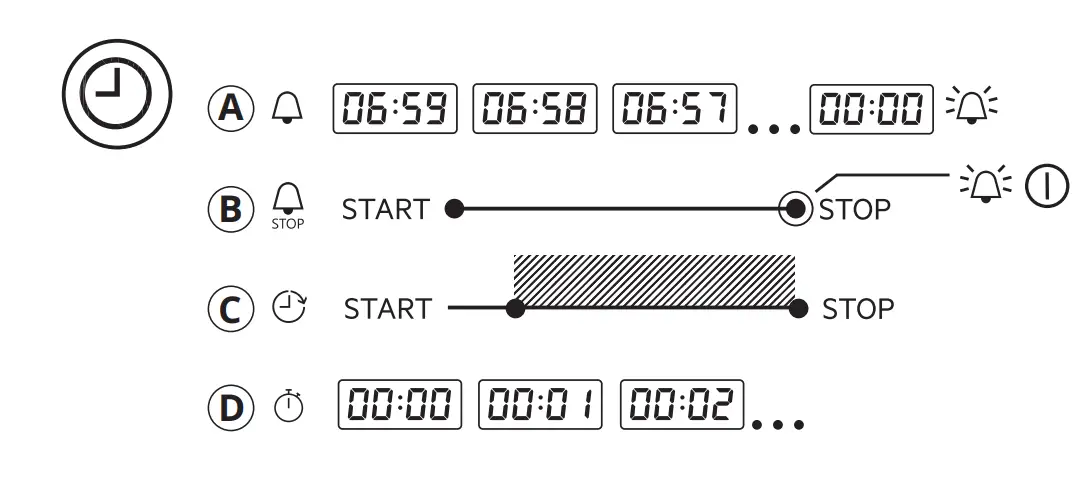

Functions Icon Press to set: Clock functions.
Functions Icon Press and hold to set the function: Fast Heat Up.
Functions Icon Press to turn on or to turn off the oven lamp.
Functions Icon Press and hold to set the function: Lock.

OK

Press to confirm the selection.

Display indicators

Display indicators

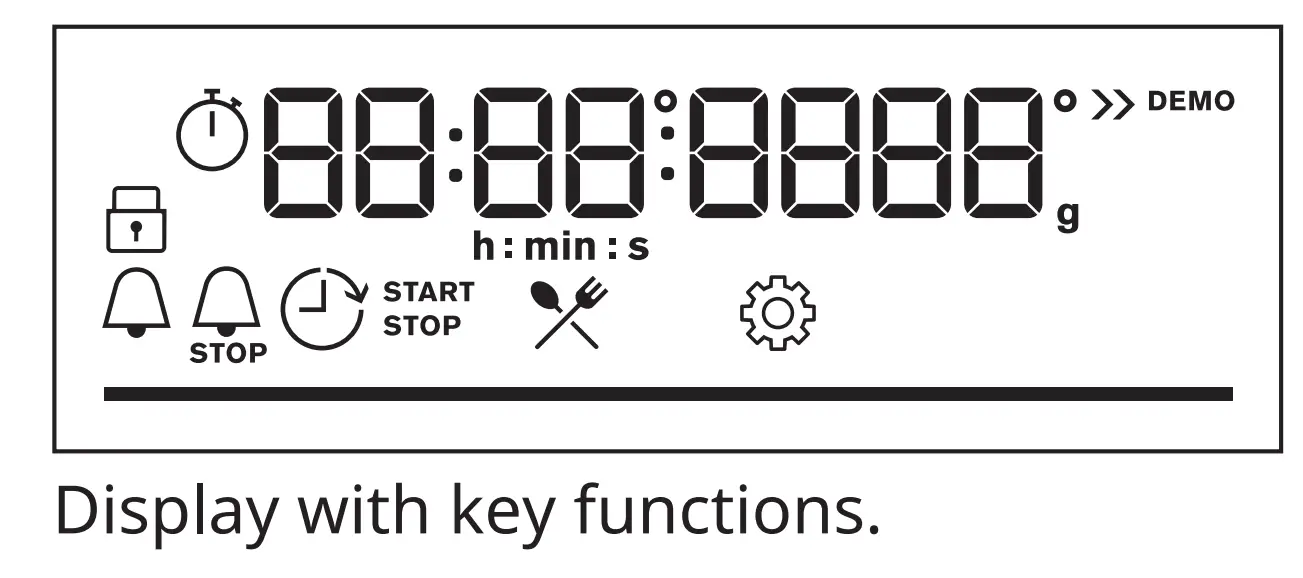

Display with key functions.

Functions Icon

The appliance is locked.

Functions Icon

Enter the menu and select the icon to open: Assisted Cooking.

Functions Icon

Enter the menu and select the icon to open: Settings

Functions Icon

Fast Heat Up is turned on.

Functions Icon

Steam cooking is turned on.

Functions Icon

Minute minder is turned on.

Functions Icon

End time is turned on.

Functions Icon

Time Delay is turned on.

Functions Icon

Up timer is turned on.

Functions Icon

The bar is fully red when the appliance reaches the set temperature.

Functions Icon

True Fan Cooking: Even baking, tenderness, drying

Functions Icon

Conventional Cooking: Traditional baking

Functions Icon

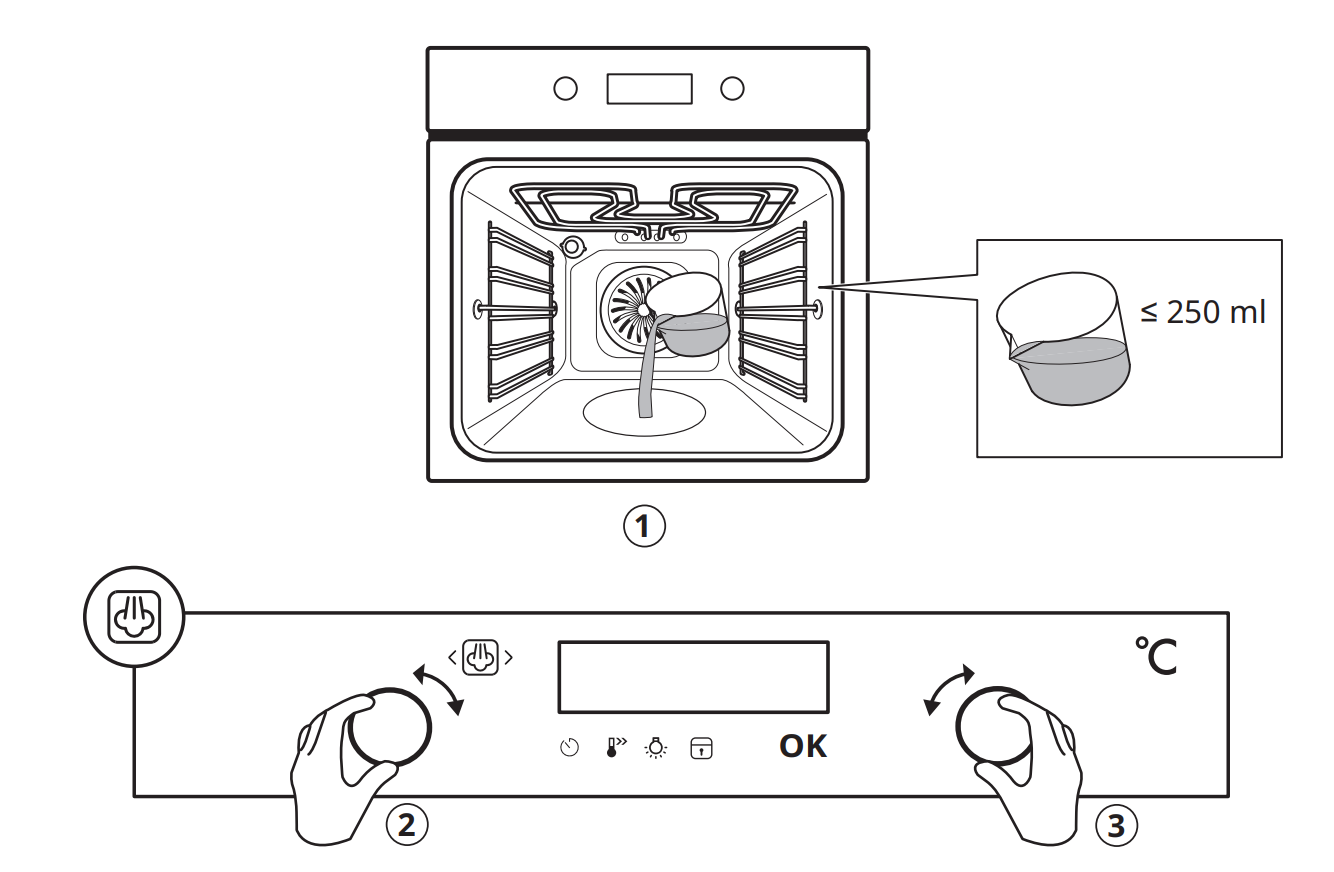

Steam Bake: Steaming

Functions Icon

Frozen Foods: French fries, potato wedges, spring rolls

Functions Icon

Pizza Function: Baking pizza

Functions Icon

Bottom Heat: Baking cakes

Functions Icon

Moist Fan Baking: Baking

Functions Icon

Grill: Toasting, grilling

Functions Icon

Turbo Grilling: Roasting meat, browning

 Functions Icon

Menu: To enter the menu.

True Fan Cooking, Conventional Cooking: When you set the temperature below 80 °C the lamp automatically turns off after 30 sec.

Notes on: Moist Fan Baking

This function was used to comply with the energy eԔciencZ class and eco-design requirements. Tests according to: BS EN 60350-1

The oven door should be closed during cooking so that the function is not interrupted and the oven operates with the highest energy eԔciencZ possible.

When you use this function the lamp automatically turns off after 30 sec.

This function is designed to save energy during cooking. When you use this function, the temperature in the cavity may differ from the set temperature. The heating power may be reduced.

Assisted Cooking

The display shows P and a number of the dish that you can check in the table.

1 Roast Beef, rare
2 Roast Beef, medium
3 Roast Beef, well done
4 Steak, medium
5 Beef roast / braised
6 Roast Beef, rare LTC*
7 Roast Beef, medium LTC*
8 Roast Beef, well done LTC*
9 Fillet, rare LTC*
10 Fillet, medium LTC*
11 Fillet, done LTC*
12 Veal roast
13 Pork roast neck or shoulder
14 Pulled pork LTC*
15 Loin, fresh
16 Spare Ribs
17 Lamb leg with bones
18 Whole chicken
19 Half chicken
20 Chicken breast
21 Chicken legs, fresh
22 Duck, whole
23 Goose, whole
24 Meat loaf
25 Whole fish, grilled
26 Fish fillet
27 Cheesecake
28 Apple cake
29 Apple tart
30 Apple pie
31 Brownies
32 Chocolate muffins
33 Loaf cake
34 Baked potatoes
35 Wedges
36 Grilled mixed vegetables
37 Croquets, frozen
38 Pommes, frozen
39 Meat / vegetable lasagna with dry noodle plates
40 Potato gratin
41 Pizza fresh, thin
42 Pizza fresh, thick
43 Quiche
44 Baguette / Ciabatta / White bread
45 All grain / rye / dark bread all grain in loaf pan

*LTC – Low Temperature Cooking

Changing settings

  1. Functions Icon– select to enter Menu OK.
  2. Functions Icon select to enter Settings. Press OK .
  3. Turn the knob to select the setting. Press OK.
  4. Adjust the value. Press . Turn the knob for the heating functions to the off position to exit the Menu.

Menu: Settings

The display shows 0 and a number of the setting that you can check in the table.

Setting

Value

1 Time of day Change
2 Display brightness 1 – 5
3 Key tones 1 – Beep, 2 – Click, 3 – Sound off
4 Buzzer volume 1 – 4
5 Uptimer On / Off
6 Light On / Off
7 Fast Heat Up On / Off
8 Demo mode Activation code: 2468
9 Software version Check
10 Reset all settings Yes / No

Troubleshooting

If you encounter an issue with your appliance, check “Troubleshooting” chapter
in the full version of the User Manual available on: www.ikea.com.

Product Information Sheet according to UK Ecodesign and Energy Labelling Regulations

Supplier’s name IKEA
Model identification FORNEBY 505.577.94
FORNEBY 005.568.91
Energy Efficiency Index 81.2
Energy efficiency class A+
Energy consumption with a standard load, fan-forced mode 0.69 kWh/cycle
Number of cavities 1
Heat source Electricity
Volume 72 l
Type of oven Built-In Oven
Mass FORNEBY 505.577.94 32.2 kg
FORNEBY 005.568.91 32.2 kg
BS EN 60350-1 – Household electric cooking appliances – Part 1: Ranges, ovens, steam ovens and grills – Methods for measuring performance.
