AA-2411560-1 UPPFRISKANDE Electric Cooker
Product Information
The product is a wall-mounted hood with the model identification code IKEA UPPFRISKANDE 20527020. It has a width of 798mm and dimensions of 510mm in depth. The total height in suction mode is adjustable between 750-1030mm, while the total height in recirculation mode is adjustable between 735-1090mm. The total power consumption of the hood is 257W. The control panel features several buttons for controlling the suction power of the hood. There are four suction power selection buttons (1, 2, 3, and 4), with the option to set the suction power to level 1 for a duration of 5 minutes. There is also an ON/OFF light button, which can be adjusted for intensity by pressing and holding it. The hood is equipped with a chimney, a lamp, and a grease filter. The lamp is an LED strip with a power of 1x7w. The minimum installation height required for a gas cooker is 650mm, while for an electric cooker it is 500mm. The weight of the product is 15.6kg. Product
Usage Instructions
- Installation
- Follow the installation instructions provided in the user manual to mount the wall-mounted hood on the desired location in your kitchen.
- Make sure to consider the minimum installation height requirements based on the type of cooker you have.
- Control Panel
- Use the control panel buttons to adjust the suction power of the hood.
- Press the corresponding button (1, 2, 3, or 4) to select the desired suction power level.
- If you want to set the suction power to level 1 for a duration of 5 minutes, press the suction power 4 button.
- Light Adjustment
- To turn the light on/off, press the ON/OFF light button.
- If you want to adjust the intensity of the light, press and hold the button until the desired intensity is reached.
- Grease Filter Maintenance
- Regularly clean and maintain the grease filter to ensure optimum performance of the hood.
- Refer to the user manual for instructions on how to remove and clean the grease filter.
- Additional Information
- For more detailed information about the product, including technical specifications, energy efficiency class, and power consumption, refer to the full version of the user manual available for download on the IKEA website (www.ikea.com).
Required Tools
Safety Instructions
Description of the appliance
- Chimney
- Lamp
- Control panel
- Grease filter

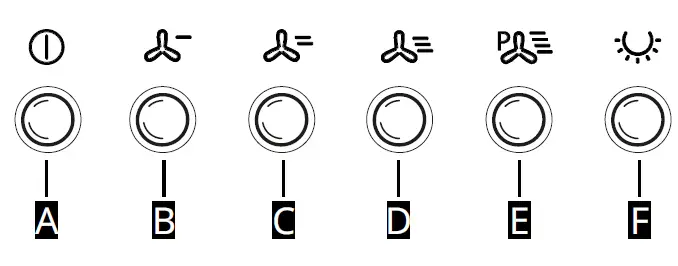

Control Panel
- A Motor OFF button
- B Suction power 1 selection button
- C Suction power 2 selection button
- D Suction power 3 selection button
- E Suction power 4 selection button
- Duration 5 minutes
- F ON/OFF light button
- NB: with the light on, press and hold to adjust its intensity
- NB: Please note that there will be a 5- second delay when switching directly to suction power 1 (from any other speed) due to the electronic control of the product.
Technical Data
| Type of appliance | Wall-mounted Hood | ||
|
Dimensions |
Width | mm | 798 |
| Depth | mm | 510 | |
| Total height in suction mode (min-max) | mm | 750-1030 | |
| Total height in recirculation mode (min-max) | mm | 735-1090 | |
| Total power | W | 257 | |
|
Light info |
Type | LED | |
| Number & Power | W | 1x7w | |
| Connection | LED Strip | ||
| Minimum installation height – gas cooker | mm | 650 | |
| Minimum installation height – electric cooker | mm | 500 | |
| Product weight | Kg | 15.6 | |
| Product information in accordance with EU Regulation no. 65/2014 | |||
| Name of Supplier | IKEA | ||
| Model identification code | UPPFRISKANDE 20527020 | ||
| Annual energy consumption – AEC | Kwh/year | 40.4 | |
| Energy efficiency class | A+ | ||
| Fluid dynamic efficiency FDE | % | 35.2 | |
| Fluid dynamic efficiency class | To | ||
| Luminous efficiency LE | lux/W | 44.1 | |
| Luminous efficiency class | lux | To | |
| Grease filtering efficiency – GFE | % | 85.1 | |
| Grease filtering efficiency class | B | ||
| Minimum air flow (normal power) | m3/h | 130.0 | |
| Maximum air flow (normal power) | m3/h | 430.0 | |
| Airflow setting in boost mode | m3/h | 720.0 | |
| A-weighted sound power level of noise emissions at minimum speed | Db(A) re 1pW | 34.0 | |
| A-weighted sound power level of noise emissions at maximum speed | Db(A) re 1pW | 58.0 | |
| A-weighted sound power level of noise emissions in boost mode | Db(A) re 1pW | 70.0 | |
| Power consumption in off mode-P0 | W | NA | |
| Power consumption in standby mode-Ps | W | 0.49 | |
| Product information in accordance with EU Regulation no. 66/2014 | |||
| Factor of increase over time – f | 0.7 | ||
| Energy efficiency index – EEI | 42.8 | ||
| Airflow measured at best efficiency point – QBEP | m3/h | 420.0 | |
| Air pressure measured at best efficiency point – PBEP | Pa | 465.0 | |
| Maximum airflow – Qmax | m3/h | 720.0 | |
| Electric power consumption at best efficiency point – WBEP | W | 154.0 | |
| Rated power of lighting system – WL | W | 7.0 | |
| Average illuminance of the lighting system on the cooking surface – Emiddle | lux | 309.0 | |
To download the full version visit www.ikea.com
