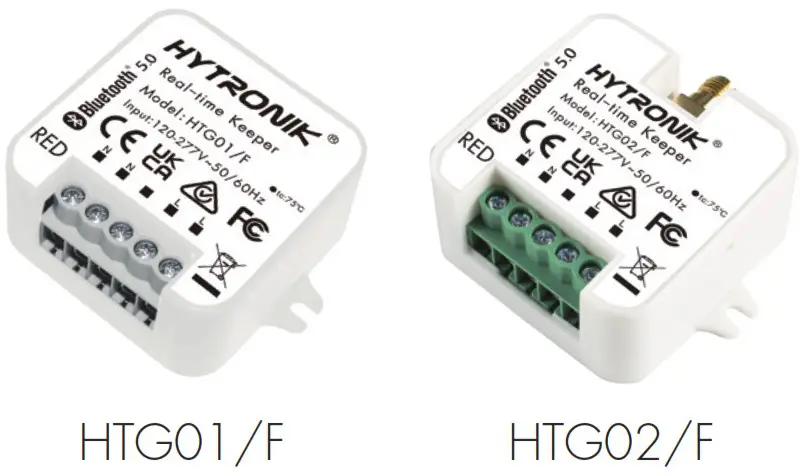

Bluetooth 5.0 Real-time Keeper & Repeater Module
HTG01/F & HTG02/F
Contents
Product Description
HTG01/F & HTG02/F are Bluetooth modules with a real-time chip built in that can keep real time running for up to 12 weeks during power loss, which is very convenient for Bluetooth system/network where there is constant need for power on/off.
When a product group mesh network is created, the entire network takes HTG01/F or HTG02/F as the authoritative time. External Bluetooth antenna can be connected for a longer Bluetooth broadcast distance.
App Features
 |
Compatible with EnOcean BLE switches |
 |
Grouping luminaires via mesh network |
 |
Device rmware update over-the-air (OTA) |
 |
Continuous development in progress… |
Hardware Features
 |
Two optional reinforced antenna available |
 |
Bluetooth range extender |
 |
Ability to keep real-time for up to 12 weeks during power loss |
 |
Compact design with two screw holes to be built inside luminaires |
 |
Short-circuit protection |
 |
5-year warranty |

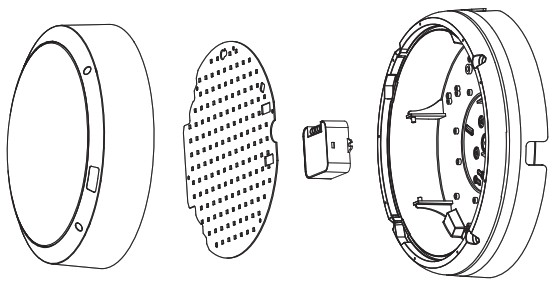

Typical Switch Box Mounting
Bluetooth 5.0 SIG mesh
 for iOS |
 for Android |
|
https://apps.apple.com/cn/app/koolmesh/id1483721878
|
Smartphone app for both iOS & Android platform
Web app/platform: www.iot.koolmesh.com
Optional accessory: Reinforced Bluetooth antenna
※Standard version
※Keep up to 12 weeks time during power loss
※Repeater / Bluetooth range extender
※Up to 30m transmission distance
※2 screw holes for mounting
※Reinforced version
※Keep up to 12 weeks time during power loss
※Repeater / Bluetooth range extender
※2 screw holes for mounting
Technical Specifications
| Bluetooth Transceiver | |
| Operation frequency | 2.4 GHz – 2.483 GHz |
| Transmission power | 4 dBm |
| Range (Typical indoor) | 10~30m |
| Protocol | 5.0 SIG Mesh |
| Safety & EMC | |
| EMC standard (EMC) | EN 55015, EN61547, EN 61000-3-2/3-3 |
| Safety standard (LVD) | EN61347-1,EN 61347-2-11 |
| RED | EN 300328, EN 301489-1/-17 |
| Input & Output Characteristics | |
| Operating voltage | 120~277VAC 50/60Hz |
| Environment | |
| Operation temperature | Ta: -20°C ~ +60°C |
| Storage temperature | -40°C ~ 70°C |
| Relative humidity | 10 ~ 90% |
| IP rating | IP20 |
| Insulation | Class II |

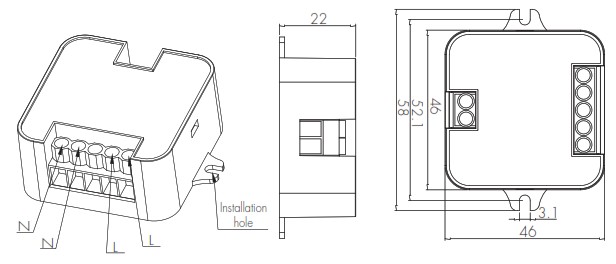

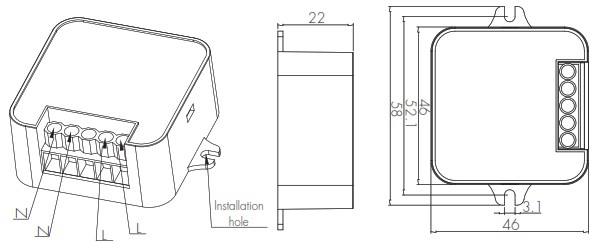

Mechanical Structure & Dimensions
HTG01/F
HTG02/F

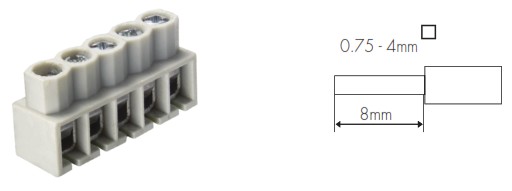

Wire Preparation
To make or release the wire from the terminal, use a screwdriver to push down the button.

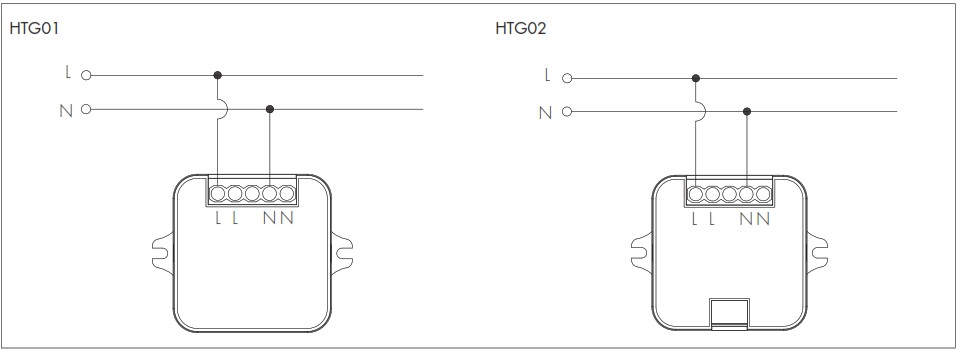

Wiring Diagram

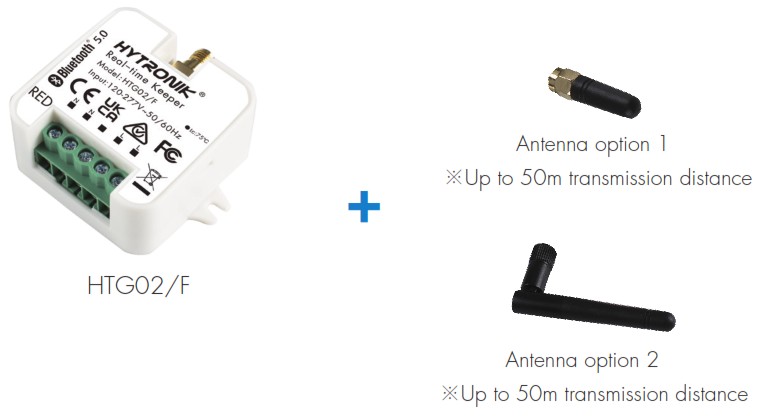

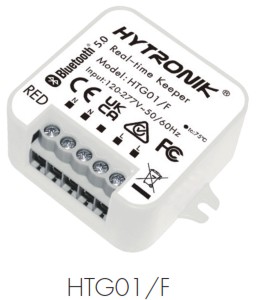

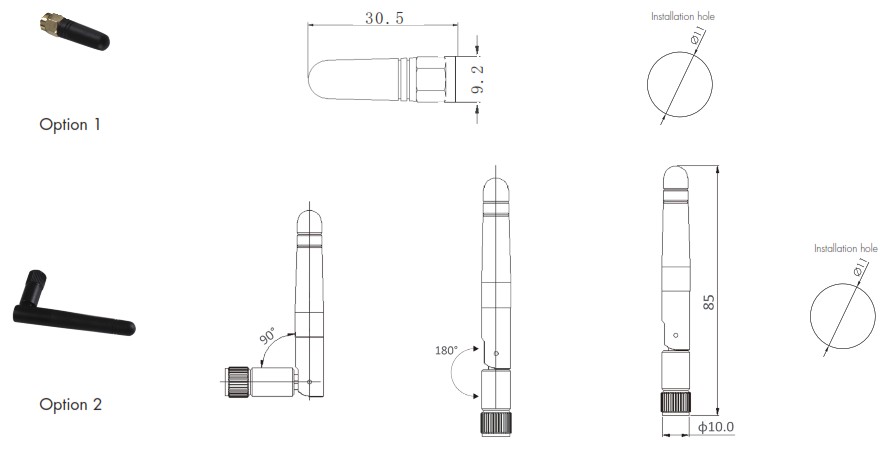

Optional accessory: Reinforced Bluetooth antenna
For some special Applications, customers may need a larger Bluetooth transmission for both smartphone to device and device to device. Thanks to the reinforced Bluetooth antenna (optional 1 or optional 2 to choose from), with it being added to the HTG01/F or HTG02/F, the transmission distance (smartphone to device) enlarges to 20m, the distance of device to device is around 50m.
Additional Information / Documents
- To learn more about detailed product features/functions, please refer to www.hytronik.com/download->knowledge ->Introduction of App Scenes and Product Functions
- Regarding precautions for Bluetooth product installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->Bluetooth Products – Precautions for Product Installation and Operation
- Regarding Hytronik standard guarantee policy, please refer to www.hytronik.com/download ->knowledge ->Hytronik Standard Guarantee Policy
Subject to change without notice.
Edition: 28 Jun. 2021 Ver. A1
