HYTRONIK HED1009-BT Bluetooth Dimmable LED Drivers User Manual
Contents
Product Description
This series of LED drivers are Bluetooth dimmable LED drivers, with maximum power output ranging from 9W to 40W. They all come with Switch-Diminterface by using Push switch (retractive switch) and of course Bluetooth dimming interface. It is ideal for direct projects or new luminaires design for lighting manufacturers. With Bluetooth wireless mesh networking, it makes communication between luminaires much easier without time-consuming hardwiring, which eventually saves costs for projects. Meanwhile, simple device setup and commissioning can be done via app.
App Features
Floorplan feature to simplify project planning
Web app/plform for dedicated project management
Koolmesh Pro iPad version for onsite configuration
Grouping luminaires via mesh network
Scenes
Detailed motion sensor seffings
Push switch configuration
Schedule to run scenes based on time and date
siro fimer (sunrise and sunse)
Stircase funciion [primary & secondary)
Internetof Things (IoT) featured
Device firmware update overthexair [OTA] Device socidl relations check
Bulk commissioning (copy and paste setiings)
Poweron status [memory against power loss)
Offline commissioning
Different permission levels via auhority management
Network sharing via QR code or keycode
Remote control via gateway support HBGWOT1
Interoperability with Hytronik Bluetooth product portfolio
Compatible with EnOcean switch EWSSB/EWSDB
Continuous development in progress
Hardware Features
Switch Dim
PWM 1KHz (1-100%] (Except for HED6010/BT)
Bluetooth dimmable control
Insulated terminal cover with cord resiraint
Active PFC design
Logarithmic Dimming
Linear Dimming
Configurable constant current (CC) output via DIP switch
looprin and loop-out terminals for efficient installat”
Openrcircit Protection
Shortcircuit Protection
Overload Protection
Syear waranty, designed for long lifetime up to 50,000 hours
Certain scenes which require exiernal photocell can be achieved by using together with Hytronik Bluetooth sensors,such as HBIR29, HCDO38/BT + sensor head efc
APPS
Smartphones app for both iOS & Android platform
Web app/platform: www.iot.koolmesh.com
Output Configuration
HED1009/BT, YW
| 600mA | |
| 500mA | |
| 400mA |  |
| 350mA |  |
| 300mA | |
| 250mA | |
| 200mA | |
| 500mA | |
| 400mA | |
| 350mA | |
| 300mA | |
| 250mA | |
| 230mA | |
| 195mA | |
HED1025/8BT, 25W
| 700mA | |
| 650mA | |
| 600mA | |
| 550mA | |
| 500mA | |
| 450mA | |
| 400mA | |
| 350mA | |
| 300mA |  |
Technical Specifications
| Bluetooth Transceiver | |
| Operation frequency | 2.4 GHz-2.483 GHz |
| Transmission power | 4.dBm |
| Range (Typical indoor] | 10~30m |
| Protocol | Bluetooth 5.0 SIG Mesh |
| Model No. | HED1009/BT | HED6010/BT | HED1025/BT | HED1040/BT | |
|
Input |
Mains Voltage | 220~240VAC 50/60Hz | |||
| Mains Current | 0.065~0.06A | 0.071~0.065A | 0.140~0.125A | 0.210~0.200A | |
| Power Factor | 0.9 | ||||
| Max. Efficiency | 80% | 82% | 85% | 85% | |
|
Output |
Ripple Current | <3% | <3% | <3% | <3% |
| Uout Max. | 45V | 52V | 60V | 65V | |
| Turn-on Time | <0.5s | <0.5s | <0.5s | <0.5s | |
| Dimming Interface | Switch-Dim | ||||
|
Environment |
Operation Temp. | -20 ~ +50℃ | -20 ~ +50℃ | -20 ~ +50℃ | -20 ~ +50℃ |
| Case Temp. (Max.) | 85℃ | 75℃ | 85℃ | 85℃ | |
| IP Rating | IP20 | IP20 | IP20 | IP20 | |
| Safetyand EMC | EMC Standard | EN55015, EN61547, EN61000-3-2/-3-3, EN300328, EN301489-1/-17, EN62479 | |||
| Safety Standard | EN61347-1, EN61347-2-13 | ||||
| Dielectric strength | Input→output: 3000VAC / 5mA /1min | ||||
| Abnormal protection | Output short-circuit protection, Overload Protection, Open-circuit Protection | ||||
| Model No. | Max. output power/current/voltage range | |||
| HED1009/BT | 2-6W/ 200mA /6-28V | 2-9W/ 400mA /6-22V | 2-9W/ 600mA /6-15V | |
| HED6010/BT | 1.5-8W/ 195mA /6-41V2.5- 12.8W/ 350mA /6-36V | 1.5-9W/ 230mA /6-41V2.5-12.8W/ 400mA /6-32V | 1.5-10W/ 250mA /6-41V3-12.5W/ 500mA /6-25V | 2-12W/ 300mA /6-41V |
| HED1025/BT | 2-15W/300mA /6-48V3-24W/500mA /6-46V4-25W/700mA /6-36V | 2-17W/350mA /6-48V3-24W/550mA /6-44V | 2-20W/400mA /6-48V4-25W/600mA /6-42V | 3-22W/450mA /6-48V4-25W/650mA /6-38V |
Mechanical Structure & Dimensions
HED1009/8T, 1x9W
HED6010/BT, 1x10W
HED1025/BT, 1x30W
HED1040/BT, 1x40W
Wire Preparation
To make or release the wire from the ferminal, use a ‘/ screwdriver to push down the button
Wiring Diagram
Model: HED1009/BT
Note: There is no need for any hardwirings on “push” ferminal befween one driver fo another. The installer only needs to connect the push switches to the nearest driver to save labor and cost. The push switches can be assigned to control any Bluetooth driver through the app commissioning.
Model: HED6010/BT
Note: There is no need for any hardwirings on “push” terminal between one driver fo another. The installer only needs fo connect the push switches to the nearest driver fo save labor and cost. The push switches can be assigned to control any Bluetooth driver through the app commissioning.
Model: HED1025/BT
Note: There is no need for any hardwirings on “push” terminal between one driver to another. The installer only needs to connect the push switches to the nearest driver to save labor and cost. The push switches can be assigned o control any Bluetooth driver through the app commissioning
Model: HED1040/BT
Note: CH1 & CH2 are working independently, meaning that they cannot be used with luminaires that share “+”. There is no need for any hardwirings on “push” terminal between one driver fo another. The installer only needs to connect the push switches to the nearest driver to save labor and cost. The push switches can be assigned to control any Bluetooth driver through the app commissioning.
Loading and In-rush Current
| Model | HEC6010/BT | HEC1025/BT | HED1040/BT |
| In-rush Current (Imax.) | 23A | 22A | 25A |
| Pulse Time | 30 µs | 18 µs | 15 µs |
Circuit Breaker Information
| Automatic circuit breaker type | B16A | B10A | B13A | B20A | B25A |
| HED1009/BT | 176 | 110 | 143 | 220 | 276 |
| HED6010/BT | 142 | 89 | 115 | 178 | 222 |
| HED1025/BT | 73 | 46 | 59 | 92 | 115 |
| HED1040/BT | 41 | 26 | 3 | 52 | 65 |
The data above is calculated according to the formula: Maximum Amount = 16/(Pn/230). In order to provide a more reliable reference in real application, the data have been revised to take 0% of the number calculated, i.e. 6/(Pn/230) x 60%. Please kindly take note that the calculation is based on ABB circuit breaker series $200. Actual values may differ due to different types of circuit breaker used and installation environment.
Performance Characteristics
HED1009/8T

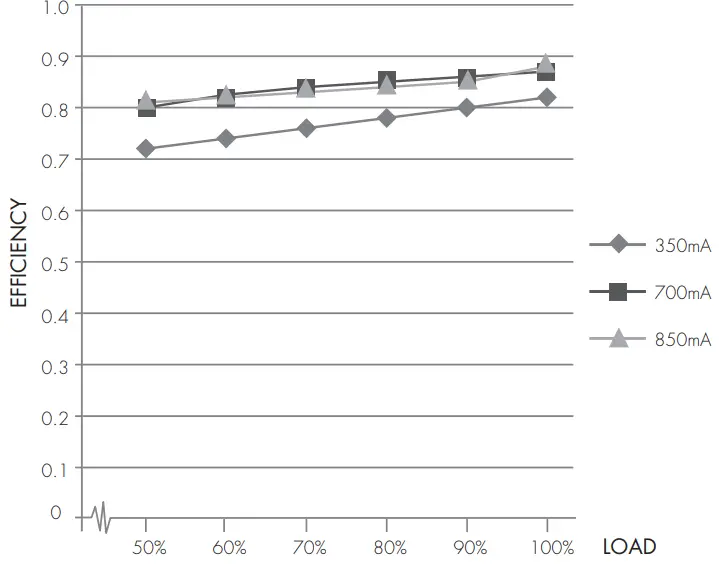

Typical Efficiency vs Load
Typical Power Factor vs Load

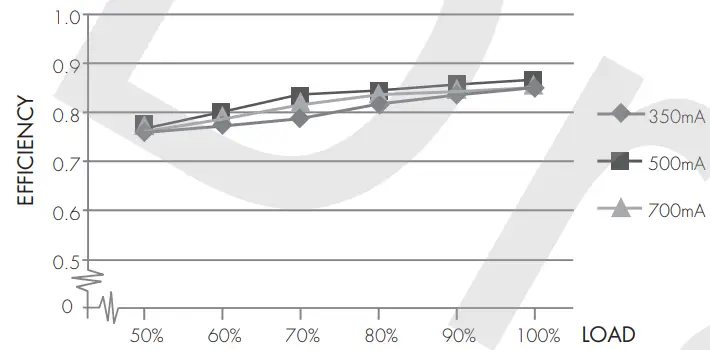

Typical Efficiency vs Load
Typical Power Factor vs Load
ypical Efficiency vs Load
Typical Power Factor vs Load
Typical Power Factor vs Load
Dimming Characteristics
Dim level
Dim Level
Dimming Profile
| Dimming range | Dimming technique |
| 0-1% | OFF |
| 1-10% | PWM |
| 10-100% | Analogue |
Dimming Interface Operation Notes
Switch-Dim
The provided SwitchDim interface allows for a simple dimming method using commercially available norlatching [momentary) wall switches. Up to 64 LED drivers maybe connected to one switch. Defailed Push switch configurations can be set on Koolmesh app.
| Switch Function | Action | Descriptions |
| Push switch | Short press (<1 second)* Short press has to be longer than 0.1s, or it will be invalid. |
|
| Double push |
|
|
| Long press (≥1 second) | Dimming- Do nothing | |
| Simulate sensor | / | Upgrade a normal on/off motion sensor to a Bluetooth controlled motion sensor |
Additional Information / Documents
- Regarding precautions for LED driver installation and operation, please kindly refer to
www.hytronik.com/download ->knowledge ->LED Drivers – Precautions for Product Installation and Operation - To leam more about detailed product features/functions, please refer to
www.hytronik.com/download>knowledge ->Introduction of App Scenes and Product Functions - Regarding precautions for Bluetooth product installation and operation, please kindly refer to
www.hytronik.com/download ->knowledge ->Bluetooth Producs – Precautions for Product Installation and Operation - Data sheet is subject to change without notice. Please always refer o the most recent release on
www.hytronik.com /products/bluetooth technology ->Bluetooth Drivers - Regarding Hytronik standard guarantee policy, please refer to wwew hytronk com,/download ~>knowdedge >Hytronik Standard Guarantee Policy.
