PIR Standalone Motion Sensor with 5.0 SIG Mesh
HBHC25
Low-bay
HBHC25/R
Reinforced Low-bay W
HBHC25/W
Wide range Low-bay
HBHC25/H
High-bay
HBHC25/RH
Reinforced High-bay
Contents
App Features
 |
Quick setup mode & advanced setup mode |
| Tri-level control | |
| Daylight harvest | |
| Circadian rhythm (Human centric lighting) | |
| Floorplan feature to simplify project planning | |
| Web app/platform for dedicated project management | |
| Koolmesh Pro iPad version for on-site conguration | |
| Grouping luminaires via mesh network | |
| Scenes | |
| Detailed motion sensor settings | |
| Dusk/Dawn photocell (Twilight function) | |
| Push switch conguration | |
| Schedule to run scenes based on time and date | |
| Astro timer (sunrise and sunset) | |
| Staircase function (primary & secondary) | |
| Internet-of-Things (IoT) featured | |
| Device rmware update over-the-air (OTA) | |
| Device social relations check | |
| Bulk commissioning (copy and paste settings) | |
| Dynamic daylight harvest auto-adaptation | |
| Power-on status (memory against power loss) | |
| Ofine commissioning | |
| Different permission levels via authority management | |
| Network sharing via QR code or keycode | |
| Remote control via gateway support HBGW01 | |
| Interoperability with Hytronik Bluetooth product portfolio | |
| Compatible with EnOcean BLE switches | |
| Continuous development in progress… |
Hardware Features
 |
80mA DALI broadcast output in 2 channels:- 50mA (Channel 1)- 30mA (Channel 2) |
| Support to control DT8 LED drivers | |
| 3 Push inputs for exible manual control | |
| Keep real time for up to 2 weeks against power failure | |
| IP20/IP54 Ceiling/Surface mount box available as accessory | |
| Two types of blind inserts / blanking plates | |
| User-friendly design for installation | |
| High bay version available (up to 15m in height) | |
| 5-year warranty |
Fully support EnOcean self-powered switch module PTM215B (HBES01/W & HBES01/B)
Web app/platform: www.iot.koolmesh.com
Technical Specifications
| Bluetooth Transceiver | |
| Operation frequency | 2.4 GHz – 2.483 GHz |
| Transmission power | 4 dBm |
| Range (Typical indoor) | 10~30m |
| Protocol | 5.0 SIG Mesh |
| Sensor Data | |
| Sensor Model | PIR max* detection range |
| HBHC25 | Installation Height : 6m Detection Range(Ø) :9m |
| HBHC25/R | Installation Height : 6m Detection Range(Ø) :10m |
| HBHC25/W | Installation Height : 6m Detection Range(Ø) :18m |
| HBHC25/H | Installation height ：15m (forklift) 12m (person) Detection range (Ø) ：24m |
| HBHC25/RH | Installation height ：20m (forklift) 12m (person) Detection range (Ø) ：40m |
| Detection angle | 360 |
| Input & Output Characteristics | |
| Stand-by power | <1W |
| Operating voltage | 220~240VAC 50/60Hz |
| DALI Channel 1 | 50mA, Max. 25 devices |
| DALI Channel 2 | 30mA, Max. 15 devices |
| Safety & EMC | |
| EMC standard (EMC) | EN55015, EN61000, EN61547 |
| Safety standard (LVD) | EN60669-1/-2-1 AS/NZS60669-1/-2-1 |
| RED | EN300328, EN301489-1/-17 |
| Certification | CB, CE , EMC, RED, RCM |
| Environment | |
| Operation temperature | Ta: -20 °C ~ +50 °C |
| IP rating | IP20 |
* For more details of detection range, please refer to “detection pattern” section.
Placement Guide and Typical Range
Smart Phone to Device Range
Wire Preparation
Subject to change without notice.
The smart device with the App installed will have a typical range of 10m, but varies from device to device. During commissioning, the installer will need to be in range of the devices when searching for devices to add to the network.
Once the devices have been added to the network via the App, the devices will start communicating within the wireless mesh.
This means that once the network is complete, all devices are accessible from the smart device when in a 20m range of a single point.

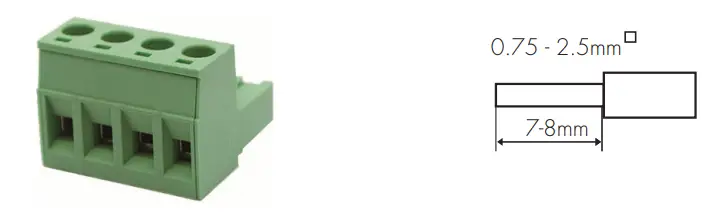

Pluggable screw terminal. It is recommended to make connections to the terminal before fitting to the sensor.

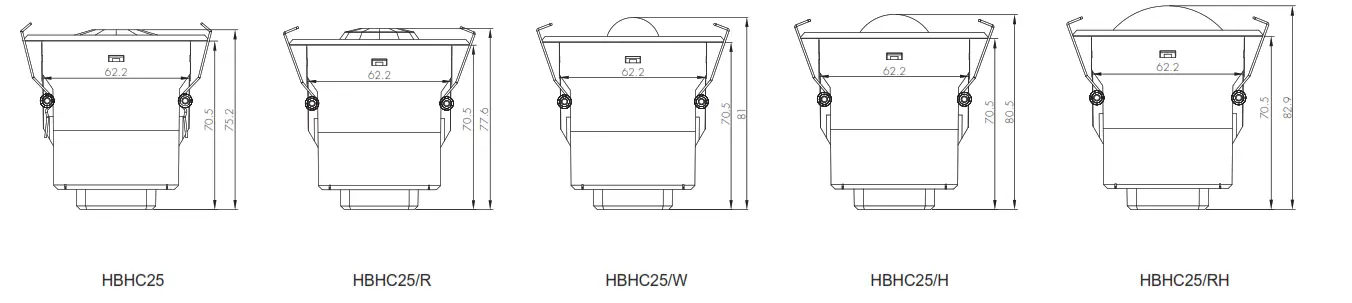

Mechanical Structure & Dimensions
- Ceiling (drill hole Ø 66~68mm)
- Carefully prise off the cable clamps.
- Make connections to the pluggable terminal blocks.
- Insert plug connectors and secure using the provided cable clamps, then clip terminal covers to the base.
- Fit detection blind (if required) and desired lens.
- Clip fascia to body.
- Bend back springs and insert into ceiling.

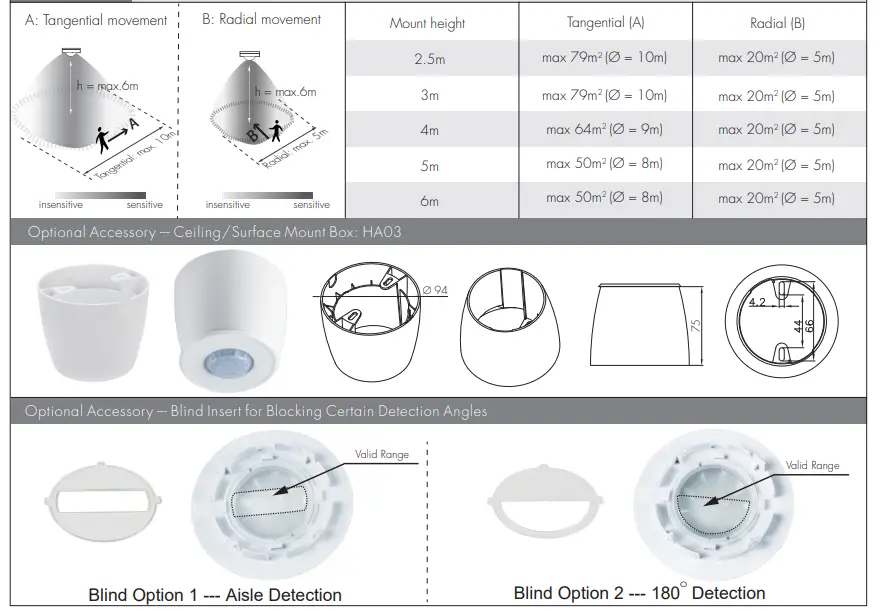

Detection Pattern & Optional Accessories
HBHC25 (Low-bay)

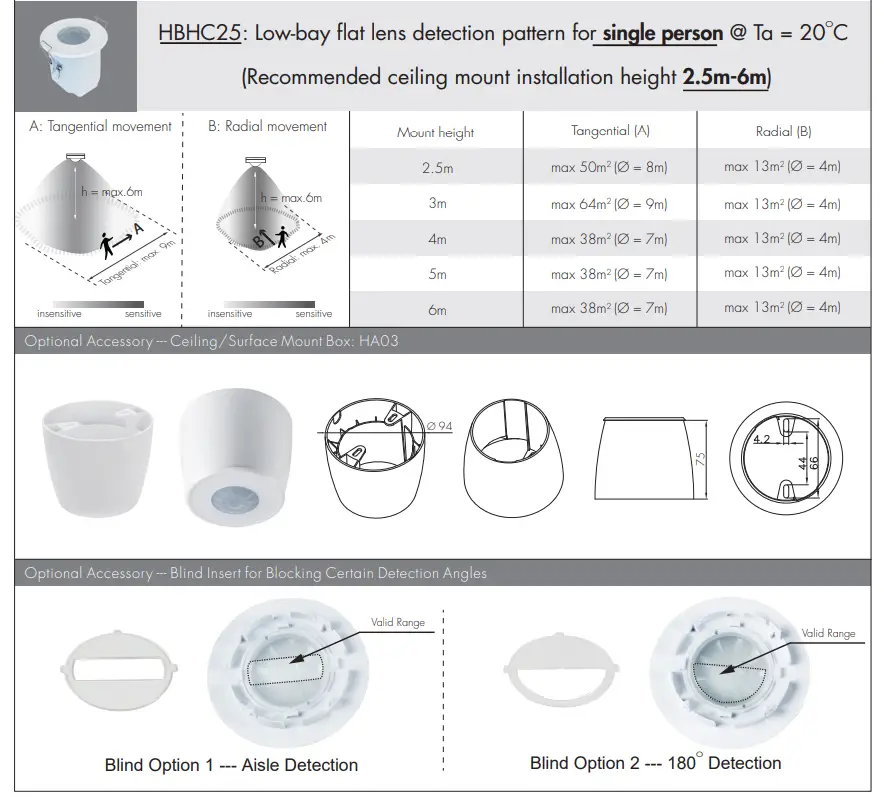

HBHC25: Low-bay flat lens detection pattern for single person @ Ta = 20 °C (Recommended ceiling mount installation height 2.5m-6m)
HBHC25/R (Reinforced Low-bay)
HBHC25/R: Low-bay convex lens detection pattern for single person @ Ta = 20 °C (Recommended ceiling mount installation height 2.5m-6m)
HBHC25/W (Wide range Low-bay)
HBHC25/W: Low-bay convex lens detection pattern for single person @ Ta = 20 °C (Recommended ceiling mount installation height 2.5m-6m)
HBHC25/H (High-bay)
HBHC25/H: High-bay lens detection pattern for forklift @ Ta = 20 °C (Recommended ceiling mount installation height 10m-15m)
HBHC25/RH (Reinforced High-bay with 3-Pyro)
HBHC25/RH: Reinforced high-bay lens detection pattern for forklift @ Ta = 20 °C (Recommended ceiling mount installation height 10m-20m)
Big and small silicon gasket used to make IP54 degree protection when HBHC25 series device mounted into HA03 housing for ceiling mount
Typical Application for Classroom (Human Centric Lighting)
Different from other complex system, Hytronik offer a simple yet decentralized one-stop solution to achieve Human Centric lighting. It cuts at least 50% to 60% in costs as compared to traditional complex wiring system. This solution is based on Bluetooth together with an intuitive and portable app; it does not require complicated PC tools to set up and configure. What’s more, our Bluetooth solution is futureproof with OTA upgrade capability. With services of tailor making Bluetooth solution including app, products, server and cloud, this solution brings flexibility and versatility to adapt to each customer’s requirements at affordable prices.
| What you need | What you get | |
 |
HBHC25 x 1 | • Bluetooth enabled and controllable via app • Human Centric Function • 2 DALI channels for whiteboard/electronic • PIR motion sensing display area and student area independently • Daylight Harvest |
 |
Push switches x 3 | •Manual control: brightness adjustment, colour tuning, recall scenes etc. |
 |
HHC2045 x 8 for LED panels HHC2050L x 4 for linear LED lights | •Tunable white LED driver (Can also be any other DALI DT8 drivers) |
 |
HBP02 x 1 (Optional) | • Bluetooth touch panel • Switchable between each scene • Can recall up to 6 scenes • Brightness adjustment,colour tuning |
 |
QCB01 x 2 with cables and plugs (Optional) | • Labour cost saved significantly • Simplify wiring on site via plug ‘n’ play • Hassle-free maintenance after installation |
 |
HBGWO1 gateway x 1 (Optional) | • Remote control access • Data collection and analysis |
| Free app | • Futureproof via OTA • Off-line commissioning |
|
| Cloud & server | • Settings data backup • Accounts security |
Wiring Diagram
Dimming Interface Operation Notes
Switch-Dim
The provided Switch-Dim interface allows for a simple dimming method using commercially available non-latching (momentary) wall switches.
Detailed Push switch configurations can be set on Koolmesh app.
| Switch Function | Action | Descriptions |
| Push switch | Short press (<1 second) * Short press has to be longer than 0.1s, or it will be invalid. |
– Turn on/off – Recall a scene – Turn on only – Exit manual mode – Turn off only – Do nothing |
| Double push | – Turn on only – Exit manual mode – Turn off only – Do nothing – Recall a scene |
|
| Long press (1 second) | – Dimming – Colour tuning – Do nothing |
|
| Simulate sensor | / | – Upgrade a normal on/off motion sensor to a Bluetooth controlled motion sensor |
Additional Information/Documents
- To learn more about detailed product features/functions, please refer to www.hytronik.com/download ->knowledge ->Introduction of App Scenes and Product Functions
- Regarding precautions for Bluetooth product installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->Bluetooth Products – Precautions for Product Installation and Operation
- Regarding precautions for PIR Sensors installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->PIR Sensors – Precautions for Product Installation and Operation
- Data sheet is subject to change without notice. Please always refer to the most recent release on www.hytronik.com/products/bluetooth technology ->Bluetooth Sensors
- Regarding Hytronik standard guarantee policy, please refer to www.hytronik.com/download ->knowledge ->Hytronik Standard Guarantee Policy
Subject to change without notice.
