Hortensus HOR-SFL10W Solar Floodlight 10W Owner’s Manual

Contents

Hortensus-HOR-SFL10W-Solar-Floodlight-10W-product

Hortensus-HOR-SFL10W-Solar-Floodlight-10W-fig-1

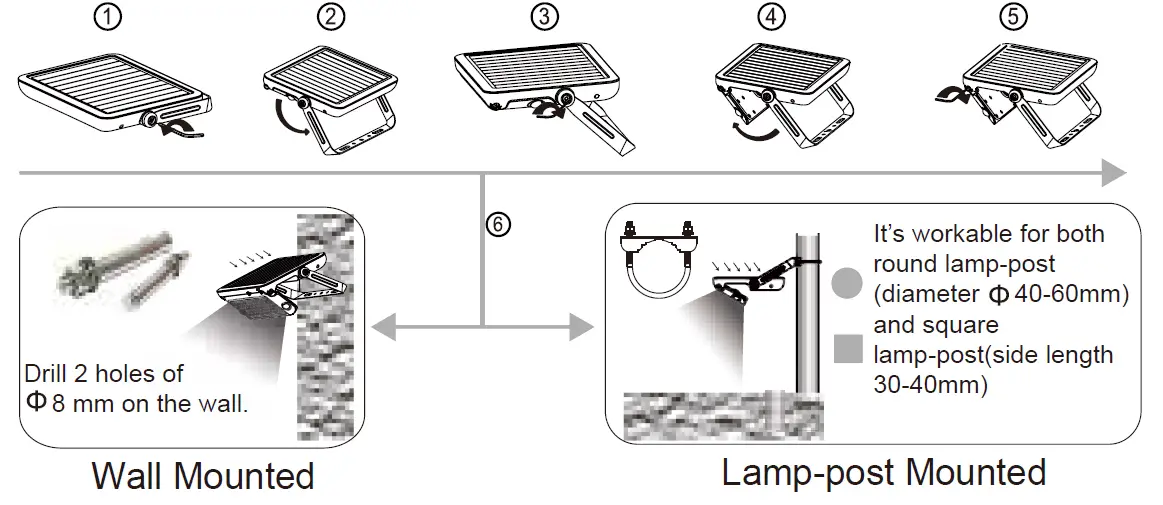

Prepare lamp, accessories and tools well firstly.
Use the allen wrench to loosen the bracket (see picture1), adjust it to the appropriate angle(see picture2) and then fix the screw tightly(see picture3).
Use the allen wrench to loosen the light panel, pull it out and adjust to your demanded lighting angle(see picture4), then fix the screws tightly (see picture5)
Fix the lamp onto the wall or lamp-post(see picture6).

This is a solar powered lamp, please install it in a location where can get enough sunshine.
Please note the lighting time depends on sunshine duration & weather.
The lamp will light up automatically at dusk.
Built-in intelligent IC is with over-charge, over-discharge and over-voltage protection.
The lamp is equipped with an internal battery pack, which is replaceable. If any need, please contact seller for correct new battery pack.
If the battery is taken out and put back in or replaced with new ones, please
ard the solar panel to sunshine or a strong light to activate the lamp.
Non-professionals please do not disassemble the lamp.
Please do not dispose the battery with household garbage to avoid explosion.

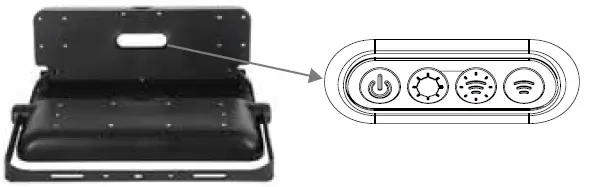

Please press the buttons and adjust to the demanded working mode. Charge 6 hours one day, it can work for 3-4 nights.

Hortensus-HOR-SFL10W-Solar-Floodlight-10W-fig-2

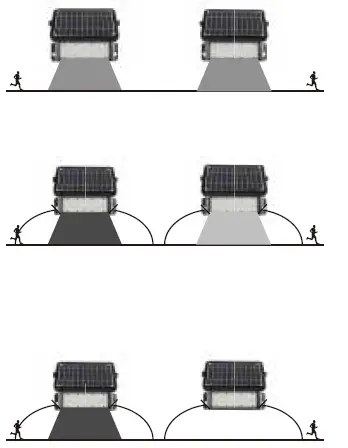

On/Off
Automatically turns on at dusk and remains 20% brightness.
Automatically turns on to full brightness(1080Im) when motion is detected in the range ≤8mtrs and then turns to 3% brightness in 20 seconds of no motion.
Automatically turns on to full brightness (1080lm) when motion is detected in the range ≤8mtrs and then turns off in 30 seconds of no motion.

Hortensus-HOR-SFL10W-Solar-Floodlight-10W-fig-3

Product Name	Multifunctional Solar LED Flood Light
Power/Lumen	10W/1080 LM
LEDs	SMD2835*60PCS
Li-ion Battery	18650/3.7V/7200mAh, replaceable
Solar Panel	6Wp, mono Crystalline Silicon
Lighting Panel	135°Adjustable
Bracket	360°Adjustable
IP Degree	IP65 waterproof
Beam Angle	90°
Detection Angle/Area	180° / ≤8Mtrs
Dimension	30021535MM
Installation Height	≤4Mtrs
lifespan	35,000hrs
Warranty	24 months warranty (12 months warranty for battery)

Confinity NV, Dorp 16, 9830, Sint-Martens-Latem, Belgium declares the following device in sole responsibility:

Complies with the following harmonization rules:

Signed for and on behalf of:
Sint-Martens-Latem, Belgium – NOV 2022 A. Pappijn – Product Manager
